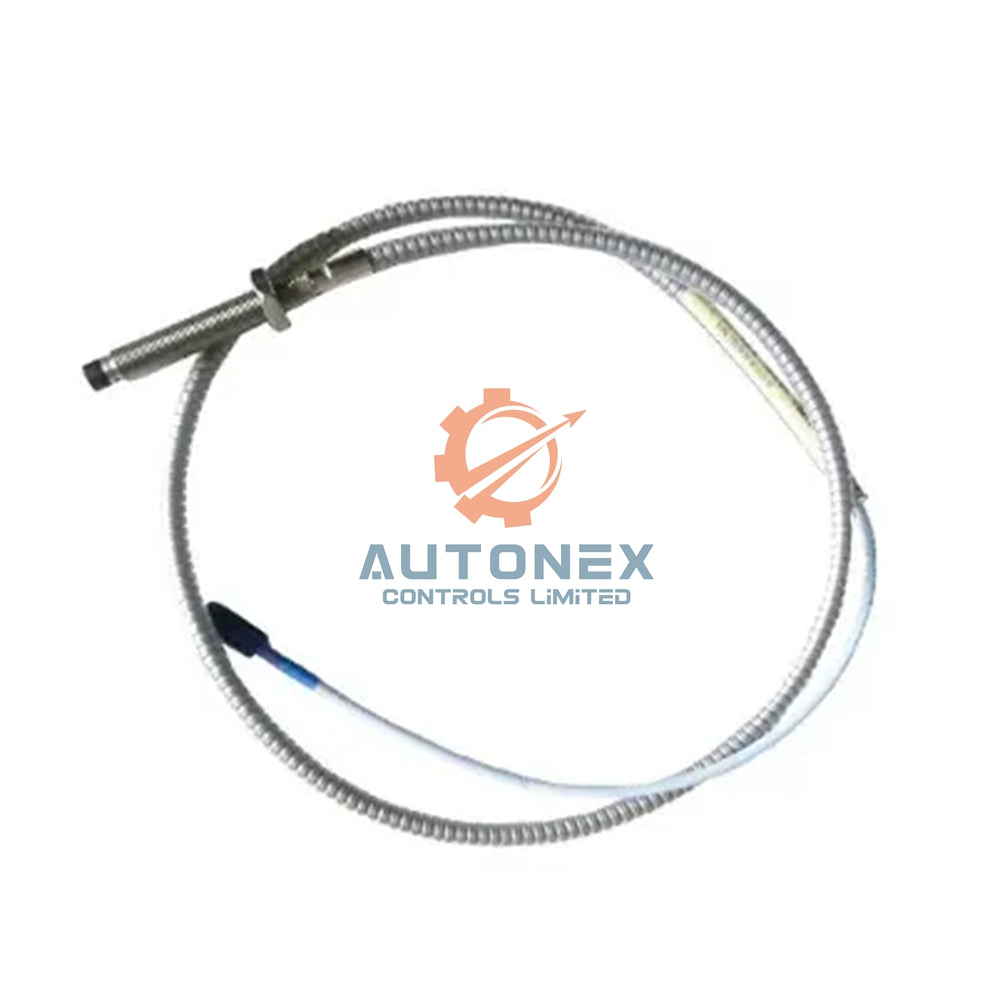

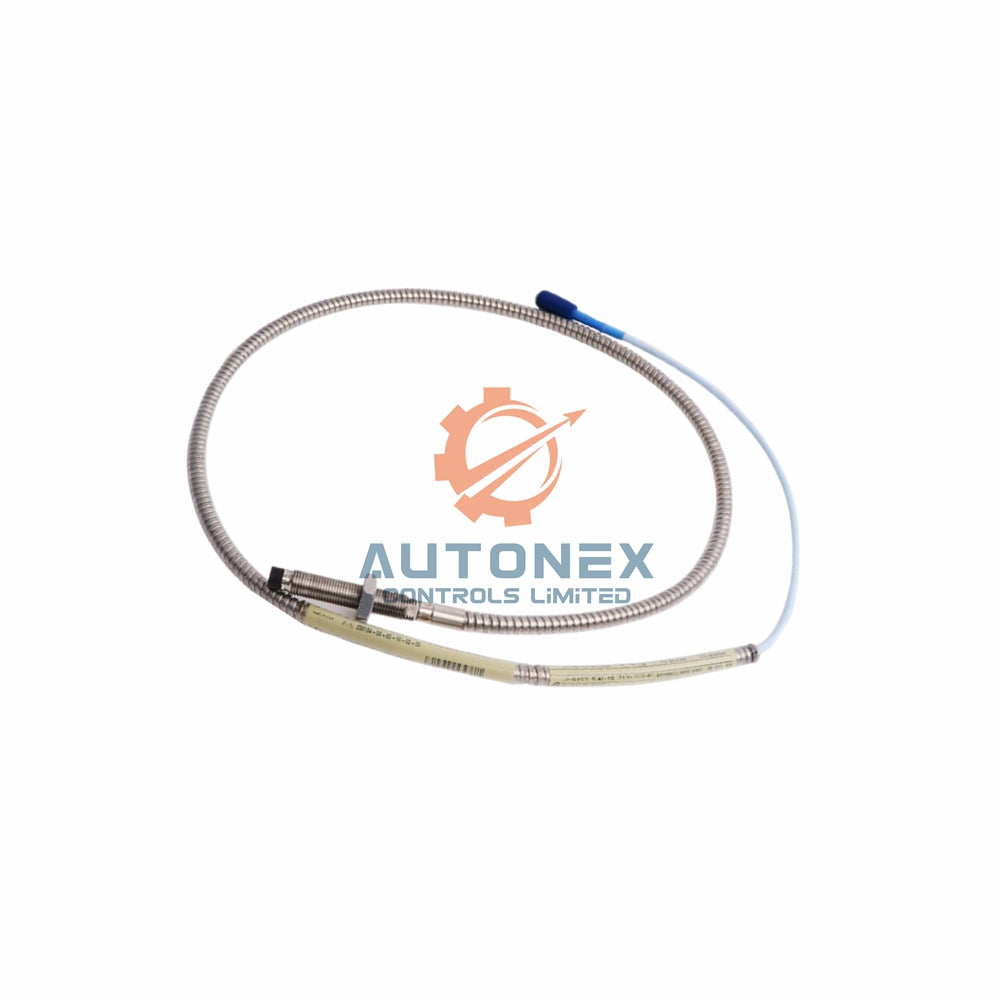

330192-00-08-30-CN Bently Nevada 3300 XL 8 mm Probe

Bently Nevada 3300 XL 8 mm ETR Probe – Model 330192-00-08-30-CN

Technical Specifications

• Brand: Bently Nevada
• Model: 330192-00-08-30-CN
• Probe Type: 3300 XL 8 mm ETR Probe, 3/8-24 UNF thread, with armor
• Unthreaded Length Option: 0.0 inches minimum. Unthreaded length must be at least 0.8 inches less than case length.
• Overall Case Length Option: 08 = 0.8 inches
• Total Length Option: 30 = 3.0 meters
• Agency Approval Option: CN = Country Specific
• Probe DC Resistance (3.0m): 8.17 ± 0.50 Ω (center to outer conductor)
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Case Thread: 3/8-24, maximum thread engagement 0.563 inches
• Relative Humidity Performance: Less than 3% change in Average Scale Factor (ASF) after 56 days at 93% humidity (IEC 68-2-3)
• Standard Temperature Range: -52°C to +177°C (-62°F to +350°F)
• Extended Temperature Range (Tip): -52°C to +218°C (-62°F to +425°F)
• Extended Temperature Range (Cable & Connector): -51°C to +260°C (-60°F to +500°F)
• Pressure Seal Note: Bently Nevada does not pressure test probes before shipment. Contact custom design for seal testing needs.
• Low Temperature Caution: Temperatures below –34°C (-30°F) may damage the pressure seal.

Frequently Asked Questions (FAQ)

• Is the 330192-00-08-30-CN new and original?
  Yes, we supply only brand new and original Bently Nevada parts.
• What does the CN approval option mean?
  The CN option stands for Country Specific approval instead of CSA/ATEX/IECEx.
• What happens if my operating temperature drops below -34°C?
  Exposure below -34°C may cause premature failure of the pressure seal.
• Can I use this probe in high humidity for long periods?
  Yes, the probe shows less than 3% ASF change after 56 days at 93% humidity.
• Do you test the pressure seal before shipping?
  Bently Nevada does not pressure test probes. We recommend contacting their custom design team if you need seal testing.
• How long is the total cable length?
  The total length option 30 means the probe has a 3.0 meter cable.
• What is the maximum thread engagement for the 3/8-24 thread?
  Maximum thread engagement length is 0.563 inches.
