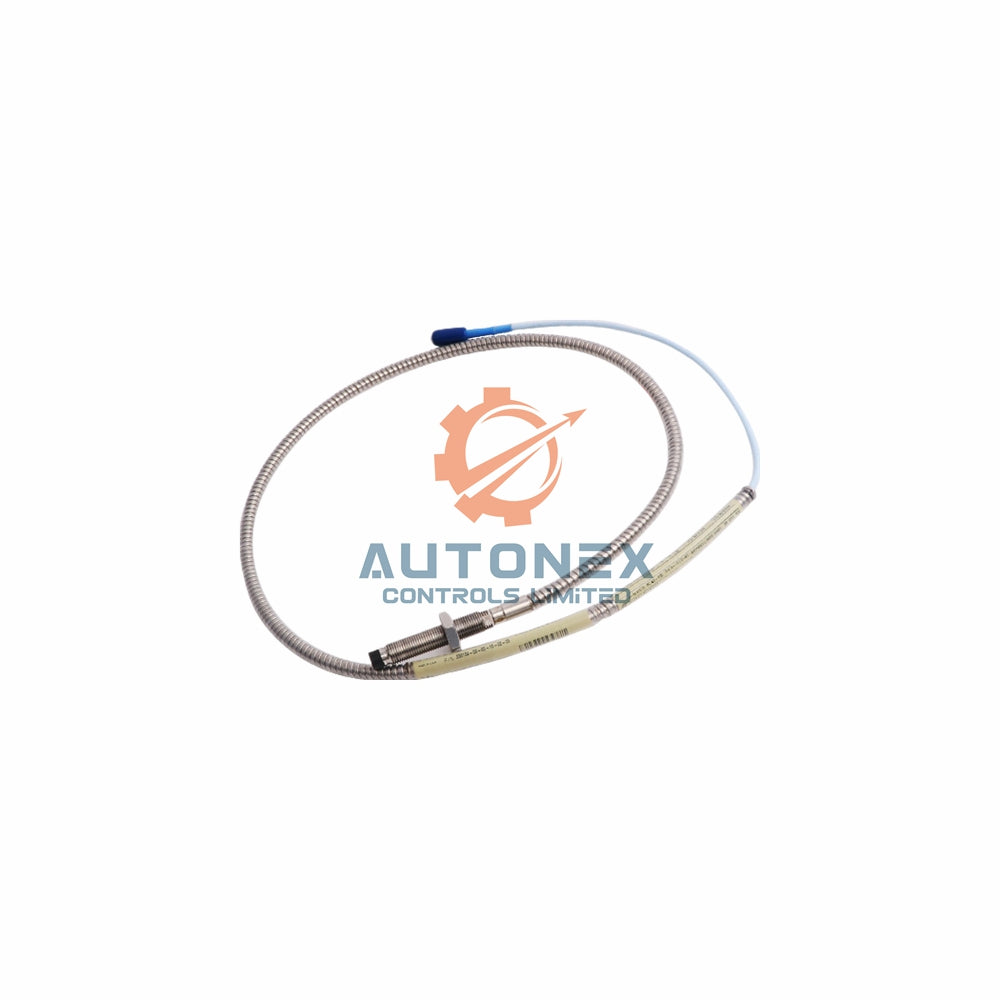

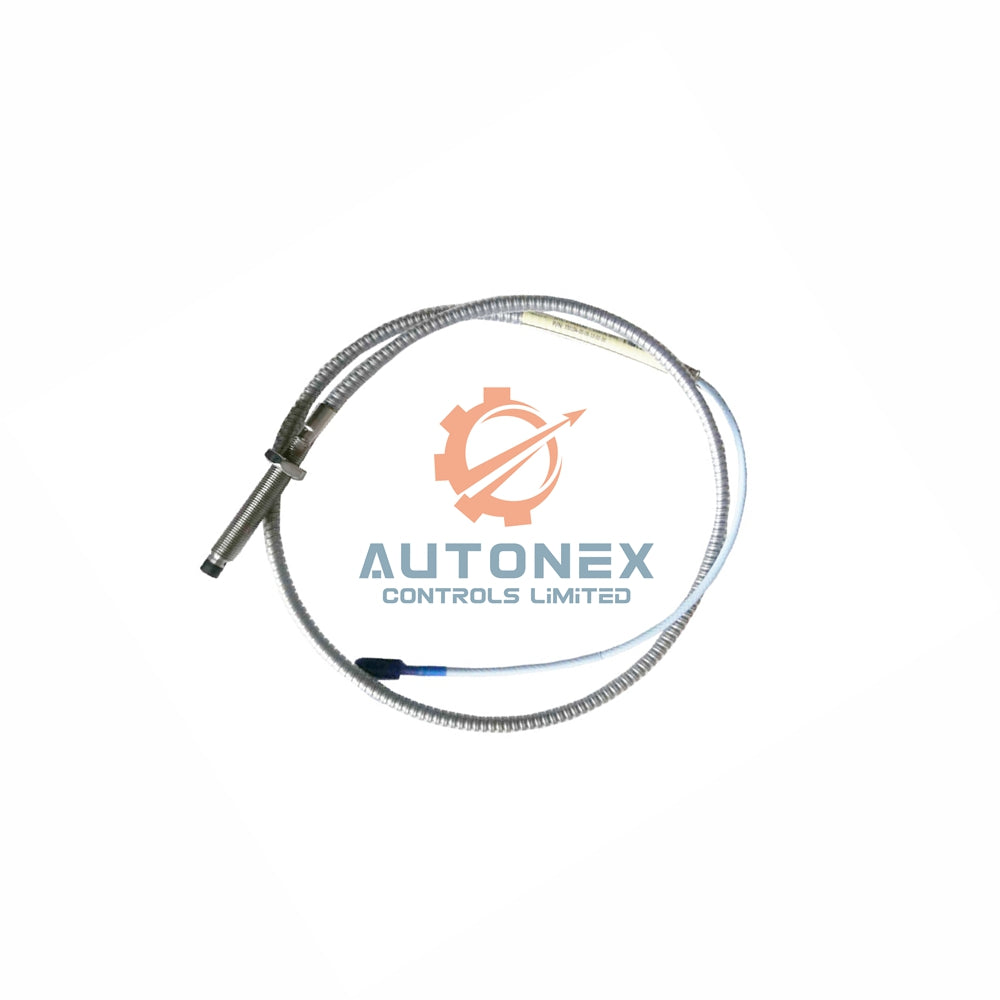

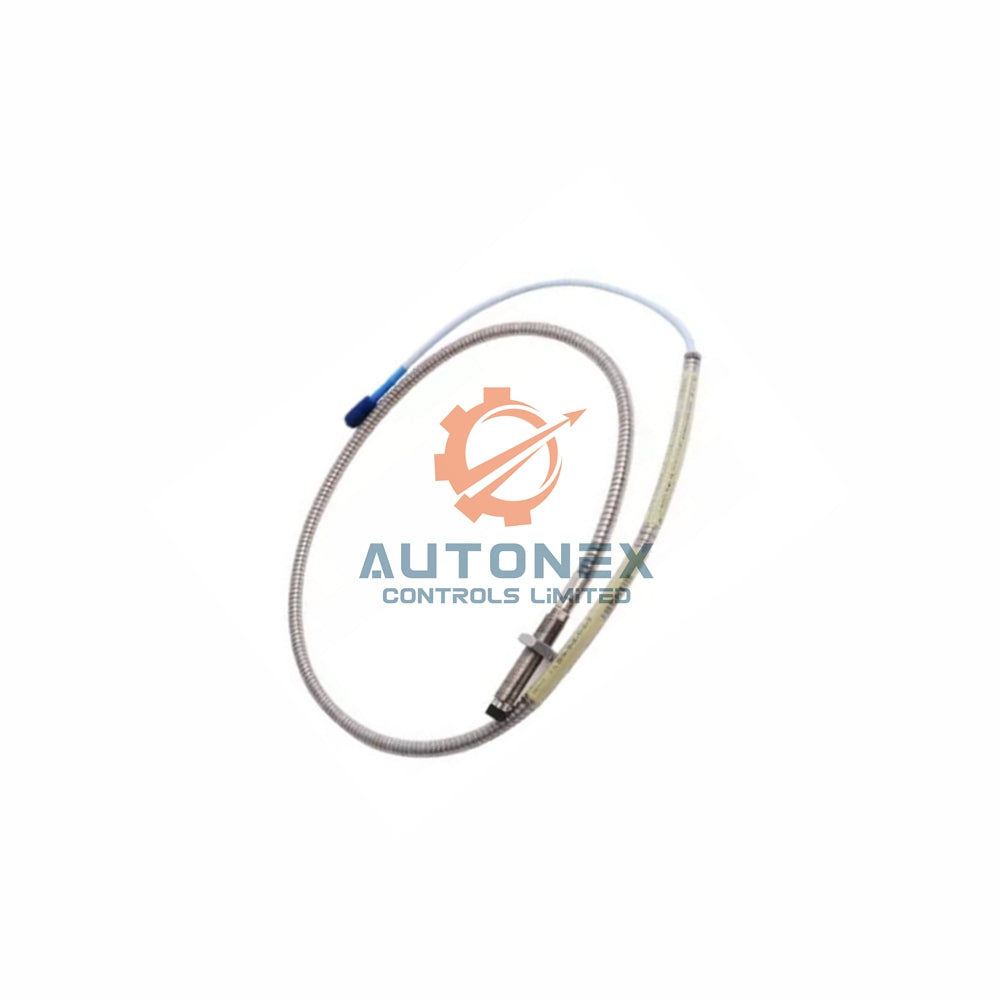

330174-00-09-10-02-CN Bently Nevada 5mm Proximity Probe 90mm

Bently Nevada 330174-00-09-10-02-CN 5 mm Proximity Probe

Core Technical Specifications

• Manufacturer & Series: Bently Nevada 3300 series – the 330174-00-09-10-02-CN features a durable AISI 304 stainless steel case.
• Probe Dimensions & Tip: Polyphenylene sulfide (PPS) tip with M8 x 1 thread; overall case length is 90 mm for deep installation points.
• Cable Assembly: Comes with a 1.0 m (3.3 ft) 75 Ω triaxial, FEP insulated cable and a miniature coaxial ClickLoc connector.
• Electrical Characteristics: Output resistance 50 Ω, sensitivity <2 mV per volt input change, and probe DC resistance 7.59 Ω ±0.50 Ω (for 1.0 m cable).
• Environmental Tolerance: Reliable operation from –35 °C to +177 °C (–31 °F to +351 °F).
• Mechanical Limits: Tensile strength 222 N (50 lbf); recommended case torque 5.1 N·m (max 7.3 N·m). Connector torque max 0.565 N·m.
• Weight & Certification: Lightweight at 0.323 kg, made in U.S.A. with country-specific CN approval.

Frequently Asked Questions

• Is the Bently Nevada 330174-00-09-10-02-CN a brand-new genuine part?
  Yes, we supply only authentic, factory-sealed units with full manufacturer specifications.
• What makes this 90 mm case version special?
  This model features a 90 mm case length and 1.0 m cable, ideal for applications requiring a deeper probe reach with a shorter lead.
• Do you have the 330174-00-09-10-02-CN in stock?
  Yes, we maintain stock and typically dispatch orders within 5 days.
• Which shipping carriers do you use?
  We ship globally via DHL, FedEx, and UPS – you can select your preference at checkout.
• What is the return policy for this probe?
  We offer a 30-day return window for unused items in original packaging.
• Can this probe withstand high temperatures?
  Yes, it operates from –35 °C to +177 °C, suitable for turbines and compressors.
• Does the 1.0 m cable include the ClickLoc connector?
  Yes, it terminates with a miniature coaxial ClickLoc for secure and quick installation.

Download the detailed 3300 5 mm Transducer System Datasheet (172036) here: 3300-5mm-Datasheet-172036.pdf. This document includes complete mounting instructions and performance curves.
