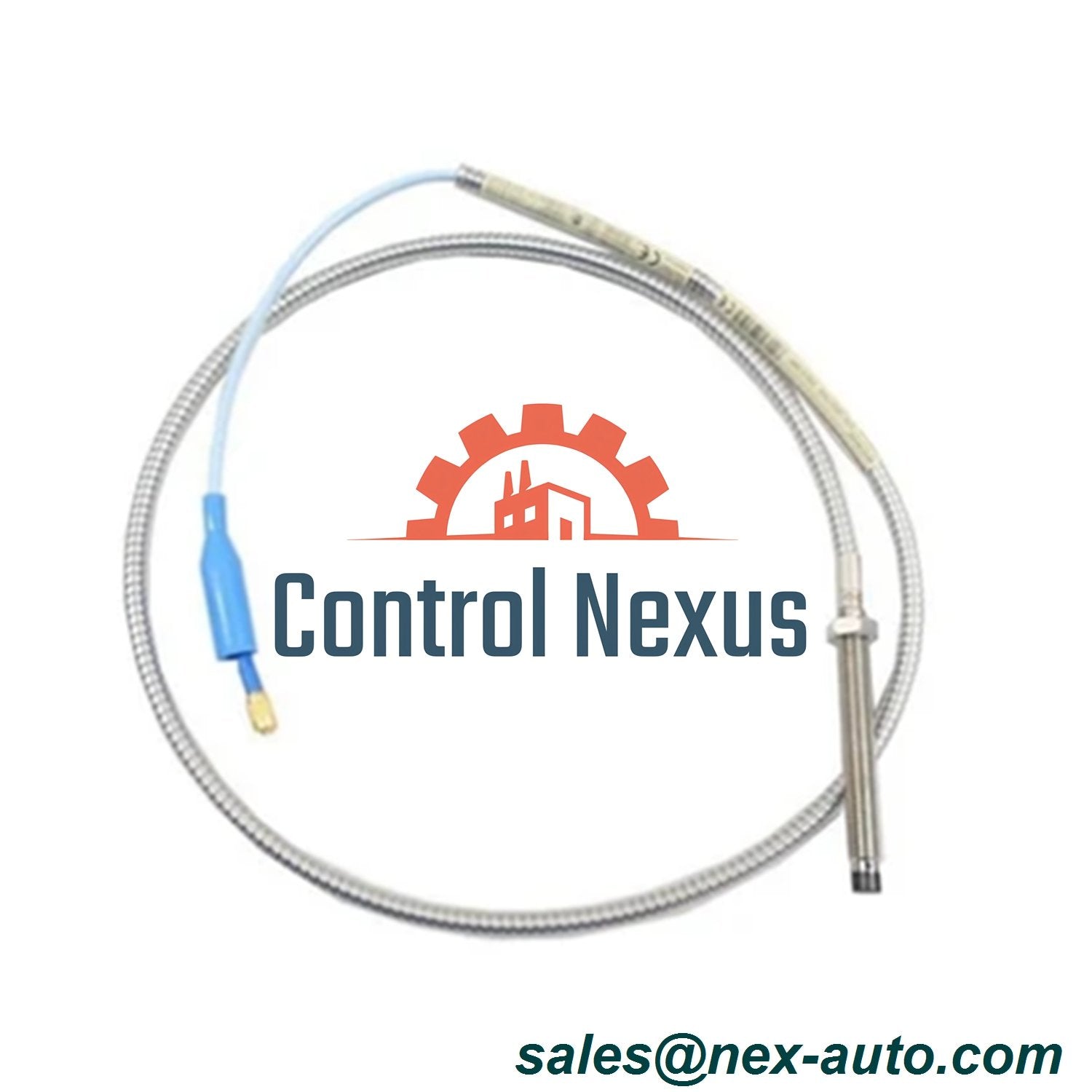

330174-00-08-05-02-05 Bently Nevada 5mm Proximity Probe Sensor

330174-00-08-05-02-05 Bently Nevada 5 mm Proximity Probe – Extended Length Vibration Transducer

Comprehensive Technical Specifications

• Brand & Model: Genuine Bently Nevada 330174-00-08-05-02-05 from the industry-standard 3300 5 mm Transducer System series.
• Electrical Parameters: Requires -17.5 Vdc to -26 Vdc power supply with 12 mA maximum current draw. Output resistance measures 50 Ω for reliable signal transmission.
• Sensitivity Performance: Delivers exceptional linearity with less than 2 mV output change per volt of input variation. DC resistance is 7.45 Ω ± 0.50 Ω for the 0.5 m cable.
• Mechanical Configuration: Employs M8 x 1 threaded mounting with 80 mm overall case length. Case constructed from AISI 304 stainless steel for maximum durability.
• Tip Construction: Probe tip utilizes high-performance Polyphenylene sulfide (PPS) material ensuring consistent proximity sensing in harsh environments.
• Cable Assembly: Includes 0.5 meter (1.6 ft) triaxial cable with 75 Ω impedance and FEP insulation. Features miniature coaxial ClickLoc connector for secure termination.
• Environmental Capability: Operates reliably from -35°C to +177°C (-31°F to +351°F). Minimum cable bend radius is 25.4 mm (1.0 in).
• Installation Torque Values: Recommended case torque is 5.1 N·m (45 in·lb) with absolute maximum 7.3 N·m (65 in·lb). Connector torque maximum is 0.565 N·m.
• Physical Specifications: Tensile strength rated at 222 N (50 lbf). Total assembly weight is 0.323 kg for convenient handling during installation.
• Agency Approvals: This 330174-00-08-05-02-05 variant carries Option 05 multiple agency approvals for global installation compliance.

Frequently Asked Questions (FAQ)

• Is the 330174-00-08-05-02-05 factory-new with full warranty?
  Yes, we supply only 100% genuine, factory-sealed 330174-00-08-05-02-05 sensors with complete manufacturer traceability and documentation.
• What does the Option 05 approval signify?
  Option 05 indicates multiple agency approvals including CSA, ATEX, and IECEx certifications for worldwide hazardous area installations.
• Why choose the 80 mm case length version?
  The 80 mm overall case length provides additional reach for machinery with thicker bearing housings or specialized mounting configurations.
• Do you have this specific configuration in stock?
  Yes, we maintain inventory of the 330174-00-08-05-02-05 with 80 mm case and 0.5 m cable ready for immediate dispatch.
• What is your shipping timeframe for this probe?
  We process orders within 24 hours. Delivery typically takes 3-5 business days worldwide via our express shipping partners.
• Which carriers do you utilize for international shipments?
  We ship exclusively with DHL, FedEx, and UPS to ensure reliable tracking and prompt delivery for your 330174-00-08-05-02-05 order.
• What is your return policy on Bently Nevada sensors?
  We offer 30-day returns on unopened, original packaging. The probe must remain in resalable condition with all factory seals intact.
• What is the advantage of FEP insulated triaxial cable?
  FEP insulation provides excellent chemical resistance and high-temperature performance while maintaining precise 75 Ω impedance for signal accuracy.

Download the 3300 5 mm Transducer System Datasheet (PDF) for complete technical specifications on the 330174-00-08-05-02-05 and compatible system components.
