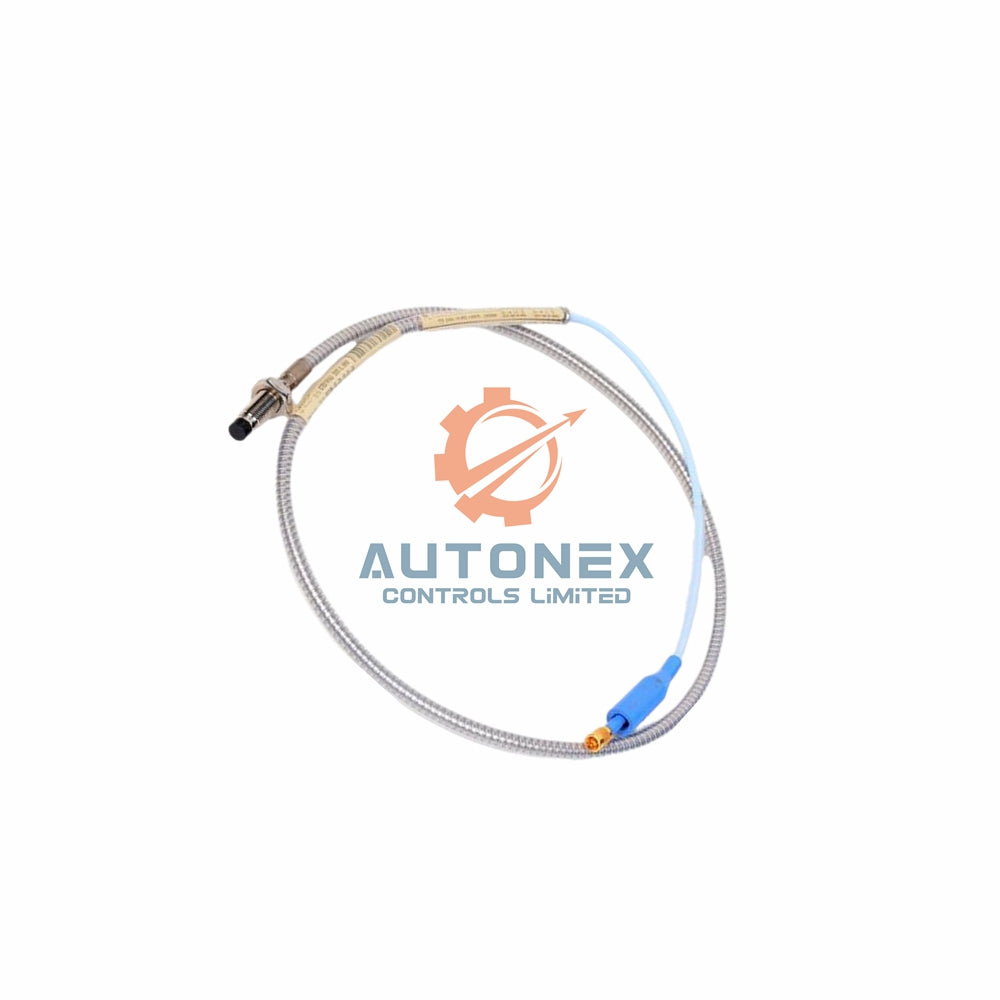

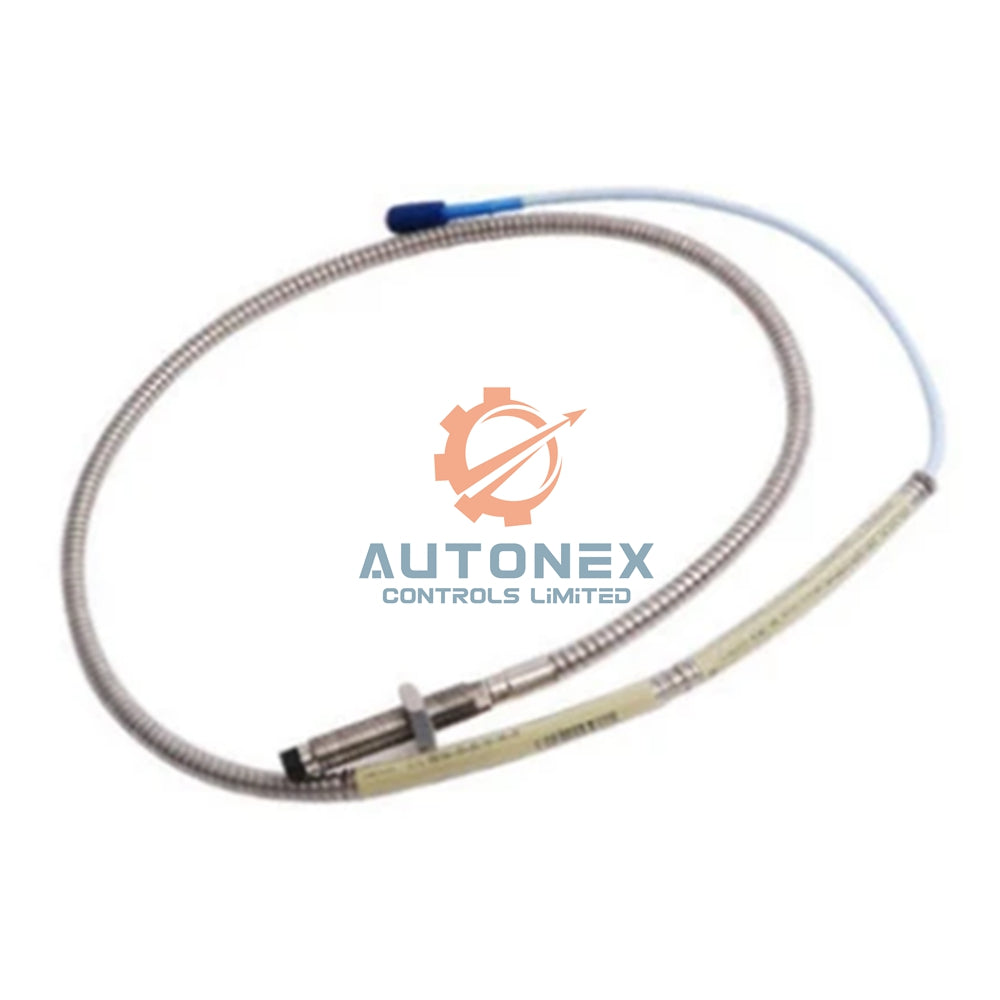

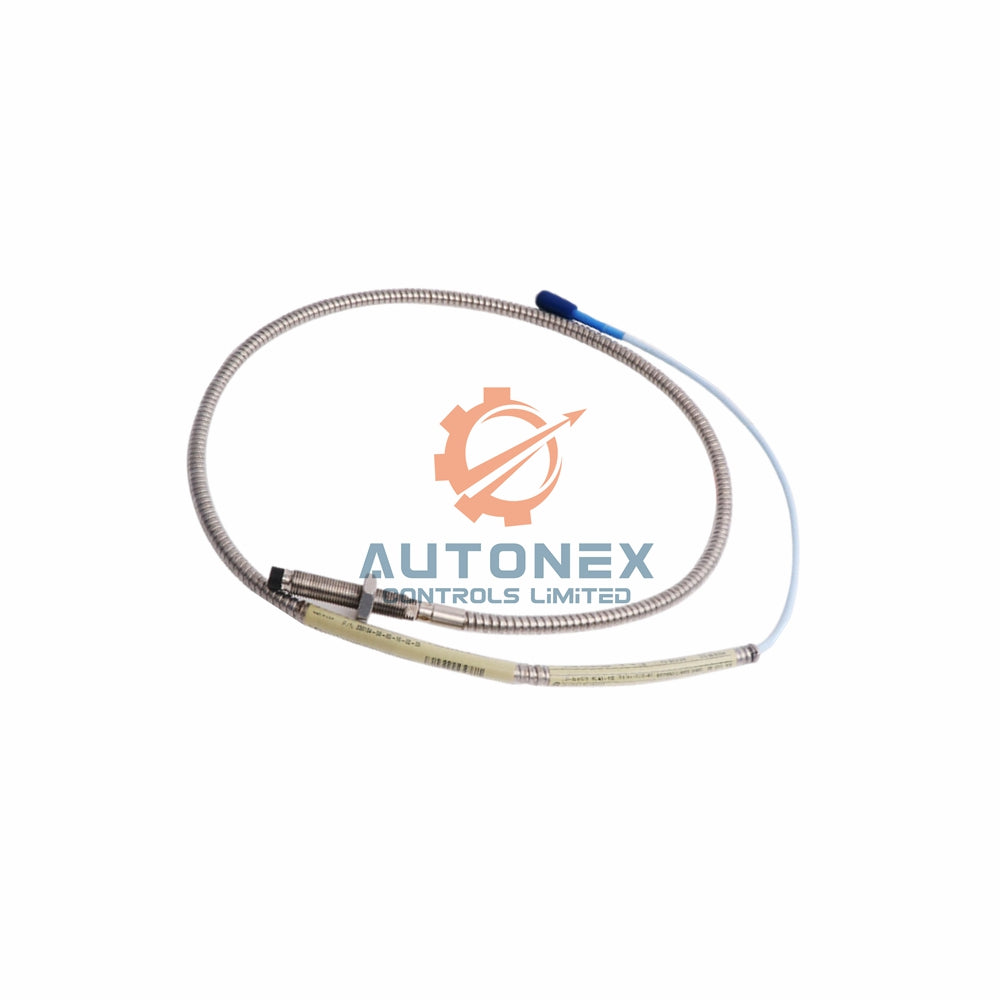

330174-00-06-10-02-CN Bently Nevada M8 Thread 60mm Probe

330174-00-06-10-02-CN Bently Nevada 5 mm Proximity Probe – Extended Case Vibration Sensor

Detailed Technical Specifications

• Manufacturer & Model: Genuine Bently Nevada 330174-00-06-10-02-CN from the trusted 3300 5 mm Transducer System series.
• Power Requirements: Operates on -17.5 Vdc to -26 Vdc power supply with 12 mA maximum current consumption for efficient performance.
• Sensing Accuracy: Provides exceptional linearity with sensitivity below 2 mV output change per volt of input variation. DC resistance measures 7.59 Ω ± 0.50 Ω.
• Mechanical Dimensions: Utilizes M8 x 1 thread with 60 mm overall case length. Case material features AISI 304 stainless steel for corrosion resistance.
• Probe Construction: Tip employs durable Polyphenylene sulfide (PPS) material for reliable proximity sensing in harsh industrial environments.
• Cable Assembly: Includes 1.0 meter (3.3 ft) triaxial cable with 75 Ω impedance and FEP insulation. Miniature coaxial ClickLoc connector ensures secure termination.
• Environmental Rating: Functions reliably from -35°C to +177°C (-31°F to +351°F). Minimum cable bend radius is 25.4 mm (1.0 in).
• Installation Specifications: Recommended case torque is 5.1 N·m (45 in·lb) with maximum 7.3 N·m (65 in·lb). Connector torque maximum is 0.565 N·m.
• Physical Properties: Tensile strength rated at 222 N (50 lbf). Total assembly weight is 0.323 kg for easy handling during installation.

Frequently Asked Questions (FAQ)

• Is the 330174-00-06-10-02-CN a brand new authentic Bently Nevada product?
  Yes, we supply only 100% genuine, factory-new 330174-00-06-10-02-CN sensors in original sealed packaging with full traceability.
• What makes this 60 mm case version different from standard probes?
  The 60 mm overall case length provides additional installation depth for applications requiring the probe to reach through thicker machine casings.
• Do you have this specific CN approval version in stock?
  Yes, we maintain inventory of the 330174-00-06-10-02-CN with country-specific approvals ready for immediate dispatch.
• What is the shipping timeframe for this proximity probe?
  We ship within 24-48 hours of order confirmation. Delivery typically takes 3-5 business days worldwide via our express partners.
• Which carriers do you use for international shipping?
  We ship exclusively with DHL, FedEx, and UPS to ensure reliable tracking and timely delivery for your 330174-00-06-10-02-CN order.
• What is your return policy on Bently Nevada sensors?
  We offer 30-day returns on unopened, original packaging. The probe must remain in resalable condition with all factory seals intact.
• Can you explain the triaxial cable benefit?
  The 75 Ω triaxial construction with FEP insulation provides superior signal protection and chemical resistance compared to standard coaxial cables.

Download the 3300 5 mm Transducer System Datasheet (PDF) for complete technical specifications on the 330174-00-06-10-02-CN and related components.
