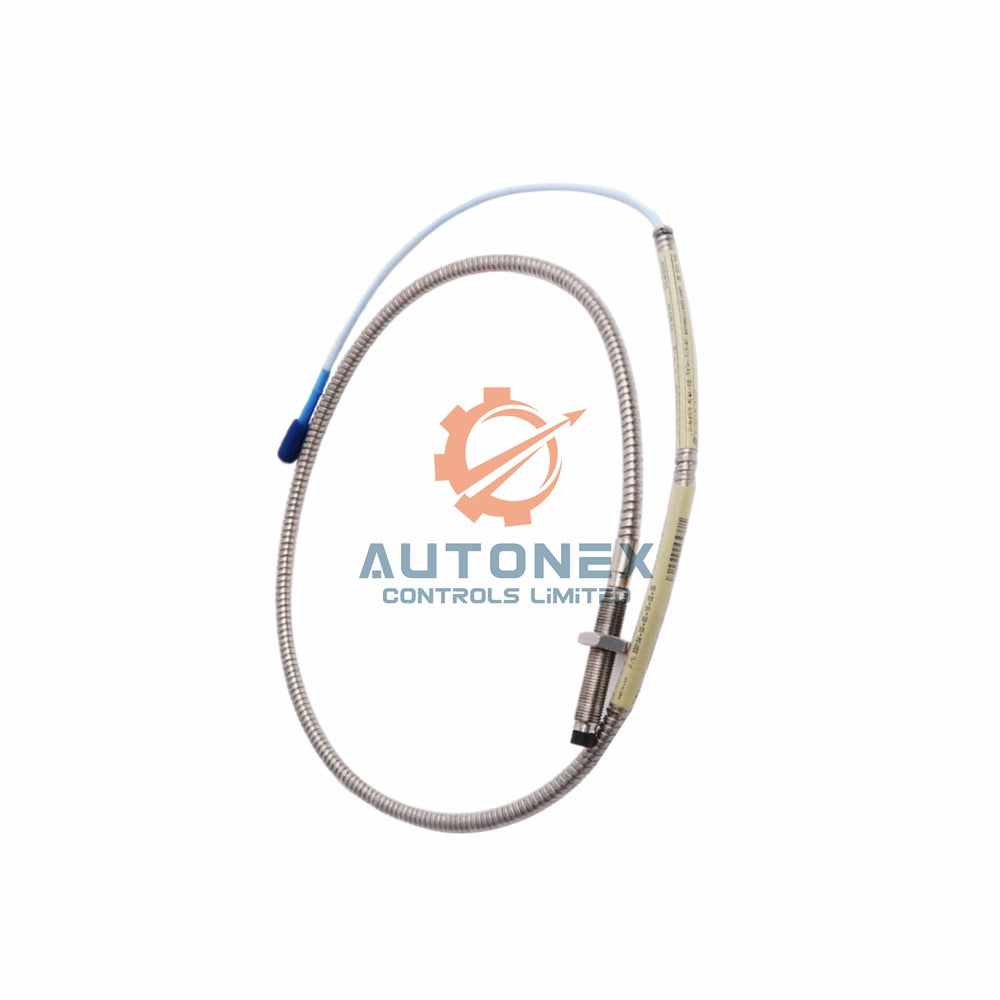

330102-00-40-10-02-00 3300 XL Probe Bently Nevada

3300 XL 8 mm Proximity Probes by Bently Nevada

Key Technical Specifications

• Linear Range: 2 mm (80 mils), starting at 0.25 mm (10 mils) from the target.
• Recommended Gap (Radial Vibration): -9 Vdc, approximately 1.27 mm (50 mils).
• DC Resistance (RPROBE): 7.59 ± 0.50 Ω for the 1.0 meter probe length.
• Field Wiring: 0.2 to 1.5 mm² (16-24 AWG), 3-conductor shielded triad, max 305 m (1000 ft).
• Probe Tip Material: Polyphenylene sulfide (PPS) for rugged durability.
• Probe Case Material: AISI 303 or 304 stainless steel (SST).

Environmental & Mechanical Ratings

• Standard Temp Range: -52°C to +177°C (-62°F to +350°F).
• Extended Temp Range (Tip): -52°C to +218°C (-62°F to +425°F).
• Relative Humidity: Less than 3% ASF change after 56 days at 93% RH (IEC 68-2-3).
• Thread Engagement: 3/8-24 UNF, maximum length 0.563 inches.
• Weight: 323 g/m (11.4 oz per meter).
• Pressure Seal: Viton® O-ring seals differential pressure (factory testing available on request).

Hazardous Area Approvals

• Intrinsically Safe (ia): Class I, Zone 0 AEx/Ex ia IIC T5…T1 Ga; Class I, Groups A,B,C,D; Class II/III.
• Non-incendive (nA/ec): Class I, Zone 2 AEx/Ex nA IIC T5…T1 Gc; Class I, Div 2, Groups A,B,C,D.
• Temperature Schedule (Probe only): T1 (-55°C to +232°C) through T5 (-55°C to +40°C) for EPL Ga/Gc.
• Complies with EPL Dc temperature classifications from T280°C to T90°C.

Frequently Asked Questions (FAQ)

• Q: What is the exact linear range for the 3300 XL probe?
  A: It provides a 2 mm (80 mil) linear range from 0.25 mm to 2.3 mm (10 to 90 mils) from the target.
• Q: Can I use this probe with extended field wiring lengths?
  A: Yes, up to 305 meters (1000 feet) using 3-conductor shielded triad cable; check frequency response for signal rolloff.
• Q: What is the recommended gap setting for radial vibration?
  A: Set the gap to -9 Vdc, which corresponds to approximately 1.27 mm (50 mils).
• Q: Is the probe suitable for high-temperature applications?
  A: Yes, the extended temperature range probe tip withstands -52°C to +218°C (-62°F to +425°F).
• Q: Do you have this model in stock?
  A: Yes, we keep the 330102-00-40-10-02-00 in stock for immediate delivery.
• Q: What are the agency approvals for hazardous areas?
  A: It carries AEx/Ex ia IIC T5…T1 Ga (Zone 0) and AEx/Ex nA IIC T5…T1 Gc (Zone 2) certifications.
