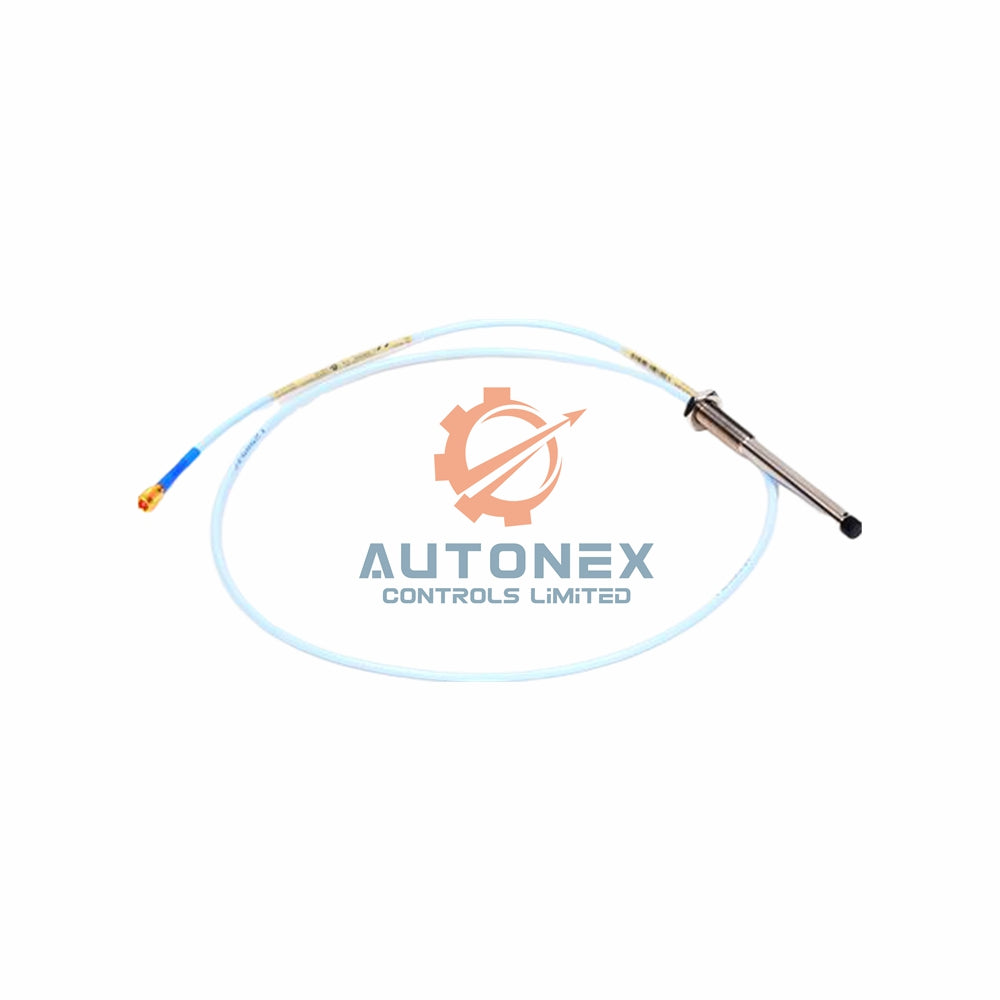

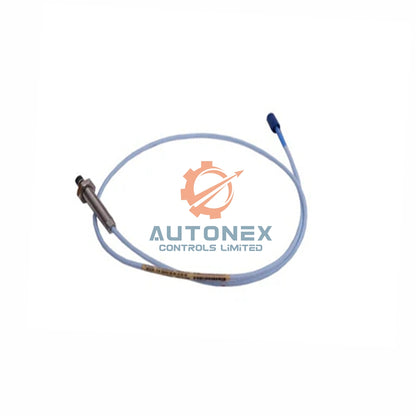

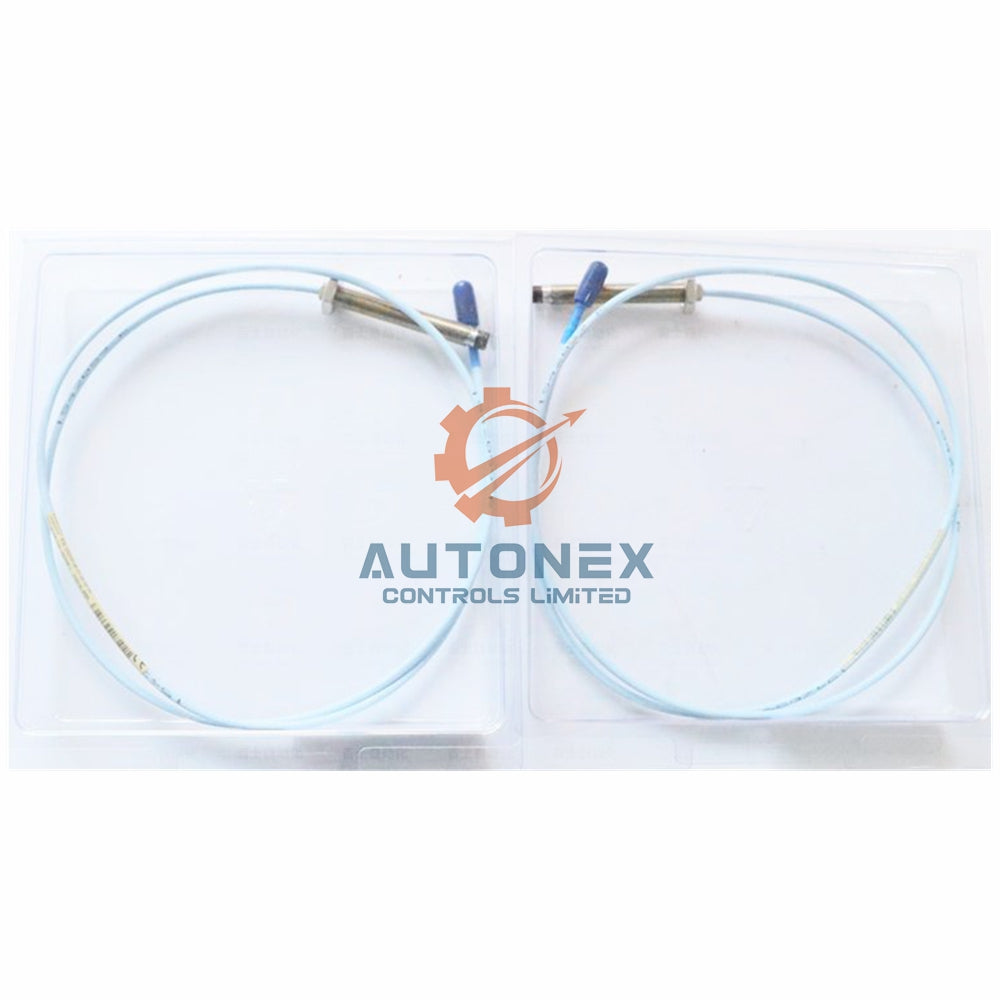

330101-33-52-10-12-05 Bently Nevada 8mm Probe

Bently Nevada 330101-33-52-10-12-05 3300 XL 8 mm Probe – Technical Deep Dive

Key Technical Specifications

• Brand & Model: Bently Nevada, 330101-33-52-10-12-05 (3300 XL 8 mm Probe).
• Unthreaded Length Option: 33 = 3.3 inches (83.8 mm).
• Overall Case Length Option: 52 = 5.2 inches (132 mm).
• Total Length Option: 10 = 1.0 meter (3.3 feet).
• Connector and Cable Type: Miniature coaxial ClickLoc connector with FluidLoc cable.
• Agency Approval Option: 05 = CSA, ATEX, IECEx approvals.
• Nominal Probe DC Resistance: 7.59 ± 0.50 Ω (center to outer conductor).
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical.
• Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils).
• Recommended Gap for Radial Vibration: -9 Vdc ≈ 1.27 mm (50 mils).
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% (1m system, 0 to +45°C).

Environmental and Mechanical Limits

• Probe Tip Material: Polyphenylene sulfide (PPS) for ruggedness.
• Probe Case Material: AISI 303 or 304 stainless steel (SST).
• Standard Probe Temperature Range: -52°C to +177°C (-62°F to +350°F).
• Extended Temperature Range (Tip): -52°C to +218°C (-62°F to +425°F).
• Relative Humidity Performance: Less than 3% ASF change at 93% humidity (IEC 68-2-3, 56 days).
• Maximum Thread Engagement: 0.563 inch for 3/8-24 UNF case thread.
• Recommended Probe Case Torque: 11.2 N·m (100 in·lbf) for standard forward mount.
• Probe Weight: 323 g per meter (11.4 oz per meter).

Frequently Asked Questions (FAQ)

• Is this item new and original? Yes, we supply only brand new and original Bently Nevada parts.
• Do you have the 330101-33-52-10-12-05 in stock? Yes, we keep this model in stock for immediate orders.
• What is your shipping time? We dispatch all orders within 5 business days after payment confirmation.
• Which carriers do you use? We ship via DHL, FedEx, and UPS for reliable global delivery.
• Can I return this probe? Yes, we support returns within 30 days of delivery.
• Does this probe work with the 3300 XL Proximitor Sensor? Yes, it directly mates with the 3300 XL Proximitor Sensor for vibration monitoring.
• What is the linear range starting point? The linear range begins at approximately 0.25 mm (10 mils) from the target.
