330101-02-21-10-01-00 Bently Nevada 8mm Probe Specs

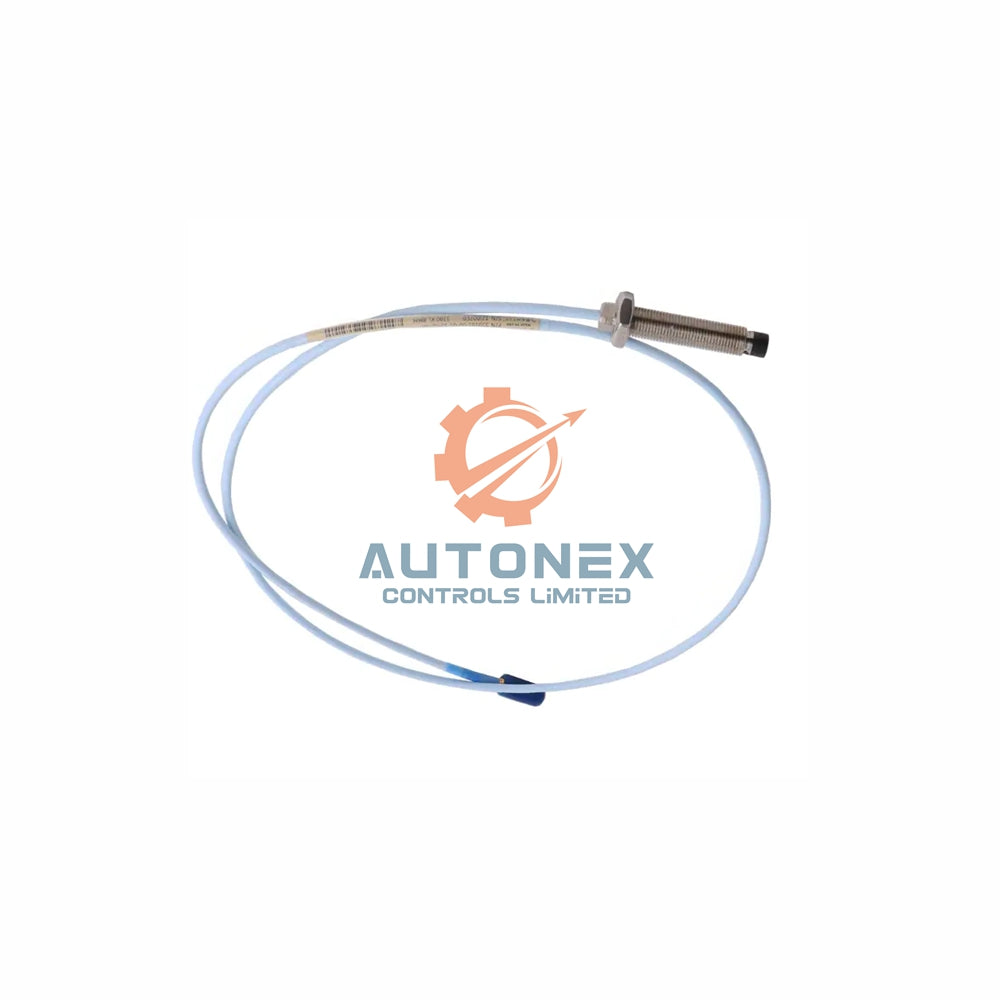

Bently Nevada 330101-02-21-10-01-00 3300 XL 8 mm Probe

Key Technical Specifications

• Brand & Model: Bently Nevada 330101-02-21-10-01-00 (3300 XL 8 mm Probe).
• Thread & Lengths: 3/8-24 UNF thread; unthreaded length 0.2 in; case length 2.1 in; total length 1.0 meter.
• Connector: Miniature coaxial ClickLoc with connector protector and standard cable.
• Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils), output –1 to –17 Vdc.
• Recommended Gap: -9 Vdc [approx. 1.27 mm (50 mils)] for radial vibration.
• Scale Factor: 7.87 V/mm (200 mV/mil) ±5% (1 or 5 m system) including interchangeability.
• DSL (Deviation): Less than ±0.025 mm (±1 mil) for standard 1/5 m systems at 0–45°C.
• Probe Resistance: 7.59 ± 0.50 Ω (center to outer conductor) for 1.0 m length.
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical.
• Field Wiring: 0.2–1.5 mm² (16–24 AWG), 3-conductor shielded triad; max 305 m (1000 ft).
• Probe Tip Material: Polyphenylene sulfide (PPS) for durability.
• Probe Case Material: AISI 303 or 304 stainless steel.
• Temperature Range (Standard): -52°C to +177°C (-62°F to +350°F).
• Extended Temp Range (Tip): -52°C to +218°C (-62°F to +425°F).
• Humidity Stability: Less than 3% ASF change after 56 days at 93% RH (IEC 68-2-3).
• Pull Strength: CableLoc design provides 330 N (75 lbf) pull strength.
• Weight: 323 g/m (11.4 oz).

Frequently Asked Questions (FAQ)

• Is this a new original Bently Nevada probe?
  Yes, we supply 330101-02-21-10-01-00 as brand new, original units.
• Do you have this model in stock?
  Yes, we maintain stock of the 3300 XL 8 mm probe for immediate orders.
• What is the shipping time?
  We ship within 5 business days after order confirmation.
• Which carriers do you use?
  We ship via FedEx, UPS, or DHL, depending on your location.
• Can I return this probe?
  Yes, we accept returns within 30 days of delivery.
• Is the probe pressure tested before shipment?
  Standard units are not pressure tested; contact our design team for custom testing.
• What is the maximum field wiring length?
  You can run up to 305 meters (1000 feet) between the Proximitor and monitor.
