330101-00-18-15-12-05 Bently Nevada 3300 XL 8mm Probe

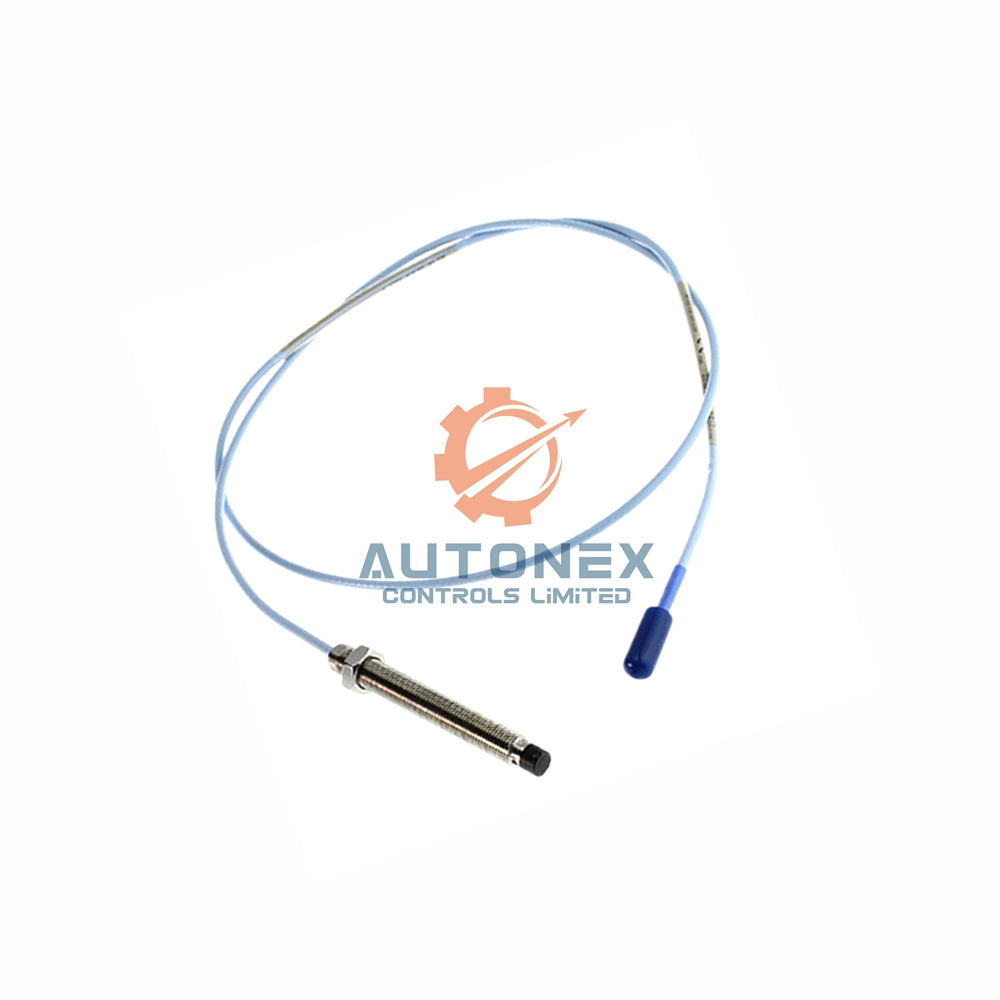

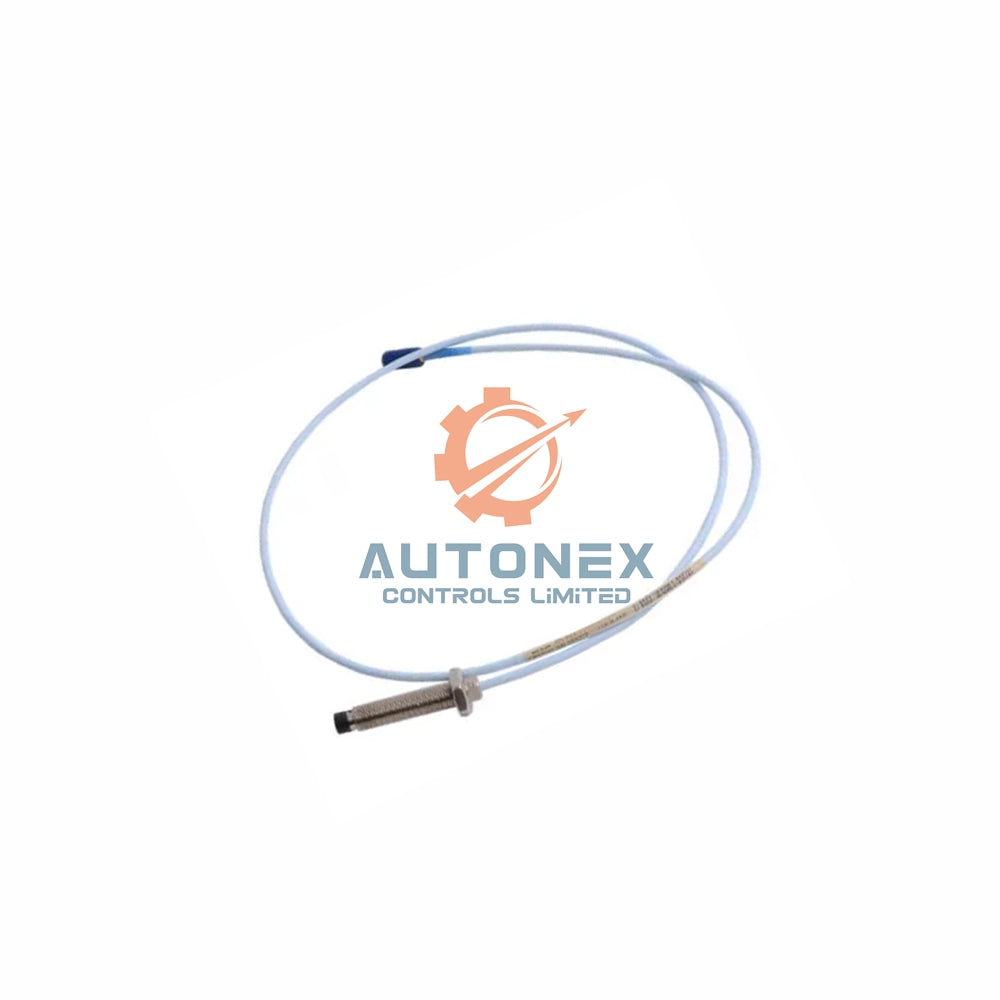

Bently Nevada 330101-00-18-15-12-05: 3300 XL 8 mm Probe Overview

Key Technical Specifications

• Brand: Bently Nevada (Manufactured in U.S.A).
• Model: 330101-00-18-15-12-05 – 3300 XL 8 mm Probe.
• Nominal DC Resistance (RPROBE): 7.73 ± 0.50 Ω (1.5m length).
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical.
• Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm gap.
• Recommended Gap Setting: -9 Vdc (approx 1.27 mm or 50 mils).
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% (0-45°C).
• Deviation from Best Fit Straight Line (DSL): Less than ±0.025 mm (±1 mil) standard 5/1m system.
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 303 or 304 stainless steel (SST).
• Weight: 323 g/m (11.4 oz per meter).
• Standard Probe Temperature Range: -52°C to +177°C (-62°F to +350°F).
• Extended Temperature Range (ETR): Tip up to +218°C (+425°F); cable up to +260°C (+500°F).
• Pressure Seal: Viton® O-ring; designed for differential pressure sealing.
• Relative Humidity Test: Less than 3% change in ASF at 93% humidity (IEC 68-2-3, 56 days).
• Field Wiring Recommendation: 0.2 to 1.5 mm² (16-24 AWG) 3-conductor shielded triad cable.
• Maximum Field Wiring Length: 305 meters (1000 feet) between sensor and monitor.

Frequently Asked Questions (FAQ)

• Q: Is the 330101-00-18-15-12-05 brand new and original?
  A: Yes, we provide 100% new and original Bently Nevada products.
• Q: Do you have this model in stock?
  A: Yes, we keep 330101-00-18-15-12-05 in stock for immediate orders.
• Q: What is the typical delivery time?
  A: We ship within 5 days after order confirmation.
• Q: Which shipping carriers do you use?
  A: We use DHL, FedEx, and UPS for fast and reliable delivery.
• Q: Can I return the probe within 30 days?
  A: Yes, we support a 30-day return policy for unused items in original condition.
• Q: Does the probe work with the 3300 XL Proximitor Sensor?
  A: Yes, this probe is fully compatible with Bently Nevada 3300 XL Proximitor Sensors.
• Q: What is the maximum linear range for the 330101-00-18-15-12-05?
  A: The linear range covers 2 mm (80 mils) from 0.25 mm to 2.3 mm gap.
• Q: Is the probe ATEX certified for explosive atmospheres?
  A: Yes, the probe carries CSA, ATEX, and IECEx approvals (option code 05).
• Q: What happens if I exceed the temperature limit?
  A: Exposing the probe below -34°C may damage the pressure seal; follow the range carefully.
• Q: Can I use extension cables with this probe?
  A: Yes, you can order 3300 XL extension cables with FluidLoc option for longer reach.
