3300 NSv Probe - Bently Nevada 330905-00-08-10-02-05

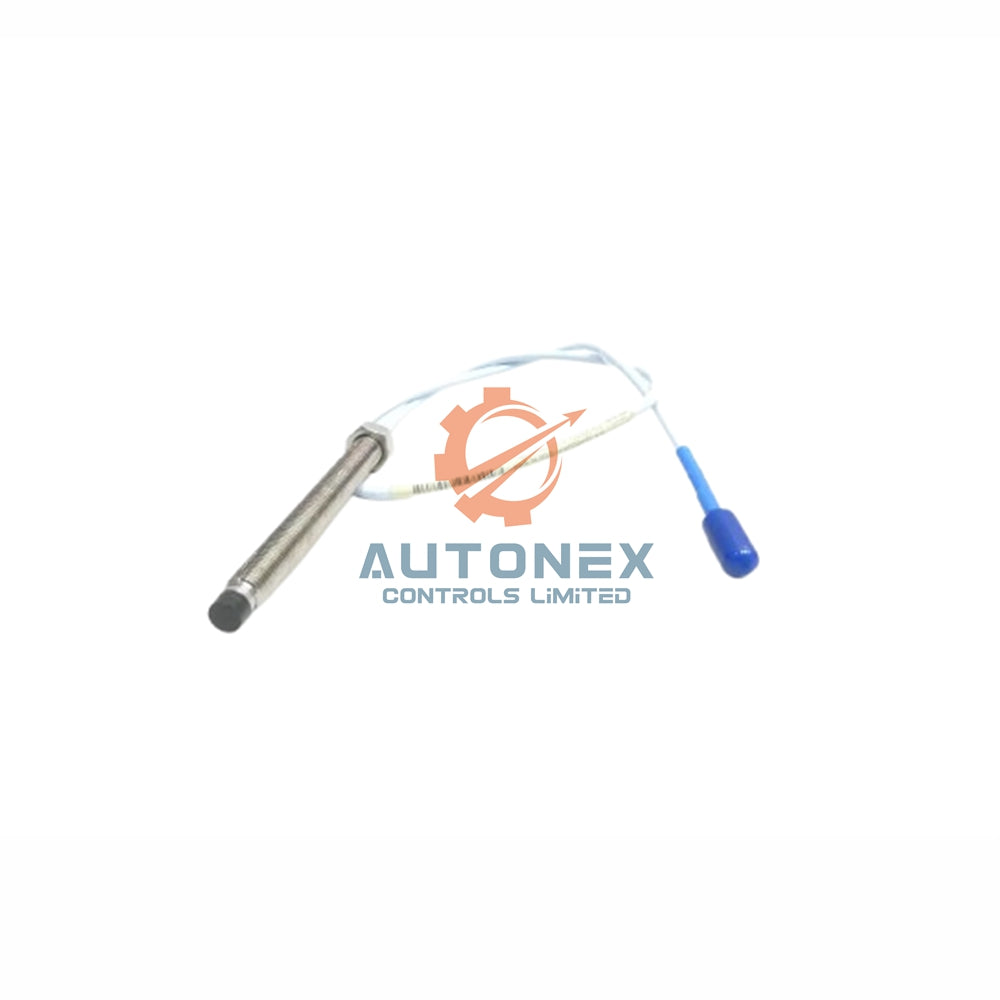

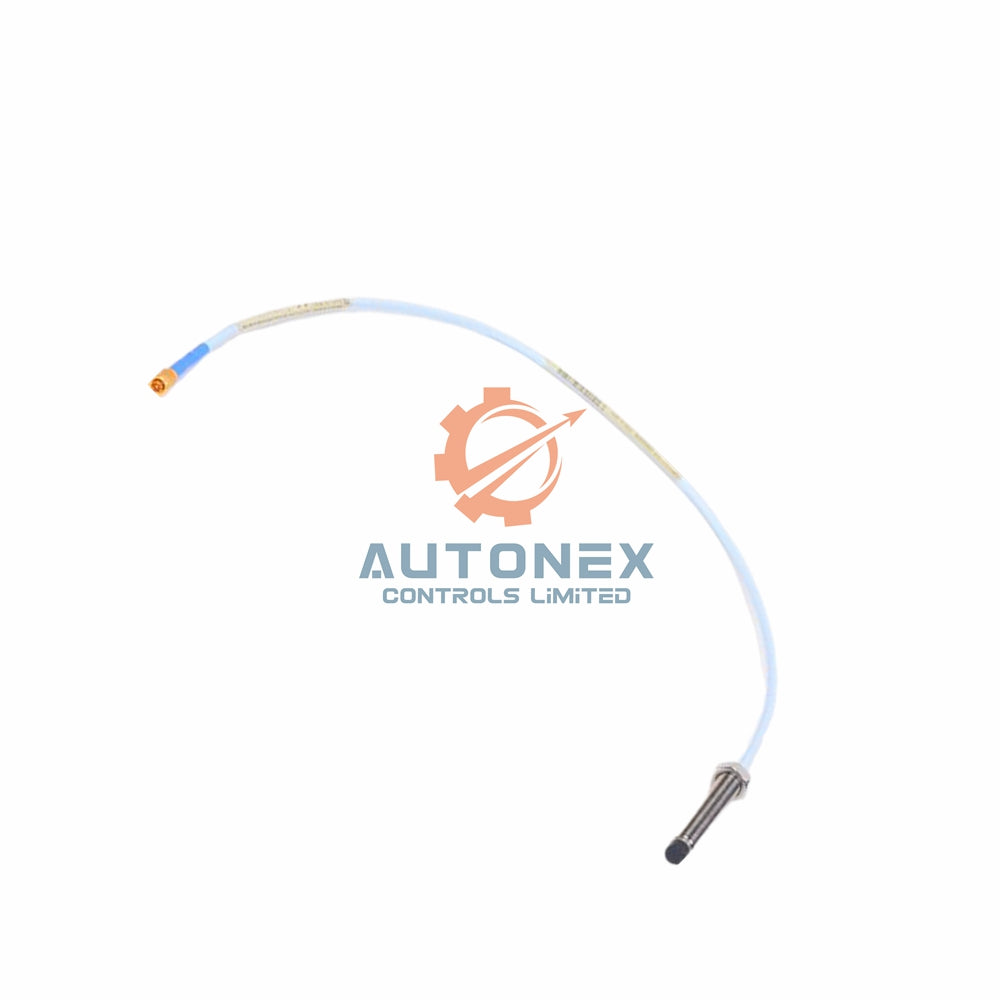

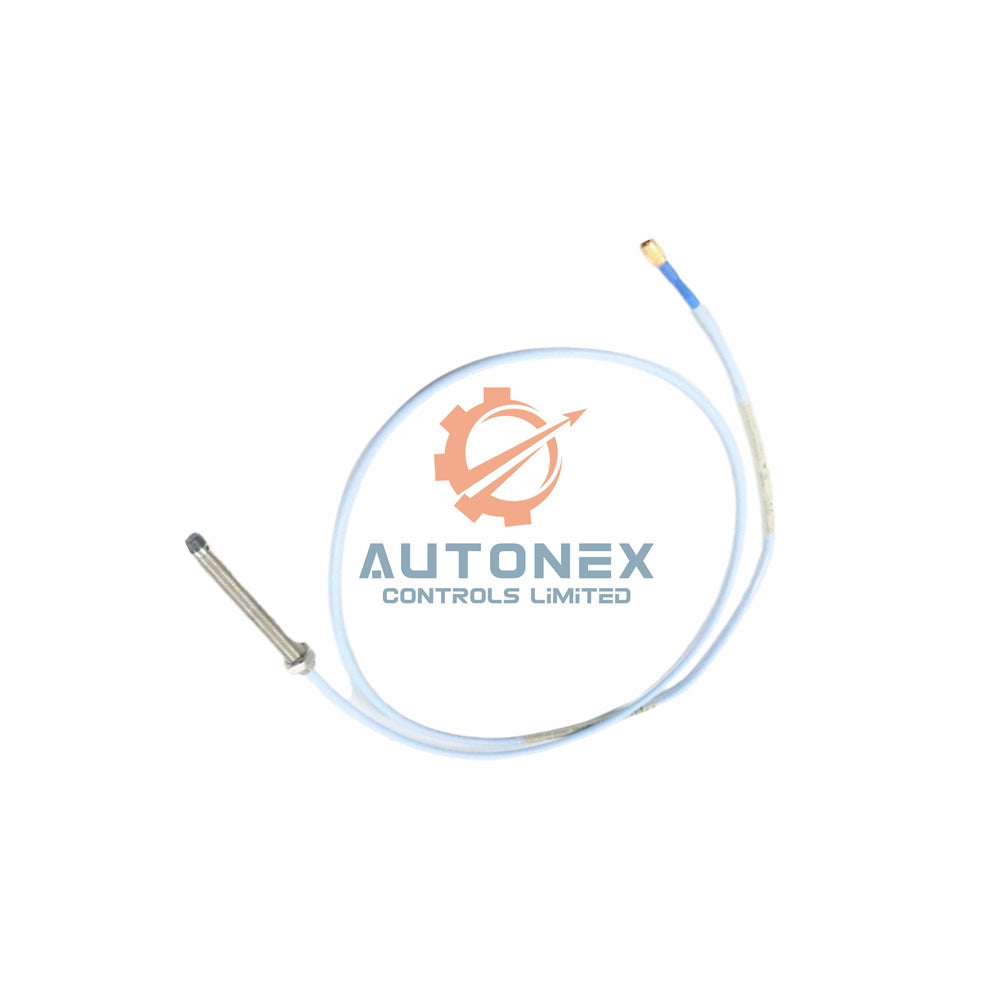

Bently Nevada 330905-00-08-10-02-05Vibration Sensor: Proximity Probe

Core Technical Specifications

• Brand & Model: Bently Nevada, part of the 3300 XL NSv Proximity Transducer System.
• Product Code: 330905-00-08-10-02-05.
• Measurement Range: Accurately measures target movement up to 1.5mm.
• Output Signal: Generates a standard -1 to -13 Volt DC linear signal.
• Temperature Range: Reliable operation from -52°C to +177°C.
• Frequency Response: Designed for monitoring from 0 to 10,000 Hz vibrations.
• Sensor Housing: Features an 80mm long stainless steel threaded body.
• Cable Assembly: Includes a integrated 1.0-meter cable with a ClickLoc connector.
• Environmental Sealing: Utilizes a Viton O-ring for a robust pressure seal.

Installation Guide

• Mount the sensor with its tip approximately 1.0mm from the target surface.
• Hand-tighten the sensor only; do not use wrenches on the housing.
• The target area must be a conductive metal, minimum 8.9mm in diameter.
• You can extend the system using cable up to a maximum of 305 meters.
• Ensure proper grounding of the system for optimal signal integrity.

Frequently Asked Questions (FAQ)

• Q: Is the Bently Nevada 330905 sensor new?
  A: Yes, every unit is 100% new and original from the manufacturer.
• Q: What is the typical shipping time?
  A: We process and ship orders from our stock within 5 business days.
• Q: Which logistics providers do you use?
  A: We primarily use DHL, FedEx, and UPS for reliable international shipping.
• Q: What is your return policy?
  A: We offer a 30-day return period for your complete satisfaction.
• Q: What is the recommended gap for installation?
  A: For optimal performance, set the initial gap to about 1.0mm (40 mils).
• Q: Can I use longer cables with this probe?
  A: Yes, the system supports cable extensions up to a total of 305 meters.

Download the 3300 XL NSv Proximity Transducer System Datasheet (PDF)

For further technical details, custom requirements, or to discuss your application, please reach out to our team.
