3300 NSv Probe - Bently Nevada - 330903-00-03-05-01-00

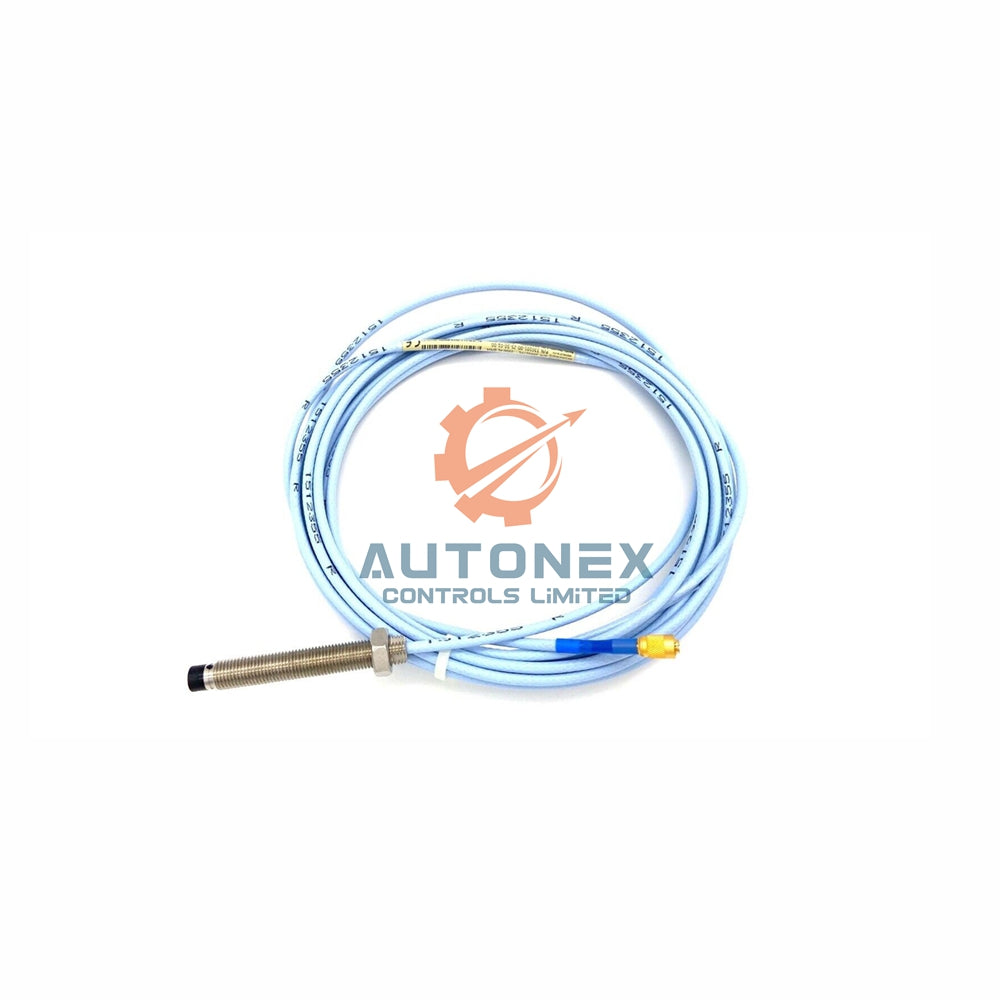

Bently Nevada 330903-00-03-05-01-00 Proximity Probe: Precision Vibration Monitoring

Key Features and Benefits

• This probe features a compact M8x1 threaded housing for simple installation.
• It includes a 0.5-meter (20-inch) integrated cable with a ClickLoc connector.
• The design provides enhanced chemical resistance for tough process environments.
• For best results, set the recommended gap to 1.0 mm (40 mils) during installation.

Complete Technical Specifications

• Brand: Bently Nevada
• Model: 3300 NSv Proximity Probe
• Part Number: 330903-00-03-05-01-00
• Linear Measuring Range: 1.5 mm (60 mils)
• Scale Factor (Sensitivity): 7.87 V/mm ±20%
• Accuracy (DSL): ±0.06 mm (±2.3 mils)
• Frequency Response: 0 to 10 kHz with field wiring
• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• Probe Resistance: 4.0 ± 0.5 Ω for the 0.5 m version
• Cable Type: 75 Ω coaxial with FEP insulation
• Pressure Sealing: Viton O-ring (standard, not pressure-tested)

Installation and Wiring Guidelines

• Use only finger-tight torque on the probe case (max 0.56 N·m).
• The maximum torque for the threaded section is 5.1 N·m (45 in·lb).
• The maximum thread engagement length should not exceed 12 mm.
• Always use a shielded triad cable for field wiring up to 305 meters.
• Maintain a minimum 25.4 mm (1.0 in) bend radius for the probe cable.

Frequently Asked Questions (FAQ)

• Q: What is the standard cable length for this probe?
  A: The 330903-00-03-05-01-00 comes with a fixed 0.5-meter cable.
• Q: Can this probe work in high-temperature environments?
  A: Yes, it has a wide operating range from -52°C to +177°C.
• Q: What connector type does it use?
  A: It uses Bently Nevada's secure miniature ClickLoc coaxial connector.
• Q: What is your return policy?
  A: We offer a 30-day return policy for unused items in original packaging.

Download the full datasheet for the Bently Nevada 3300 XL NSv system here: 3300 XL NSv Proximity Transducer System Datasheet

For technical specifications, pricing, and availability of the Bently Nevada 330903-00-03-05-01-00, please contact us.
