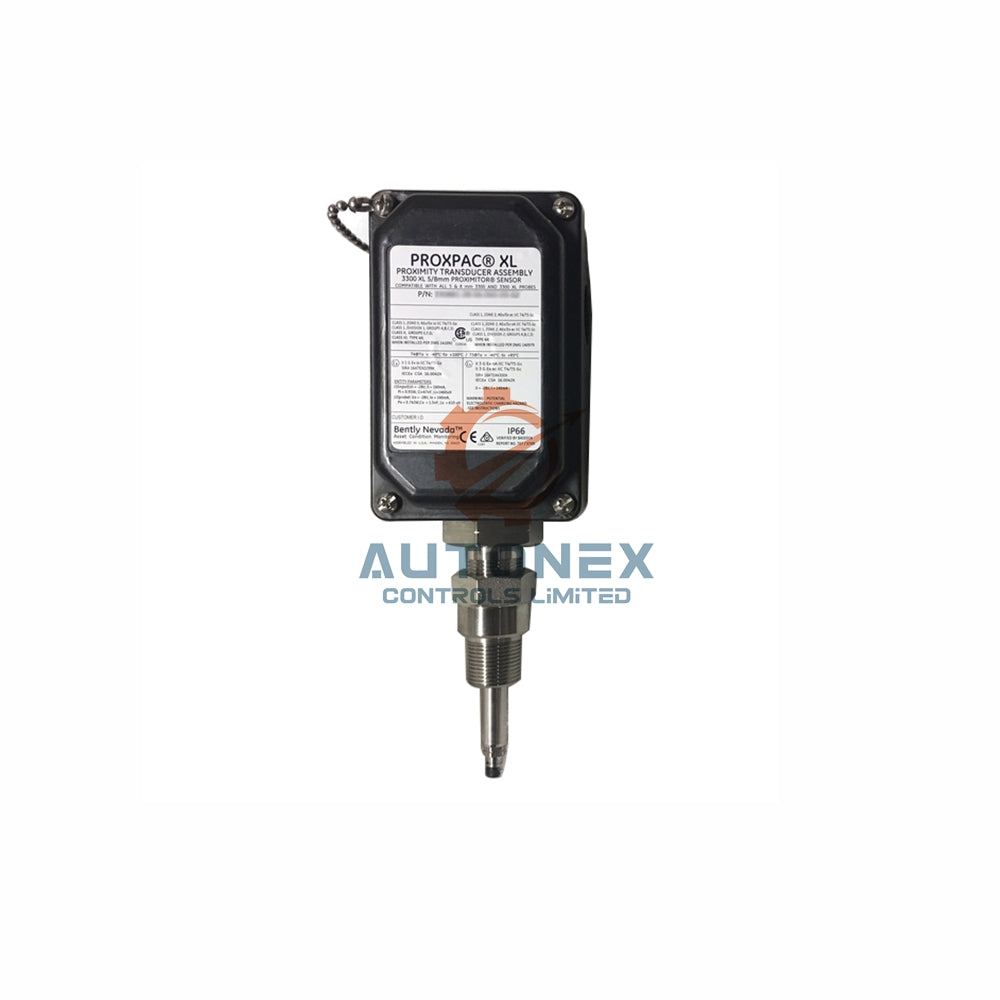

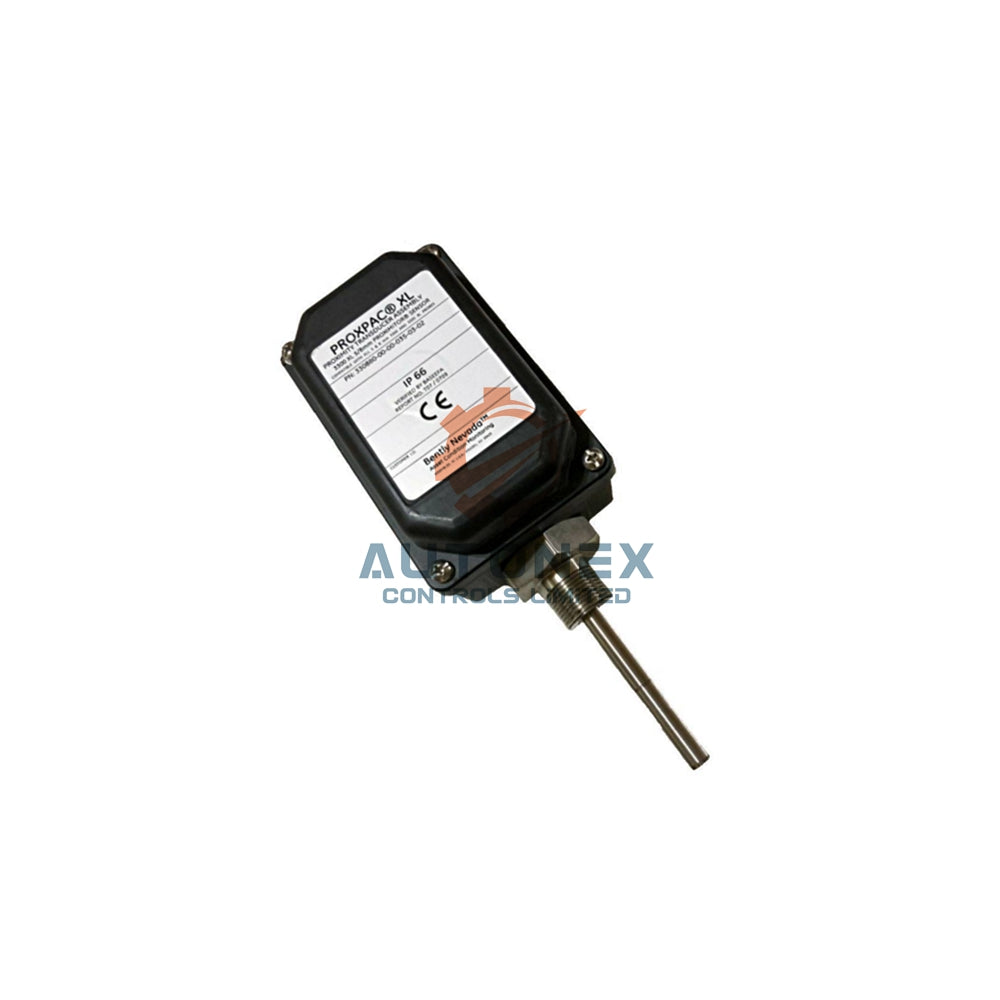

Bently Nevada 31000-26-05-00-100-03-02 Proximity Probe Housing

Technical Specifications

• Manufacturer: Bently Nevada
• Product Number: 31000-26-05-00-100-03-02
• Product Type: 31000 Proximity Probe Housings
• Country of Origin: Made in U.S.A.
• Probe Option: 3300 XL NSv probe with connector
• Probe Cable Length: 0.5 m (20 inches)
• Standoff Adapter: No adapter (00 option)
• Probe Penetration: 10.0 inches (100 option)
• Mounting Thread: 3/4-14 NPT (02 option)
• Fittings Option: Two plugs, one 3/4-14 NPT fitting, one SST reducer, one cable seal grip with three grommets
• Housing Material: Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers
• Sleeve Material: AISI 304 stainless steel
• Outer Sleeve & Screws: AISI 303 stainless steel
• O-Ring Material: Neoprene
• Temperature Rating: -51°C to +105°C (-60°F to +221°F)
• Weight: 1.2 kg (2.6 lb)
• Recommended Torque (retaining nut): 29.4 N·m (260 in·lb)
• Housing Load Capacity: 912 N (205 lb) at 38 mm from unsupported end

Frequently Asked Questions (FAQ)

• Does this housing work in extreme temperatures? Yes, it operates from -51°C to +105°C (-60°F to +221°F).
• What pressure rating does this housing have? The housing seals differential pressure but does not resist internal or external pressure.
• Is the probe pressure tested before shipment? No, probes do not receive pressure testing prior to shipping.
• Can I use this with a 3300 XL 8 mm probe? Yes, the design seals differential pressure specifically for the 3300 XL 8 mm probe.
• What cable sizes fit the seal grip? It fits 1/8 to 3/16 inches, 1/4 to 5/16 inches, and 5/16 to 3/8 inches.
• Do you have the 31000-26-05-00-100-03-02 in stock? Yes, we keep this model ready for immediate shipment.
• What happens if I need a pressure seal test? Contact our custom design department for pressure seal testing requirements.
• Is this housing impact resistant at low temperatures? BASEEFA certified it for 4 Joule impacts at -39°C (-38°F).
• What material makes the housing conductive? Glass-reinforced PPS thermoplastic contains conductive fibers for electrostatic dissipation.
