31000-16-10-15-030-03-02 Bently Nevada - Probe Housing

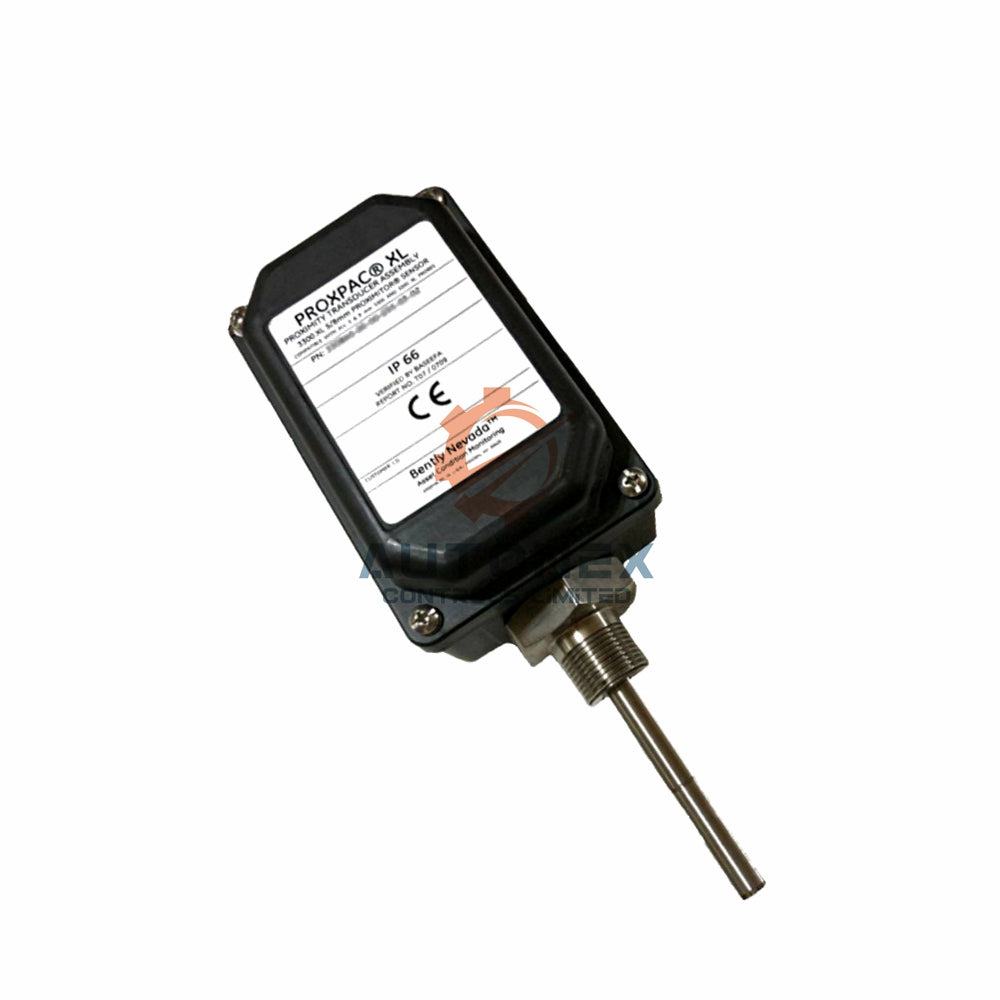

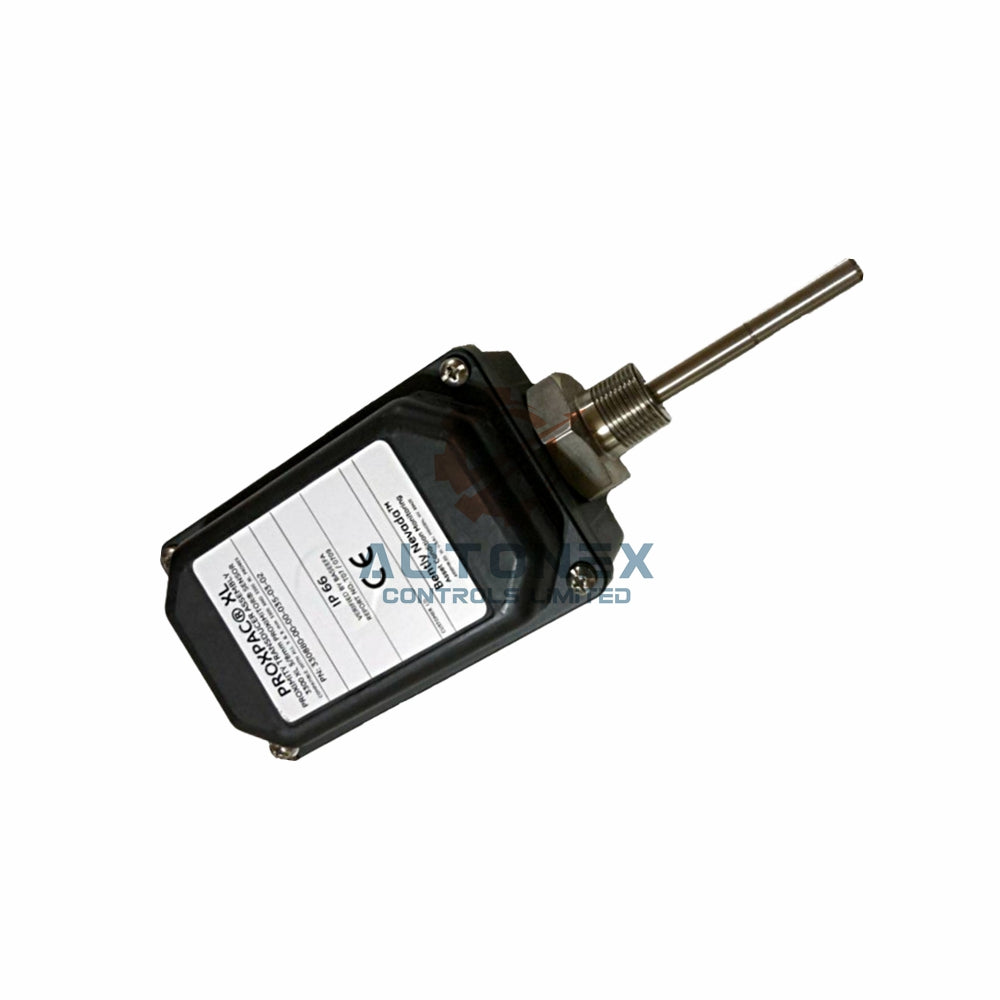

Bently Nevada 31000-16-10-15-030-03-02 Proximity Probe Housing

Technical Specifications

• Manufacturer: Bently Nevada
• Product Number: 31000-16-10-15-030-03-02
• Product Type: 31000 Proximity Probe Housings
• Country of Origin: Made in U.S.A.
• Probe Option: 3300 XL 8 mm probe with connector
• Probe Cable Length: 1.0 m (39 inches)
• Standoff Adapter: 1.5 inches (15 option)
• Probe Penetration: 3.0 inches (030 option)
• Mounting Thread: 3/4-14 NPT (02 option)

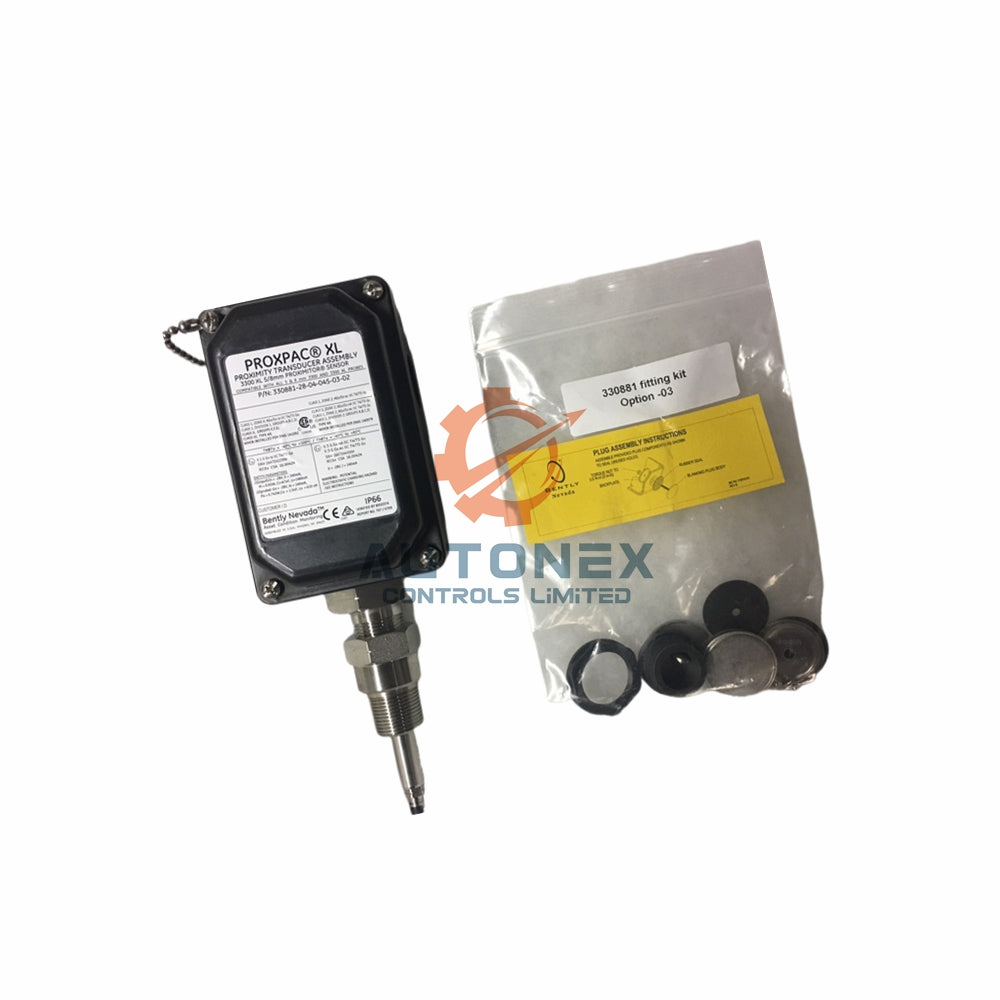

• Fittings Option: Two plugs, one 3/4-14 NPT fitting, one SST reducer, one cable seal grip with three grommets
• Housing Material: Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers
• Sleeve Material: AISI 304 stainless steel
• Outer Sleeve & Screws: AISI 303 stainless steel
• O-Ring Material: Neoprene
• Temperature Rating: -51°C to +105°C (-60°F to +221°F)
• Weight: 1.2 kg (2.6 lb)
• Recommended Torque (retaining nut): 29.4 N·m (260 in·lb)
• Housing Load Capacity: 912 N (205 lb) at 38 mm from unsupported end

Frequently Asked Questions (FAQ)

• What is the probe penetration for this model? The 31000-16-10-15-030-03-02 provides 3.0 inches of probe penetration.
• Does this housing include a standoff adapter? Yes, it comes with a 1.5 inch standoff adapter (15 option).
• What cable sizes fit the included seal grip? It fits 1/8 to 3/16 inches, 1/4 to 5/16 inches, and 5/16 to 3/8 inches.
• What temperature range can this housing handle? It operates from -51°C to +105°C (-60°F to +221°F).
• Is this housing pressure rated for internal pressure? No, it seals differential pressure but does not resist internal or external pressure.
• Does Bently Nevada pressure test each probe before shipping? No, probes do not receive pressure testing prior to shipment.
• What cable length comes with this assembly? The probe cable measures 1.0 meter (39 inches).
• What fittings are included with this housing? You get two plugs, one 3/4-14 NPT fitting, and one SST reducer.
• Do you have the 31000-16-10-15-030-03-02 in stock? Yes, we keep this model ready for immediate shipment.
• Is this housing impact resistant at low temperatures? BASEEFA certified it for 4 Joule impacts at -39°C (-38°F).
