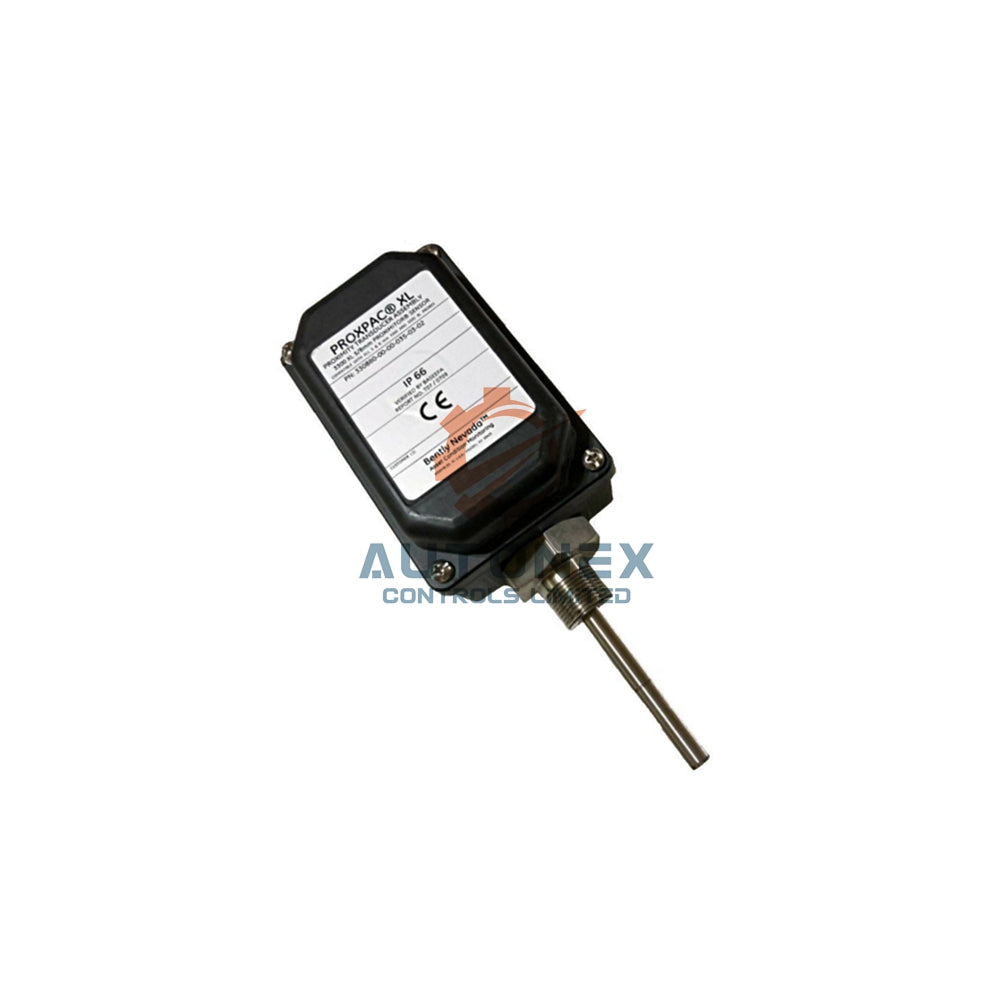

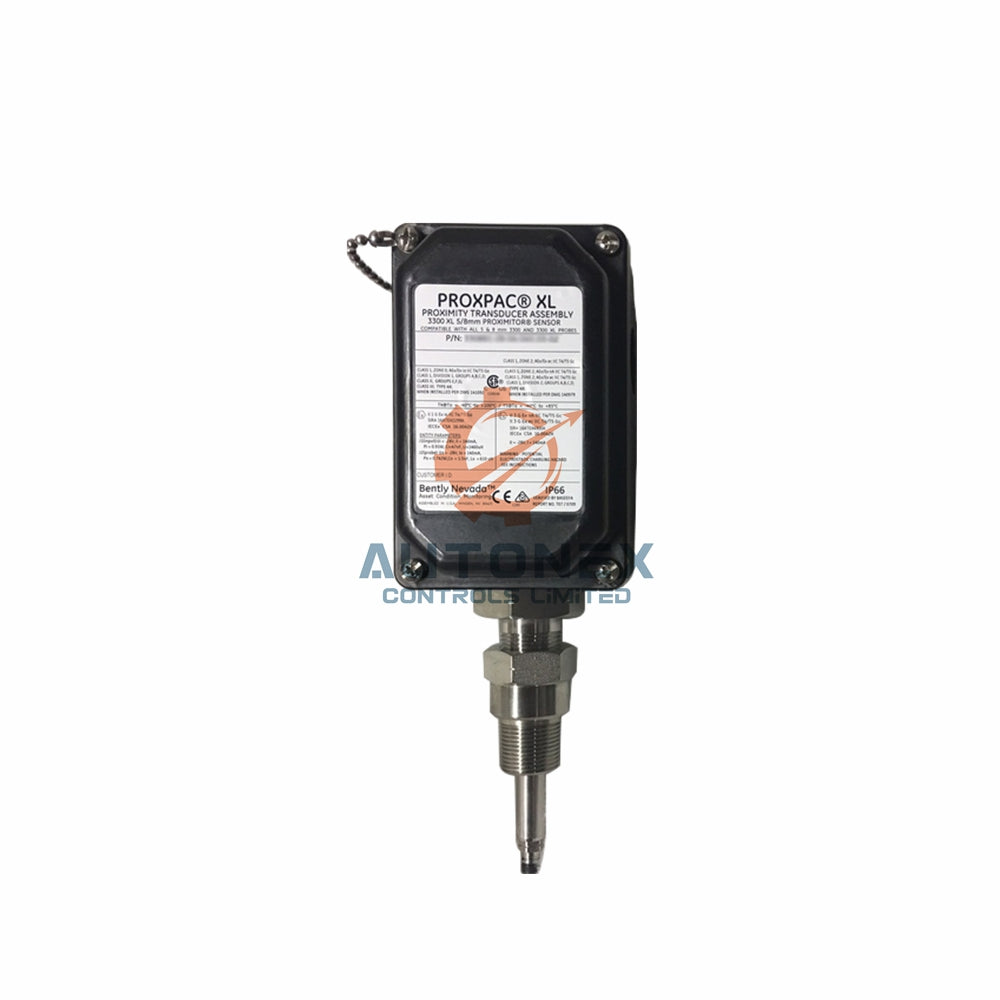

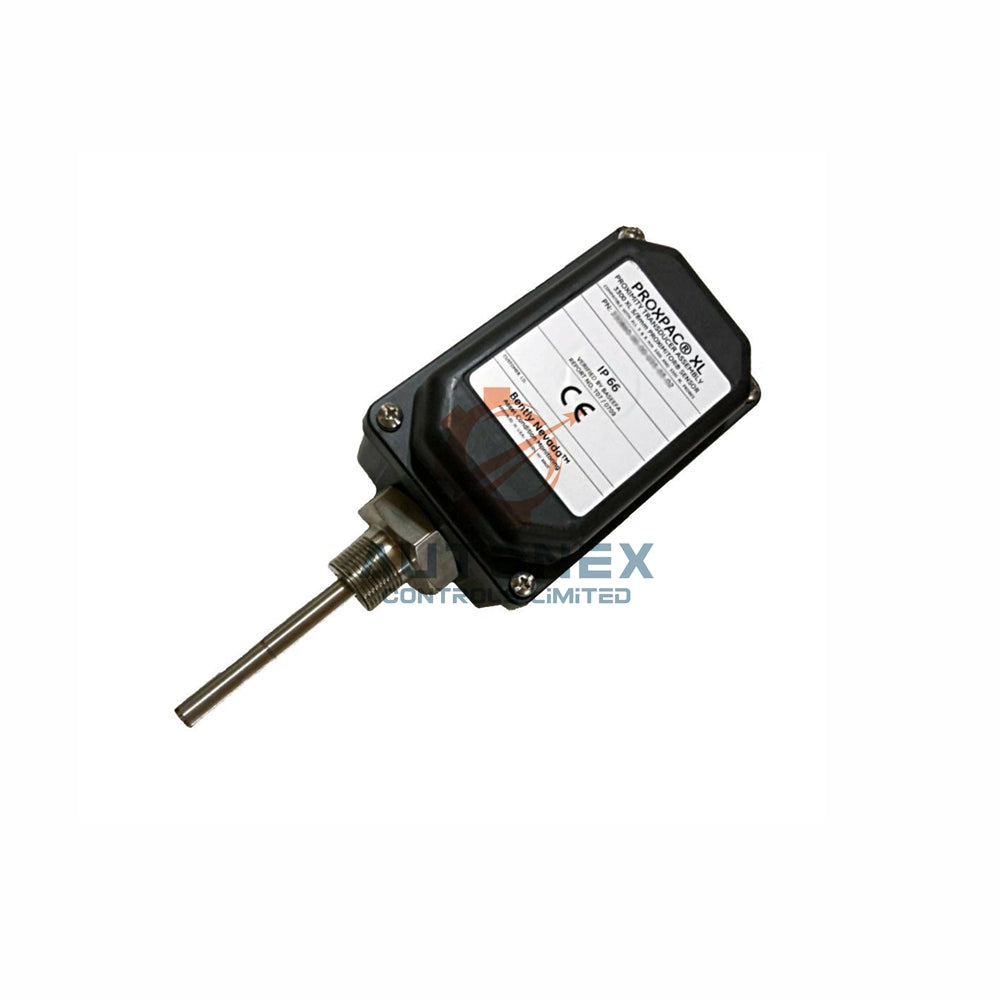

31000-16-05-35-026-03-02 Bently Nevada Proximity Probe Housing

Bently Nevada 31000-16-05-35-026-03-02 Proximity Probe Housing

Key Technical Specifications

• Brand & Model: Bently Nevada 31000-16-05-35-026-03-02 (31000 Series).
• Probe Option: 16 = 3300 XL 8 mm probe with connector.
• Cable Length: 05 = 0.5 m (20 in) probe cable.
• Standoff Adapter: 35 = 3.5 inches.
• Probe Penetration: 026 = 2.6 inches.
• Fittings Option: 03 includes two plugs, one 3/4-14 NPT fitting, one 3/4-14 to 1/2-14 NPT SST reducer, and one cable seal grip with grommets for three cable sizes (1/8-3/16, 1/4-5/16, 5/16-3/8 inches).
• Mounting Thread: 02 = 3/4-14 NPT (required with standoff adapter).
• Housing Material: Glass-reinforced PPS thermoplastic with conductive fibers.
• Sleeve Material: AISI 304 stainless steel (sleeve and retaining chain).
• Outer Sleeve & Screws: AISI 303 stainless steel.
• O-Ring Material: Neoprene®.
• Temperature Range: -51°C to +105°C (-60°F to +221°F).
• Impact Strength: Withstands two separate 4 Joule impacts at -39°C and 115°C (BASEEFA certified). Also withstands a 7 Joule impact at ambient room temperature (CSA verified).
• Weight: 1.2 kg (2.6 lb) typical.
• Recommended Torque (retaining nut): 29.4 N·m (260 in·lb).

Frequently Asked Questions (FAQ)

• Is this item brand new and original?
  Yes, we supply only brand new and original Bently Nevada products.
• Do you have the 31000-16-05-35-026-03-02 in stock?
  Yes, we have this model in stock and ready to ship.
• What is the typical shipping time?
  We dispatch all orders within 5 business days after order confirmation.
• Which carriers do you use?
  We ship via FedEx, UPS, and DHL for fast and reliable delivery.
• Can I return this item?
  Yes, we support returns within 30 days of receipt.
• Is the housing pressure tested before shipment?
  No, probes do not undergo pressure testing prior to shipping. Contact our custom design department if you need a pressure seal test.
