2711P-B6C3A PanelView Plus 600 Operator Interface Allen-Bradley

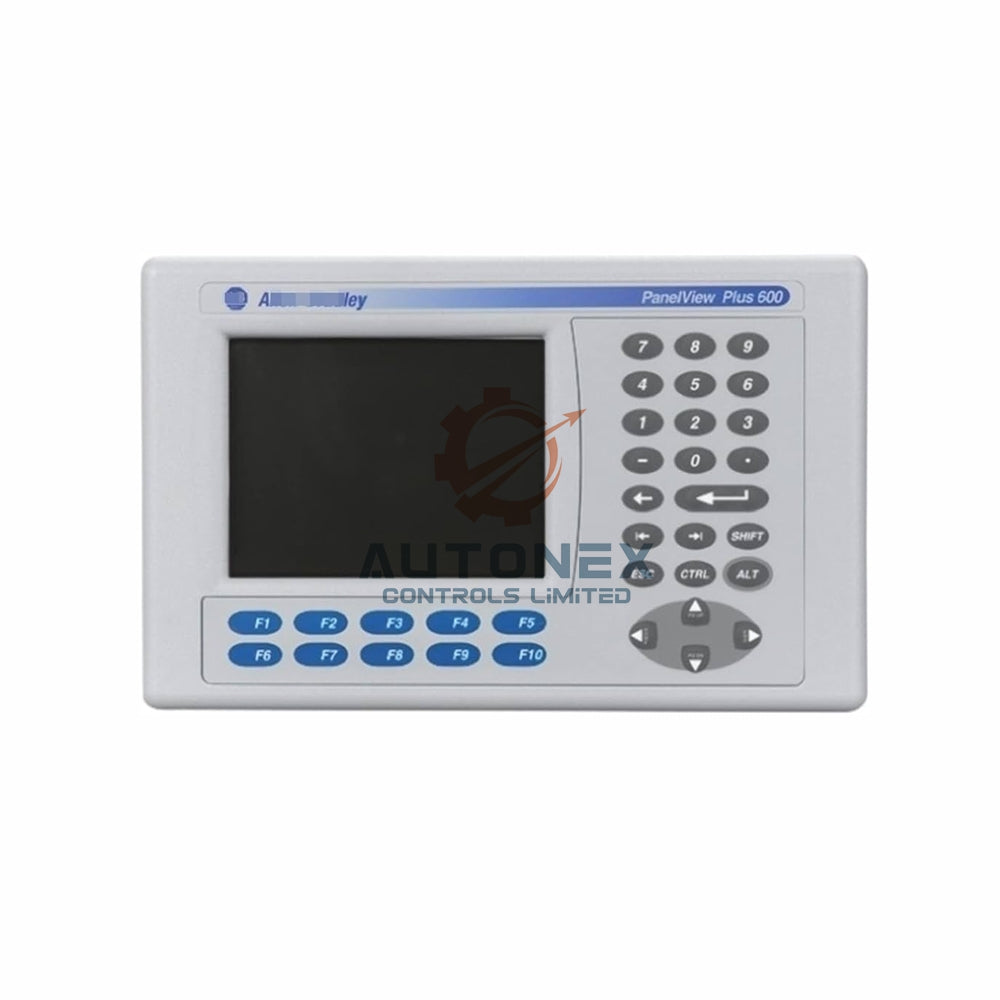

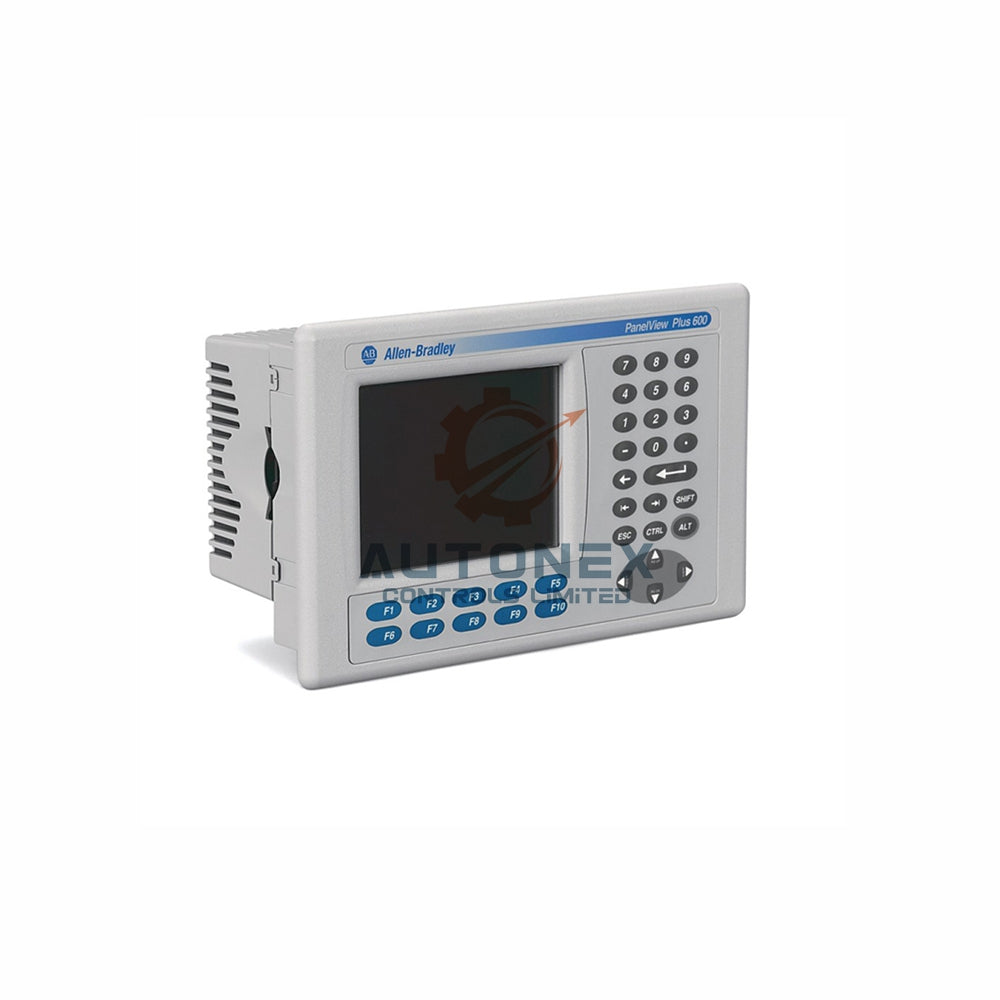

Allen-Bradley 2711P-B6C3A PanelView Plus 600 Operator Terminal

Technical Specifications of the 2711P-B6C3A

• Brand: Allen-Bradley.
• Model Number: 2711P-B6C3A.
• Series: PanelView Plus 600 series.
• Product Lifecycle: Discontinued or obsolete status.
• Display Size: 5.7 inches diagonal (5.5-inch active area).
• Display Type: Color active-matrix TFT.
• Display Resolution: 320 x 240 pixels.
• Display Brightness: 300 cd/m2.
• Backlight Type: CCFL with 50,000-hour standby life.
• Input Type: Analog-resistive touchscreen plus keypad.
• Touch Actuation: 1 million presses with 10-110G shock withstand.
• Keypad Type: Stainless-steel membrane with navigation, F1-F10, and number keys.
• Keypad Actuation: 1 million presses with 340G shock rating.
• User Memory: 64 MB non-expandable for data recording.
• Application Storage: 20 MB for application files.
• External Memory: Supports 256 MB CompactFlash card.
• Communication Ports: RS-232, USB, Ethernet, and DH-485.
• Input Power Range: 85-264V AC, 47-63 Hz.
• Maximum Power Output: 60 VA (requires 120 VA isolated source).
• Operating Temperature: 0 to 55 °C (32 to 131 °F).
• Storage Temperature: -25 to 70 °C (-13 to 158 °F).
• Enclosure Ratings: NEMA 12, 13, 4X, IP54, and IP65.
• Certifications: UL, c-UL, and CE certified.
• Weight: 930 g (approx. 2.05 lbs).
• Dimensions: 6.58 x 10.47 x 3.86 inches (H x W x D).
• UPC: 10781180130806.

Frequently Asked Questions (FAQ)

• Q: Is this product brand new and original?
  A: Yes, we supply only authentic Allen-Bradley 2711P-B6C3A units.
• Q: Do you have this model in stock?
  A: Yes, we keep the 2711P-B6C3A in stock for immediate orders.
• Q: What is your typical shipping time?
  A: We ship all orders within 5 business days after payment confirmation.
• Q: Which shipping carriers do you use?
  A: We use FedEx, DHL, and UPS for fast worldwide delivery.
• Q: Can I return the terminal if it does not fit my application?
  A: Yes, we offer a 30-day return policy for unused items in original packaging.
• Q: Is this model discontinued by Rockwell Automation?
  A: Yes, the 2711P-B6C3A has a discontinued or obsolete lifecycle status.
• Q: Can I expand the 64 MB user memory?
  A: No, the user memory is non-expandable. You can only add CompactFlash for file storage.
• Q: Can I replace the backlight or clock battery?
  A: No, both the CCFL backlight and clock battery are non-replaceable.
• Q: What power supply do I need for this terminal?
  A: You need an isolated 85-264V AC source with 120 VA output capacity.
