22C-B024N103 Allen-Bradley Powerflex 400 Drive

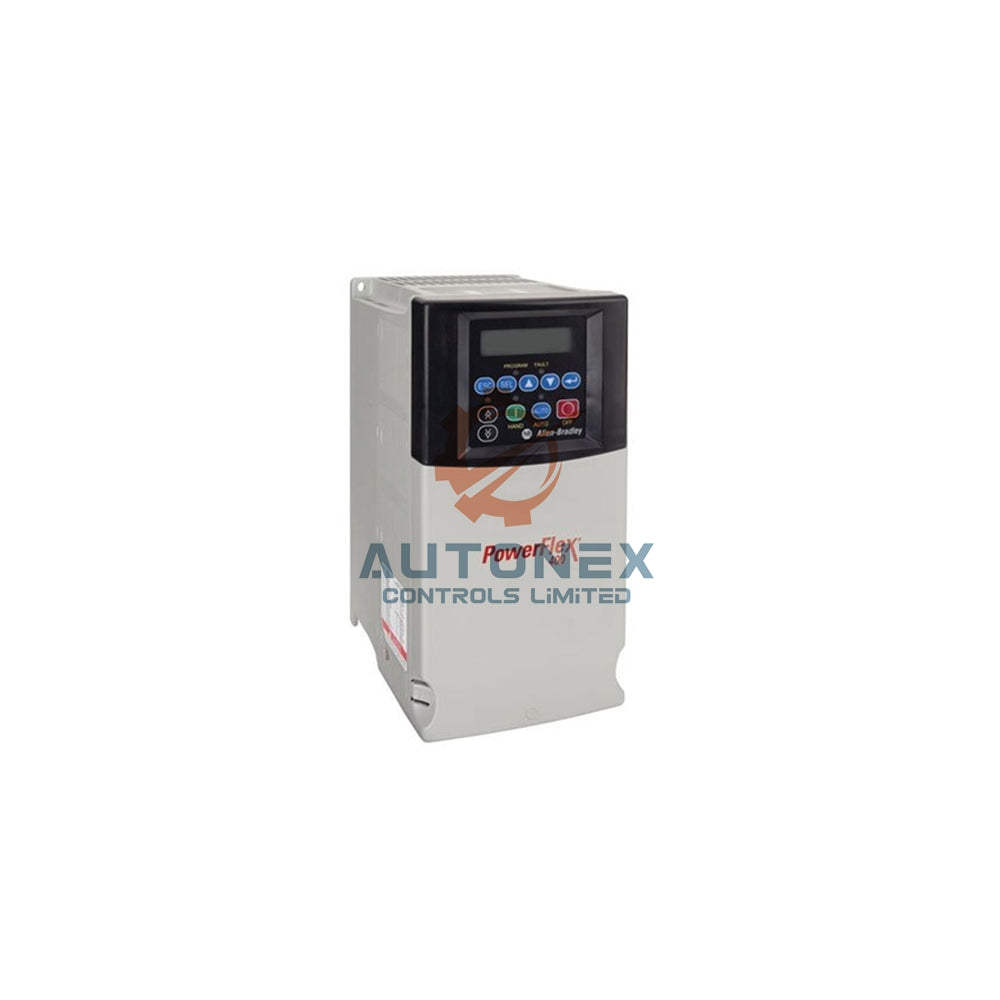

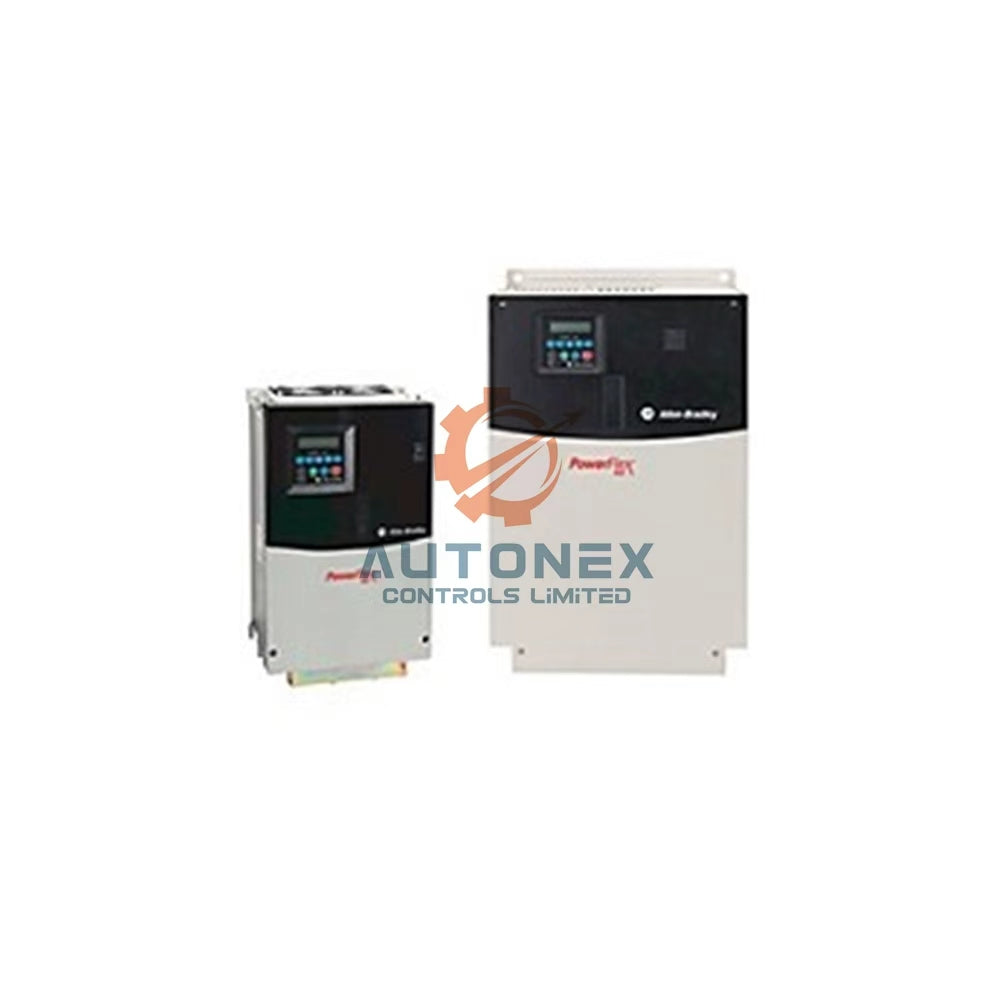

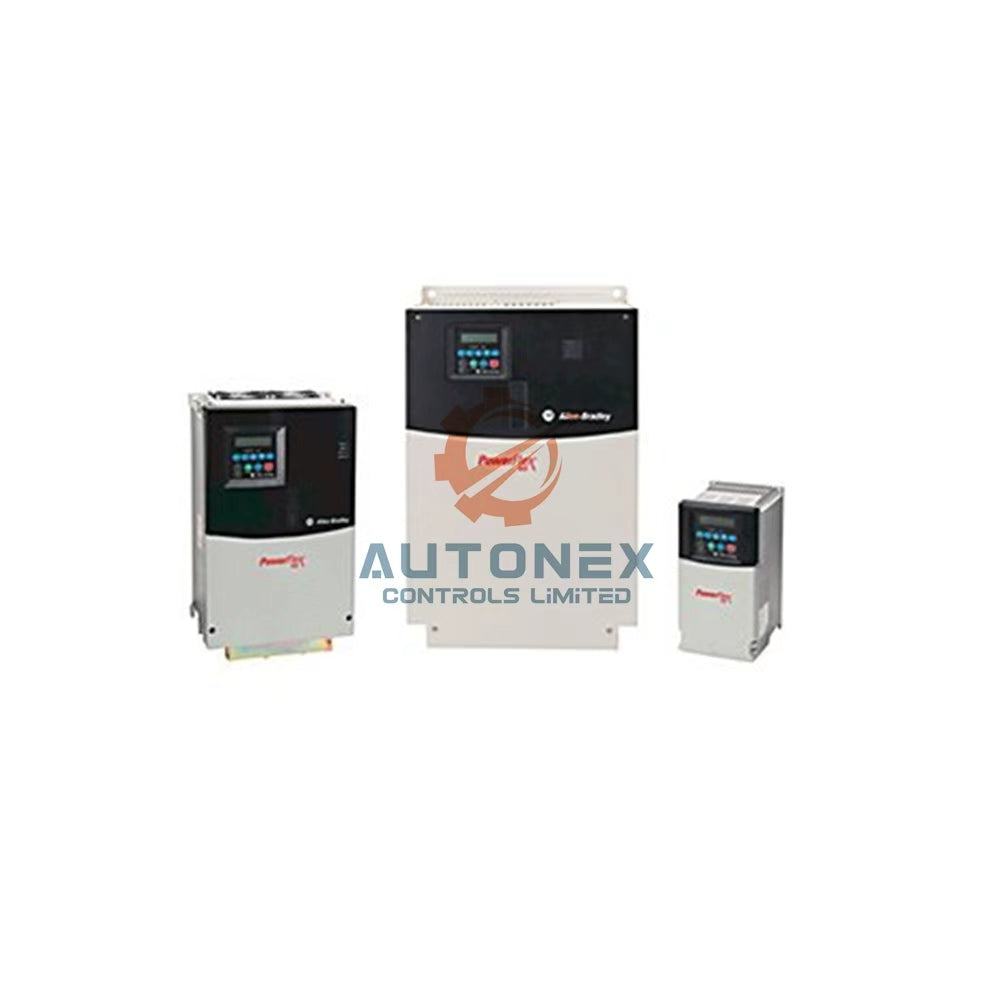

Allen-Bradley PowerFlex 400 AC Drive - Model 22C-B024N103

Electrical Specifications

• Brand: Allen-Bradley
• Model: 22C-B024N103
• Power Rating: 7.5 HP (5.6 kW)
• Input Voltage: 240V AC Three-Phase
• Output Current: 24 Amps
• Input Current: 26.1 Amps
• Apparent Power: 10.9 kVA
• Output Frequency: 0 to 320 Hz Range
• Carrier Frequency: Programmable 2-10 kHz
• Power Factor: 0.98

Protection & Performance

• DC Bus Trip: 405 VDC / 510 VDC
• Overcurrent Protection: 200% / 300% Trip Levels
• Motor Overload: Class 10, 110% for 60 seconds
• Power Ride-Through: 100 ms Power, 2 s Logic
• Control Accuracy: ±1% across 60:1 speed range

Control & Communication

• Digital Inputs: 7 total (3 semi-programmable)
• Analog Inputs: 2 channels with 10-bit resolution
• Relay Outputs: 2 Form C contact relays
• Analog Outputs: 2 non-isolated outputs
• Display: 2×16 multi-language LCD keypad
• Serial Communication: Built-in RS-485 interface
• Network Options: DeviceNet, EtherNet/IP, PROFIBUS via adapters

Packaging & Shipping Information

• Package Contents: PowerFlex 400 Drive Unit
• Documentation: Quick Start Installation Guide
• Mounting Hardware: Included panel brackets
• Shipping Carriers: FedEx, UPS, DHL Express
• Product Condition: New Original Factory Sealed

Frequently Asked Questions

• What is the horsepower rating of this drive?
  This 22C-B024N103 model delivers 7.5 HP (5.6 kW) for motor control.
• What input power does it require?
  The drive operates on 240V AC three-phase power supply.
• How many digital inputs are available?
  It provides seven digital inputs for control signals.
• What communication protocols does it support?
  The unit features built-in RS-485 and supports major networks via adapters.
• Is this model currently in stock?
  We maintain ready stock of the 22C-B024N103 for immediate fulfillment.
• What is your typical shipping time?
  We process and ship all orders within five business days.
• Which carriers do you use for shipping?
  We ship globally using DHL, FedEx, and UPS services.
• What is your return policy?
  We accept 30-day returns for all unused products in original condition.
