21504-24-64-05-02 Bently Nevada Proximity Transducer 8mm Probe

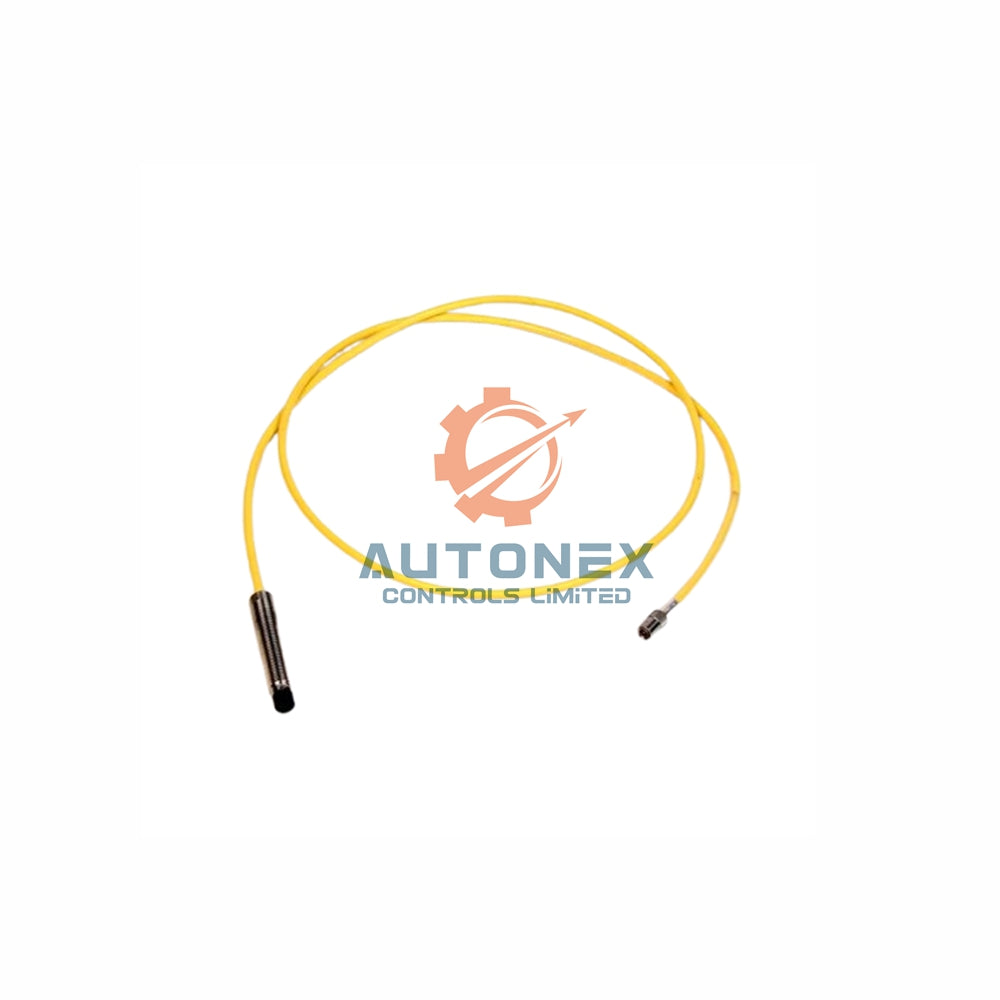

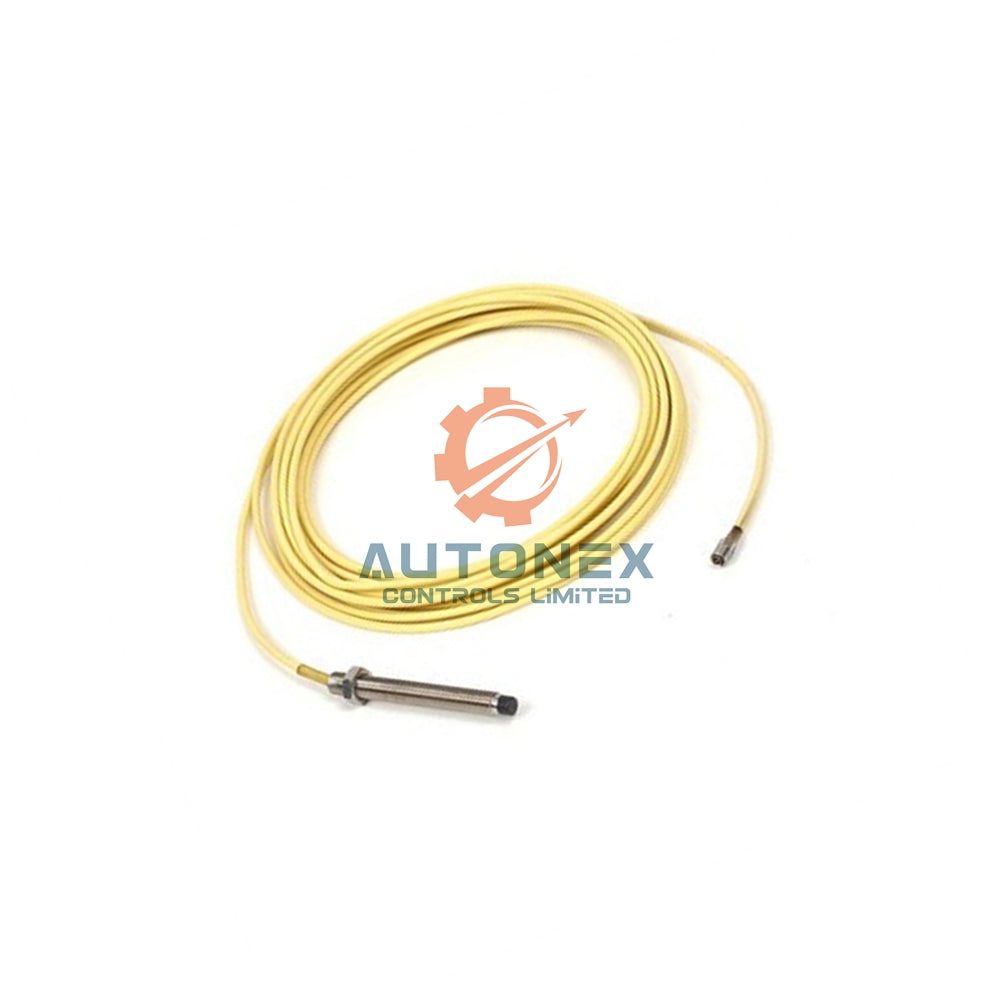

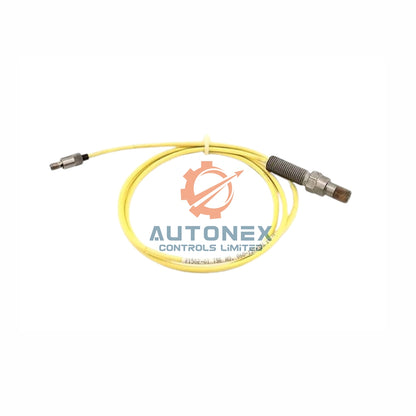

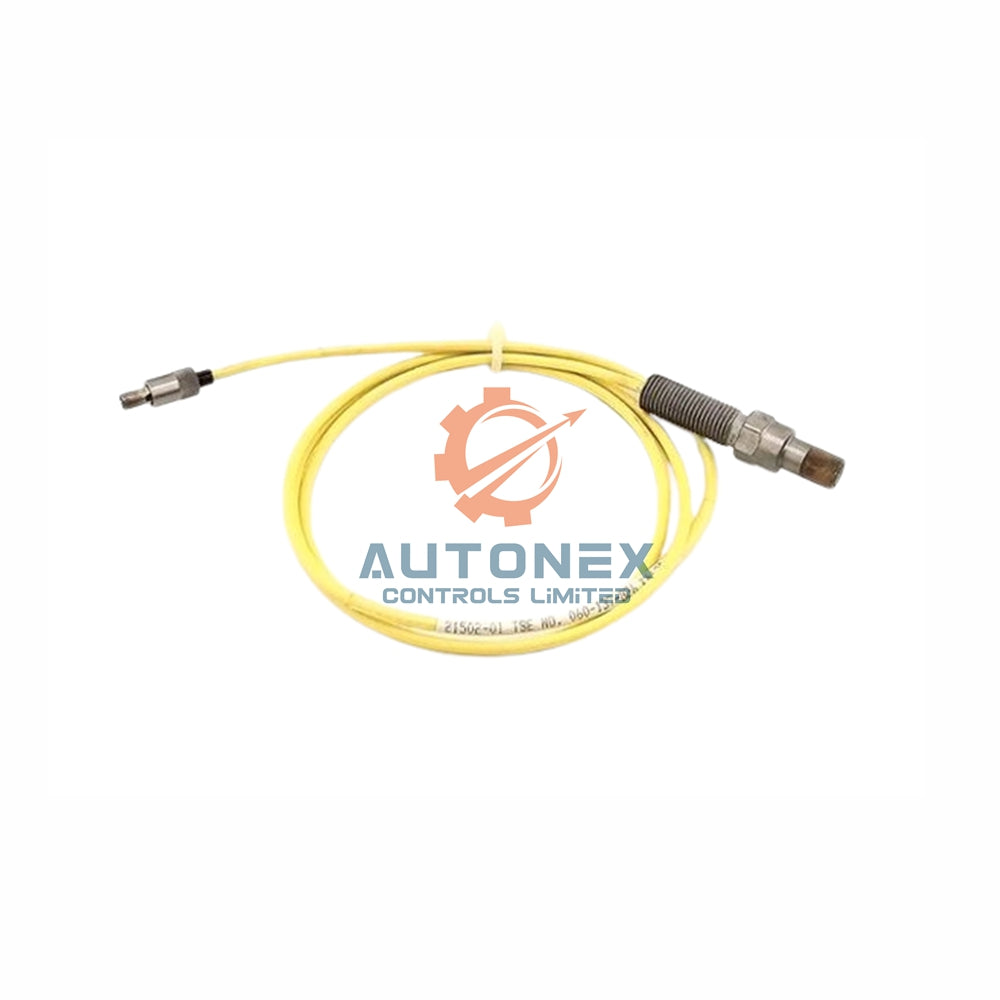

Bently Nevada 21504-24-64-05-02 8mm Proximity Transducer System

Complete Suffix Configuration for Model 21504

• The base model 21504 utilizes a suffix system to define its exact mechanical specifications for proper installation.
• Suffix "24" indicates an unthreaded length of 2.4 inches, providing the correct tip projection from the mounting surface.
• Suffix "64" specifies a case length of 6.4 inches, ensuring the probe body fits your specific mounting requirements.
• Suffix "05" designates a 0.5 meter (20 inch) total cable length for flexible routing to the proximitor.
• Suffix "02" confirms the use of a miniature male coaxial connector for a secure and reliable connection.

Core Technical Specifications and Performance Data

• Measurement Range: This 21504-24-64-05-02 system provides a full-scale range of 80 mils (2.0 mm) for comprehensive vibration analysis.
• Output Sensitivity: It features a precise output scale of 200 mV/mil (7.87 V/mm) with a system accuracy of ±4%.
• Frequency Response: The transducer effectively monitors dynamic motion from 0 to 10 kHz, with only a -5% signal attenuation at the maximum frequency.
• Power Requirements: It operates on a DC power supply from -17.5 to -26 Vdc and draws a maximum current of 12 mA.
• Mechanical Construction: The probe features an 8 mm diameter tip with 3/8-24 threading and can withstand tip shocks up to 1000 g.
• Reliability Metrics: This system boasts a Mean Time Between Failures (MTBF) of 50,000 hours and requires a standard calibration interval of 12 months.
• Operating Temperature: The sensor operates reliably in temperatures ranging from -30°C to +177°C, suitable for extreme environments.

Step-by-Step Installation Procedure

• Begin the installation of your 21504-24-64-05-02 by ensuring all power to the monitoring system is turned off.
• Mount the probe securely onto the designated standoff block or bracket using the 3/8-24 threads.
• Carefully set the initial gap to 0.25 mm (10 mils) as the starting point for the linear range.
• Tighten the mounting nut to the specified torque of 5 Nm to prevent movement during operation.
• Connect the miniature male coaxial connector from the 21504-24-64-05-02 to the matching input on the proximitor.
• Restore power to the system and verify the output voltage corresponds correctly to the established gap.

System Compatibility and Required Components

• This probe is fully compatible with all Bently Nevada 7200 Series proximitor modules for seamless integration.
• It works with standard 8 mm extension cables to connect the probe to remote monitoring electronics.
• The 21504-24-64-05-02 mounts correctly using mating transverse standoff blocks designed for 8 mm sensors.
• It interfaces directly with data loggers and monitoring systems calibrated for a 200 mV/mil input scale.

Download the complete product manual here: 7200 Proximity Transducer Systems

Frequently Asked Questions (FAQ)

• What is the difference between the 21504 and 21504-24-64-05-02? The base model 21504 requires suffix selection. This specific 21504-24-64-05-02 includes predefined unthreaded, case, and cable lengths.
• How do I set the correct initial gap for this probe? You must adjust the probe position against the target until you achieve a static output equivalent to the 0.25 mm starting point of the linear range.
• Can this 8 mm probe withstand high vibration levels? Yes, the tip construction supports up to 1000 g shock, making it robust for most turbomachinery applications.
• What is the recommended calibration frequency for the 21504-24-64-05-02? Bently Nevada recommends a standard calibration interval of 12 months to maintain specified system accuracy.
• Do you have the 21504-24-64-05-02 in stock? Yes, we maintain this configuration as a new and original unit, available for immediate shipment within 5 days.
• What shipping methods do you use? We ship all orders via FedEx, UPS, or DHL to ensure fast and reliable delivery worldwide.
