21504-00-40-50-02 Bently Nevada 8mm Probe 3/8-24 Thread

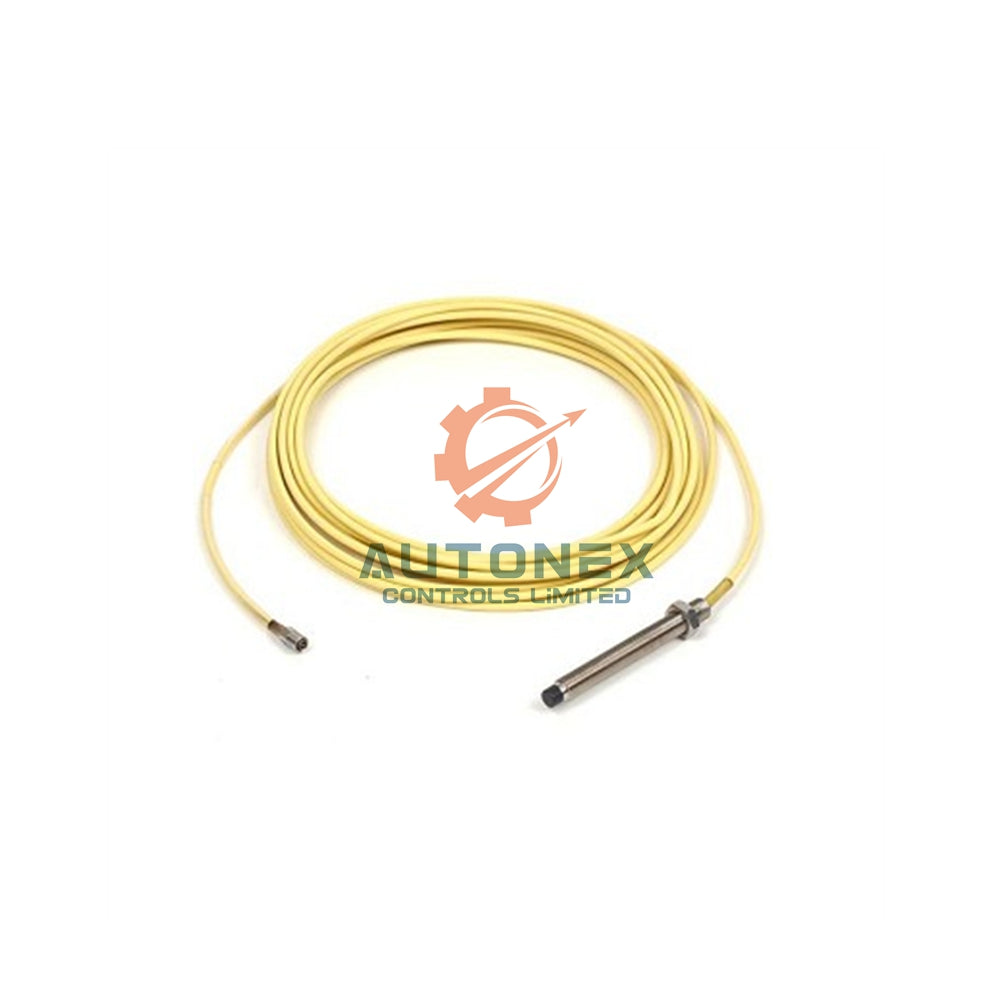

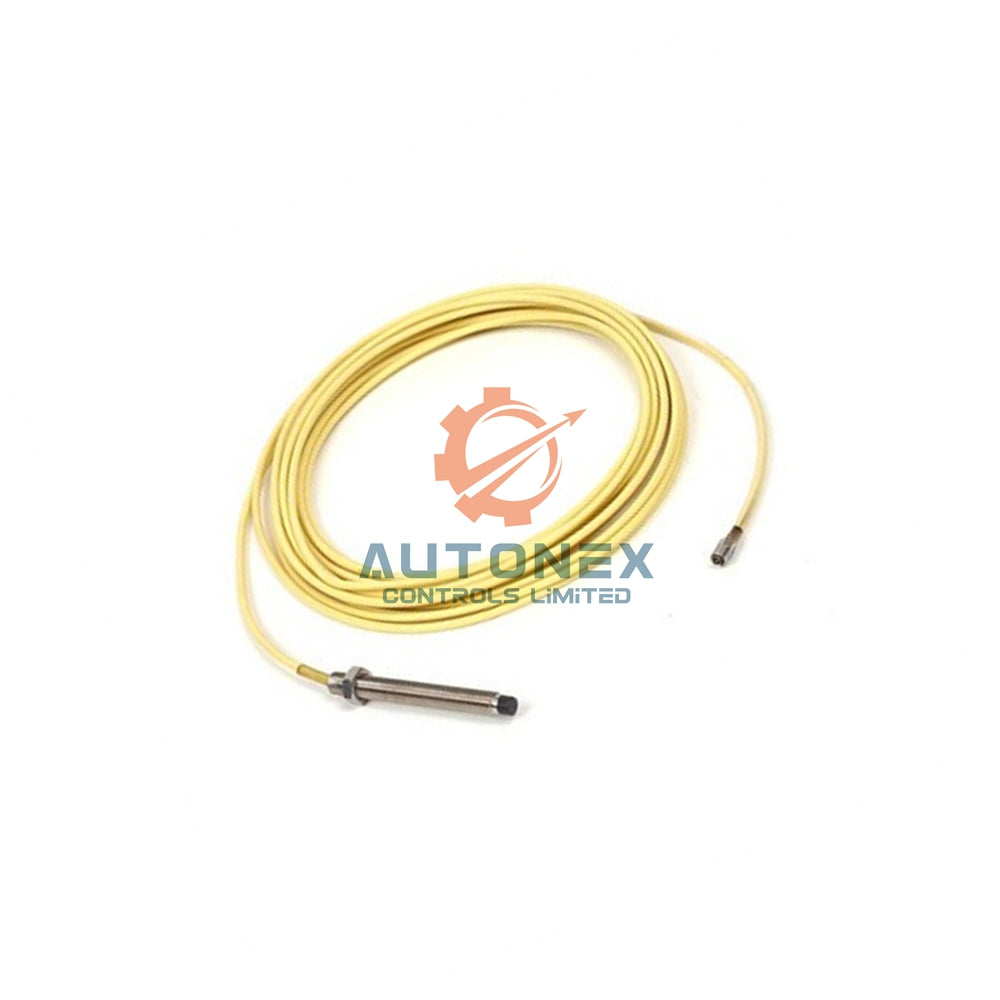

Bently Nevada 21504-00-40-50-02 – 8mm Proximity Probe with 3/8-24 Thread

Suffix Configuration Details

• Model Number: 21504-00-40-50-02 complete with factory suffix configuration.
• Unthreaded Length (00): 0 mm providing full thread engagement for secure mounting.
• Case Length (40): 4.0 inches (101.6 mm) for standard installation requirements.
• Total Length (05): 0.5 meter (20 inches) integrated cable assembly.
• Connector (02): Miniature male coaxial for reliable signal transmission.

Key Technical Specifications

• Manufacturer: Bently Nevada, part number 21504 from the 7200 transducer family.
• Tip Diameter: 8 mm with 3/8-24 thread for standard industrial mounting.
• Case Type: Standard construction with no lead armor for flexible routing.
• Input Power: Accepts -17.5V to -26V DC with 12 mA maximum current draw.
• Output Range: 80 mils (2.0 mm) starting at 10 mils (0.25 mm) gap.
• Scale Factor: 200 mV/mil (7.87 V/mm) with ±4% accuracy.
• Linearity: ±0.02 mm system-calibrated, ±0.06 mm with errors.
• Frequency Response: 0-10 kHz (600,000 cpm) with -5% at 10 kHz.

Environmental Specifications

• Temperature Sensitivity: -396 change at 65°C with 1.27 mm gap setting.
• Proximitor Operating Range: -51°C to +100°C for extreme condition tolerance.
• Probe Cable Range: -34°C to +177°C for high-temperature applications.
• Humidity Rating: 95% maximum, non-condensing for reliable operation.
• Corrosion Resistance: Compatible with air, water, oils, ammonium, sulfuric acid, MEK, and DMF.

Frequently Asked Questions (FAQ)

• Is this proximity probe brand new and original? Yes, we supply only new original Bently Nevada 21504-00-40-50-02 units in factory packing.
• What is the warranty period? We provide 12 months warranty on this 21504-00-40-50-02 probe.
• What is your stock availability? We have in stock ready for immediate dispatch.
• How fast can you ship? We ship within 5 days after order confirmation.
• Which logistics partners do you use? We ship via DHL, FedEx, or UPS worldwide.
• What is the thread size? This probe features 3/8-24 thread for standard mounting.
• What is the measurement range? Output range is 80 mils (2.0 mm) starting at 10 mils gap.
• What is the frequency response? It operates from 0 to 10 kHz with -5% at 10 kHz.
• What are the temperature limits? Cable handles -34°C to +177°C, proximitor handles -51°C to +100°C.
• Is it corrosion resistant? Yes, compatible with air, water, oils, ammonium, sulfuric acid, MEK, and DMF.
• Do you accept returns? Yes, we support 30-day returns for eligible items.
• Can I download the full datasheet? Absolutely, we provide a PDF below for the 7200 system.

Download the official PDF guide: 7200 Proximity Transducer Systems (email this link to your engineering team).
