21000-34-10-20-050-03-02 Bently Nevada Housing Assembly New

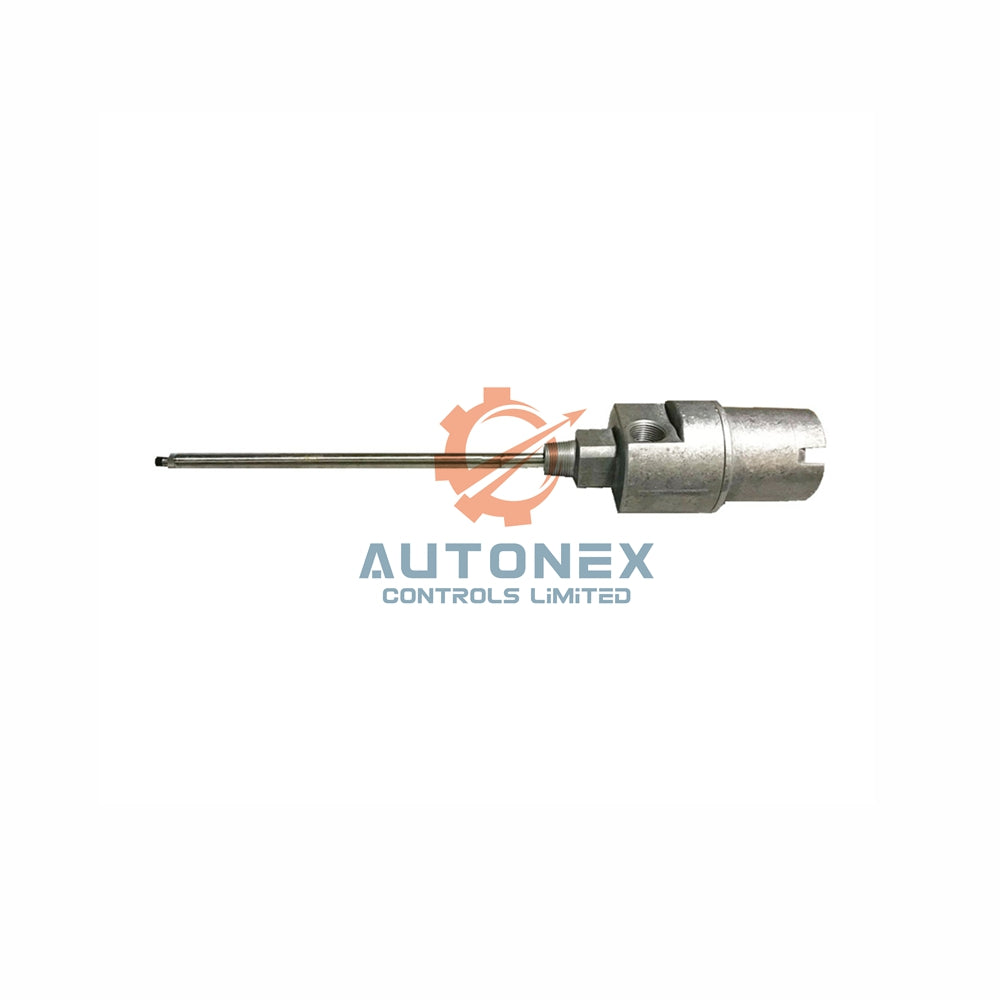

Bently Nevada 21000-34-10-20-050-03-02 Proximity Probe Housing Assemblies

Key Technical Specifications

• Brand: Bently Nevada
• Model: 21000-34-10-20-050-03-02 (Proximity Probe Housing Assemblies)
• Probe Option: 34 = 3300 XL 8 mm probe with connector protector, selectable hazardous area approvals
• Probe Cable Length: 10 = 1.0 m (39 in)
• Standoff Adapter: 20 = 2.0 in
• Probe Penetration: 050 = 5.0 in
• Mounting Thread Option: -02 = 3/4-14 NPT (required when standoff adapter is not -00)
• Housing Material: Aluminum body with 304 stainless steel sleeve
• Maximum (C) + (D) with visible probe: 17.0 in (43.18 cm)
• Maximum (C) + (D) Dimension: 32.9 in (83.5 cm)
• Typical Weight: 1.1 kg (2.4 lb) without fittings
• Environmental Rating: CSA Type 4 enclosure, explosion-proof for hazardous areas
• Standards Compliance: Fully compliant with API 670 Standard

Complete Suffix Information (Tree Structure)

• Model 21000 - Proximity Probe Housing Assemblies
  • Probe Option, with Connector: 34 = 3300 XL 8 mm probe with connector protector, selectable hazardous area approvals
  • Probe Cable Length: 10 = 1.0 m (39 in)
  • Standoff Adapter: 20 = 2.0 in
  • Probe Penetration: 050 = 5.0 in
  • Fitting Option: 03 =
    • One 3/4-14 NPT plug
    • One 3/4-14 to 1/2-14 NPT reducer
    • One cable seal grip with grommets for cable sizes:
      • 1/8 to 3/16 inches
      • 1/4 to 5/16 inches
      • 5/16 to 3/8 inches
  • Mounting Thread Option: -02 = 3/4-14 NPT (Must order if Standoff Adapter Length Option is not -00)

Frequently Asked Questions (FAQ)

• Q: Is this Bently Nevada 21000 unit brand new?
  A: Yes, it is new and original in factory packing with a 12-month warranty.
• Q: What cable length does the 21000 assembly support?
  A: The probe cable length is 1.0 m (39 inches) as per suffix code 10.
• Q: Do you have the 21000 assembly in stock?
  A: Yes, we have this model in stock and ready to ship.
• Q: How long for delivery?
  A: We ship within 5 days via FedEx, UPS, or DHL.
• Q: What is the maximum dimension from probe tip to housing end?
  A: The maximum (C)+(D) dimension is 32.9 inches (83.5 cm).
• Q: Can I return this product?
  A: Yes, we accept returns within 30 days from delivery.
• Q: Is the housing suitable for hazardous areas?
  A: Yes, it carries CSA explosion-proof ratings for hazardous locations.
• Q: What mounting thread does the -02 option provide?
  A: The -02 option gives you a 3/4-14 NPT mounting thread.
