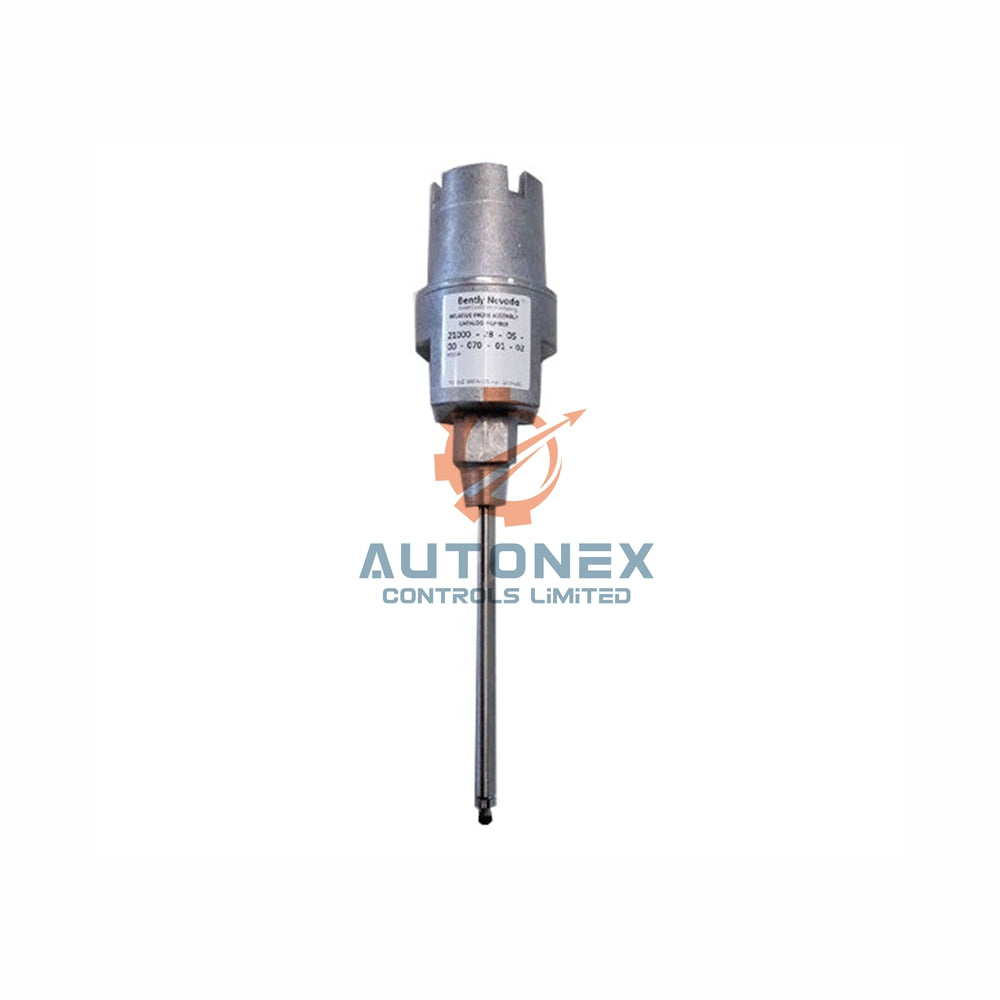

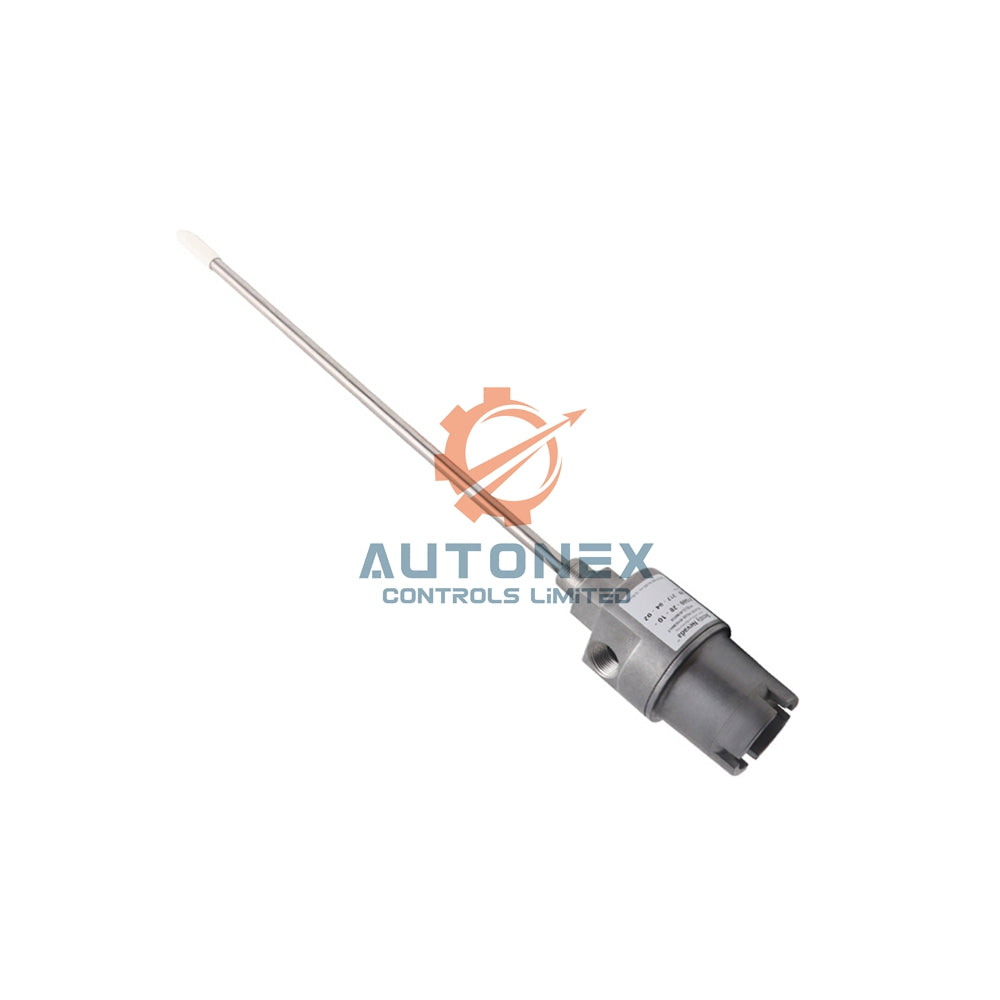

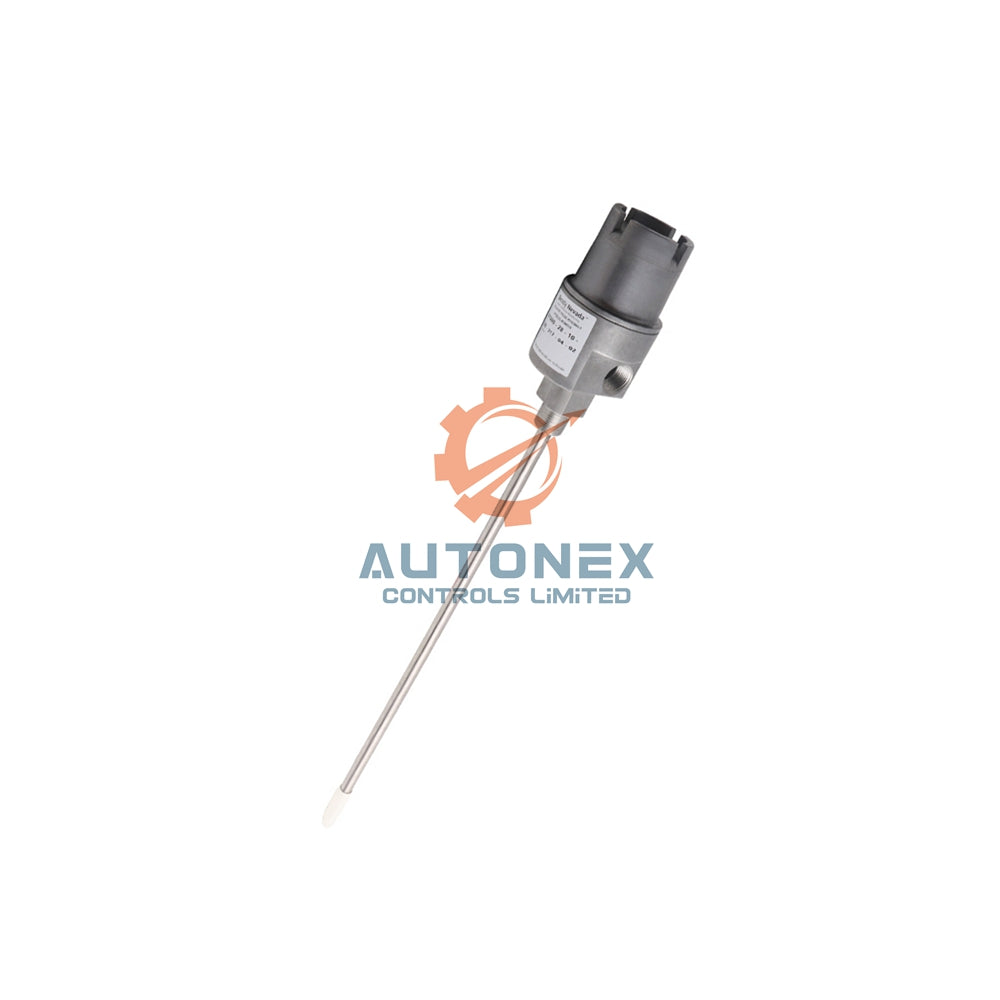

21000-34-10-00-065-03-02 Bently Nevada Proximity Probe Housing

Bently Nevada 21000-34-10-00-065-03-02 – Complete Proximity Probe Housing Assembly

Full Technical Specifications

• Brand: Bently Nevada
• Complete Model: 21000-34-10-00-065-03-02
• Series: 21000 Proximity Probe Housing Assemblies
• Probe Option (34): 3300 XL 8 mm probe with connector protector, selectable hazardous area approvals
• Probe Cable Length (00): Probe cable not required
• Standoff Adapter (00): No adapter
• Probe Penetration (065): 6.5 inches
• Fitting Option (03): One 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, one cable seal grip with grommets (cable sizes: 1/8-3/16 in, 1/4-5/16 in, 5/16-3/8 in)
• Mounting Thread Option (-02): 3/4-14 NPT
• Housing Material: Aluminum body with 304 stainless steel sleeve
• Probe Cable Length: 1.0 meter
• Maximum (C)+(D) with visible probe: 17.0 inches (43.18 cm)
• Maximum (C)+(D) overall dimension: 32.9 inches (83.5 cm)
• Weight: 1.1 kg (2.4 lb) typical without fittings
• Enclosure Certification: CSA Type 4, explosion proof for hazardous areas
• Standard Compliance: API 670

Assembly Components & Installation

• The 21000-34-10-00-065-03-02 includes a dome cover that screws into the housing body.
• Threaded ports allow simple conduit connections for wiring.
• A probe sleeve comes in an optional length for different applications.
• The kit supplies O-rings and a reverse mount proximity probe.
• A thread seal ensures a reliable, leak-free fit.
• Optional conduit fittings and standoff adapters are available separately.
• Both aluminum (21000) and stainless steel versions support hazardous area approvals.

Package Contents

• One 21000-34-10-00-065-03-02 proximity probe housing body with dome cover
• One 3300 XL 8 mm reverse mount proximity probe with connector protector
• One thread seal and O-rings set
• One 3/4-14 NPT plug
• One 3/4-14 to 1/2-14 NPT reducer
• One cable seal grip with three grommets (for 1/8-3/16 in, 1/4-5/16 in, and 5/16-3/8 in cables)

Frequently Asked Questions (FAQ)

• Q: Is this 21000-34-10-00-065-03-02 a new original unit?
  A: Yes, we supply only new original units in factory packaging.
• Q: Does this probe assembly work in hazardous areas?
  A: Yes, it carries CSA explosion-proof certification for hazardous locations.
• Q: What is the exact probe penetration depth?
  A: The 065 suffix code provides exactly 6.5 inches of probe penetration.
• Q: What mounting thread does this housing use?
  A: The -02 option gives you a 3/4-14 NPT mounting thread.
• Q: Do you have this complete model in stock?
  A: Yes, we keep the 21000-34-10-00-065-03-02 in stock.
• Q: How long will delivery take?
  A: We ship all orders within 5 working days after confirmation.
• Q: Which shipping carriers do you use?
  A: We ship via DHL, FedEx, or UPS according to your choice.
• Q: Can I return this housing assembly?
  A: Yes, we support returns within 30 days from delivery.
• Q: Does this assembly include a probe cable?
  A: No, the 00 cable length code means a probe cable is not required.
• Q: Is this housing compliant with API standards?
  A: Yes, it fully meets the American Petroleum Institute API 670 Standard.
