21000-34-05-00-018-03-02 Bently Nevada Proximity Housing

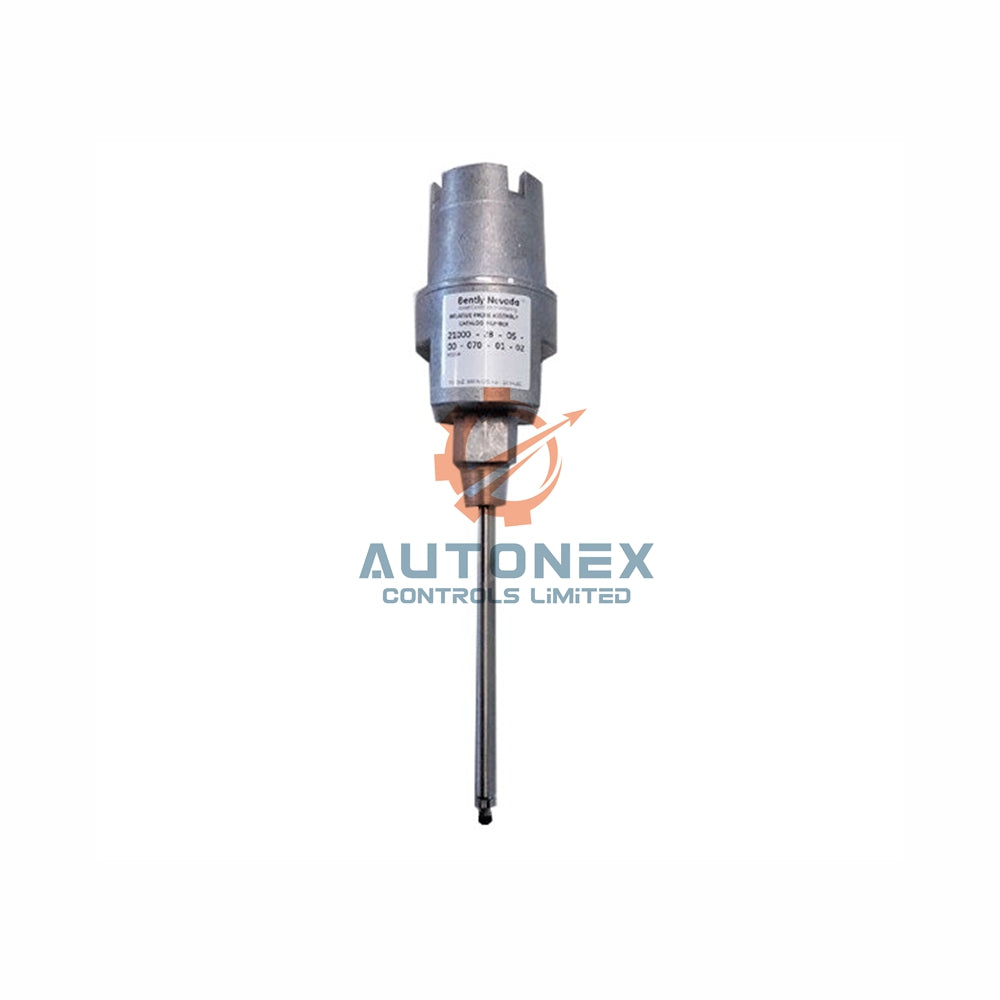

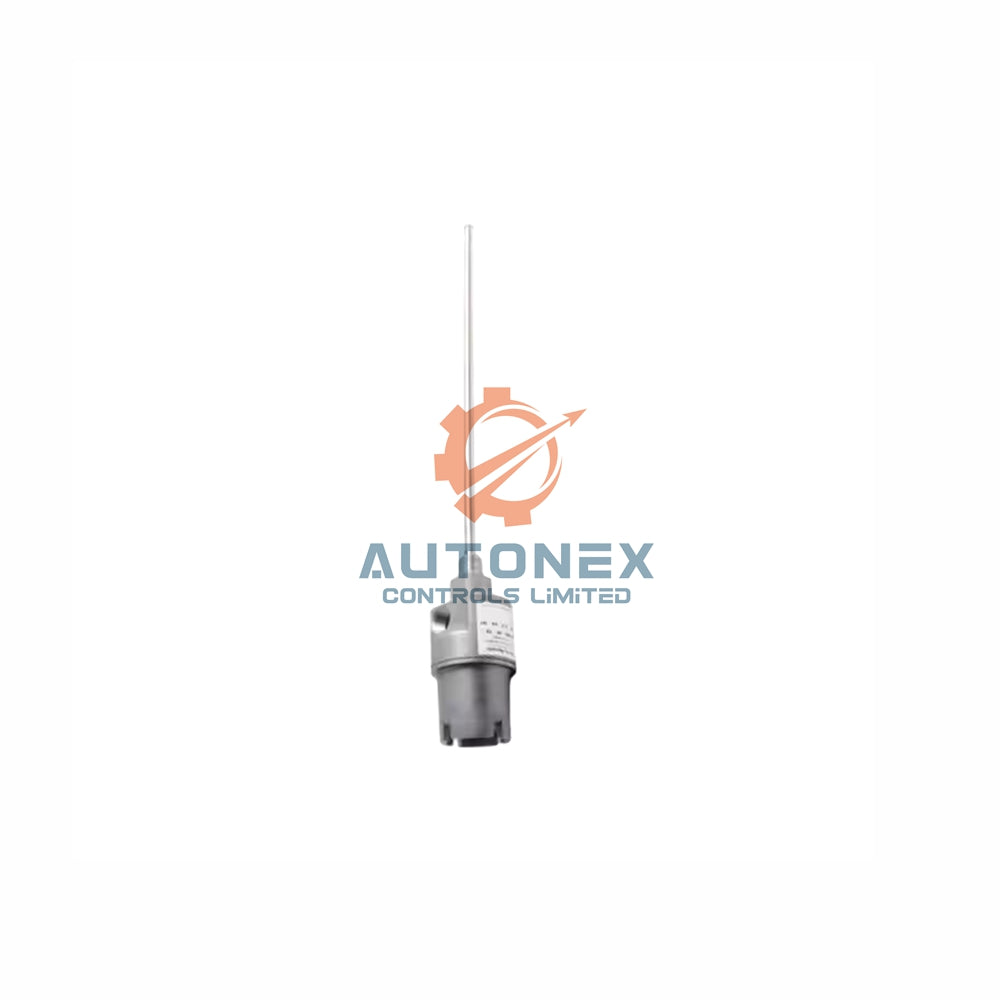

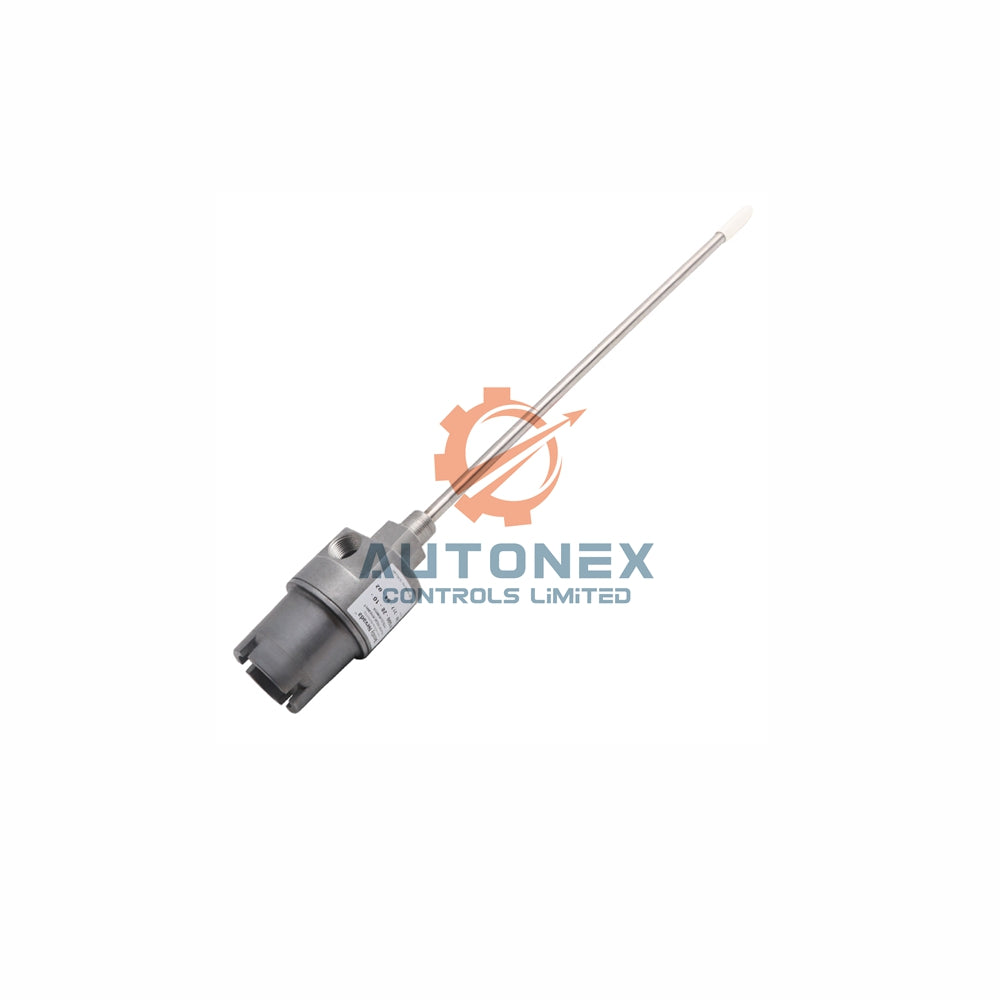

Bently Nevada 21000-34-05-00-018-03-02 Proximity Probe Housing Assembly

Technical Specifications

• Brand: Bently Nevada
• Model Number: 21000-34-05-00-018-03-02
• Probe Option: 3300 XL 8 mm probe with connector protector
• Cable Length: 0.5 meters (20 inches)
• Probe Penetration: 1.8 inches (018 option)
• Mounting Thread: 3/4-14 NPT (-02 option)
• Standoff Adapter: No adapter (00 option)
• Fitting Option: One 3/4-14 NPT plug, one reducer, one cable seal grip with three grommets
• Housing Material: Aluminum body with 304 stainless steel sleeve
• Maximum Dimension (C+D): 13.5 inches (34.3 cm)
• Weight: 1.1 kg (2.4 lb) typical without fittings
• Enclosure Rating: CSA Type 4, explosion-proof for hazardous areas
• Compliance: API 670 for externally mounted proximity probe housings

Frequently Asked Questions (FAQ)

• Is this housing suitable for hazardous locations? Yes, the CSA-rated version provides explosion-proof protection for hazardous areas.
• What cable sizes does the seal grip support? It supports 1/8 to 3/16 inches, 1/4 to 5/16 inches, and 5/16 to 3/8 inches.
• Can I order this with a different probe cable length? This specific 21000-34-05-00-018-03-02 has a fixed 0.5m cable. Contact us for other options.
• Do I need a standoff adapter for installation? No, the -00 option means no adapter is included or required.
• Is the probe visible for part number verification? No, the label is not visible once fully assembled.
• Do you have this item in stock? Yes, we keep the 21000-34-05-00-018-03-02 in our warehouse.
• What is the maximum (C+D) dimension? The maximum distance from housing to probe tip is 13.5 inches (34.3 cm).
• Does this assembly meet API standards? Yes, it fully complies with API 670 for externally mounted housings.
