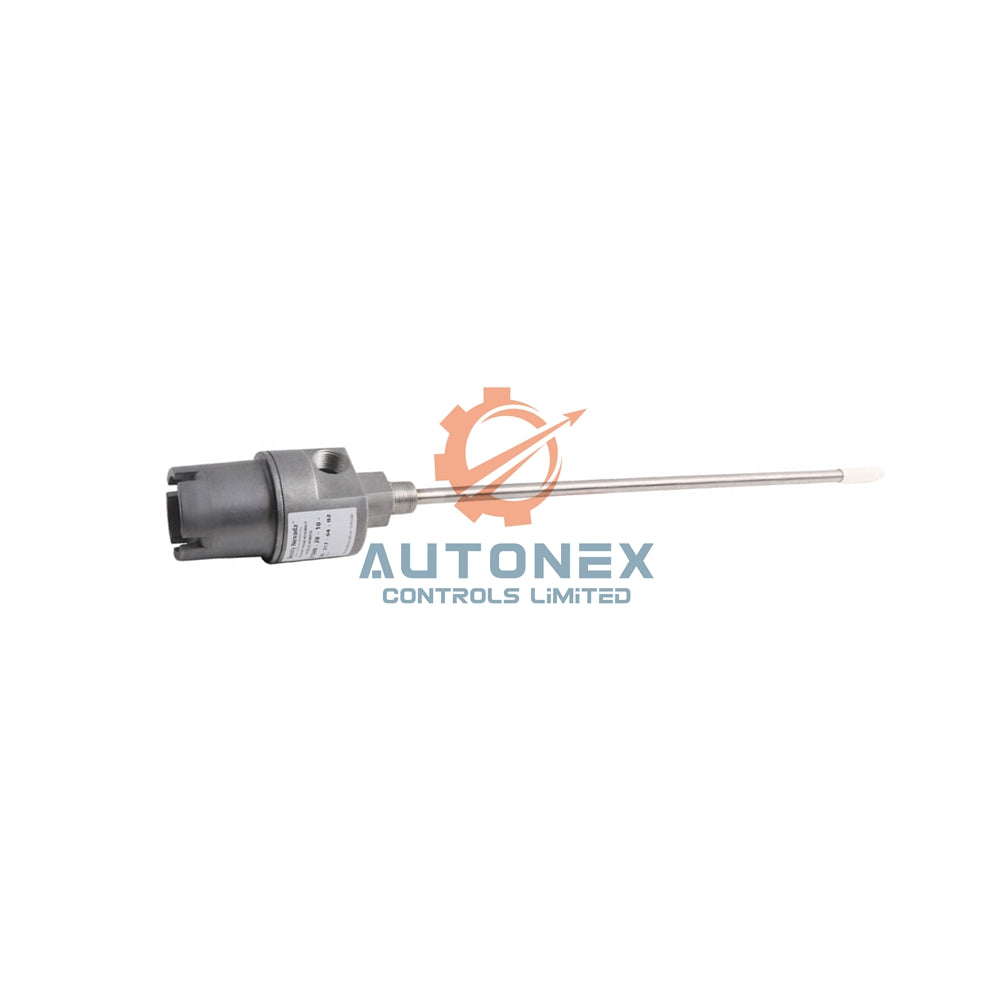

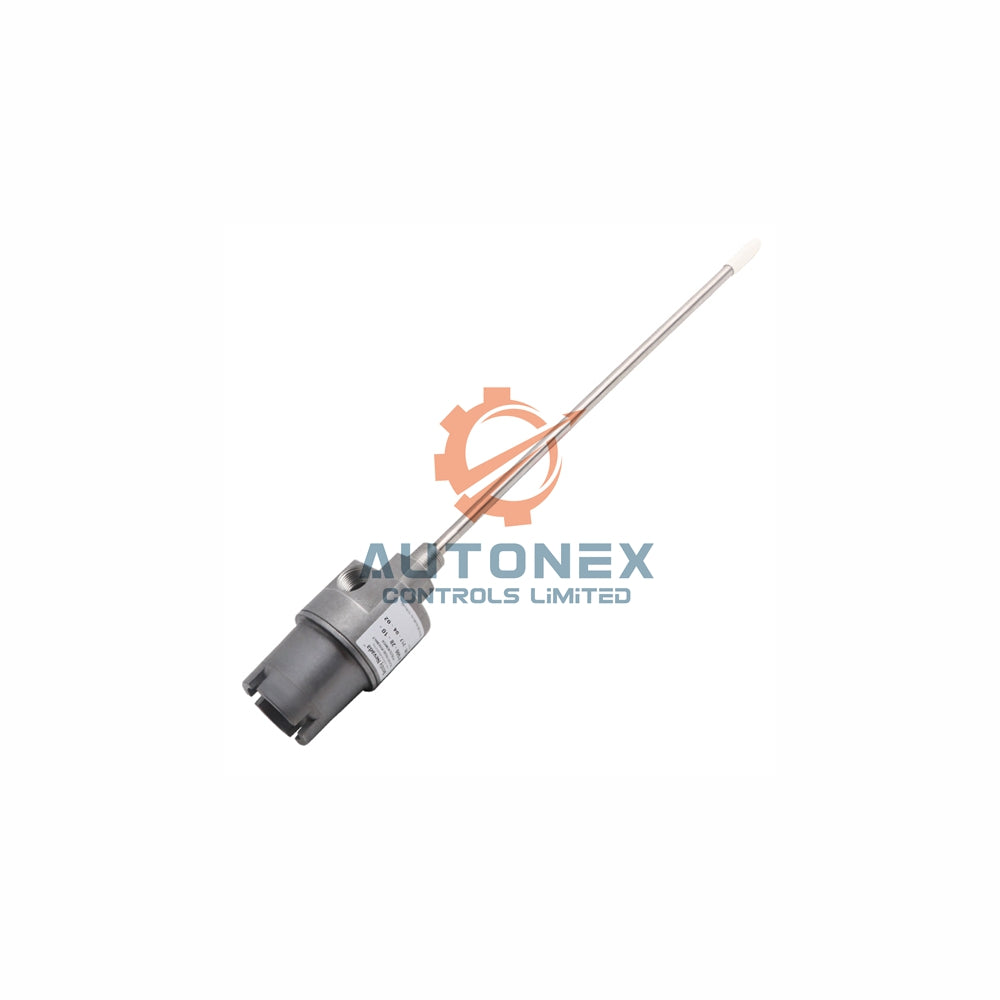

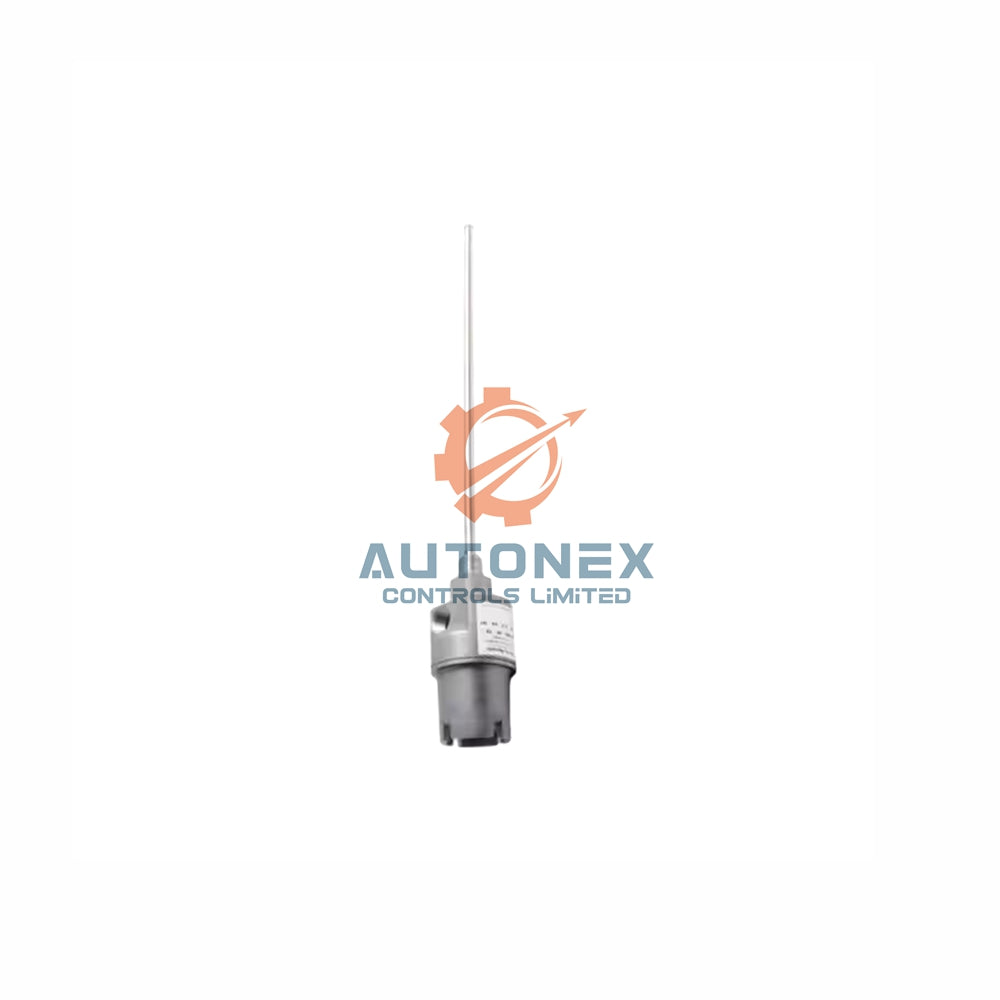

21000-34-00-00-066-04-02 Bently Nevada Probe Housing Assemblies

21000 Bently Nevada Proximity Probe Housing Assemblies – Technical Overview

• Brand: Bently Nevada
• Model Number: 21000-34-00-00-066-04-02
• Category: Proximity Probe Housing Assemblies
• Probe Type: 3300 XL 8 mm probe with connector protector
• Hazardous Approvals: Selectable (CSA explosion-proof for CA versions)

Technical Specifications

• Probe Penetration: 6.6 inches (Option 066)
• Mounting Thread: 3/4-14 NPT (Option -02)
• Fitting Option: One 3/4-14 NPT plug only (Option 04)
• Material: Aluminum body with 304 stainless steel sleeve
• Max Visible Probe Length (C+D): 17.0 inches (43.18 cm)
• Max Total (C+D) Dimension: 32.9 inches (83.5 cm)
• Typical Weight: 1.1 kg (2.4 lb) without fittings
• Cable Length: 1.0 meter (probe cable not required as per suffix 00)

Environmental & Performance Features

• Enclosure Rating: CSA Type 4, suitable for harsh environments
• Explosion Proof: CSA rated when ordered with E:00, E:01, E:02, or E:04 options
• API Compliance: Fully compliant with API 670 Standard
• Material Durability: Aluminum body resists corrosion, stainless steel sleeve adds strength
• Intrinsically Safe: Available for both aluminum and stainless steel housings

Frequently Asked Questions (FAQ)

• Q: Is this 21000 assembly brand new?
  A: Yes, we provide only new and original Bently Nevada parts in factory packing.
• Q: Do you have stock for model 21000?
  A: Yes, we keep this model in stock with ready availability.
• Q: What is the maximum probe penetration?
  A: The penetration is 6.6 inches (Option 066).
• Q: Can I use this housing in explosive environments?
  A: Yes, the CSA explosion-proof rating applies when you order CA versions with E:00/E:01/E:02/E:04 options.
• Q: What mounting thread does this assembly use?
  A: It uses a 3/4-14 NPT thread (Option -02).
• Q: How long does delivery take?
  A: We dispatch within 5 days, and courier takes 2-5 days depending on location.
• Q: Can I return this item?
  A: Yes, we accept returns within 30 days from your receipt.
• Q: Does this include a probe cable?
  A: No, the suffix 00 means probe cable is not required.
