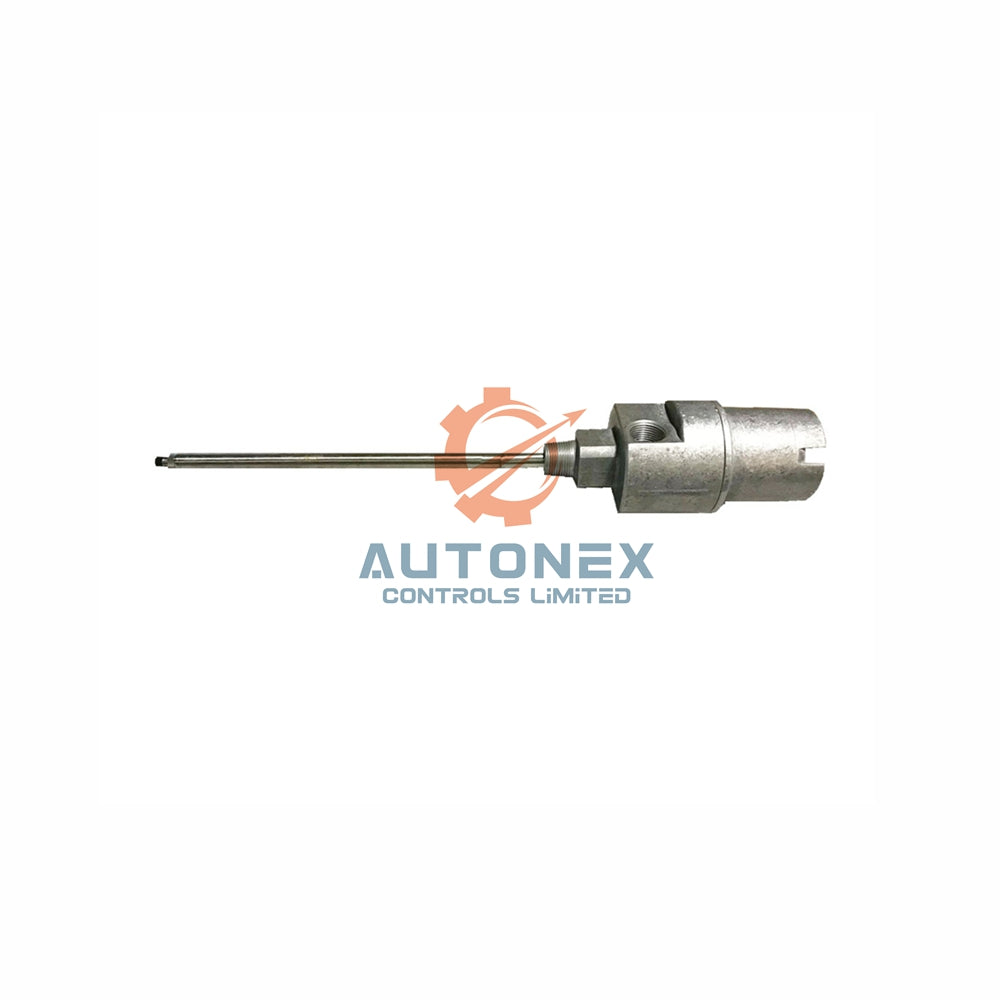

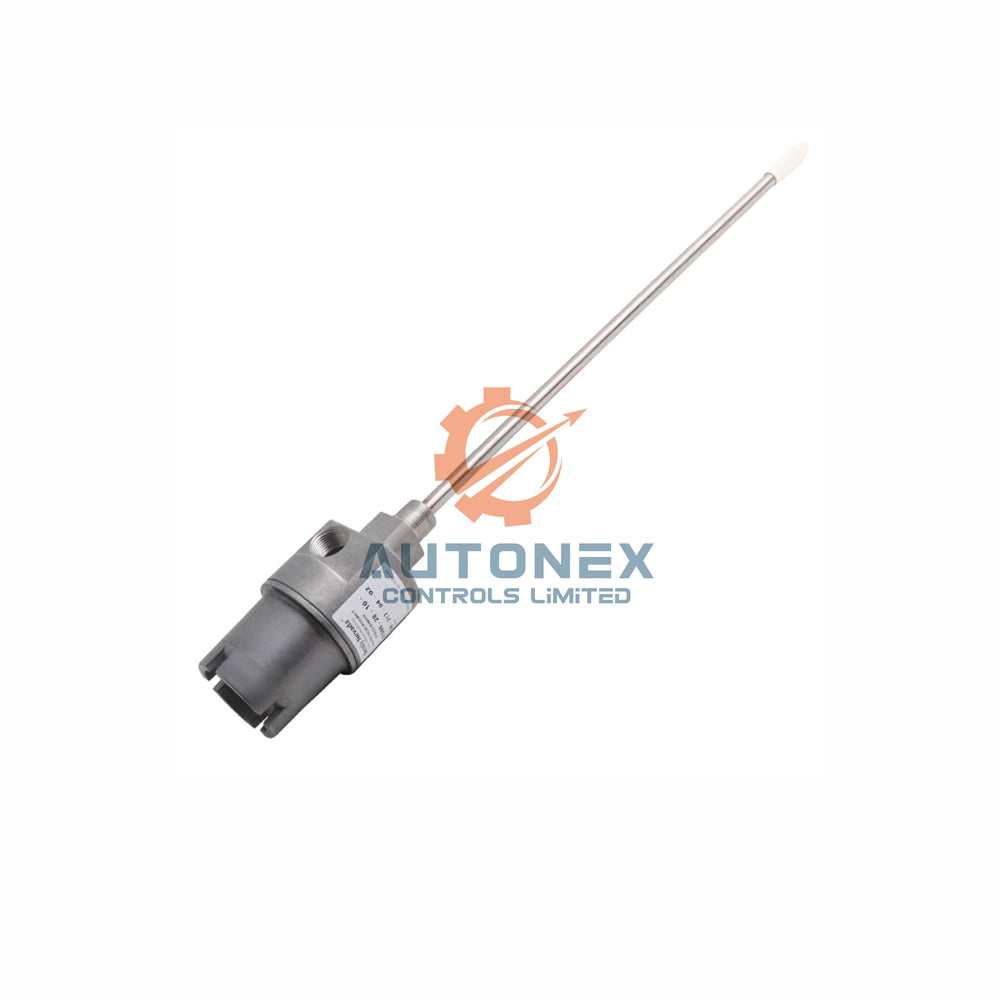

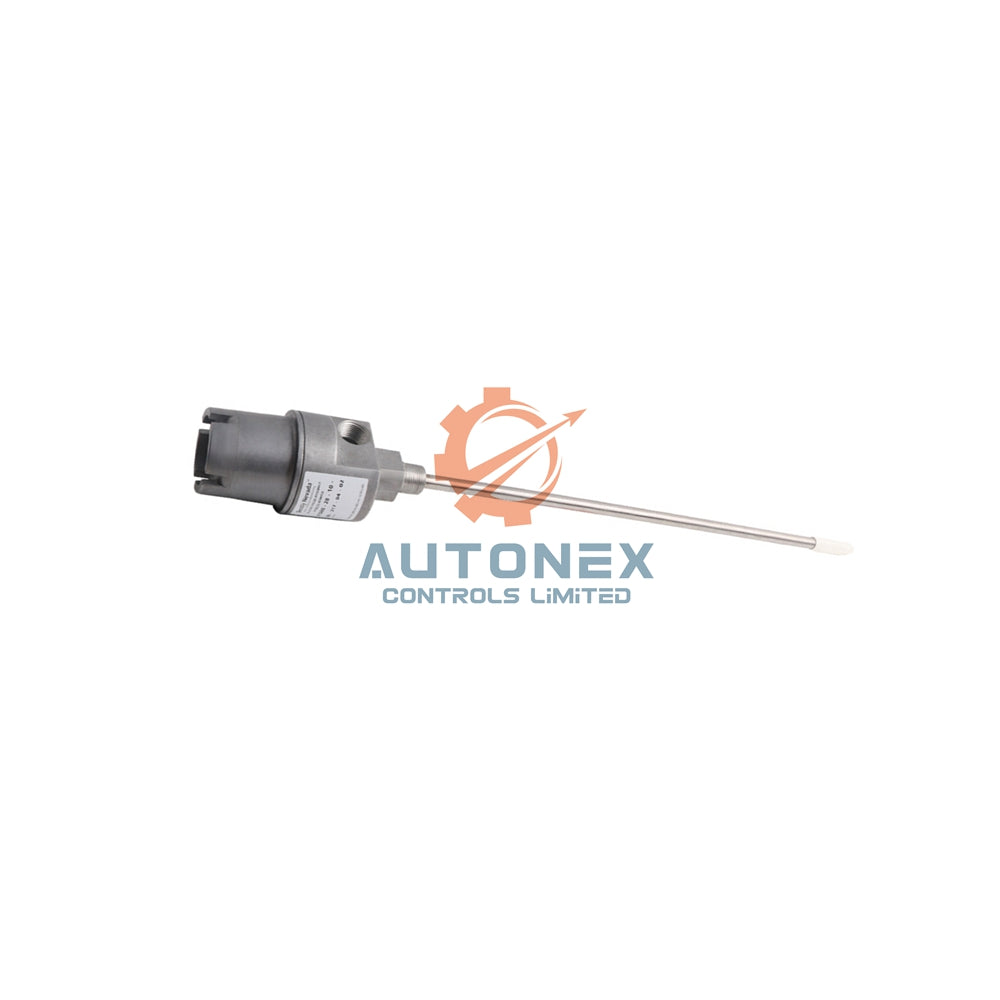

21000-28-05-20-018-04-02 Bently Nevada Proximity Probe

Bently Nevada 21000-28-05-20-018-04-02 Explosion-Proof Sensor Housing

Essential Specifications

• Brand: Bently Nevada
• Complete Model: 21000-28-05-20-018-04-02
• Probe Type: 8mm diameter with 20-inch cable
• Temperature Range: -50°C to +80°C operating limits
• Unit Weight: 2.4 pounds (1.1 kg) total assembly

Model Number Guide

• 28 - Explosion-proof 3300 XL series probe design
• 018 - 1.8-inch (46mm) measurement depth capability
• 04 - 3/4-inch NPT plug connection included
• 02 - Standard NPT mounting thread configuration

Safety Certifications

• CSA Certified for Class I, II, III hazardous areas
• RoHS 2011/65/EU environmental compliance
• API 670 machinery protection standard certification
• Explosion-proof rating for dangerous zone operation

Package Contents

• Complete aluminum housing with steel components
• Integrated probe assembly and protective dome cover
• Full set of sealing rings and gaskets
• NPT connection fittings and mounting hardware

Industrial Applications

• Oil refinery compressor monitoring systems
• Natural gas pipeline pressure measurement
• Chemical plant equipment protection
• Power generation turbine monitoring

Frequently Asked Questions

• Is this housing brand new and authentic?
  We supply only new and genuine Bently Nevada products from factory seals.
• What is your shipping timeframe?
  We process and ship all orders within 5 business days from current stock.
• Which carriers do you use for delivery?
  We ship worldwide using DHL, FedEx, and UPS express services.
• Do you offer a return policy?
  We provide a 30-day return period from the delivery date for all items.
• What is the probe measurement depth?
  This housing features a 1.8-inch depth measurement capability.
• What temperature range does it support?
  The unit operates from -50°C to +80°C in industrial environments.

Download the complete technical datasheet for detailed specifications:
21000-24701-Datasheet
