140NOC77100C Schneider Electric TCP/IP Module

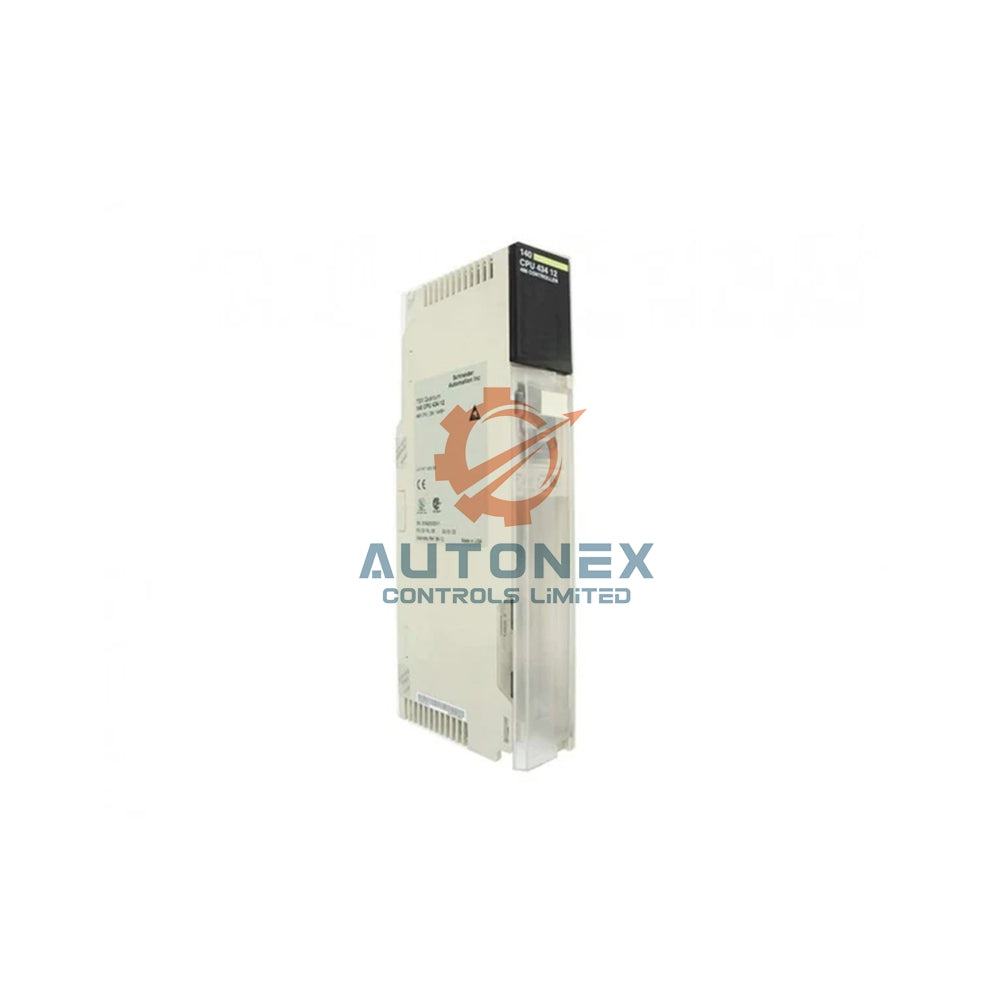

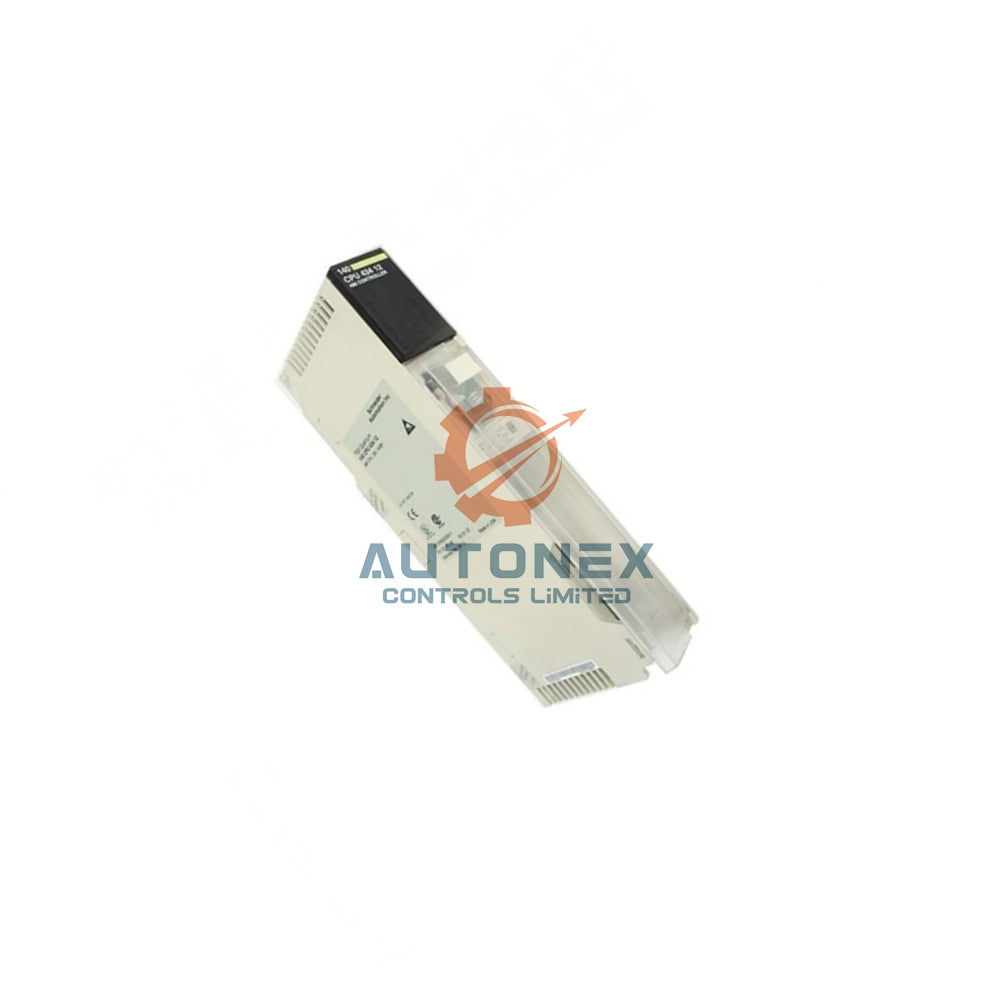

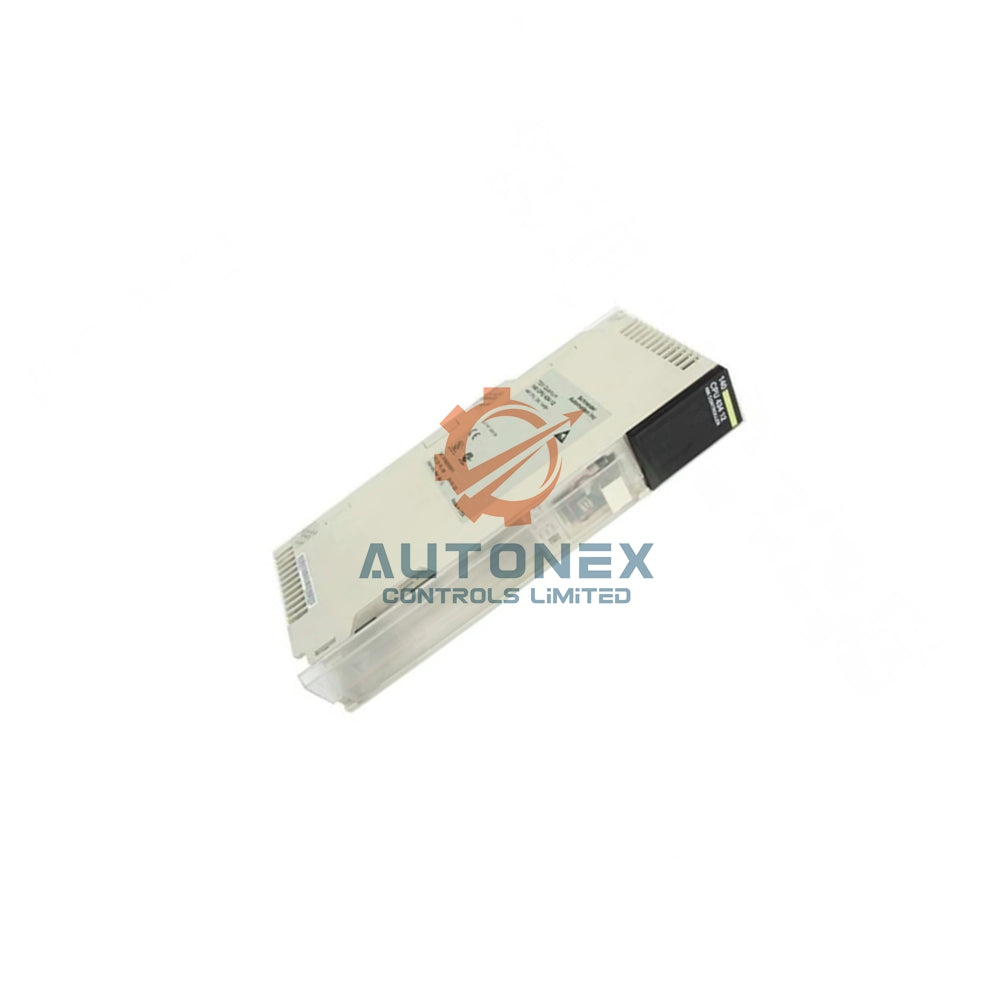

Schneider Electric 140NOC77100C Modicon Quantum TCP/IP Communication Module

Network and Communication Specifications

• Protocol Support: This 140NOC77100C module utilizes Ethernet/IP protocol for industrial network integration.
• Transmission Rate: It delivers 10/100 Mbit/s communication speeds for efficient data exchange.
• Connection Capacity: The module manages up to 128 maximum connections for extensive device networking.
• Communication Services: It supports CIP explicit messaging, CIP implicit messaging, SNMP agent, and DHCP/BootP server functions.
• Port Type: An RJ45 Ethernet port provides 10BASE-T/100BASE-TX connectivity via twisted pair media.

Diagnostic and Status Indicators

• Module Status LED: Green/red indicator shows the operational state of the 140NOC77100C module.
• Network Status LED: Green/red LED displays network communication status for quick troubleshooting.
• Activity LEDs: Separate green LEDs indicate reception (RxActive) and transmission (TxActive) activity.
• Speed Indication: A green LED signals 100MB connection speed for immediate bandwidth verification.
• Additional Indicators: LEDs monitor bus communication, configuration status, link status, and full duplex/collision detection.

Environmental and Operating Conditions

• Operating Temperature: The 140NOC77100C functions reliably from 0 to 60 degrees Celsius ambient temperature.
• Extended Range: This module operates between 32 to 140 degrees Fahrenheit for versatile installation.
• Humidity Tolerance: It withstands 10 to 95 percent relative humidity at 60 degrees Celsius without condensation.
• Storage Conditions: Storage temperature ranges from 0 to 50 degrees Celsius with 80 percent RH maximum.
• Altitude Rating: Operating and storage altitudes reach up to 1000 meters above sea level.
• Environment: This TCP/IP module requires clean indoor settings free from corrosive chemicals.

Electrical and Physical Specifications

• Power Supply: The 140NOC77100C draws 500 mA at 5 V DC via the rack power supply.
• Module Format: It uses standard Modicon Quantum format for consistent panel installation.
• Protection Rating: IP20 degree of protection safeguards against solid objects larger than 12mm.
• Net Weight: This communication module weighs 0.345 kg or 0.761 lb for lightweight handling.
• Housing: Durable construction protects internal components in industrial control environments.

Frequently Asked Questions (FAQ)

• Is the 140NOC77100C a brand new module? Yes, we supply it as a brand new and original Schneider Electric product.
• Do you have this TCP/IP module in stock? Yes, we maintain the 140NOC77100C in stock for immediate shipment.
• How quickly can you ship this Ethernet module? We ship all orders within 5 days via DHL, FedEx, or UPS.
• What is your return policy for this item? We accept returns within 30 days of delivery for this module.
• What is the maximum operating temperature? This module operates reliably from 0 to 60 degrees Celsius.
• How many connections does the 140NOC77100C support? It supports up to 128 maximum connections for device networking.
• What protocols does this module support? It supports Ethernet/IP with CIP explicit and implicit messaging.
• Does this module work with Unity CPUs? Yes, it offers compatibility with all Unity CPU processors.
• What LED indicators does this module feature? It includes eight LEDs for module status, network status, and activity monitoring.
