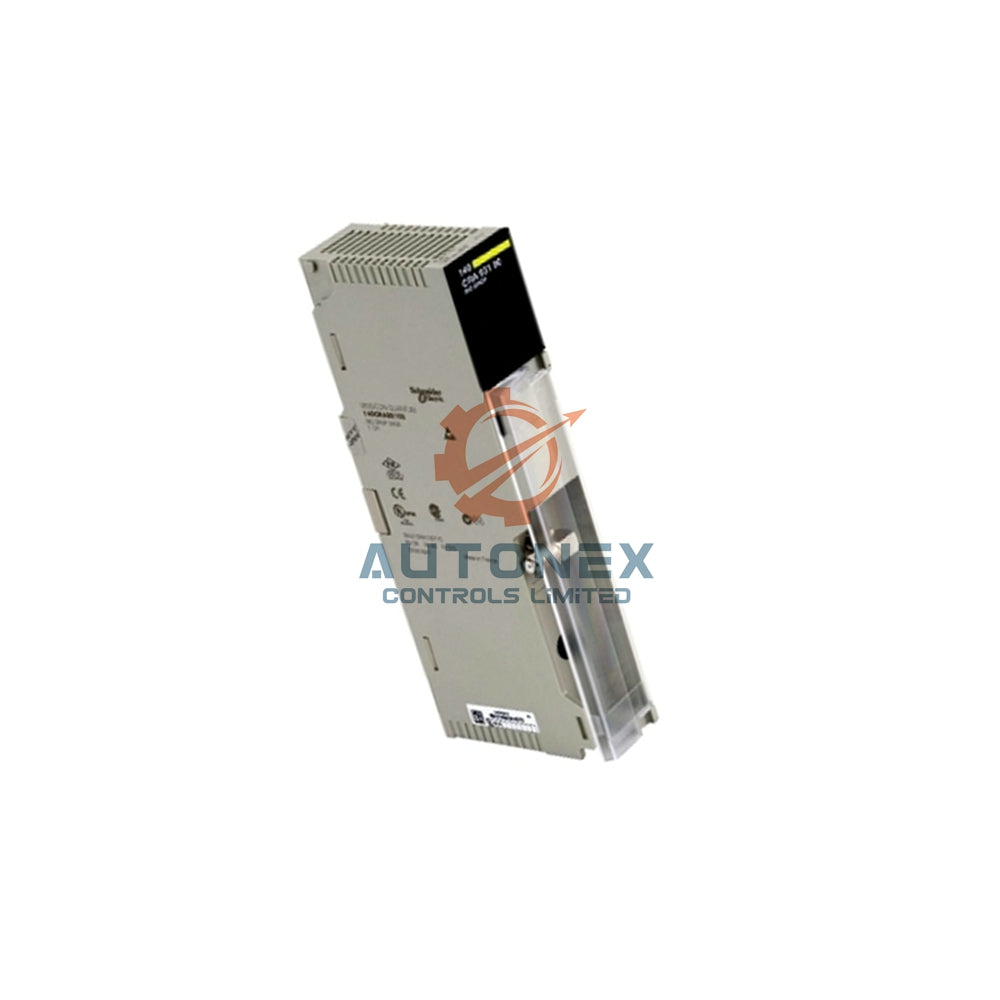

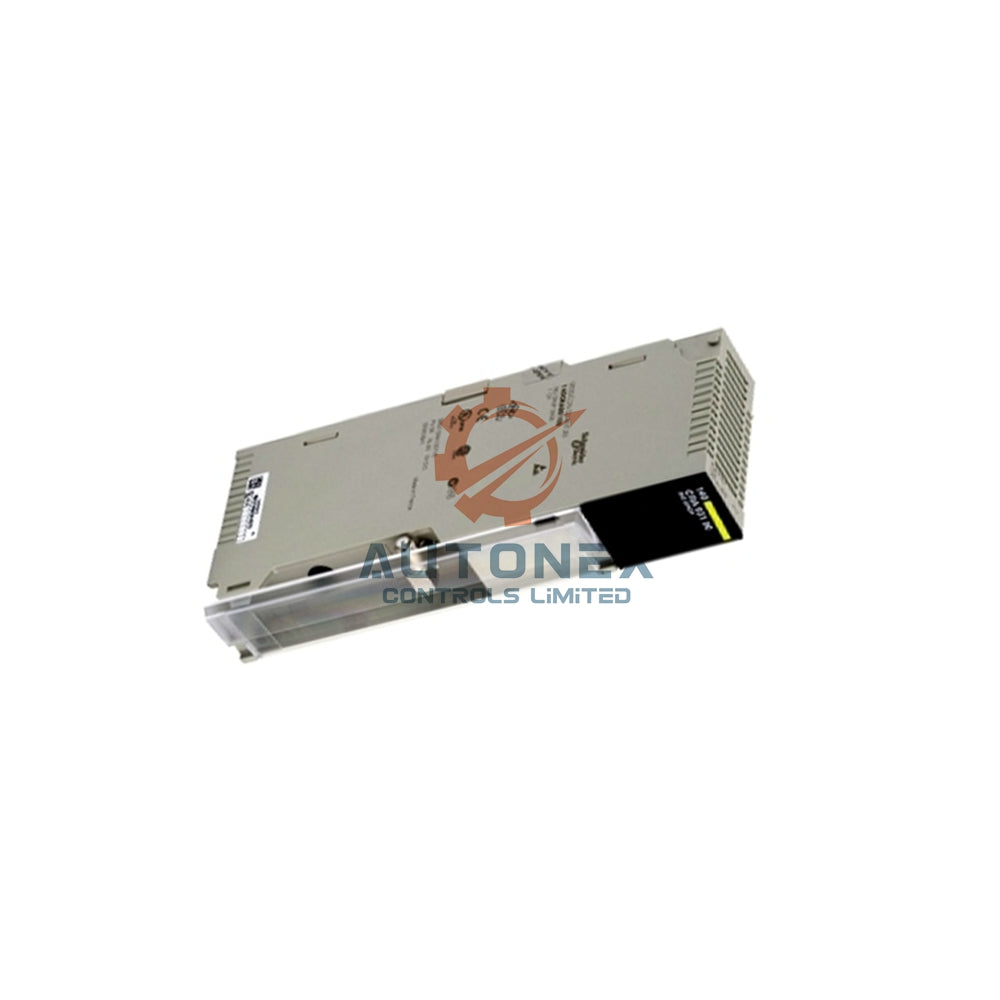

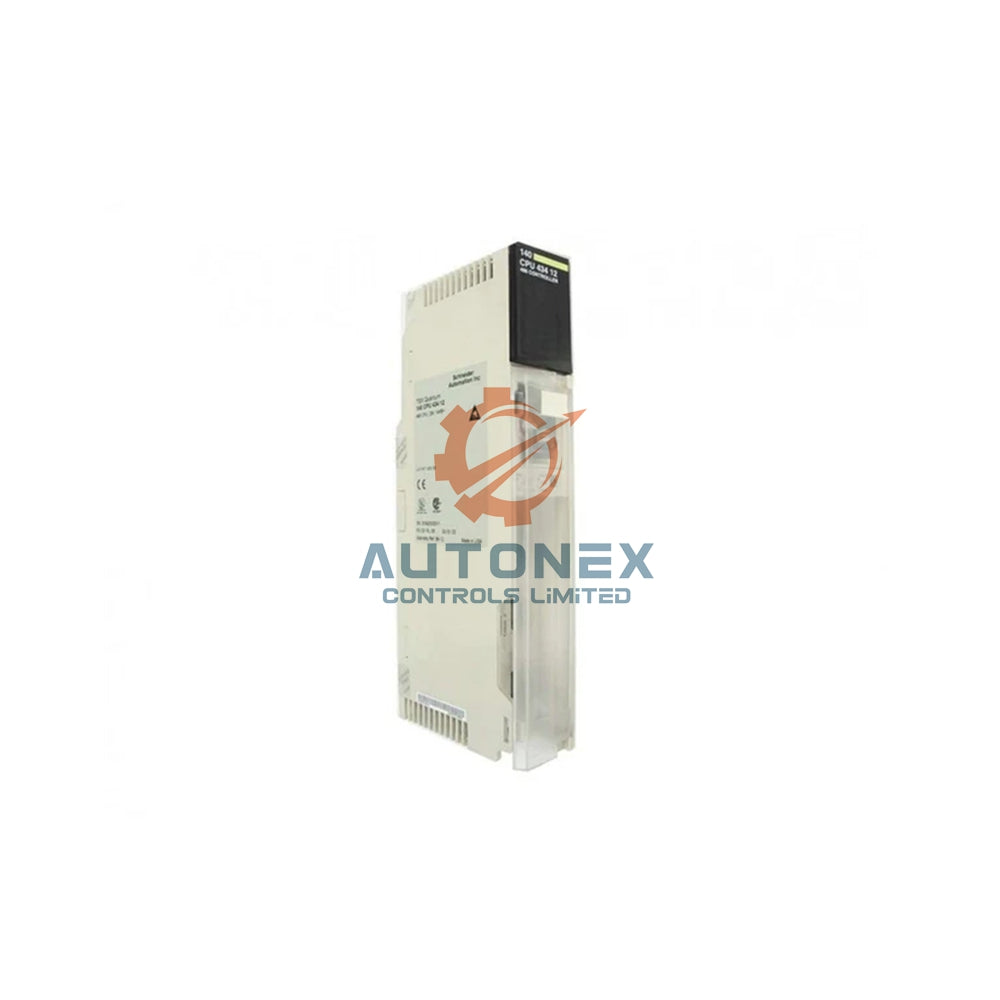

140CPU42402C Schneider Modicon Quantum CPU 486 Processor

Schneider Electric 140CPU42402C Modicon Quantum 486 CPU Module with Conformal Coating

Processor and Memory Specifications

• Features a 486 controller CPU delivering reliable compute performance for demanding automation applications
• Provides 2 MB RAM capacity, offering adequate memory for most industrial control programs and data handling
• Includes built-in flash memory for efficient program storage and quick firmware updates when needed
• Executes Boolean operations in approximately 0.3 µs, ensuring rapid processing for time-sensitive control tasks

Communication and Networking Capabilities

• Integrates 2 x Modbus Plus (MB+) ports for redundant and high-speed industrial network connectivity
• Supports both Modbus and Modbus Plus communication protocols for versatile device integration
• Enables seamless connection to existing automation networks without requiring additional interface modules
• Facilitates data exchange with multiple devices simultaneously through dual-port architecture

Programming and Standards Compliance

• Follows IEC 61131-3 instruction set standard, ensuring compatibility with industry programming practices
• Works seamlessly with Unity Pro and Concept software platforms for flexible program development
• Supports structured programming approaches that simplify complex automation logic creation
• Enables engineers to leverage standard programming languages for faster project implementation

Environmental Protection and Reliability

• Features conformal coating (CC) that shields circuitry from dust, moisture, and corrosive contaminants
• Operates reliably in temperatures from 0 to 60°C, suitable for varied industrial environments
• Contains integrated watchdog timer for automatic system monitoring and fault recovery
• Requires 5 V DC power supply, compatible with standard Quantum backplane power delivery

I/O Support and Installation Features

• Supports both local and remote I/O systems, providing flexibility for distributed control architectures
• Mounts directly into standard Quantum racks for straightforward installation in control cabinets
• Eliminates complex wiring requirements through standardized backplane integration
• Enables system expansion through remote I/O capabilities for large-scale automation projects

Frequently Asked Questions

• What processor does the 140CPU42402C use?
  › The module utilizes a 486 controller CPU that delivers reliable performance for industrial automation tasks.
• How much memory does this CPU provide?
  › It offers 2 MB RAM for data processing and built-in flash memory for program storage.
• What communication ports are available on the 140CPU42402C?
  › The module features 2 x Modbus Plus (MB+) ports for robust network connectivity options.
• Is this CPU suitable for harsh environments?
  › Yes, conformal coating protects the circuitry from dust, moisture, and environmental contaminants.
• What programming software works with this module?
  › It supports both Unity Pro and Concept platforms, providing flexibility for development preferences.
• Does the 140CPU42402C support remote I/O?
  › Absolutely, it works with both local and remote I/O systems for distributed control applications.
• What is the Boolean execution time for this processor?
  › It executes Boolean operations in approximately 0.3 µs, ensuring rapid task processing.
