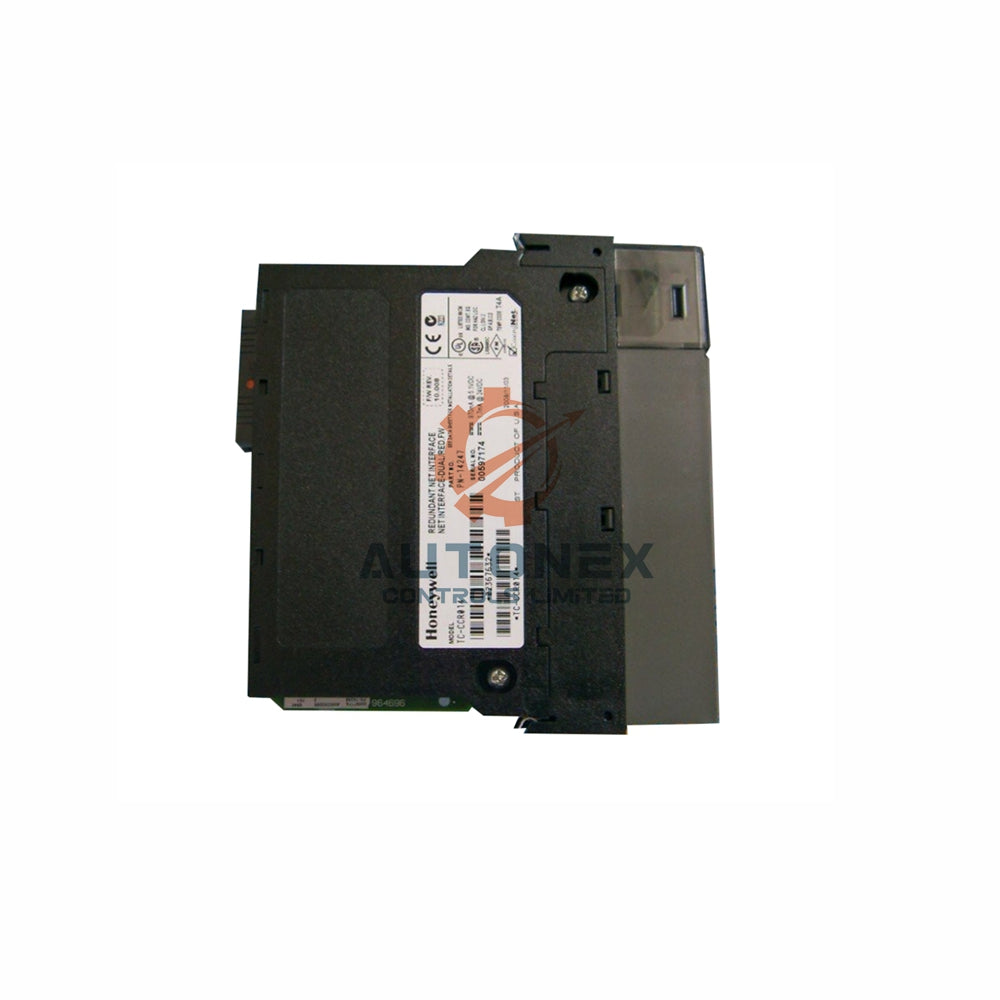

TC-ODX081 Honeywell 8-Point 120 VAC Discrete Output Module

TC-ODX081 Honeywell 120 VAC 8-Point Diagnostic Discrete Output Module

Key Technical Specifications

• Brand: Honeywell
• Model: TC-ODX081
• Category: Diagnostic Discrete Output Module
• Outputs per Module: 8 points with 4 points per common
• On-State Voltage Range: 74 to 132 VAC at 47 to 63 Hz
• Change of State: Software configurable
• Output Current per Point: 1 A maximum at 30°C and 0.5 A maximum at 60°C
• Output Current per Module: 8 A maximum at 30°C and 4 A maximum at 60°C
• Surge Current: 8 A for 50 ms each at 30°C, repeatable every 2 seconds
• Surge Current at 60°C: 5 A for 50 ms each, repeatable every 2 seconds
• On-State Current Minimum: 10 mA per output
• On-State Voltage Drop Maximum: 2.5 V peak at 0.5 A and 3.0 V peak at 1 A
• Maximum Inhibit Voltage: 25 V peak at zero crossing
• Off-State Leakage Current Maximum: 3 mA per point
• Power Dissipation: 13.8 watts
• Isolation Voltage: Channel to channel and user to system both tested at 2546 VDC for 1 second
• Connection Terminal Blocks: TC-TBNH 20-position terminal block

Diagnostic Functions

• Overload/Short Trip: Trips at 12 A for 500 µs minimum to protect the output circuit
• No Load Detection: Detects 74 to 132 VAC at 12 µA minimum on-state current
• Output Verification: Confirms 74 to 132 VAC on detection at 12 µA minimum
• Pulse Test: Offers 100 µs increment user selectable width
• Pulse Test Delay: Provides 100 µs increment user selectable time delay from zero cross

Output Signal Delay

• Off to On Maximum: 9.3 ms at 60 Hz and 11 ms at 50 Hz
• On to Off Maximum: 9.3 ms at 60 Hz and 11 ms at 50 Hz
• Backplane Current: Refer to module power consumption data

Installation Guide

• Mount the module in a compatible Honeywell TC series backplane slot
• Use the TC-TBNH 20-position terminal block for all field wiring connections
• Verify load current stays within the per point and per module ratings
• Check ambient temperature to confirm the correct current derating applies
• Confirm isolation voltage integrity before energizing the system
• Configure change of state and pulse test settings through the software interface
• Test overload and no load diagnostics after commissioning

Package Contents

• One Honeywell TC-ODX081 diagnostic discrete output module
• One TC-TBNH 20-position terminal block
• Installation documentation

Shipping Methods

• FedEx
• UPS
• DHL

FAQ

• Q: How many outputs does the TC-ODX081 support?
  A: It provides 8 points with 4 points per common.
• Q: What is the on-state voltage range for this module?
  A: The module operates from 74 to 132 VAC at 47 to 63 Hz.
• Q: What is the maximum output current per point?
  A: It handles 1 A at 30°C and 0.5 A at 60°C per point.
• Q: What diagnostic functions does this module offer?
  A: It provides overload/short trip, no load, output verification, and pulse test.
• Q: What is the off-state leakage current?
  A: The off-state leakage current is 3 mA maximum per point.
• Q: Which terminal block works with this module?
  A: The TC-TBNH 20-position terminal block is the correct choice.
