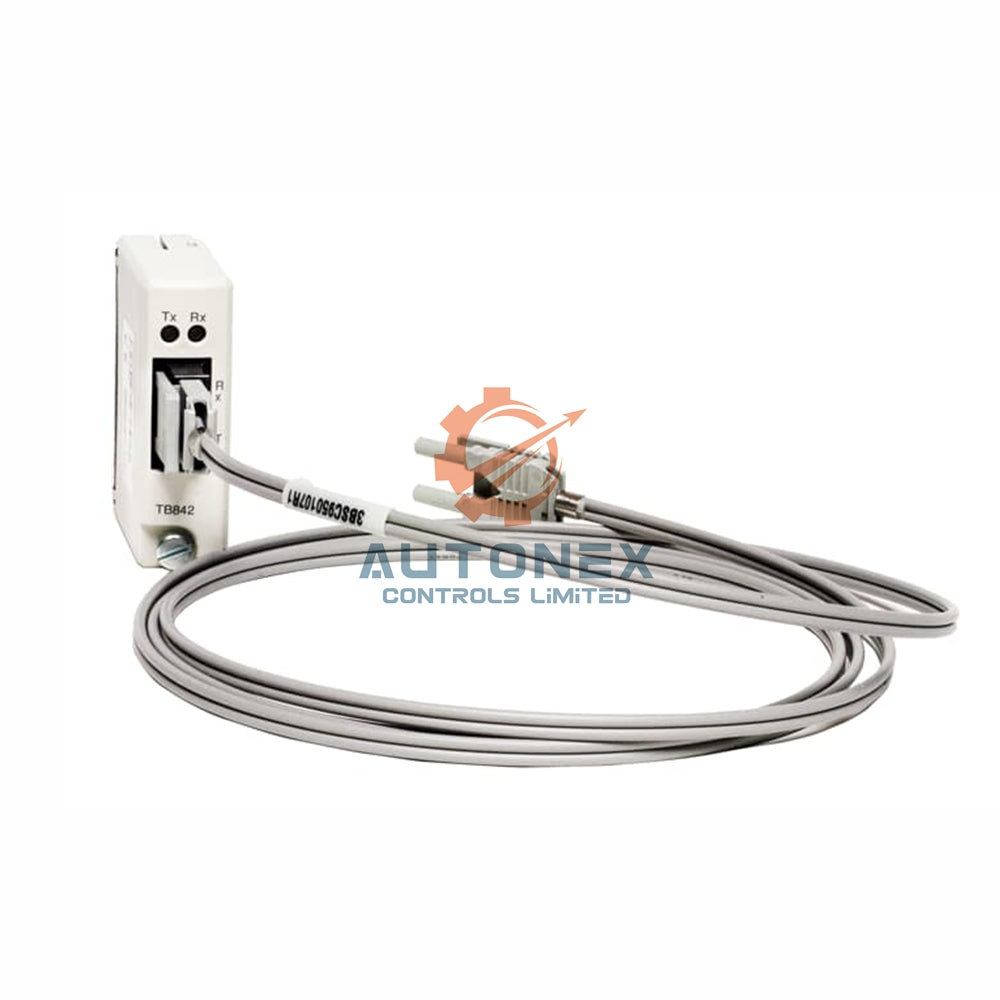

TB842 ABB ModuleBus Optical Port Fiber Interface

ABB TB842 ModuleBus Optical Port – Fiber Interface Module

Technical Specifications – ABB TB842

• Brand: ABB
• Model: TB842
• Communication Protocol: Modulebus
• Line Redundancy: Yes
• Module Redundancy: Yes
• Hot Swap Support: Yes
• Used with HI Controller: No
• Mounting Orientation: Vertical or Horizontal
• Connector Type: Agilent Versatile Link (former HP)
• Typical 24 V DC Consumption: 20 mA
• Power Dissipation: 0.5 W
• Data Rate: Up to 10 Mbit/s
• Wavelength: 650 nm
• Operating Temperature: 0 to +55 °C (+32 to +131 °F) – approvals from +5 to +55 °C
• Storage Temperature: -40 to +70 °C (-40 to +158 °F)
• Relative Humidity: 5 to 95 %, non-condensing
• Max Ambient (Vertical Mount): 40 °C (104 °F)
• Ingress Protection: IP20 per IEC 60529
• Equipment Class: Class I (earth protected) per IEC 60536
• Dimensions (W x H x D): 17.6 x 56.7 x 42.3 mm (0.69 x 2.23 x 1.67 in.)
• Weight: 90 g (0.20 lbs)

Frequently Asked Questions (FAQ)

• Is the ABB TB842 a genuine new part? – Yes, we supply only original, factory-sealed TB842 modules.
• Do you have the TB842 in stock? – Yes, we keep sufficient inventory for fast dispatch.
• How soon can you ship the TB842? – We ship all orders within 5 working days after payment confirmation.
• Which shipping carriers do you use? – We offer FedEx, UPS, and DHL for reliable delivery.
• Can I return the TB842 if it doesn't fit my system? – Yes, we accept returns within 30 days for unused items.
• Does the TB842 support hot swapping? – Yes, the TB842 allows hot swap without system shutdown.
• What fiber types work with the TB842? – It supports both plastic and HCS optical fiber with Versatile Link connectors.
• Can I use the TB842 in both simplex and duplex configurations? – Yes, it adapts to either simplex ring or duplex row topologies.
