330707-00-62-10-12-05 3300 XL Proximity Probe Bently Nevada

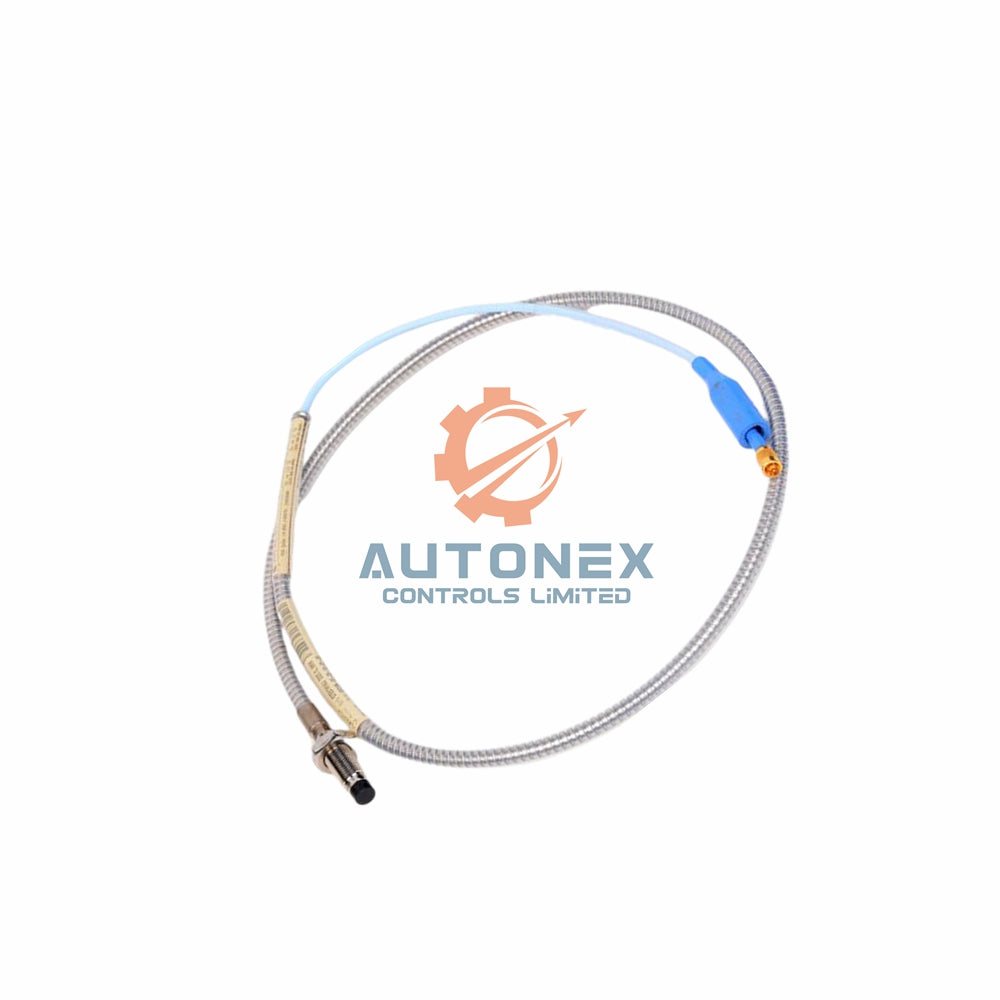

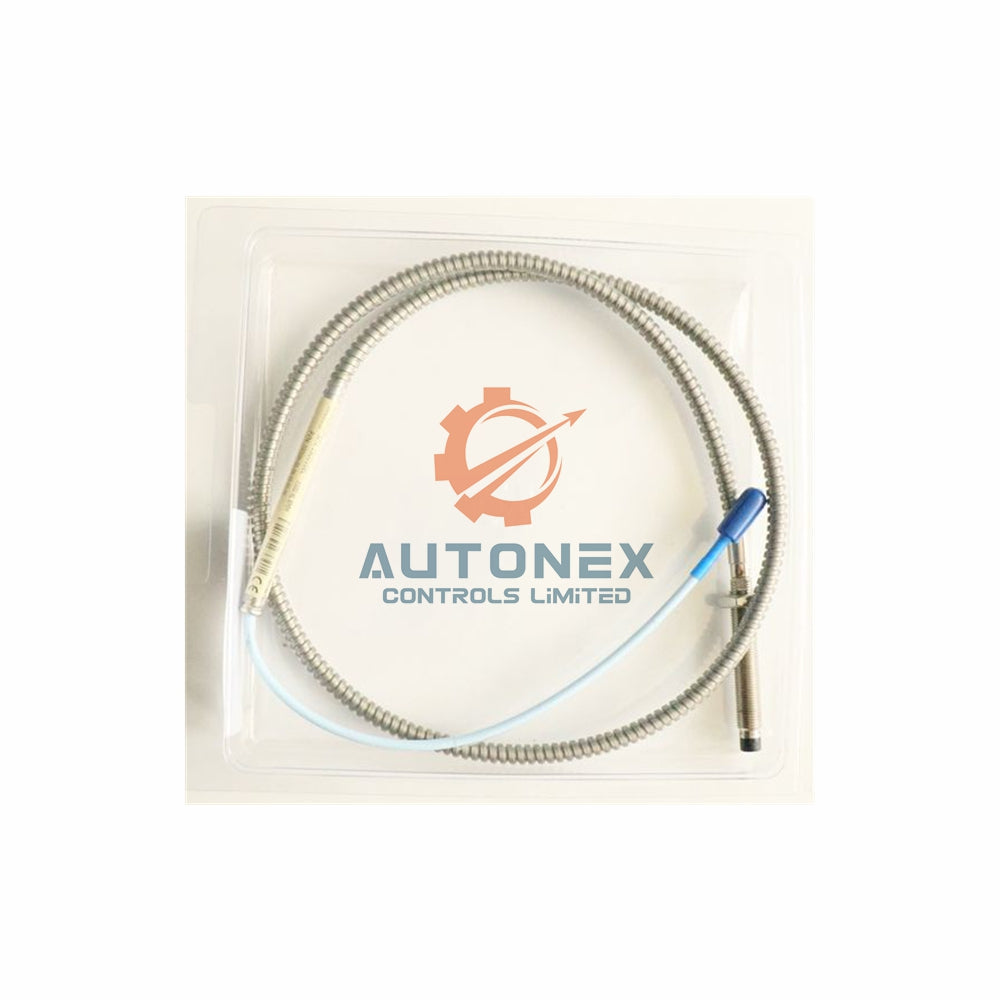

Bently Nevada 330707-00-62-10-12-05 3300 XL 11 mm Proximity Probe

• Precision sensing element: Polyphenylene sulfide (PPS) probe tip provides excellent chemical resistance.
• Durable housing: AISI 304 stainless steel case withstands harsh industrial environments.
• Flexible cable system: 75 Ω triaxial FEP insulated cable with Miniature coaxial ClickLoc connector.
• FluidLoc cable option: Ensures reliable connections in wet or oily conditions.
• Total length: 1.0 metre (3.3 feet) for straightforward installation.
• Multiple agency approvals: Meets various international safety standards.

Technical Specifications

• Brand: Bently Nevada
• Model: 330707-00-62-10-12-05 (3300 XL 11 mm Probe)
• Thread size: 5/8-18 UNF (maximum thread engagement 0.938 inch).
• Unthreaded length: 0.0 inch (standard configuration).
• Overall case length: 6.2 inches.
• Total probe length: 1.0 metre (3.3 feet).
• Connector type: Miniature coaxial ClickLoc with FluidLoc cable.
• Agency approval: 05 = Multiple Approvals (global compliance).
• Probe DC resistance (center to outer): 5.9 ± 0.5 ohms (for 1.0 m length).
• Recommended torque: 15.2 N•m (133 in•lb); maximum 45.2 N•m (400 in•lb).
• Connector torque: Finger tight (max 0.565 N•m / 5 in•lb).
• Minimum bend radius: 25.4 mm (1.0 inch) with or without armor.

Environmental & Pressure Ratings

• Operating temperature: -51 °C to +177 °C (-60 °F to +351 °F).
• Storage temperature: Same wide range (-51 °C to +177 °C).
• Pressure sealing: Viton® O-ring design seals differential pressure.
• Caution: Temperatures below -34 °C (30 °F) may reduce seal life.
• Pressure test: Not standard; contact custom design if needed.

Temperature Classification (EPL Ga / Gc)

• T1: -55 °C to +232 °C ambient.
• T2: -55 °C to +177 °C ambient.
• T3: -55 °C to +120 °C ambient.
• T4: -55 °C to +80 °C ambient.
• T5: -55 °C to +40 °C ambient.

Temperature Classification (EPL Dc)

• T280°C @ Ta: -55 °C to +232 °C ambient.
• T225°C @ Ta: -55 °C to +177 °C ambient.
• T170°C @ Ta: -55 °C to +120 °C ambient.
• T130°C @ Ta: -55 °C to +80 °C ambient.
• T105°C @ Ta: -55 °C to +100 °C ambient.
• T90°C @ Ta: -55 °C to +40 °C ambient.

Frequently Asked Questions

• Is this probe brand new and original? Yes, we supply 100% genuine Bently Nevada products.
• What is the shipping weight? Each unit weighs 0.17 kg, packed securely.
• Do you test the pressure seal before shipping? Not routinely; we can arrange custom testing on request.
• Can I return this probe? Yes, we support a 30-day return policy for unused items.
• Which couriers do you use? We ship via FedEx, UPS, or DHL for fast delivery.
• How long does delivery take? Usually 3-7 business days depending on destination.
