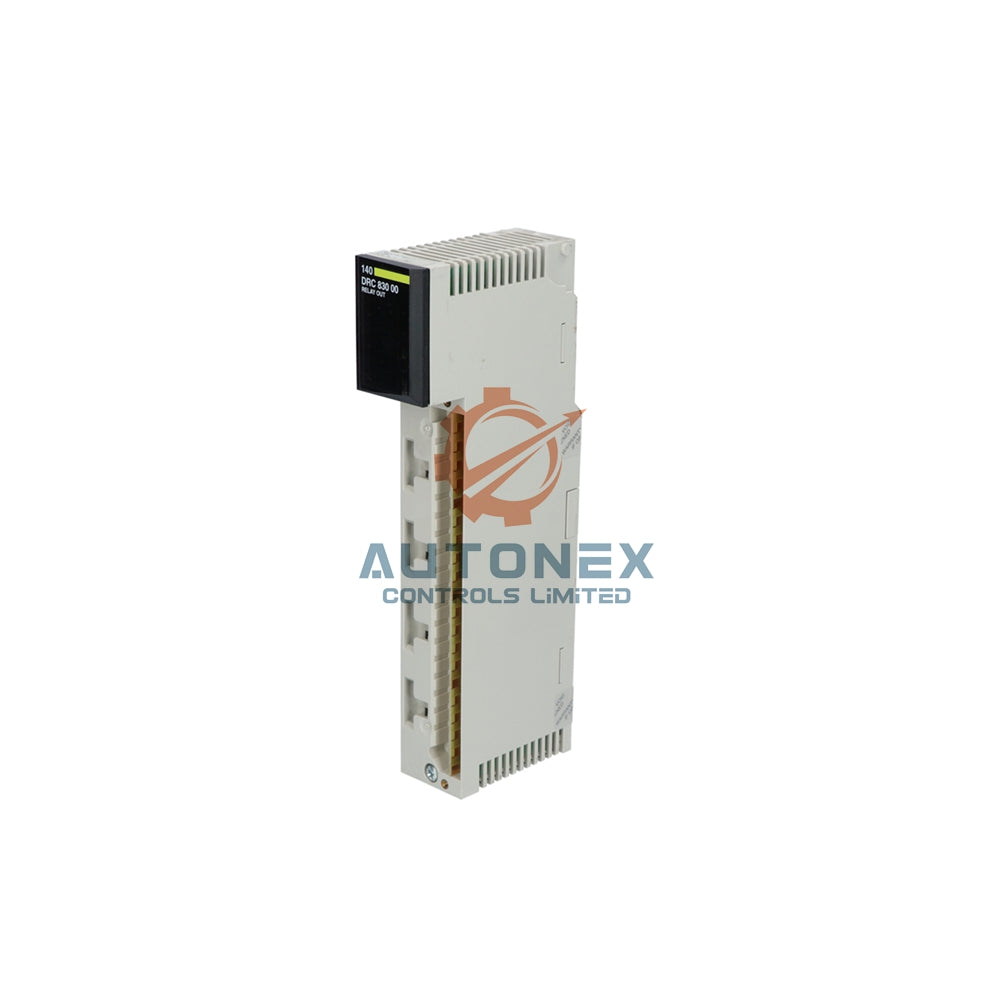

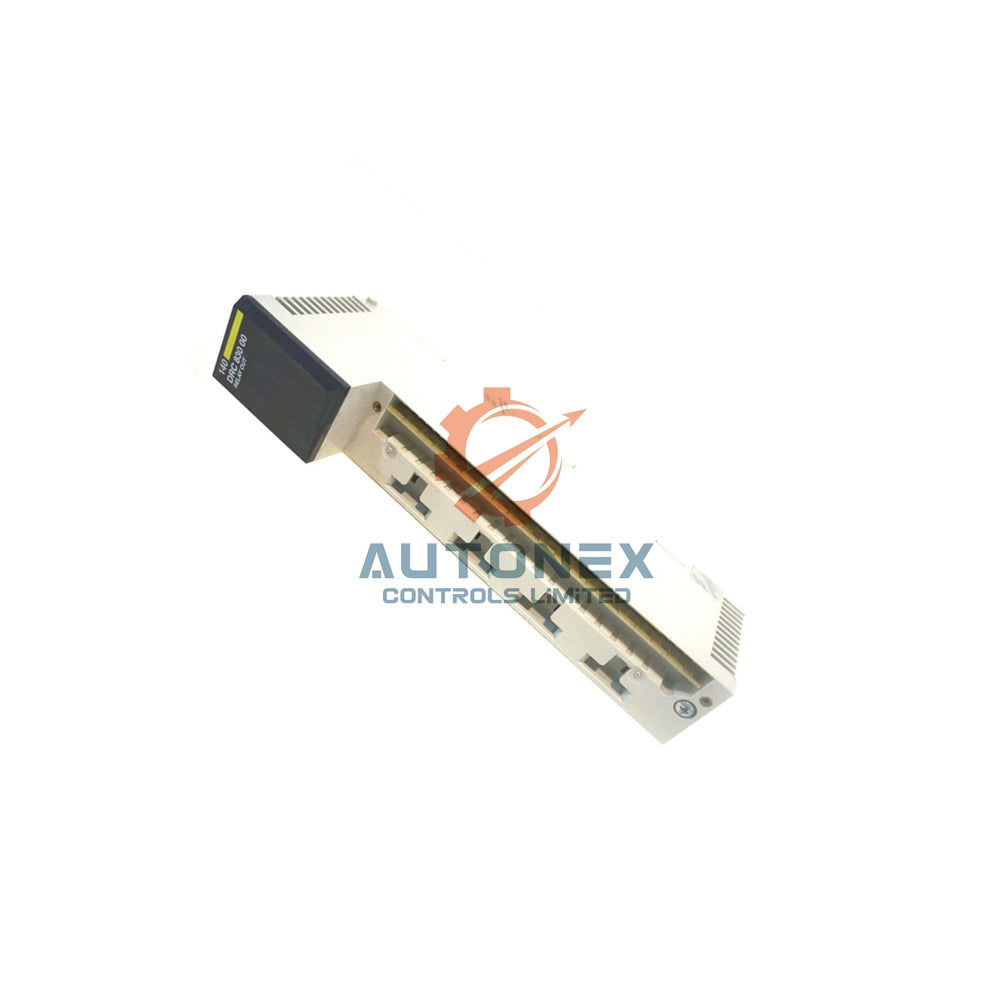

Schneider Electric 140DRC83000 8-Point Relay Output Module

Schneider Electric Modicon Quantum Relay Output Module 140DRC83000

Core Technical Specifications

• Brand: Schneider Electric
• Model & Series: 140DRC83000, part of the Modicon Quantum automation platform.
• Output Type: 8-point relay output module with Form C (1 NO/1 NC) contacts.
• Output Voltage: Broad compatibility: 20-250V AC, 30-150V DC, or 5-30V DC.
• Current Rating: High capacity: 5A resistive, 3A general, and 2A for tungsten/inductive loads.
• Switching Capacity: Robust 1250 VA resistive switching capability.
• Response Time: Reliable switching with 10ms (ON) and 20ms (OFF) maximum times.
• Durability: Designed for 10 million mechanical operations and up to 200,000 electrical cycles.
• Protection: Equipped with internal 275V varistor protection on each channel.

Isolation & Environmental Ratings

• Isolation: High 1780Vrms/2500V DC isolation between channels and to the system bus.
• Operating Temperature: Full functionality from 0 to 60°C (32 to 140°F).
• Certifications: Comprehensive approvals including FM Class 1 Div 2, ABS, DNV, GL, GOST, and RINA.
• Robustness: Built to withstand electrostatic discharge (4kV contact) and electromagnetic fields.

Frequently Asked Questions (FAQ)

• Q: Is this module new and original from Schneider Electric?
  A: Yes, we supply 100% genuine, new Schneider Electric modules from our stock.
• Q: What is the advantage of Form C relay contacts?
  A: Form C (NO/NC) contacts provide a normally open and a normally closed circuit in one relay, offering greater wiring and control flexibility.
• Q: What is the maximum load current for resistive loads?
  A: The 140DRC83000 can switch up to 5 Amps for resistive loads at 250V AC or 30V DC.
• Q: How durable is this relay module?
  A: Extremely durable, with a mechanical life of 10 million cycles and an electrical life of up to 200,000 cycles at rated load.
• Q: What are the shipping and return terms?
  A: We ship quickly and support a 30-day return for items in new, unopened condition.

For volume pricing, detailed technical documentation, or application support, please contact our team.
