Low Frequency Trendmaster Pro Accelerometer | 200155-10-05

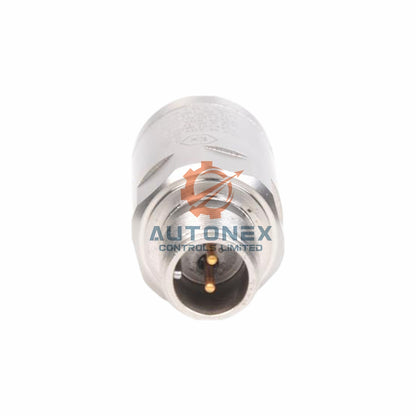

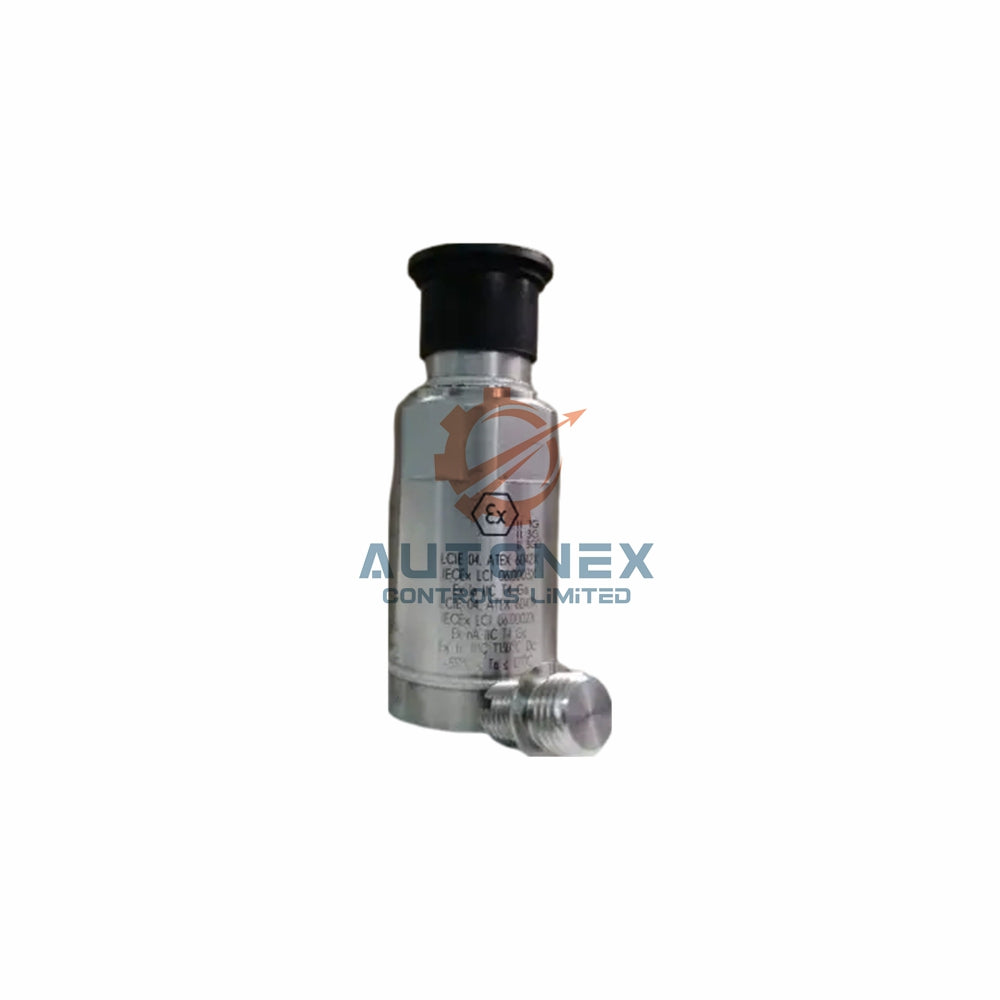

Bently Nevada 200155-10-05 Vibration Accelerometer

Product Highlights

• Manufactured in the USA for guaranteed quality.
• Features a versatile 1" NPT mounting option.
• Carries explosion-proof certification for hazardous locations.
• Constructed with durable stainless steel for long service life.

Model Number Breakdown

• Full Model: 200155-10-05
• 200155: Base industrial vibration accelerometer.
• -10: Indicates the sensor includes a 1" NPT threaded mount.
• -05: Denotes full safety approvals for hazardous areas.

Key Technical Specifications

• Brand: Bently Nevada
• Model: 200155-10-05
• Measurement Range: ±196 m/s² (20g) peak.
• Frequency Response: 1.5 Hz to 10,000 Hz (10 kHz).
• Power Supply: 5 Volts DC.
• Weight: 58 grams (2 ounces).
• Operating Temperature: -40°C to +105°C.

Mounting Information

• Primary connection: 3/8-24 UNF female thread.
• Includes a 1-3/8" hex adapter for the 1" NPT mounting.
• Recommended installation torque: 2-5 ft-lbs.
• Allow a 24-hour settling period after installation for optimal performance.

Frequently Asked Questions (FAQ)

• Q: Is this sensor an original Bently Nevada product?
  A: Absolutely. We supply only new, authentic, and original Bently Nevada sensors.
• Q: Is the 200155-10-05 in stock?
  A: Yes, this model is readily available in stock. We process and ship orders within 5 business days.
• Q: What are the shipping options?
  A: We ship worldwide via major carriers such as DHL, UPS, and FedEx.
• Q: Do you accept returns?
  A: Yes, we offer a straightforward 30-day return policy.
• Q: What is the advantage of the 1" NPT mount (-10)?
  A: The 1" NPT mount provides a robust, sealed, and industry-standard connection point for piping or custom brackets, offering great installation flexibility.

Access the complete technical manual with wiring diagrams and certification details: 200150, 200155 and 200157 Accelerometers Datasheet.
