IV-H500MA Keyence Monochrome Vision Sensor IV Series

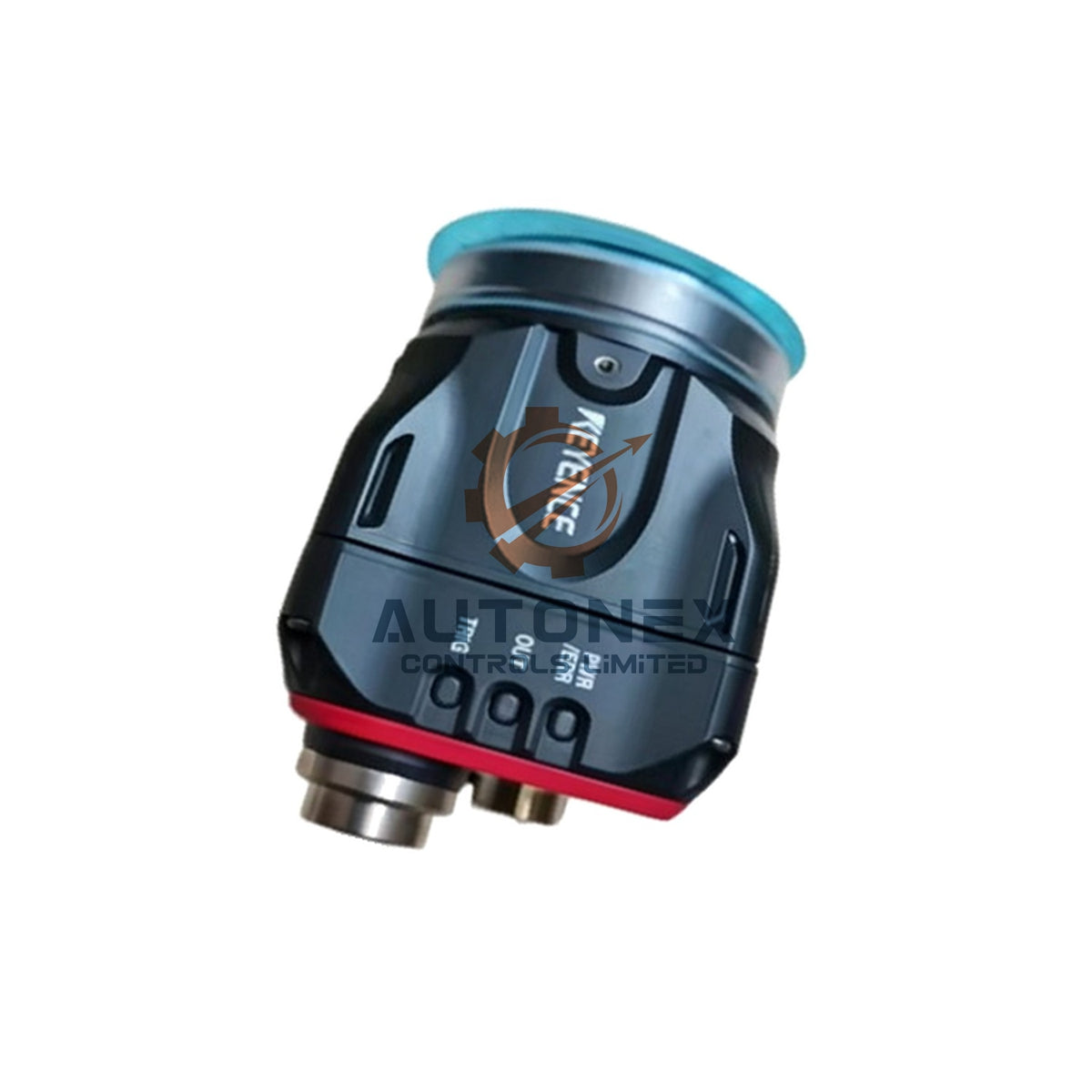

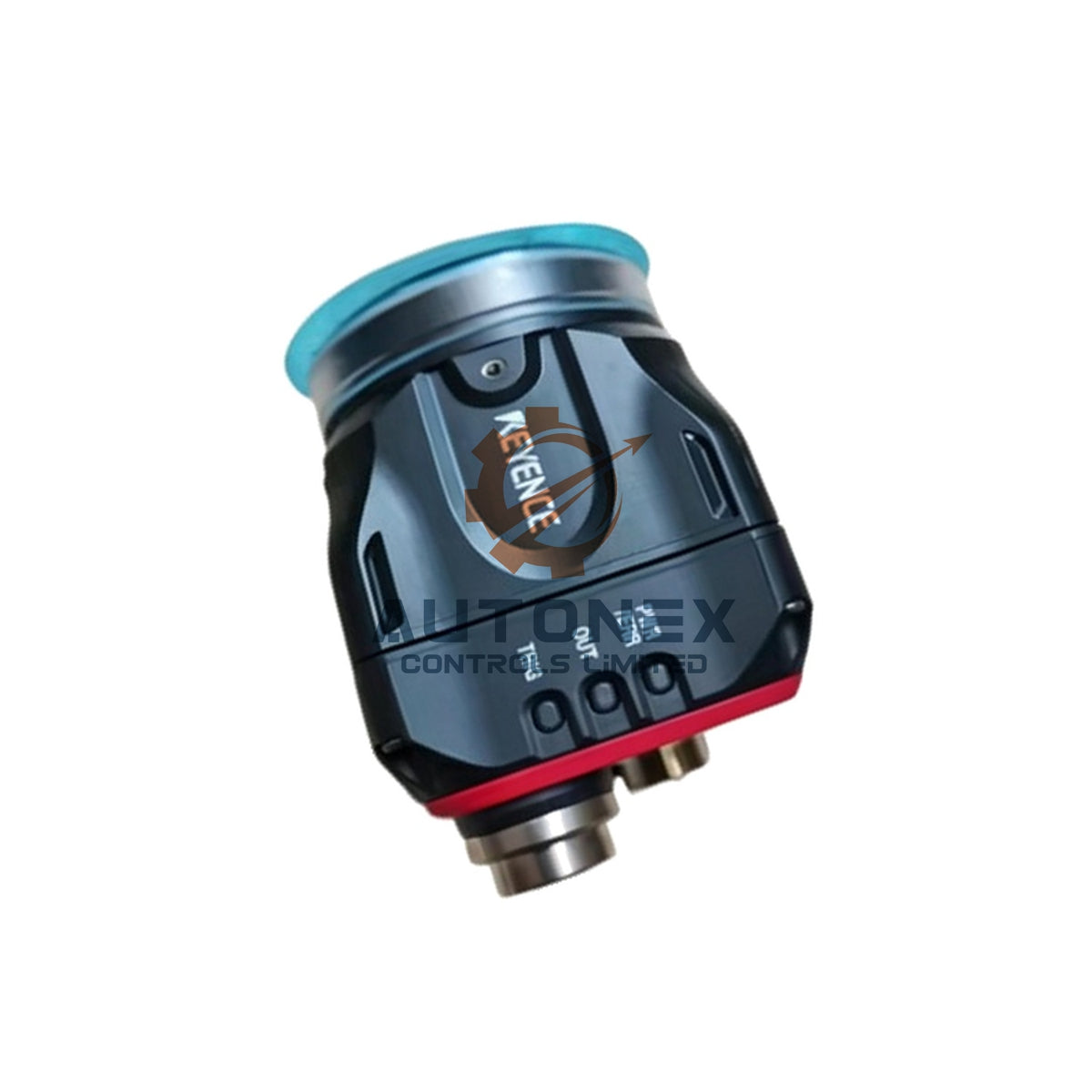

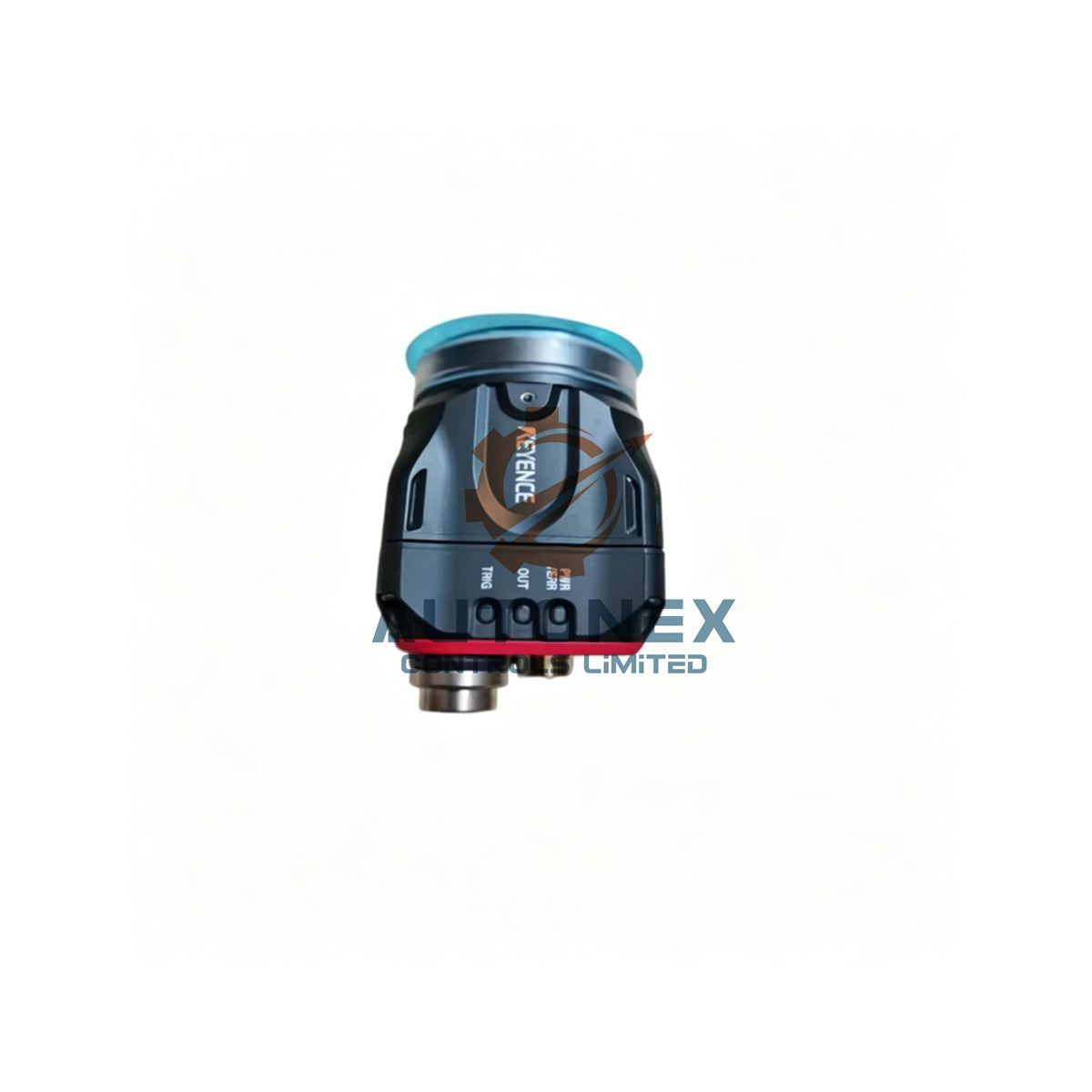

Keyence IV-H500MA Integrated Monochrome Vision Sensor Camera

Technical Specifications

• Brand: Keyence
• Model: IV-H500MA
• Series: IV Series
• Category: Integrated vision sensor camera, standard distance, monochrome type
• Installed distance: 50 to 500 mm
• Field of view: 25 x 18 mm at 50 mm distance up to 210 x 157 mm at 500 mm distance
• Image sensor: 1/3 inch monochrome CMOS, 752 (H) x 480 (V) pixels
• Focus adjustment: Auto
• Exposure time: 1/10 to 1/25,000 s
• Illumination: Red LED with pulse/DC lighting switchable
• Detection tools: 16 tools including Shape Detection, Color Area, Area, Edge Pixels, Width/Height, Diameter, Edge Presence, Pitch, Position Adjustment, and High Speed Position Adjustment
• Position adjustment tool: 1
• Programs: 32 switchable programs
• Supply voltage: 24 VDC ±10% including ripple
• Power consumption: 0.6 A or less
• Output type: Open collector, NPN/PNP switchable, N.O./N.C. switchable, max rating 26.4 V 50 mA
• Inputs: 6 (IN1 to IN6)
• Outputs: 4 (OUT1 to OUT4)
• Weight: Approx. 270 g

Environmental Durability

• Operating temperature range stays at 0 to +50°C with no freezing
• Relative humidity runs from 35 to 85% RH without condensation
• IP67 protection rating holds unless you mount a polarized filter OP-87436/OP-87437
• Vibration resistance covers 10 to 55 Hz at 1.5 mm double amplitude for 2 hours per axis
• Shock resistance reaches 500 m/s², three times in each of six directions
• Dome attachment IV-D10 mounting affects vibration and shock ratings

Communication and Connectivity

• M12 4-pin connector supports 100BASE-TX/10BASE-T Ethernet networks
• FTP client protocol moves inspection images and results directly
• EtherNet/IP and PROFINET link the camera to plant control systems
• No communication expansion slot, so built-in ports cover all networking needs

Key Performance Advantages

• Monochrome CMOS sensing delivers strong contrast on edge and shape checks
• Red LED illumination improves stability on low-contrast targets
• Auto focus shortens setup time when operators change working distance
• Fast 1/25,000 s exposure freezes motion on high-speed production lines
• Rugged aluminium die-cast case with IP67 sealing suits washdown areas

Installation Guide

• Mount the camera on the bracket and set the target distance between 50 and 500 mm
• Connect the M12 4-pin cable for Ethernet data and 24 VDC power
• Wire inputs IN1 to IN6 and outputs OUT1 to OUT4 to your PLC
• Set the NPN/PNP and N.O./N.C. switches before applying power
• Let auto focus settle, then fine-tune exposure from 1/10 to 1/25,000 s
• Choose pulse or DC lighting mode to match your inspection target
• Load up to 32 programs and assign each one to a production recipe

Package Contents

• 1 x Keyence IV-H500MA monochrome vision sensor camera
• 1 x Mounting adapter (POM)
• 1 x M12 connector plug
• 1 x Quick start guide
• 1 x Protective packaging box

Shipping and Support

• We keep this camera in stock and dispatch within 5 days
• We ship worldwide through FedEx, UPS, and DHL
• We accept returns within 30 days of delivery
• All units ship brand new and original from the factory

FAQ

• Q: What working distance does the IV-H500MA support?
  A: It covers 50 to 500 mm with auto focus adjustment.
• Q: What field of view do I get at each distance?
  A: You see 25 x 18 mm at 50 mm and 210 x 157 mm at 500 mm.
• Q: Is the camera waterproof?
  A: Yes, it holds an IP67 rating unless you mount the OP-87436 or OP-87437 polarized filter.
• Q: How many outputs does it provide?
  A: It offers 4 outputs (OUT1 to OUT4) and 6 inputs (IN1 to IN6).
• Q: What image sensor does it use?
  A: It uses a 1/3 inch monochrome CMOS sensor with 752 x 480 pixels.
• Q: What illumination does it use?
  A: It uses a red LED with switchable pulse or DC lighting.
• Q: How much power does it draw?
  A: It consumes 0.6 A or less at 24 VDC ±10%.
• Q: Is the unit in stock and how fast do you ship?
  A: Yes, we hold stock and dispatch within 5 days via DHL, FedEx, or UPS.
