IC754VSL06MTD GE Fanuc Monochrome HMI Touchscreen

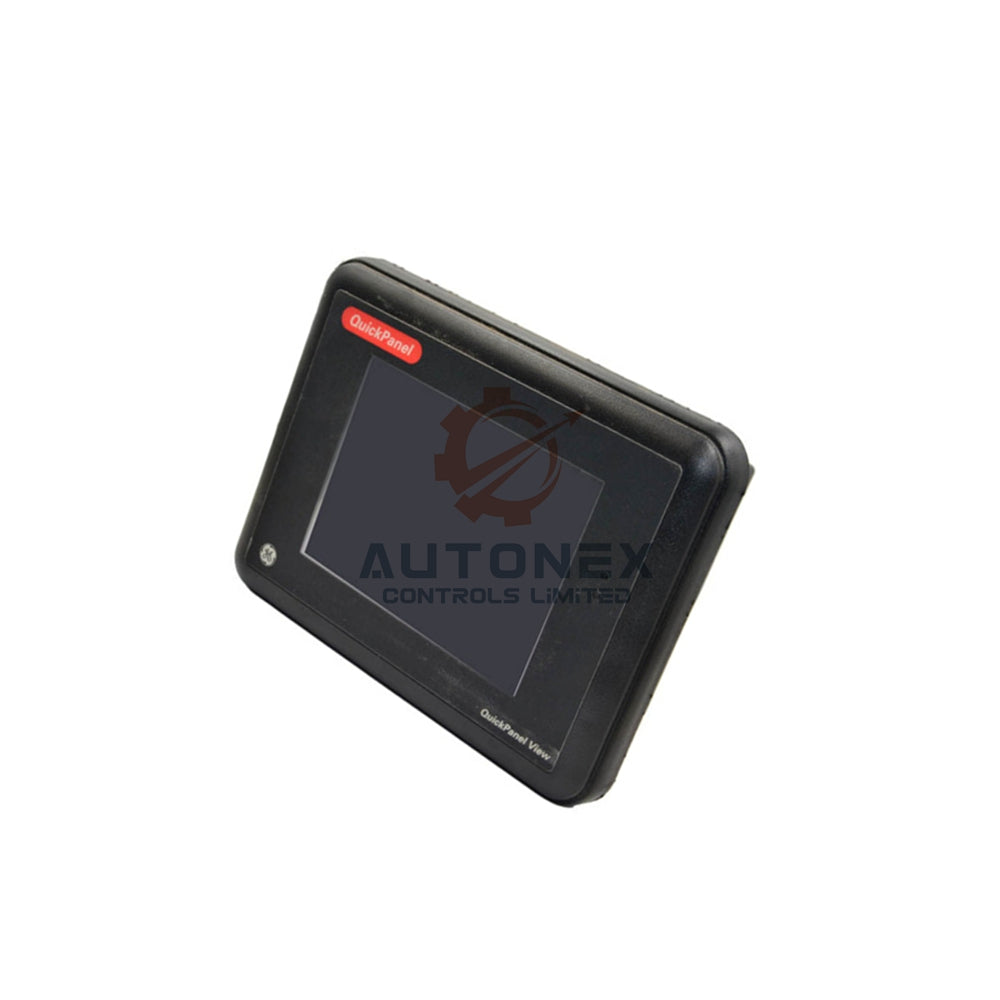

GE Fanuc QuickPanel IC754VSL06MTD 6-Inch Monochrome HMI

Core Technical Specifications

• Brand & Model: Manufacturer: GE Fanuc. Model: IC754VSL06MTD.
• Display: Features a sharp 6-inch monochrome display with resistive touchscreen input.
• Processing Power: Driven by an Intel XScale PXA255 processor running at 300 MHz for dependable operation.
• Operating System: Runs on the efficient Microsoft Windows CE .NET operating system.
• Memory: Equipped with 32 MB of RAM for application runtime and data handling.
• Storage: Includes a CompactFlash card port for project storage and data logging.

Connectivity & Communication

• The IC754VSL06MTD offers standard RS-232 and RS-485 serial ports for PLC communication.
• It includes a built-in 10/100 Mbps Ethernet port for fast network integration and data exchange.
• A USB 1.1 host port allows for connection of peripherals like a keyboard or mouse.
• For direct programming, use the HMI-CAB-CS2 communication cable with the serial port.

Electrical & Physical Details

• Power Supply: Operates on a flexible 12-30V DC input, with a maximum consumption of 15W.
• Environmental Rating: Designed for industrial panels, it requires a well-ventilated environment.
• Operating Temperature: Reliable in 0°C to 50°C ambient conditions.
• Storage Temperature: Can be stored in temperatures from -20°C to 60°C.
• Humidity: Tolerates up to 85% relative humidity (non-condensing).
• Weight: The unit is robust, weighing approximately 4.56 kg (10.06 lbs).

Software & Development

• Program this QuickPanel HMI using GE's Proficy View Machine Edition software.
• Develop clear and functional operator interfaces for your specific control application.
• This software environment is tailored for the IC754VSL06MTD and the Windows CE platform.

Packaging & Shipping

• Packaging List: The shipment includes the IC754VSL06MTD HMI terminal unit.
• Please note that accessories like the HMI-CAB-CS2 cable are typically sold separately.
• Shipping: We dispatch orders worldwide via trusted carriers FedEx, UPS, and DHL.
• All products are brand new and factory original, supplied directly from our stock.

Frequently Asked Questions (FAQ)

• Q: Is the display on the IC754VSL06MTD color or monochrome?
  A: It features a high-contrast 6-inch monochrome (black & white) display.
• Q: What processor and speed does this HMI use?
  A: It uses an Intel XScale PXA255 processor at 300 MHz.
• Q: What software is required for programming?
  A: You need Proficy View Machine Edition to create and download applications.
• Q: How do I communicate with a PLC?
  A: Use the built-in RS232 or RS485 serial ports with the appropriate communication cable.
• Q: Does it have an Ethernet port?
  A: Yes, it includes a standard 10/100Base-Tx Ethernet port for networking.
• Q: What is the operating temperature range?
  A: It is rated for operation from 0°C to 50°C (32°F to 122°F).
• Q: Do you have this model in stock?
  A: Yes, the IC754VSL06MTD is available from our stock.
• Q: What is your shipping and return policy?
  A: We ship within 5 business days and offer a 30-day return policy on unused items.
