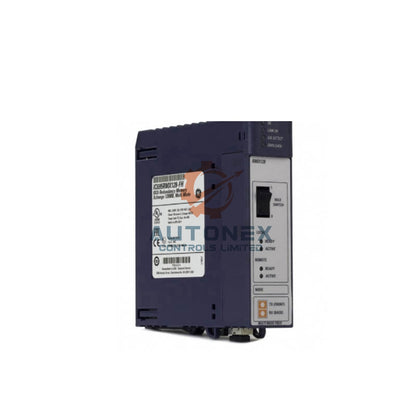

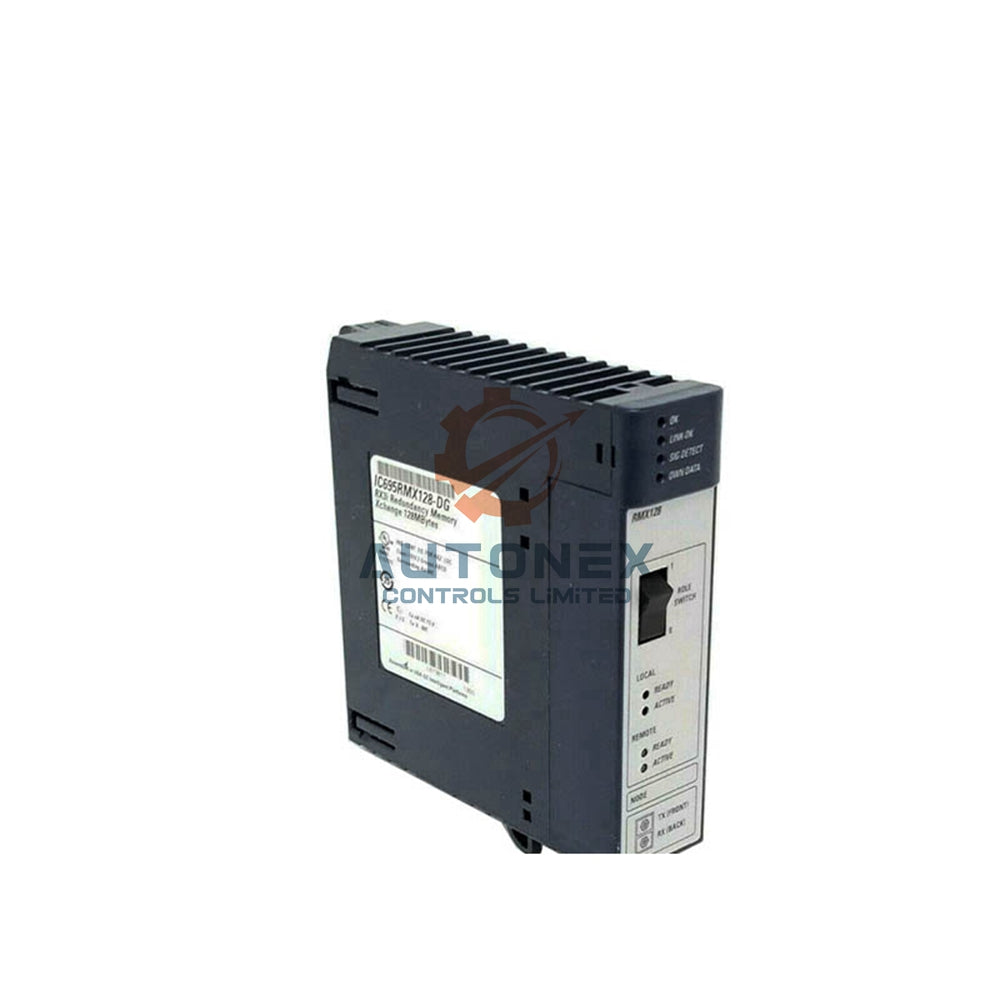

IC695RMX228 PACSystem RX3i Reflective Memory General Electric

IC695RMX228 Redundancy Memory Module for PACSystem RX3i

• Brand: GE Fanuc
• Model: IC695RMX228
• Category: Redundancy Memory Module
• User Memory: 128 MB SDRAM
• Resolution: Four networks of 32 bits each
• Maximum Nodes per Network: Up to 256 nodes
• Packet Size: Dynamic, controlled by RMC128 or RMX228 module
• Input Power: 580 mA at 3.3 VDC / 220 mA at 5 VDC
• Network Error Detection: Yes
• Hot Insertion and Removal: Yes
• Configurable Network: Yes
• Compatibility: RMC128 and RMX228 modules
• Connector Type: Fiber-optic LC with zirconium ceramic ferrule

Redundancy System Operation

• IC695RMX228 provides data sharing among different PLCs and equipment on the network.
• This module works identically to the IC695CMX128 and IC695CMX228 modules.
• A hot standby CPU redundancy system uses one main CPU and one identical backup CPU.
• The module maintains constant data transfer between these two CPUs.
• When used as a redundancy link, IC695RMX228 cannot perform general purpose memory exchange.
• A dedicated RMX module must serve each redundant controller configuration.
• No other reflective memory node can join a redundant controller design.
• Two high-speed fiber-optic cables form a 2-node ring between the RMX pair.

Frequently Asked Questions (FAQ)

• Q: Can IC695RMX228 work as a general purpose memory exchange module?
  A: No. When used as a redundancy link, IC695RMX228 cannot perform general purpose memory exchange.
• Q: How many nodes can I connect on one reflective memory network?
  A: You can connect up to 256 nodes per network.
• Q: Does this module support hot swapping?
  A: Yes. IC695RMX228 supports hot insertion and removal with system power on.
• Q: How do I configure the main or backup role?
  A: Use the physical role switch on the module front panel.
• Q: How many RMX modules can I install in one rack?
  A: You can install up to six memory exchange modules in a single RX3i rack.
• Q: What connector type does this module use?
  A: The module uses a fiber-optic LC connector with a zirconium ceramic ferrule.
• Q: What is the memory size of IC695RMX228?
  A: This module provides 128 MB SDRAM user memory.
