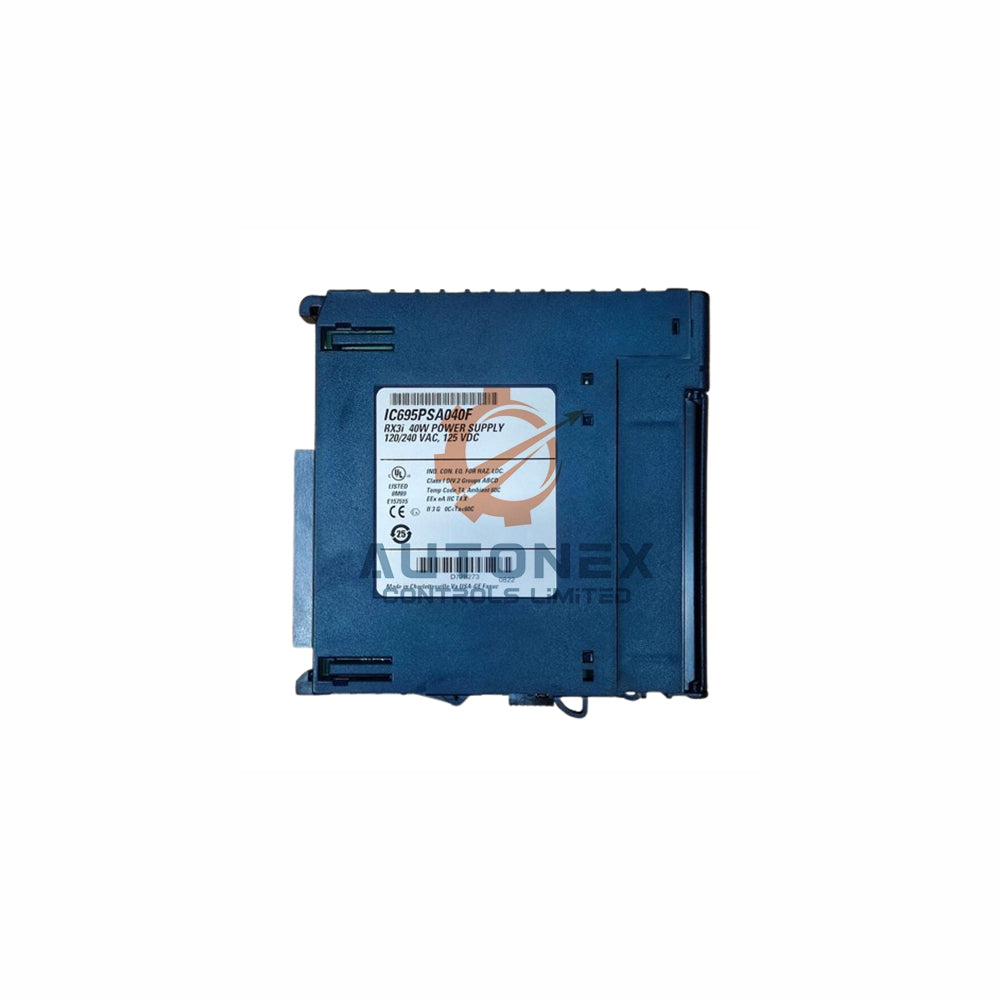

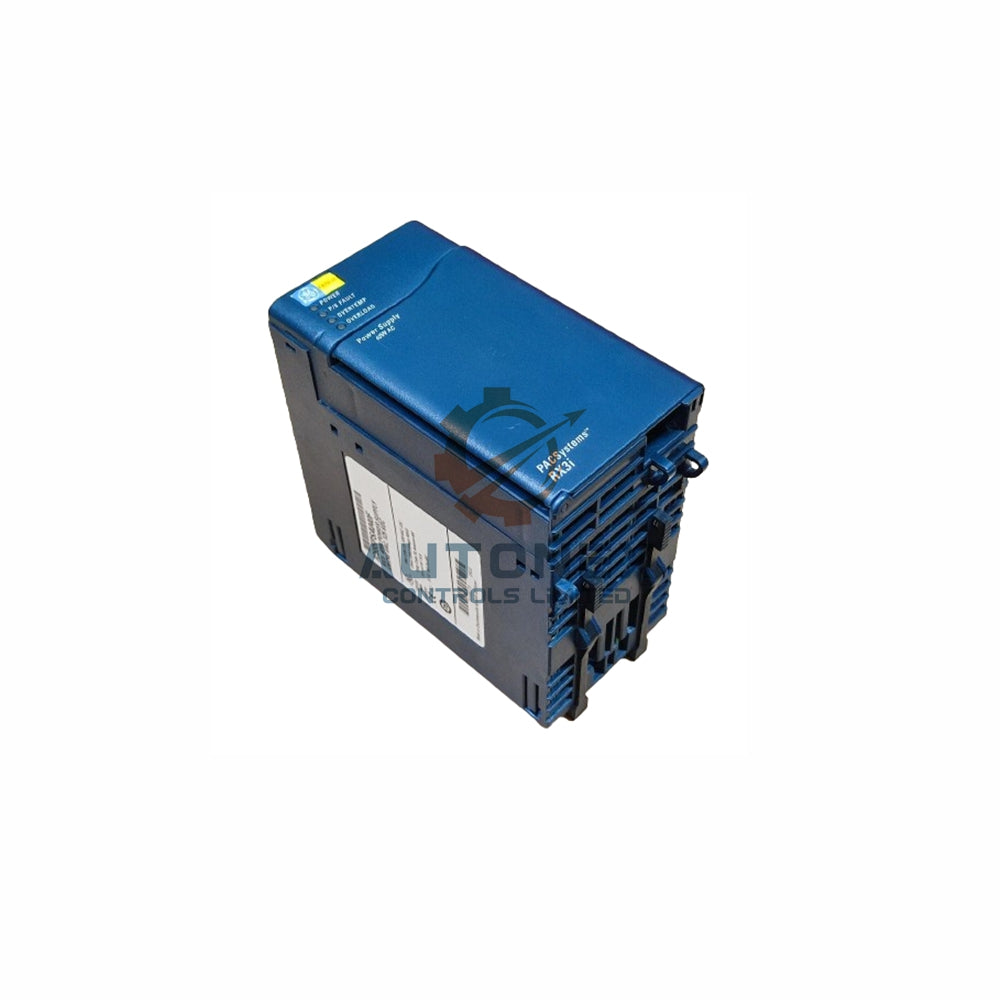

IC695PSA040 GE Fanuc RX3i 40W Power Supply

IC695PSA040 – GE Fanuc RX3i 40W Multi-Purpose Power Supply

• Brand: GE Fanuc.
• Model: IC695PSA040 – RX3i Series universal base power supply.
• Output ratings: +5.1 VDC (0-6A), +24 VDC relay output (0-1.6A), +3.3 VDC internal (0-9A).
• Input power: 70W full load, nominal 120/240VAC or 125VDC.
• Backplane compatibility: Universal backplane only; do not mix with other RX3i supplies.
• Maximum per rack: Four (4) power supplies per IC695 rack.
• Isolation: 250 VAC continuous, 1500 VAC for 1 minute (input to backplane).
• LED indicators: Power, P/S Fault, Over Temperature, Overload.

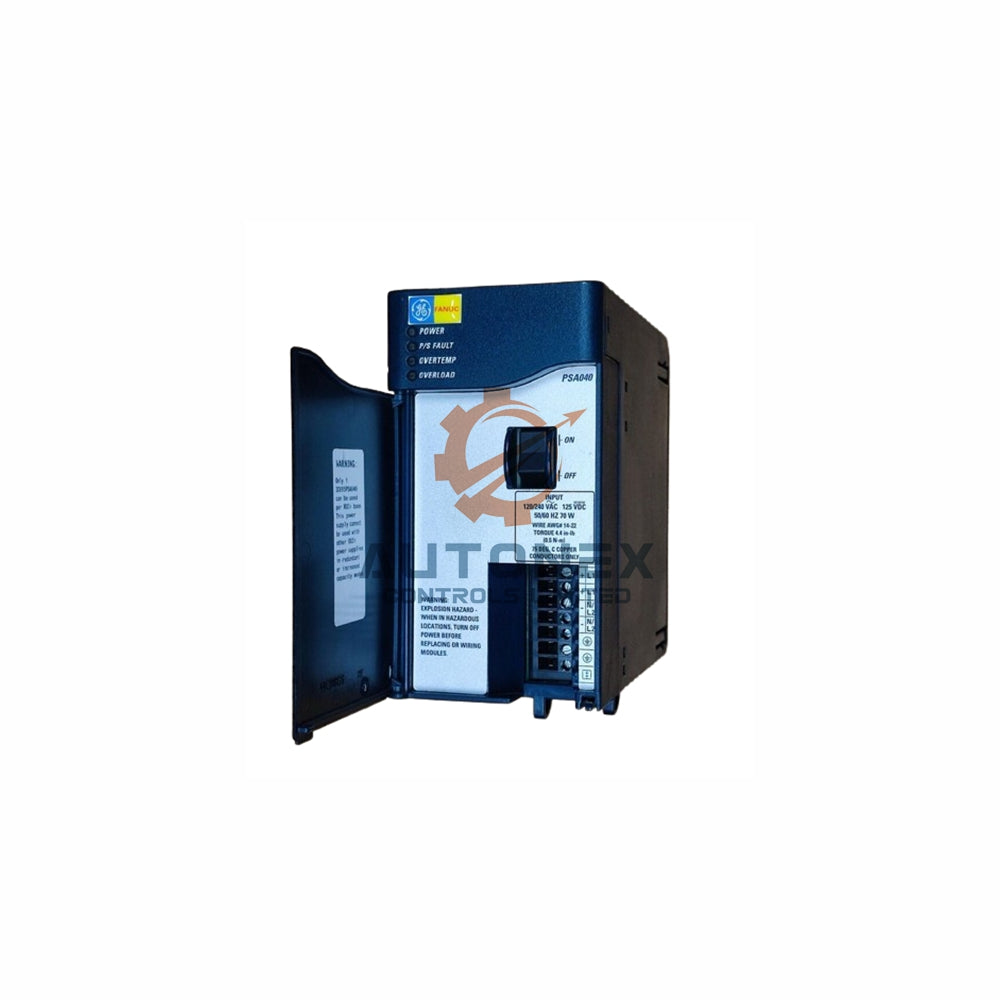

• ON/OFF switch: Located behind the hinged door for manual control.

Technical Specifications in Detail

• AC input range: 85 to 264 VAC, universal use (47-63 Hz).
• DC input range: 100 to 300 VDC, flexible for industrial DC supplies.
• Nominal voltage: 120/240 VAC or 125 VDC.
• Rated output power: 40 Watts (load capacity).
• Input power at full load: 70 Watts.
• Current per terminal: 6 Amperes maximum.
• Output voltage tolerances: +5.1 VDC (5.0-5.2V), +24 VDC (19.2-28.8V), +3.3 VDC (3.1-3.5V).
• Output current limits: 5.1V@0-6A, 24V@0-1.6A, 3.3V@0-9A (internal).
• Hold-up time: withstands 4 Amperes for max 250 ms.
• Temperature range (operating): 0°C to +60°C (32°F to 140°F).
• Storage temperature: -40°C to +85°C.
• Humidity tolerance: 5% to 95% non-condensing.
• Noise immunity: Meets stringent industrial EMC standards.

Frequently Asked Questions (FAQ)

• Q: Is the IC695PSA040 brand new and original?
  A: Yes, we supply only 100% genuine, factory-sealed units with full traceability.
• Q: Can I mix this power supply with other RX3i supplies in the same rack?
  A: No. The IC695PSA040 requires a universal backplane and cannot mix with other RX3i power supplies.
• Q: What input voltage ranges does this model accept?
  A: It accepts 85-264 VAC or 100-300 VDC, covering worldwide industrial mains.
• Q: How many power supplies can I install in one RX3i rack?
  A: You may install up to four (4) IC695PSA040 units per rack for higher current segmentation.
• Q: What do the LED indicators show?
  A: Power (green), P/S Fault (red/amber), Over Temperature, and Overload help diagnose issues.
• Q: Does the ON/OFF switch disconnect incoming supply?
  A: No. The switch enables or disables the output, but does not cut incoming AC/DC power.
• Q: How soon will you ship the order?
  A: We dispatch within 5 days via FedEx, UPS, or DHL.
• Q: Can I return this product if it doesn't fit my system?
  A: Yes, we support a 30-day return policy for unused items in original packaging.
