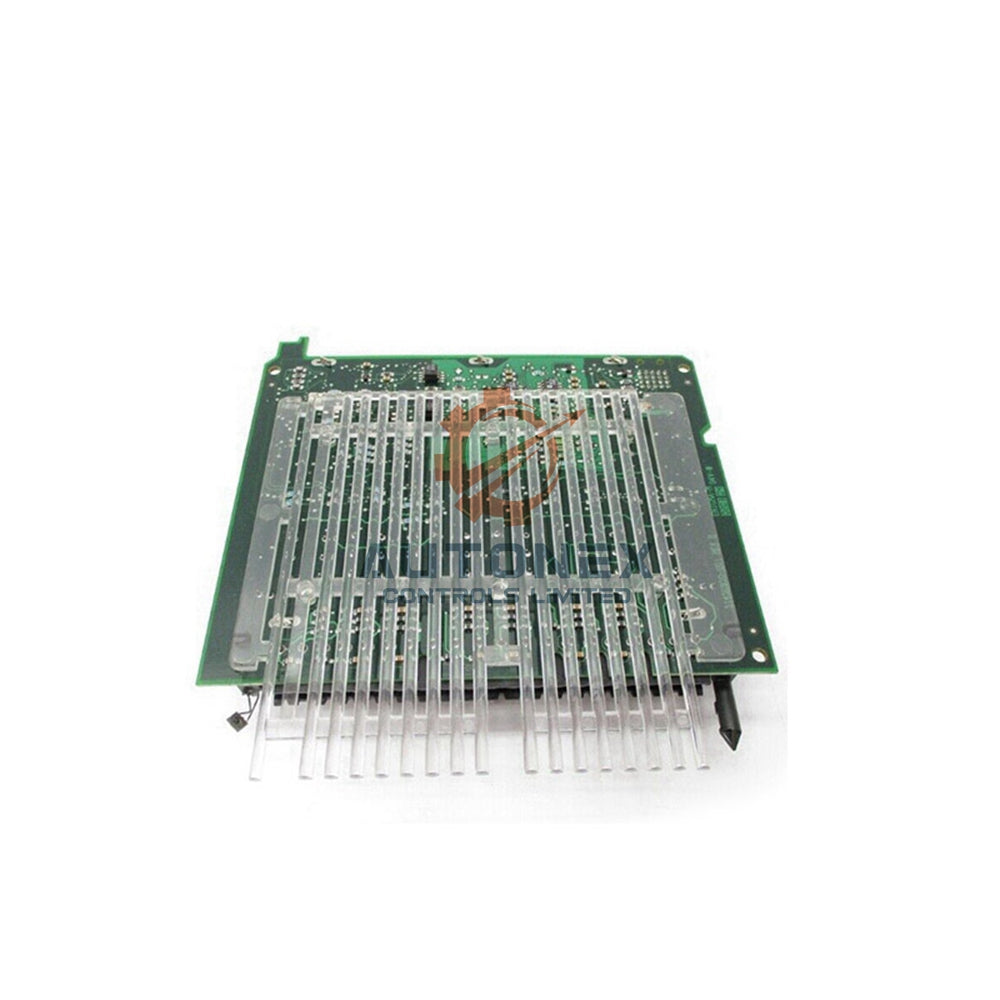

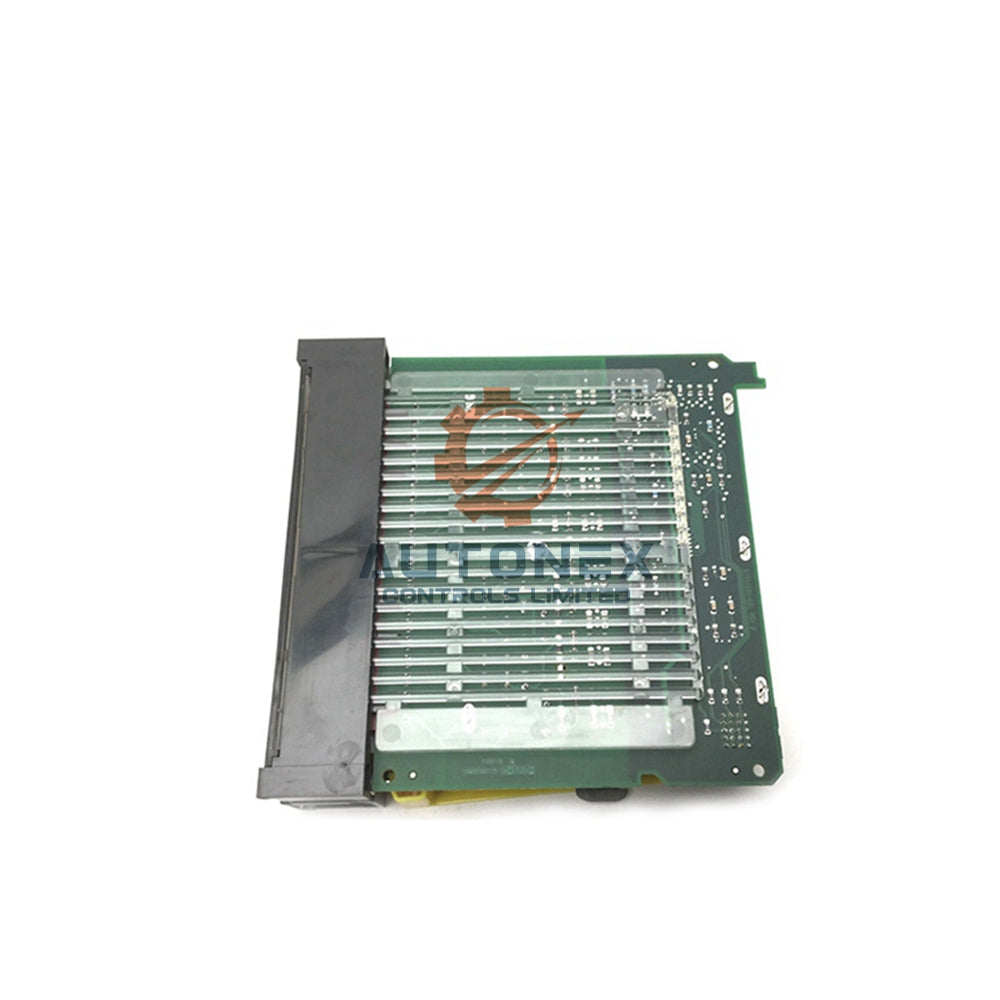

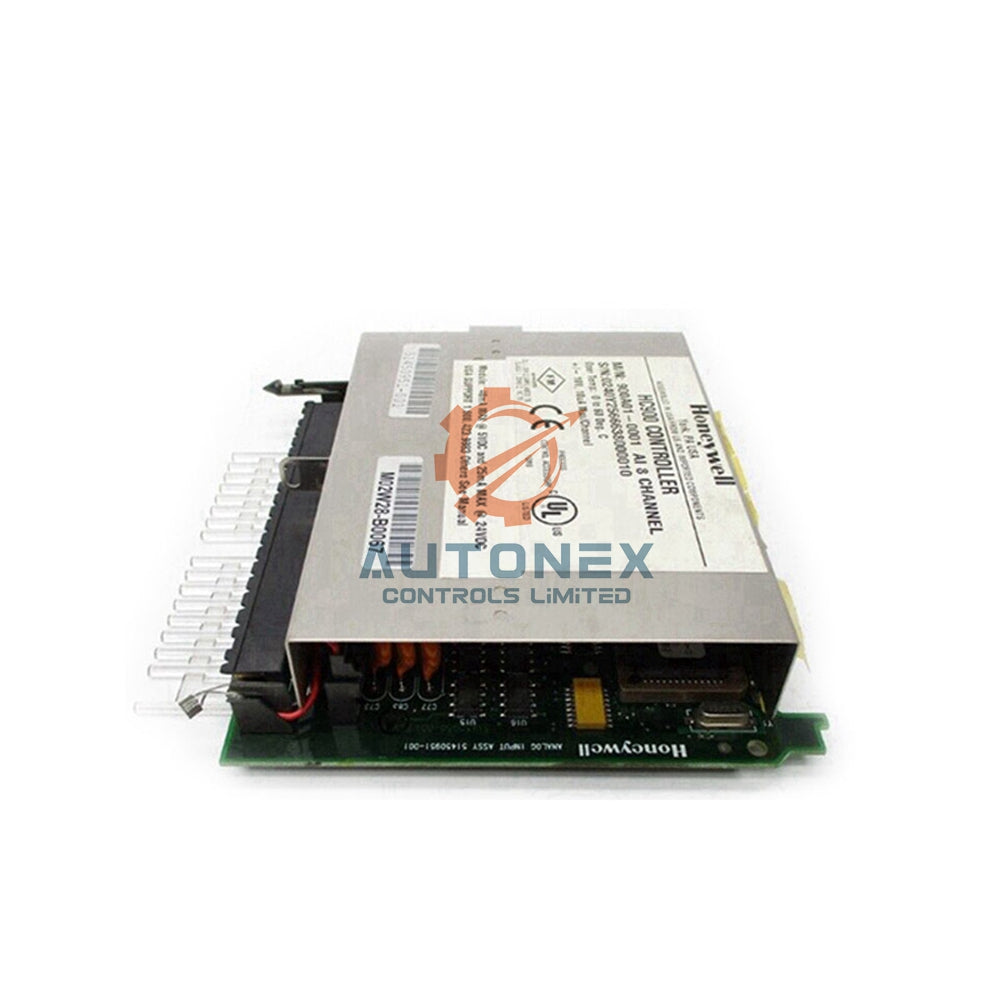

Honeywell 900G32-0301 Digital Input 24 VDC Module

Honeywell 900G32-0301 DC Digital Input Module

The 900G32-0301 is a high-density 32-channel DC Digital Input module for the Honeywell HC900 controller. It provides reliable monitoring of DC voltage status signals in demanding industrial environments.

Core Technical Specifications

• Brand: Honeywell
• Model Number: 900G32-0301
• Product Type: Digital Input (DI) Module, DC Voltage
• Inputs per Module: 32 Channels (Sinking Type)
• Input Voltage Range: 10 VDC to 32 VDC
• Peak Voltage Rating: 32 VDC
• Galvanic Isolation: 2 Groups of 16 Inputs (30V DC Maximum between groups)
• ON Voltage Level: 9.5 VDC Minimum
• OFF Voltage Level: 3.5 VDC Maximum
• Input Impedance: 6.9 kΩ Nominal
• Input Current (@12V DC): 1.7 mA Nominal
• Input Current (@24V DC): 3.5 mA Nominal
• Minimum ON Current: 1.0 mA
• Maximum OFF Current: 0.7 mA
• OFF to ON Response Time: 5 ms Maximum (excluding controller scan & backplane transmission)
• ON to OFF Response Time: 5 ms Maximum (excluding controller scan & backplane transmission)
• Common Terminals: 2 Pairs (One pair per group of 16 inputs)
• Terminal Block: Euro Style 36-Terminal Block Required
• Channel Status Indicator: Green LED per Channel (Illuminates when input is ON)
• Module Status LED: Green Blinking (Active Scan), Red (Fault/Diagnostic)
• Logic Inversion: Supported in Controller Software
• Operating Temperature: -40°C to +70°C (Extended Range)
• Storage Temperature: -40°C to +85°C
• Power Supply: Powered from Field DC Source (10-32V DC)

Module Features & Design

• High channel density (32 inputs) maximizes space efficiency in control cabinets.
• Wide input range (10-32V DC) supports standard 12V and 24V DC industrial control circuits.
• Two isolated groups (16 channels each) allow connection to two separate DC power sources.
• Fast 5ms response time ensures quick detection of state changes for process interlocks.
• Individual per-channel LEDs provide instant visual status feedback for troubleshooting.
• Extended operating temperature range (-40°C to +70°C) ensures reliability in harsh environments.
• Designed as a sinking input; the field DC voltage is applied between the input terminal and the common terminal.

Installation & Wiring Guidelines

• Install in a compatible Honeywell HC900 rack. A Euro style 36-terminal block is required for field connections.
• Connect the DC common (negative) of the field supply to the appropriate COM terminal pair for the channel group.
• Connect the switched DC positive wire from field devices (e.g., sensors, contacts) to the desired input terminals.
• Wire channels 1-16 to one common pair and channels 17-32 to the other to maintain isolation between groups.
• Ensure the field power supply is within the 10-32V DC range and can provide the required input current.
• Use proper wire gauges and follow local electrical codes for low-voltage DC wiring.

Typical Applications

• Monitoring proximity switch, photoelectric sensor, and limit switch status.
• Reading relay and solid-state switch outputs.
• Process interlock and safety system status monitoring.
• General-purpose DC status input for machine control and automation.

For terminal block part numbers or to order the Honeywell 900G32-0301, contact our sales team.
