GE Fanuc IC660ELB906 Genius I/O IBM PC Interface Module

GE Fanuc IC660ELB906 Genius I/O IBM PC Interface Module (PCIM)

Core Technical Specifications

• Brand & Model: This is an original GE Fanuc component, part number IC660ELB906 from the Genius I-O series.
• Host Interface: The module features an ISA-compatible host backplane interface for installation in an XT-type slot.
• Power Requirements: It operates on 5 Volts DC and draws approximately 400 milliamps of current.
• Bus Electrical Specs: It presents a 1 LS TTL load per input line to the host bus and can drive 10 LS TTL loads per output line.
• Operating Environment: Designed for reliable operation within an ambient temperature of 0 to 60 degrees Celsius.
• Physical Attributes: The module is an AT-type board with a hand-held monitor connection and weighs approximately 3 pounds.

Key Features & Architecture

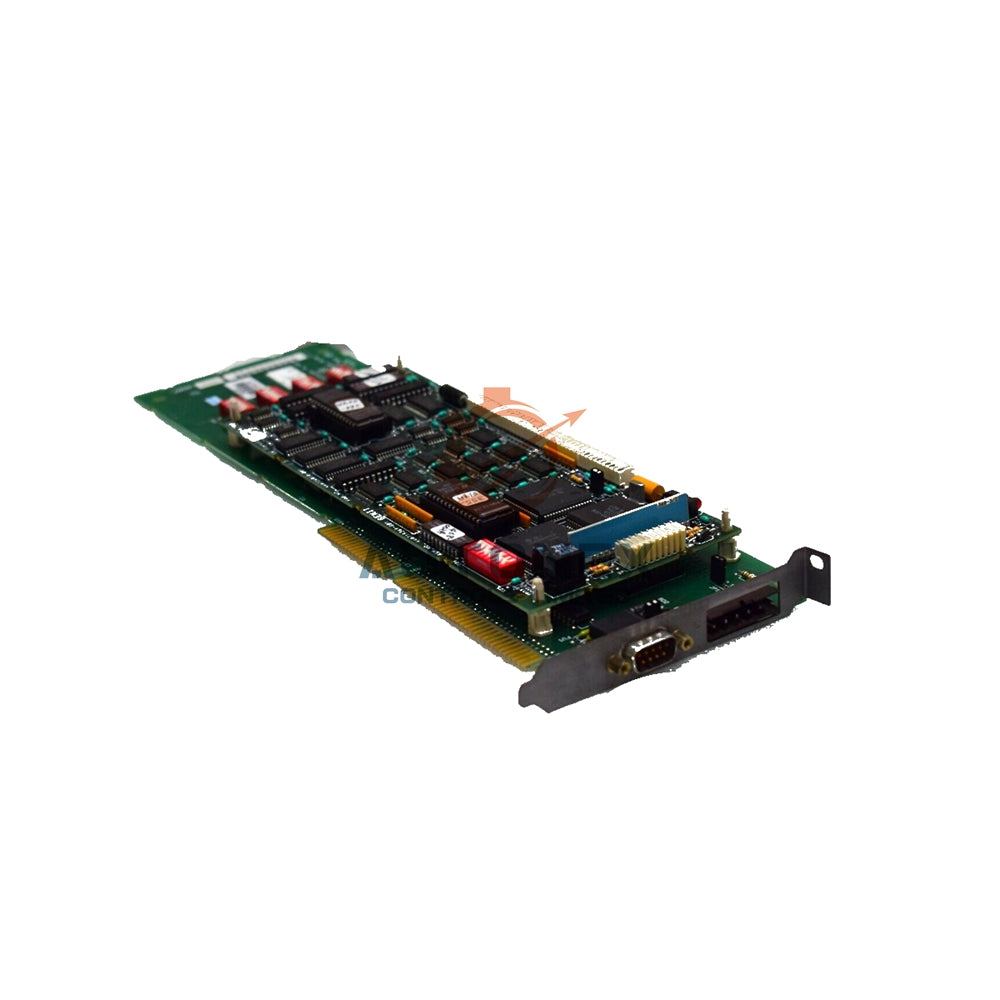

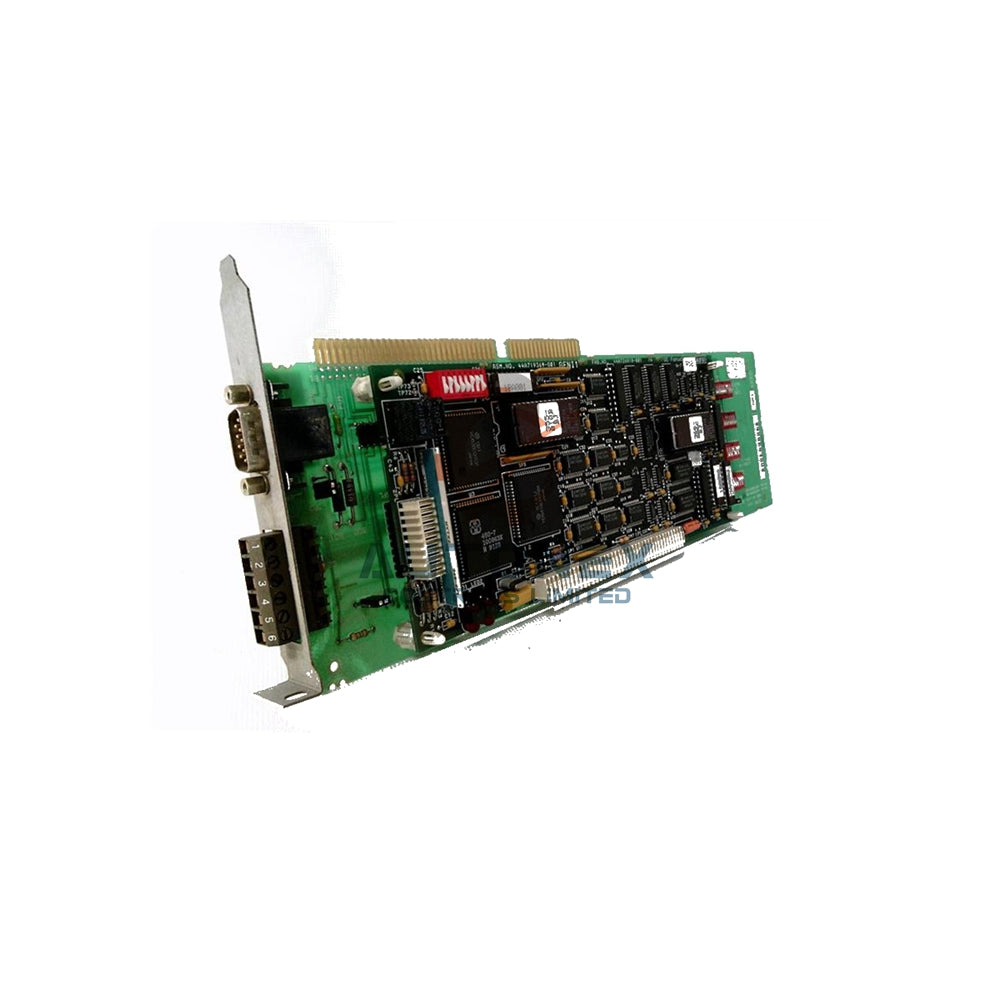

• Motherboard/Daughterboard Design: The IC660ELB906 consists of a motherboard for host PC interfacing and a daughterboard for Genius bus control.
• Genius Bus Control: The daughterboard manages protocol, initializes up to 30 bus devices, and handles I/O image storage and background messaging.
• Configurable Data Rate: Network data rate is easily set using an on-board DIP switch, providing flexibility for the twisted-pair network.
• System Protection & Diagnostics: The motherboard includes a built-in watchdog timer (user-disableable via jumper), low voltage detection, power-up reset sequencing, and 2 status LEDs for monitoring.

Frequently Asked Questions (FAQ)

• Q: Is the IC660ELB906 a brand new GE Fanuc part?
  A: Yes, we supply only 100% brand new and original GE Fanuc IC660ELB906 modules.
• Q: What computers is this PCIM compatible with?
  A: It is designed for the IBM PC/AT/XT family and compatible hosts with an ISA bus (XT-type slot).
• Q: What is the main function of the daughterboard?
  A: The daughterboard acts as a general-purpose I/O controller, managing protocol and devices on the Genius serial bus.
• Q: How is the network communication speed set?
  A: The network data rate is configured manually using the on-board DIP switch.
• Q: What is your shipping and return policy?
  A: We ship within 5 business days and offer a 30-day return policy for unused items in original packaging.

For technical support, pricing, or to purchase the IC660ELB906 PCIM, please contact us:
Email: sales@nex-auto.com
Phone/WhatsApp: +86 153 9242 9628

Partner: NexAuto Technology Limited
