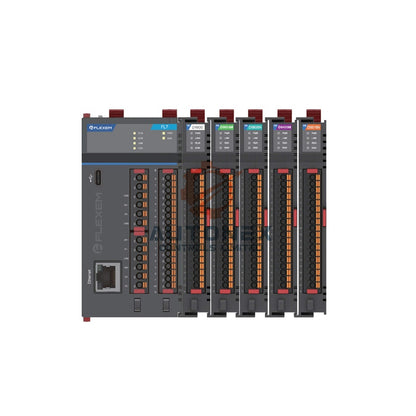

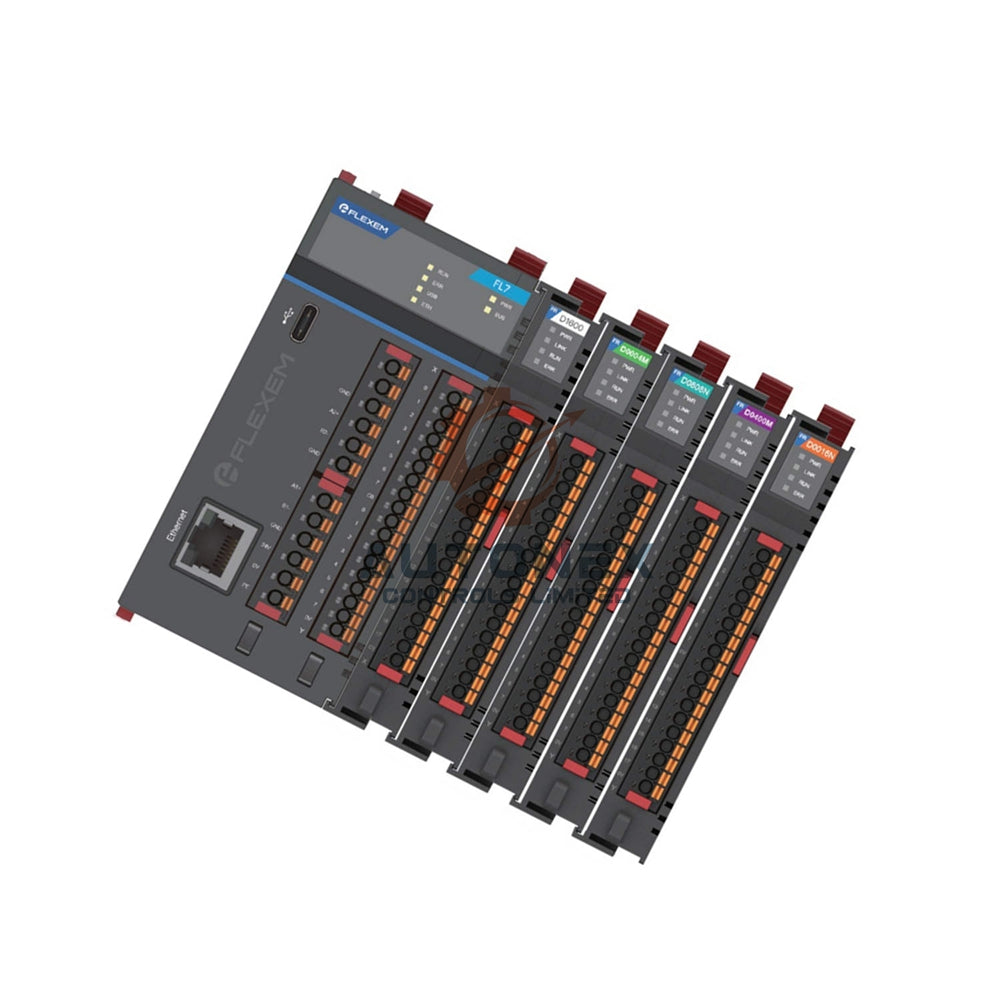

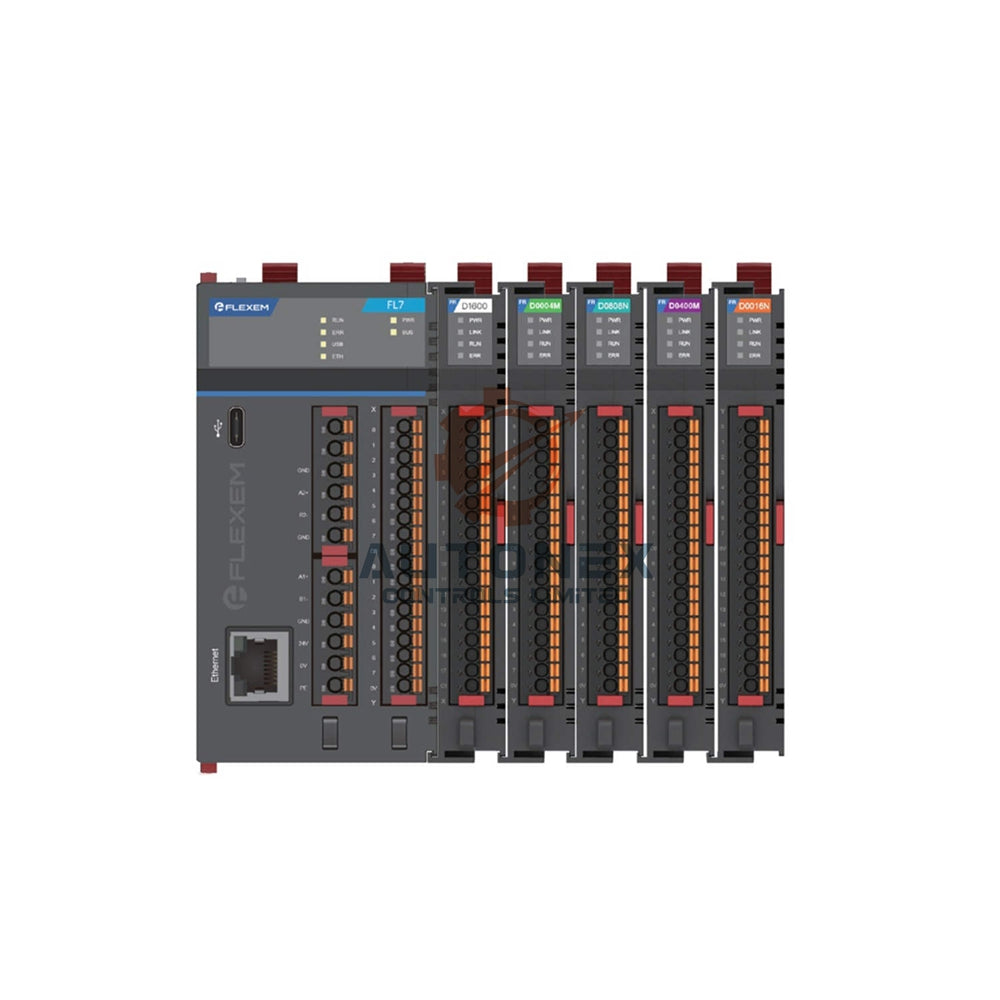

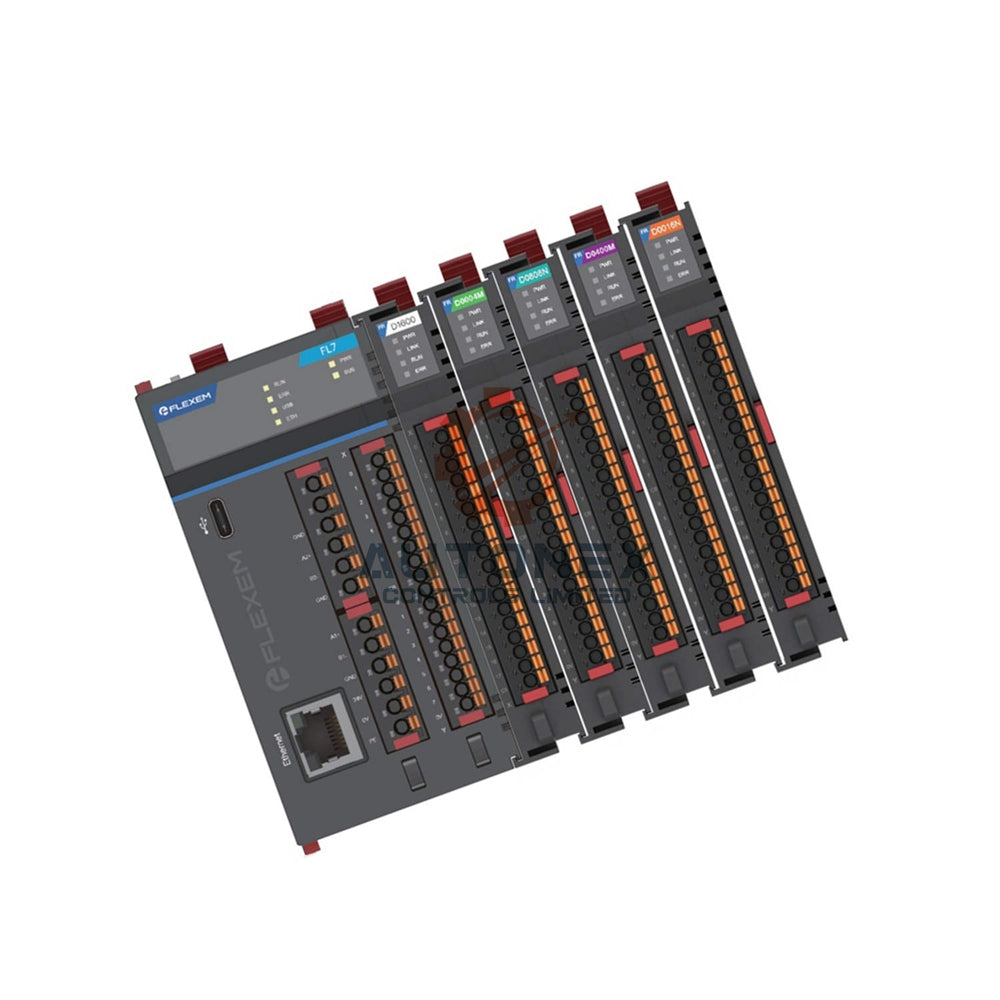

Flexem FR-T0400P 4-Channel Temperature Acquisition Module

Flexem FR-T0400P Temperature Acquisition Module Introduction

Technical Specifications

• Brand & Model: This precision instrument is the Flexem FR-T0400P.
• Input Channels: The module provides 4 independent temperature input points.
• Temperature Range for PT100: Measurement range from -200°C to 850°C.
• Temperature Range for PT1000: Measurement range from -200°C to 600°C.
• Temperature Range for Cu50/Cu100: Measurement range from -50°C to 150°C.
• Temperature Range for NI100/NI1000: Measurement range from -60°C to 180°C.
• Measurement Accuracy: High accuracy of ±0.5% or ±1°C (whichever is greater) at 25°C.
• Power Consumption: The module requires a maximum of 50mA at 5.0VDC.
• Module Dimensions: Compact size of 111mm x 18mm x 76mm (H*W*D).
• Product Weight: Lightweight design at only 65 grams.

Frequently Asked Questions (FAQ)

• Q: What types of temperature sensors can I connect to the FR-T0400P?
  A: You can connect PT100, PT1000, NI100, NI1000, Cu50, and Cu100 sensors. This covers most industrial platinum, nickel, and copper sensors.
• Q: What is the measurement accuracy of this temperature module?
  A: The accuracy is ±0.5% of reading or ±1°C, whichever value is larger. This specification applies at 25°C ambient temperature.
• Q: Can I mix different sensor types on the four channels?
  A: Yes, the FR-T0400P allows you to configure each channel independently for different sensor types.
• Q: What is the power supply requirement for this module?
  A: The module requires a 5VDC power supply and draws a maximum of 50mA.
• Q: Do you offer technical support for configuration and installation?
  A: Yes, we provide configuration guidance and technical documentation for all our products.

For technical specifications or volume pricing, please contact our sales team.
