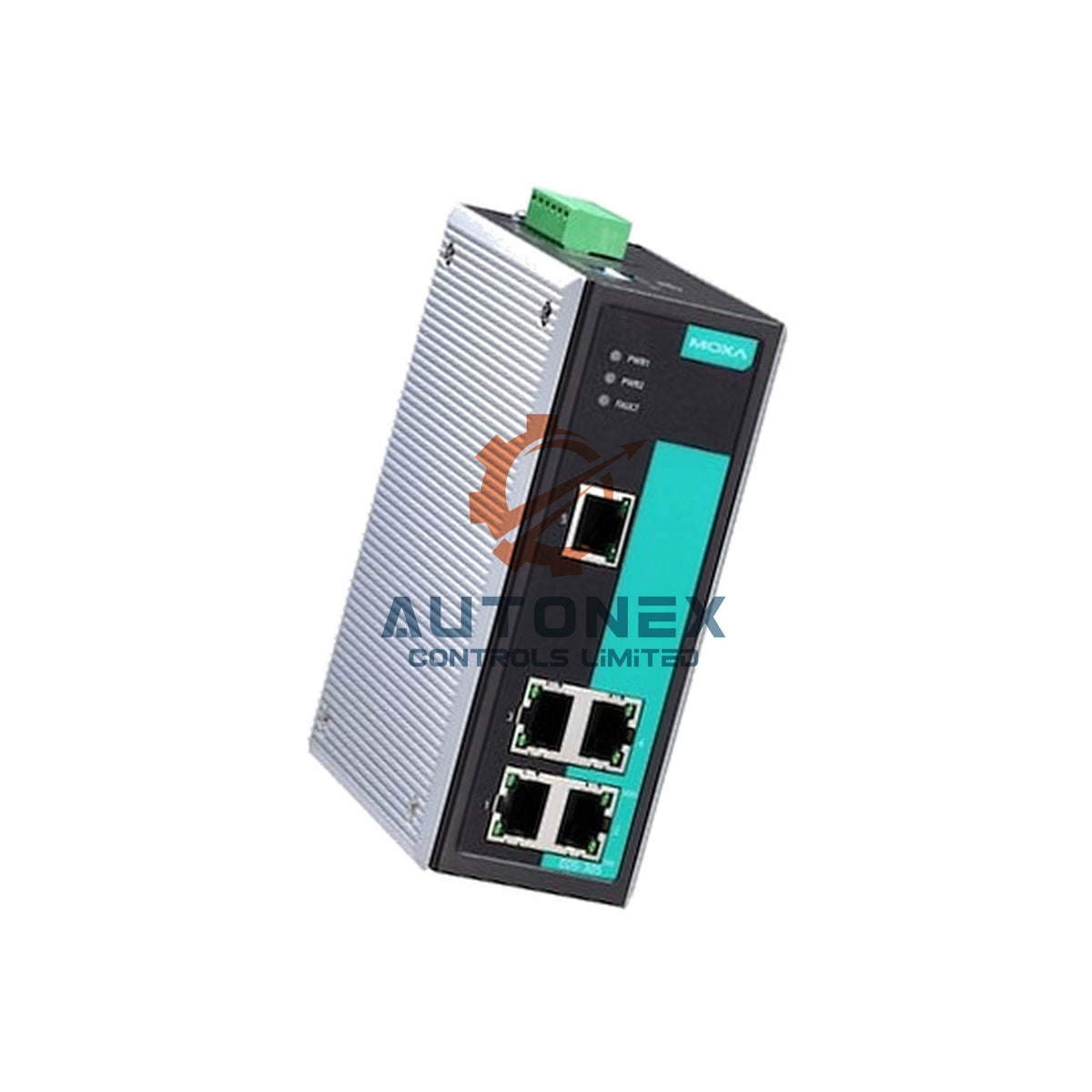

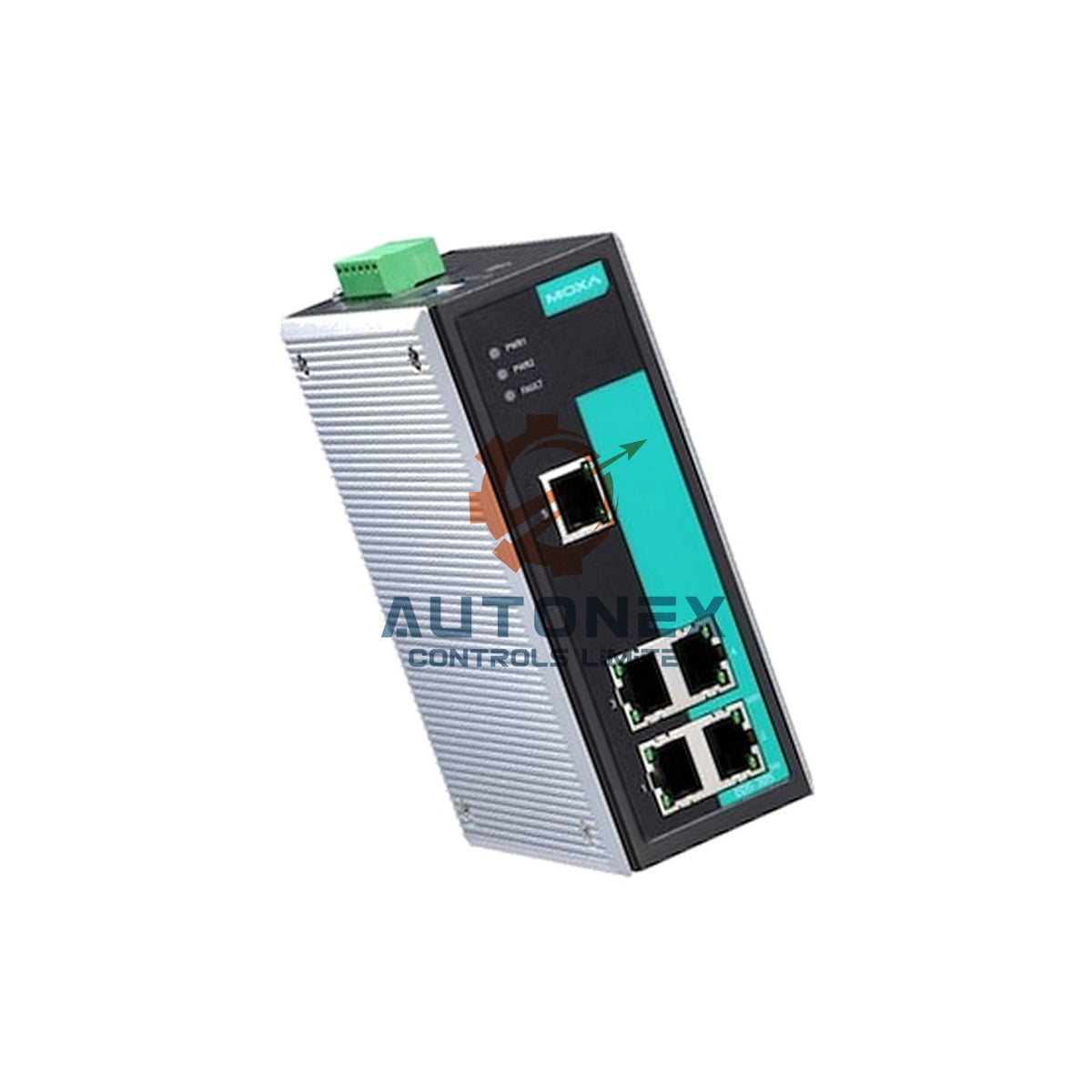

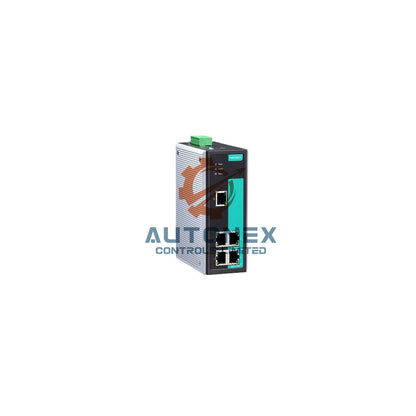

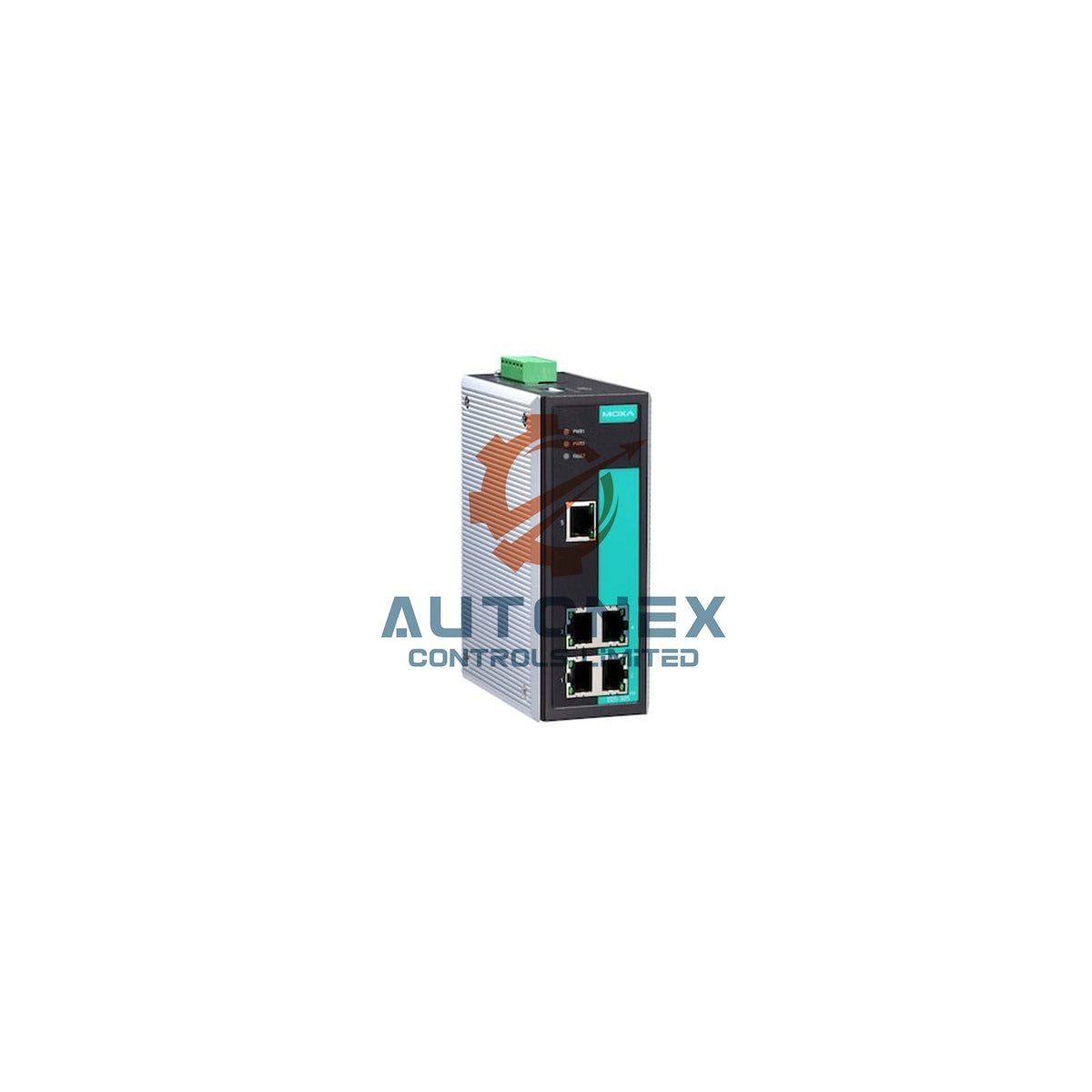

EDS-2008-EL Series MOXA 8-Port Unmanaged Switch

MOXA EDS-2008-EL Series: 8-Port Entry-Level Unmanaged Ethernet Switches

Features and Benefits

• Eight 10/100BaseT(X) ports with RJ45 connectors handle basic industrial Ethernet links.
• The compact metal housing saves valuable space inside control cabinets.
• QoS support lets the switch prioritize critical data during heavy traffic.
• The IP40-rated metal housing resists dust and mechanical stress on the plant floor.
• Wide-temperature -T models run from -40 to 75°C (-40 to 167°F).
• The series complies with PROFINET Conformance Class A (CC-A) for PROFINET networks.
• A 100% burn-in test confirms reliable operation after deployment.

Switch Properties and DIP Switch Configuration

• Store and forward processing checks each frame before it leaves the switch.
• A 2 K MAC table size covers typical industrial device counts.
• The 768 kbits packet buffer absorbs short traffic bursts.
• Outer-panel DIP switches enable or disable Quality of Service (QoS).
• The same DIP switches control Broadcast Storm Protection (BSP).

Power Parameters

• One removable 2-contact terminal block carries the power input.
• The EDS-2008-EL draws 0.067 A at 24 VDC.
• The EDS-2008-EL-M-ST and EDS-2008-EL-M-SC draw 0.105 A at 24 VDC.
• Input voltage covers 12/24/48 VDC, with an operating range of 9.6 to 60 VDC.
• Overload current protection and reverse polarity protection both come standard.

Physical Characteristics and Installation

• The metal housing weighs only 163 g (0.36 lb).
• The EDS-2008-EL measures 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in).
• The EDS-2008-EL-M-ST measures 36 x 81 x 70.9 mm (1.4 x 3.19 x 2.79 in) with the connector.
• The EDS-2008-EL-M-SC measures 36 x 81 x 68.9 mm (1.4 x 3.19 x 2.71 in) with the connector.
• DIN-rail mounting comes standard, and an optional kit enables wall mounting.
• Snap the switch onto a standard rail and leave free airflow around the case.
• Wire the terminal block to a 12/24/48 VDC source and check the polarity marks.
• Plug RJ45 cables into any copper port for immediate plug-and-play operation.

Environmental Limits and Immunity

• Standard models run from -10 to 60°C (14 to 140°F).
• Wide-temperature -T models extend that range to -40 to 75°C.
• Storage temperature spans -40 to 85°C (-40 to 185°F) with packaging included.
• Relative humidity of 5 to 95% (non-condensing) suits most plant environments.
• ESD immunity reaches 6 kV contact and 8 kV air per IEC 61000-4-2.
• Radiated susceptibility testing meets 20 V/m from 80 MHz to 1 GHz.
• EFT and surge tests pass at 1 kV on both power and signal lines.
• Conducted immunity reaches 10 V per IEC 61000-4-6.
• Shock, vibration and freefall tests follow IEC 60068-2-27, -2-6 and -2-32.
• Safety compliance covers UL 61010-2-201 and EN 62368-1 (LVD).
• EMC compliance covers EN 55032/35, and EMI meets CISPR 22/32 and FCC Part 15B Class A.
• MTBF reaches 3,472,660 hours under Telcordia (Bellcore) and GB standards.

Package Contents and Shipping

• One MOXA EDS-2008-EL Series switch in its original factory packaging.
• One quick installation guide and one warranty card.
• One removable 2-contact terminal block for power wiring.
• We ship orders within 5 days through FedEx, UPS or DHL.

FAQ

• Q: Is the EDS-2008-EL Series new and original? A: Yes. We supply brand new original units, and we hold stock for immediate orders.
• Q: How fast do you ship, and which couriers do you use? A: We dispatch within 5 days via FedEx, UPS or DHL.
• Q: Can I return the switch if it does not fit my design? A: Yes. We accept returns within 30 days of delivery.
• Q: What is the difference between standard and -T models? A: Standard models run from -10 to 60°C, while -T models run from -40 to 75°C.
• Q: Does the switch support PROFINET? A: Yes. The series complies with PROFINET Conformance Class A (CC-A).
• Q: What input voltage does the switch accept? A: It accepts 12/24/48 VDC, with an operating range of 9.6 to 60 VDC.
• Q: How do I enable QoS or BSP? A: Use the DIP switches on the outer panel to enable or disable each function.
• Q: How long is the MTBF? A: MOXA rates the series at 3,472,660 hours under Telcordia (Bellcore) and GB standards.
