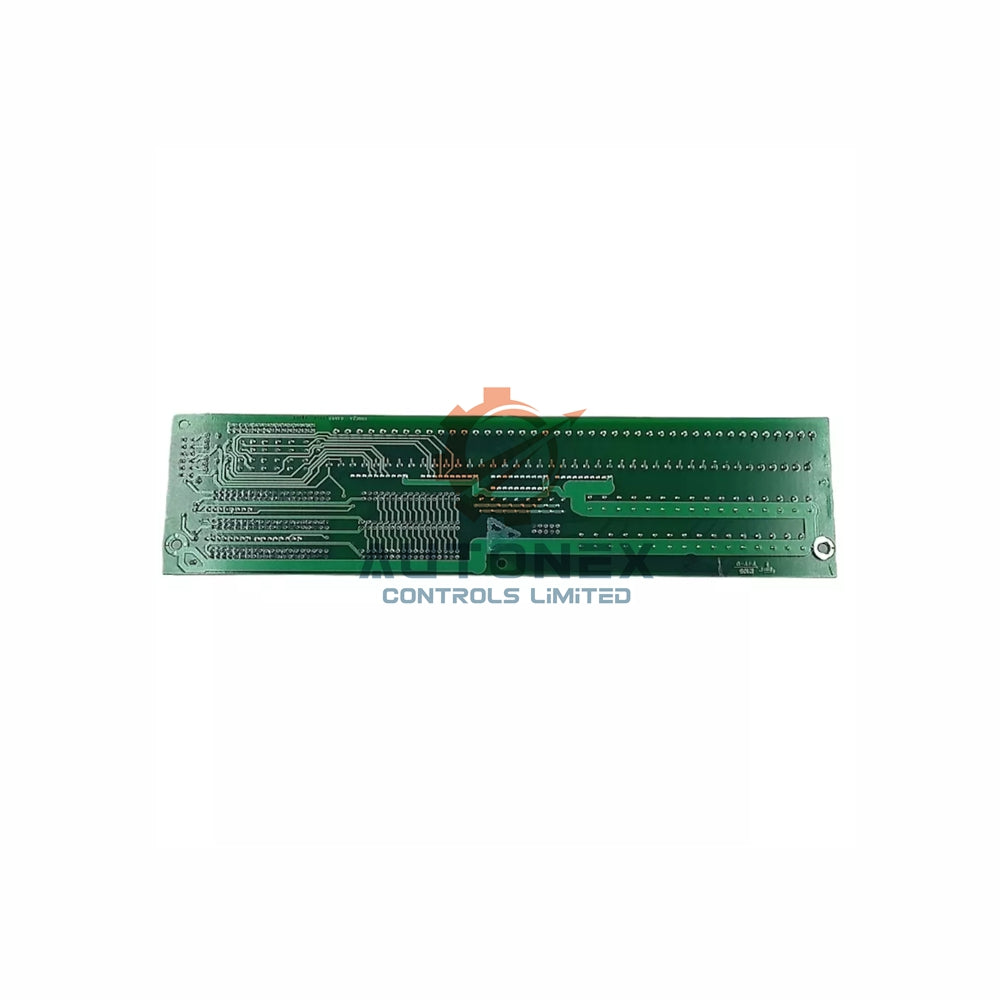

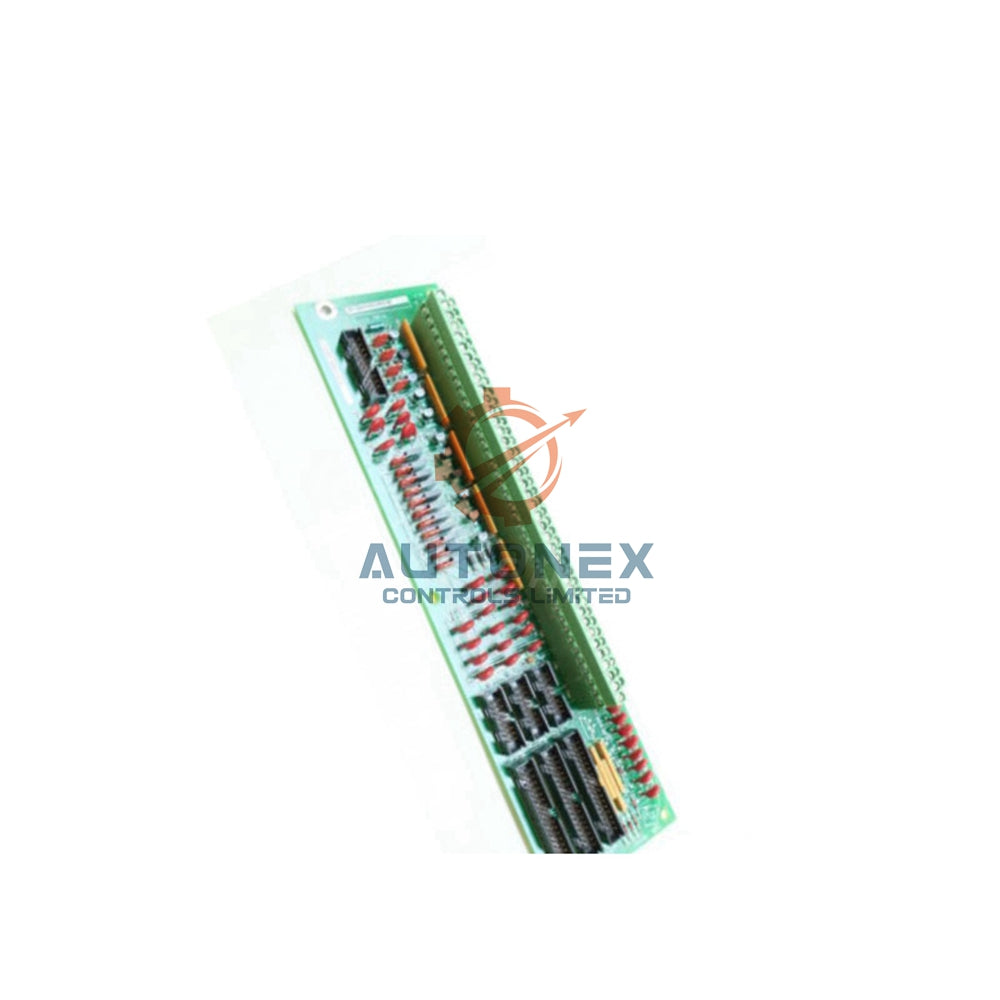

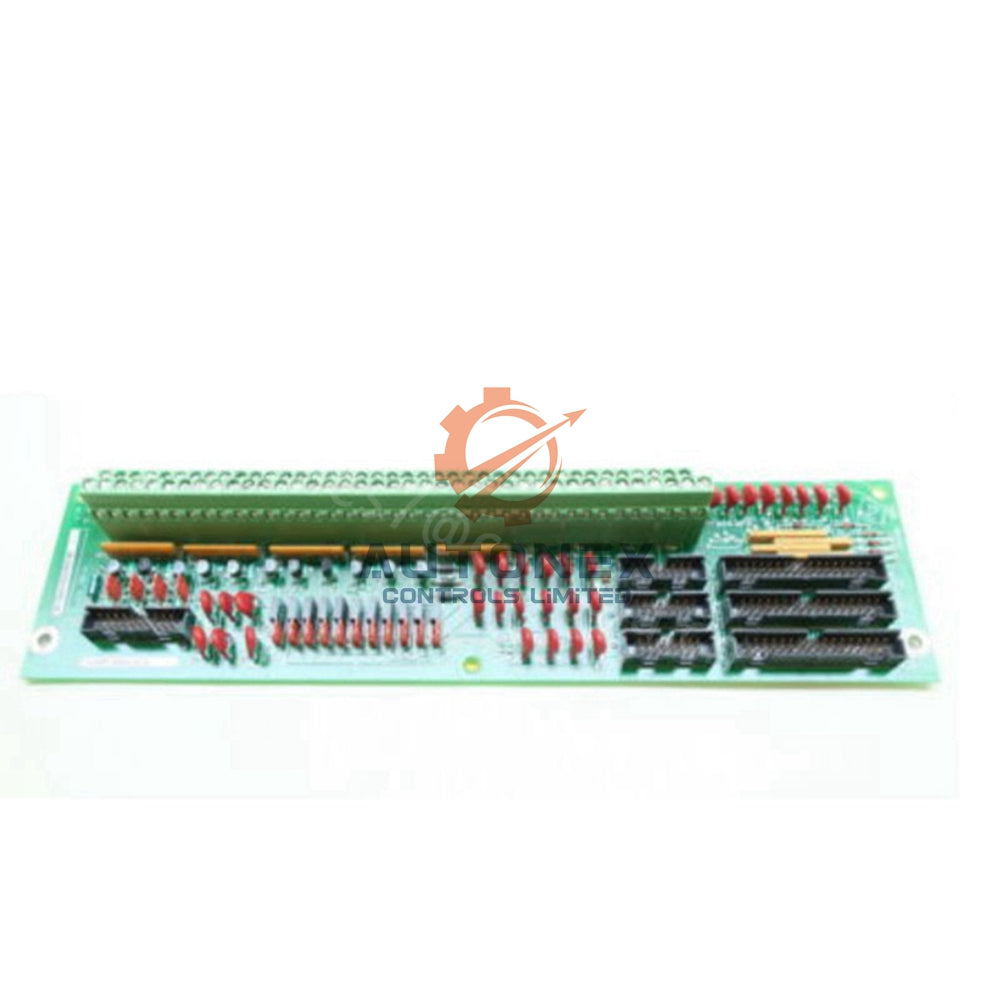

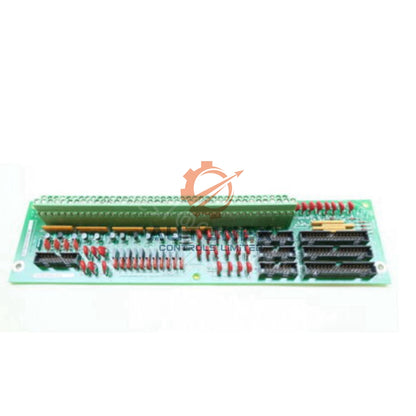

DS200TBQBG1ACB GE Mark V RST Termination Board

DS200TBQBG1ACB GE Mark V RST Termination Board

Key Technical Specifications

• Brand: GE General Electric
• Model: DS200TBQBG1ACB
• Series: Mark V
• Product Type: RST Termination Board / Input Termination Module
• Manufacturer: General Electric
• Functional Acronym: TBQB
• PCB Coating: Normal Coating
• Functional Revision 1: A
• Functional Revision 2: C
• Artwork Revision: B
• Terminal Blocks: 2
• Terminals per Block: 77
• Total Terminals: 154
• Jumpers: 15
• 34-Pin Connectors: 3
• 16-Pin Connectors: 3
• Availability: In Stock

Jumper Configuration and Signal Handling

• Jumpers BJ1 to BJ4 fan out a pressure transducer signal
• Jumpers BJ5 to BJ7 install a burden resistor for the pressure transducer
• Jumpers BJ8 to BJ15 handle analog input configuration
• Each jumper carries a factory-printed nomenclature label with the BJ tag
• The board processes voltage signals for electrical parameter monitoring
• It handles vibration signals to assess mechanical integrity and performance
• It manages pulse rate signals indicating frequency of specific events
• The board also processes compressor stall detection inputs for safety

Terminal Block and Connector Details

• One terminal block carries the ID TB1 and the other carries TB2
• Every terminal within each block has a numerical ID for easy reference
• TB1 66 refers to terminal 66 on terminal block 1
• Connector JGR transmits vibration, analog current, and voltage signals
• Connector JHR handles pulse rate and compressor stall detection inputs
• The JGQ connector links to the TCQA Board for various signals
• The JHR connector links to the TCQC Board for pulse rate and detection signals
• Connectors JGS/T and JHS/T remain as vestigial structures for future expansion
• In the R2 core, the board connects to TCQA and TCQC boards in the R1 core
• In the R3 core, the board connects to TCQA and TCQC boards within the same core

Installation Guidelines

• Label each signal wire with masking tape or a tag before removal
• Write the terminal block ID and numerical value on each label
• Use a screwdriver to release the signal wires from the terminals
• Insert the bare copper end of each signal wire into the replacement board
• Tighten the screws to secure each signal wire in place
• Refer to the factory documentation to identify the correct terminal for each signal
• Follow the DS200TBQBG1ACB instructional manual for connector identification

Package Contents

• One GE DS200TBQBG1ACB RST Termination Board
• Protective anti-static packaging for safe transport
• Shipping via FedEx, UPS, or DHL based on your location

Frequently Asked Questions

• What is the difference between the DS200TBQBG1ACB and the DS200TBQBG1? The DS200TBQBG1ACB carries three significant product revisions. The DS200TBQBG1 lacks these revisions.
• How many terminals does this board provide? The board offers 154 terminals across two terminal blocks.
• How many jumpers does this board contain? The board features 15 jumpers for signal configuration.
• Where does this board sit within the system? It sits at position seven within the R2 and R3 cores.
• What input signals does this board handle? It processes voltage, vibration, pulse rate, and compressor stall detection signals.
• What are the JGS/T and JHS/T connectors used for? They remain unused in standard operations and serve future expansion needs.
• Is this product new and original? Yes, we supply brand new original products.
• Do you have stock available? Yes, we keep this product in stock for immediate order processing.
• How fast do you ship? We ship within 5 days after receiving your order.
• What shipping carriers do you use? We use common carriers like DHL, FedEx, and UPS.
• What is your return policy? We support returns within 30 days of delivery.
