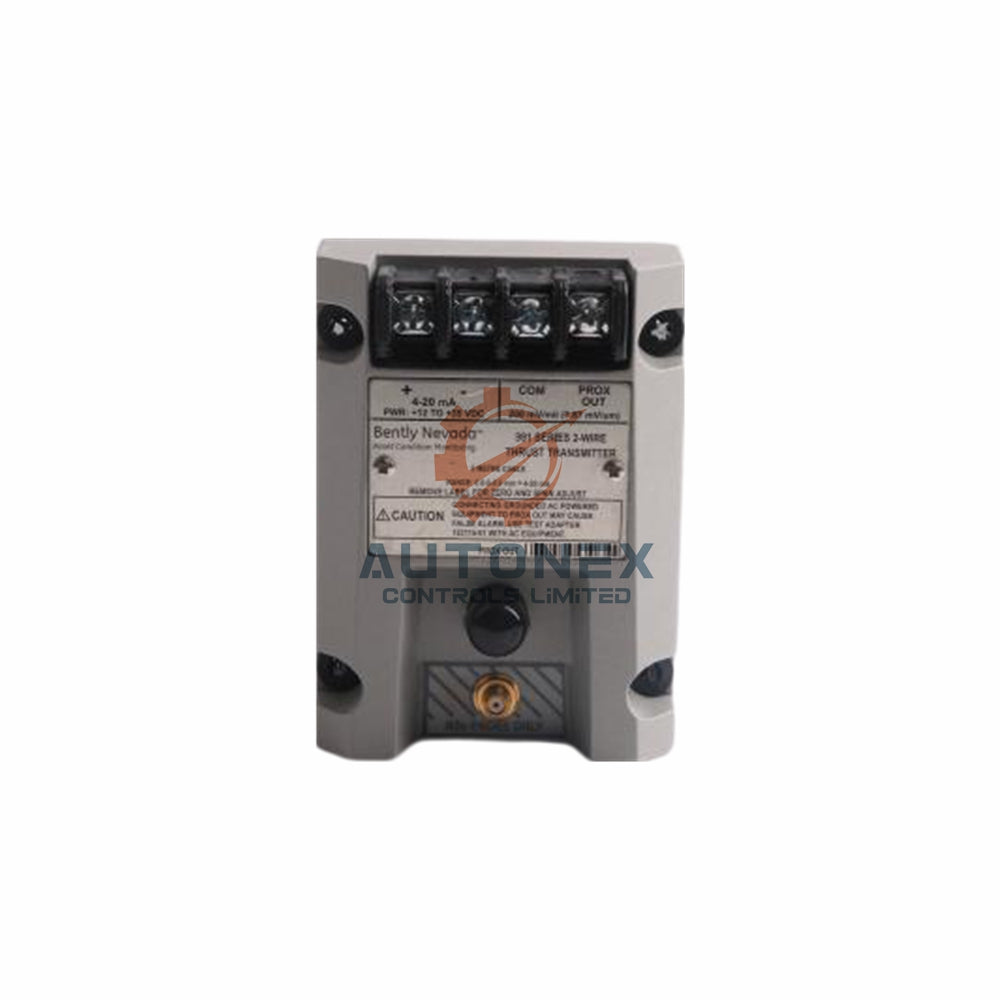

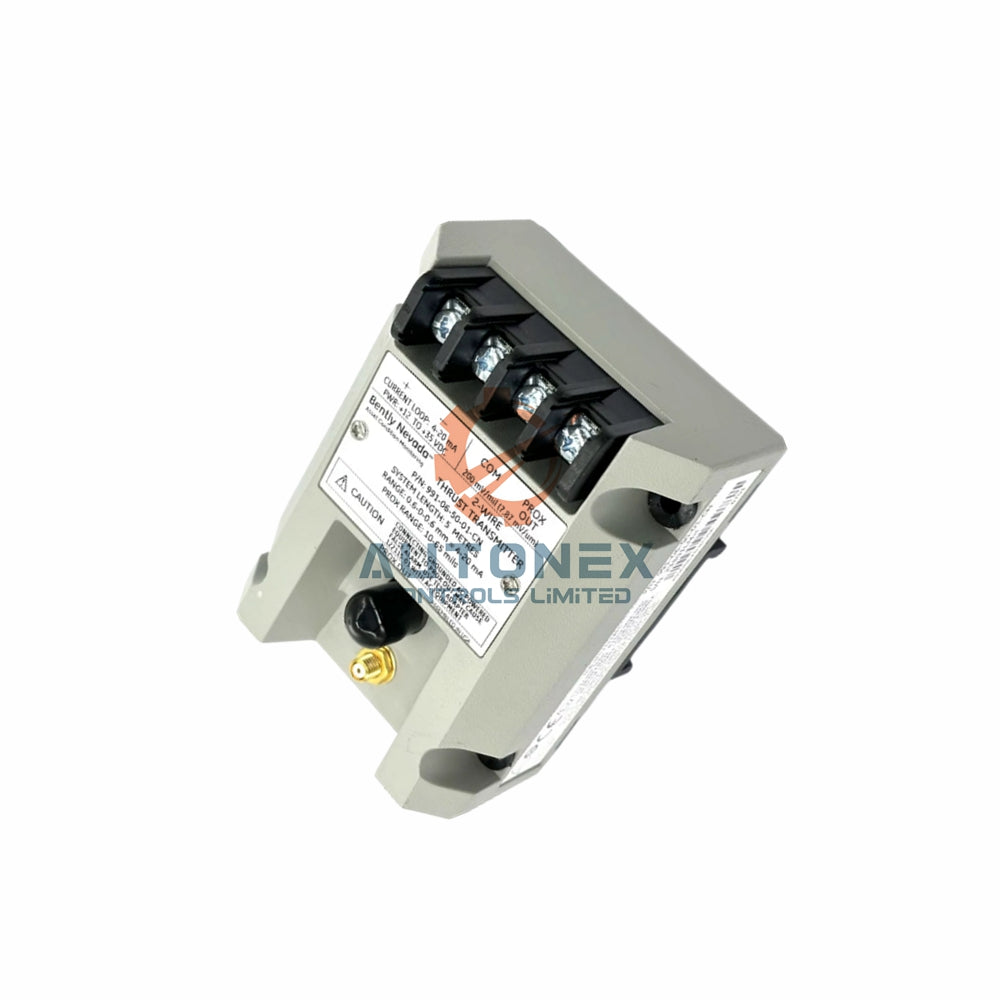

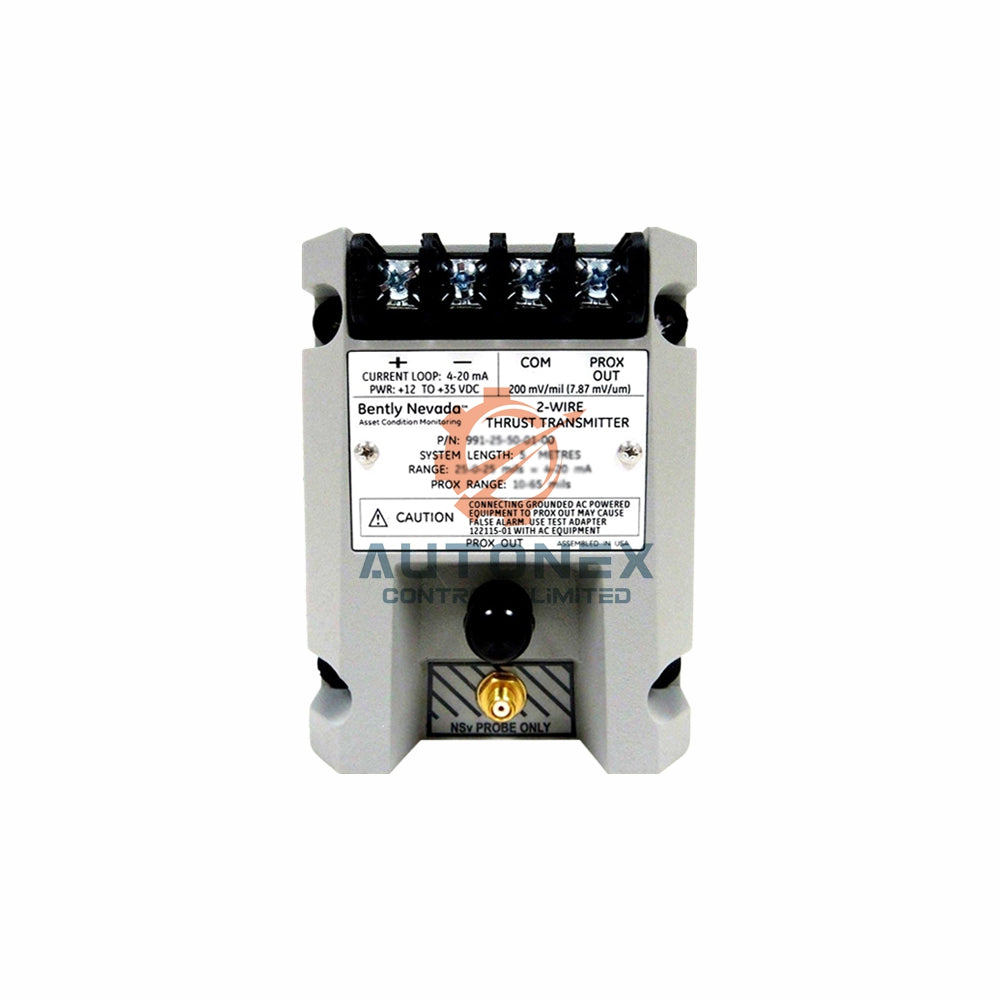

Bently Nevada 990-10-50-01-CN Vibration Transmitter

Bently Nevada 990 Vibration Transmitter  990-10-50-01-CN: Enhanced Measurement Range

Key Technical Specifications

• Brand & Model: This is the Bently Nevada 990-10-50-01-CN vibration transmitter.
• Measurement Range: It features a wider 0 to 10 mils peak-to-peak (0 to 250 μm pp) full-scale range.
• Frequency Response: The unit captures data across a 5 Hz to 6,000 Hz frequency band.
• Input & Power: It accepts one 3300 NSv Proximity Probe and requires +12 to +35 Vdc power.
• Signal Output: The transmitter provides a standard 4 to 20 mA dc two-wire output.
• Output Accuracy: Loop accuracy remains within ±1.5% over the full-scale range.
• System Length: Configured for a 5.0 meter (16.4 feet) system cable length.

Installation & Configuration Guide

• Mounting: Securely mount the unit using the included 35 mm DIN rail clips.
• Probe Gap: Position the probe between 0.5 and 1.75 mm (20 to 55 mils) from the target shaft.
• Wiring: Ensure the total loop resistance does not exceed 1,000 Ω when using a 35 Vdc supply.
• Target Size: The minimum target diameter must be 9.5 mm (0.375 inches).
• Cable Length: Limit the cable from probe to BNC connector to 3 meters (10 feet) maximum.

Operational & Safety Features

• Agency Approvals: This model includes country-specific (CN) approvals for compliance.
• Fault Response: Output current drops below 3.6 mA within 100 µs upon a system fault.
• Current Protection: The device has built-in current limiting, typically at 23 mA.
• Calibration: Features separate, non-interacting zero and span adjustments for easy setup.

Packaging & Shipping Information

• Package Contents: Includes one complete Bently Nevada 990 vibration transmitter.
• Shipping: We dispatch orders swiftly via FedEx, UPS, or DHL according to your preference.
• Item Condition: All units are supplied brand new and original from the factory.

Frequently Asked Questions (FAQ)

• Q: Is the Bently Nevada 990-10-50-01-CN available from stock?
  A: Yes, we typically have this transmitter model in ready stock for prompt shipment.
• Q: What is the processing time for orders?
  A: We process and ship orders within 5 business days.
• Q: What is the main difference in this model's range?
  A: This model has a 0-10 mils pp range, which is wider than some other 990 series options.
• Q: What does the "CN" approval option mean?
  A: It indicates the unit meets specific country-specific certification requirements.
• Q: What is your return policy for this product?
  A: We offer a 30-day return window for unused items in original packaging.

For detailed technical data, download the complete 990 Vibration Transmitter Datasheet.
