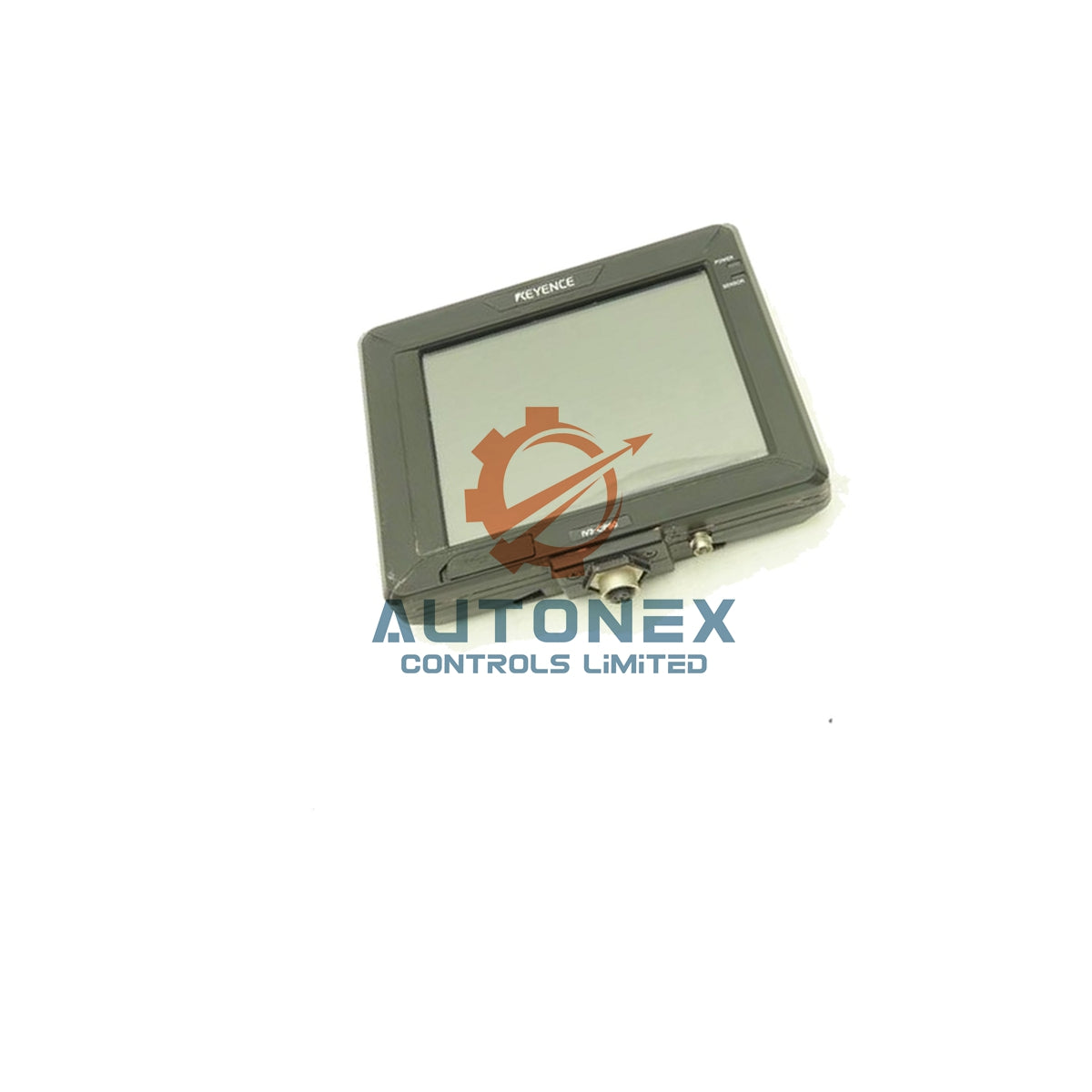

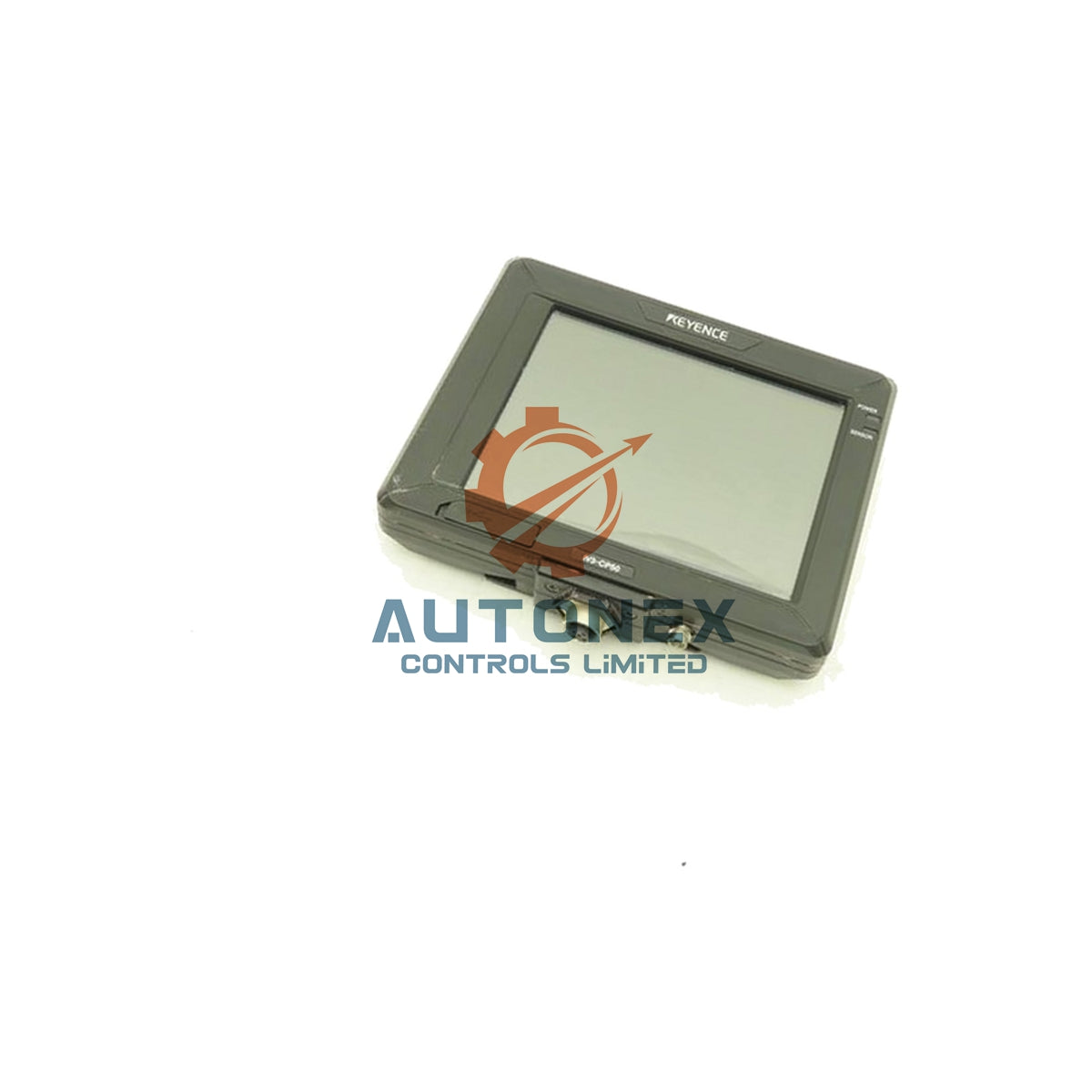

IV3-CP50 Keyence 5.7-Inch Touchscreen Control Panel

IV3-CP50 Keyence 5.7-Inch Touchscreen Control Panel

Technical Specifications

• Brand: Keyence
• Model: IV3-CP50
• Series: IV3 Series (also supports IV2 Series and IV Series)
• Category: Touchscreen control panel
• Display: 5.7-inch TFT color LCD, 640 x 480 (VGA)
• Touch panel: Analog resistive, actuating force 0.8 N or less
• Backlight: White LED, approx. 50000 hours at 25°C
• Built-in ports: M12 4-pin Ethernet (100BASE-TX) and USB
• Protocols: Provided by the connected sensor
• Communication expansion: None
• Supply voltage: 24 VDC ±10% (including ripple)
• Power consumption: 0.3 A or less
• Operating temperature: 0 to +50°C (no freezing)
• Relative humidity: 35 to 85% RH (no condensation)
• Protection rating: IP40
• Drop resistance: 1.3 m onto concrete, 2 times in any direction
• Vibration resistance: 10 to 55 Hz, double amplitude 0.7 mm, 2 hours in each of X/Y/Z directions
• Weight: Approx. 450 g (panel), approx. 485 g (with wall mounting adapter and stylus)
• Lifecycle status: Active, with Keyence production status confirmed (last verified: 2026-09)

Build Materials and Mechanical Notes

• The main unit case uses PC resin for a light and durable housing.
• The power connector uses brass with a Ni coating for stable contact.
• The Ethernet connector uses zinc with a Ni coating and a PA body.
• The USB connector cover uses EPDM to seal against dust and splash.
• The pen holder, LED lamp cover, and mounting adapter use PC resin.
• The stylus and adapter hook use POM for wear resistance.

Installation Guide

• Mount the panel on a wall or machine frame using the supplied adapter.
• Connect the M12 4-pin Ethernet port to the vision sensor network.
• Wire the 24 VDC supply within the ±10% tolerance range.
• Keep power consumption below 0.3 A to avoid supply overload.
• Place the unit in a location that stays between 0 and +50°C.
• Keep humidity between 35 and 85% RH with no condensation.
• Use the USB port for a keyboard, mouse, or USB memory device.
• Run a display and touch check before starting full operation.

Package Contents

• IV3-CP50 control panel unit
• Wall mounting adapter
• Stylus pen
• Power connector
• Startup and connection guide

Shipping and Support

• We ship through FedEx, UPS, and DHL for reliable worldwide delivery.
• Stock is available and orders ship within 5 days.
• We accept returns within 30 days under our standard return policy.
• All items are brand new and original.

FAQ

• Q: Does IV3-CP50 work with IV2 Series sensors?
  A: Yes, the panel supports IV3 Series, IV2 Series, and IV Series sensors.
• Q: What power supply does the panel need?
  A: It needs 24 VDC ±10% with ripple included and draws 0.3 A or less.
• Q: Is the panel protected against dust and water?
  A: The panel carries an IP40 rating, so it resists solid objects above 1 mm.
• Q: Can the panel survive a drop?
  A: Yes, it resists a 1.3 m drop onto concrete twice in any direction.
• Q: What is the delivery time?
  A: We ship in-stock items within 5 days via DHL, FedEx, or UPS.
• Q: What is the return window?
  A: You can return the product within 30 days of delivery.
