Bently Nevada | 8 mm Probe | 330101-00-96-10-02-CN

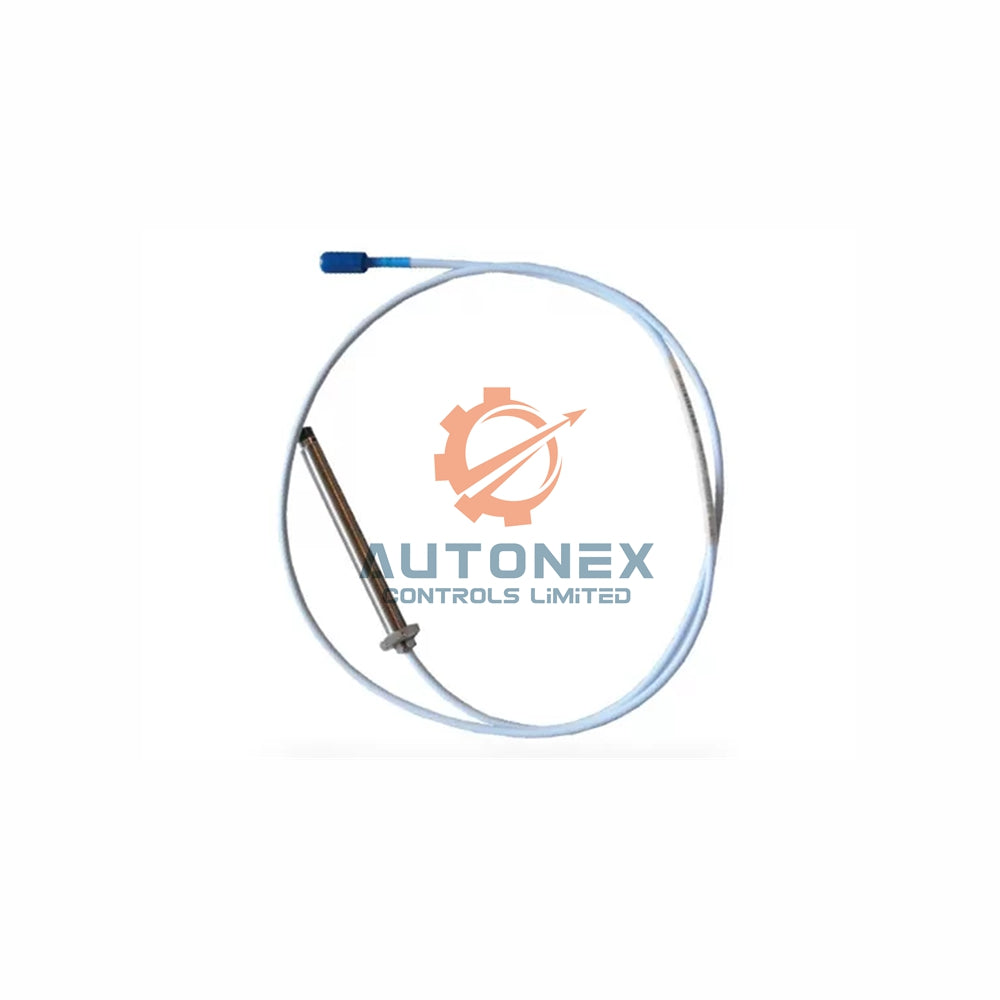

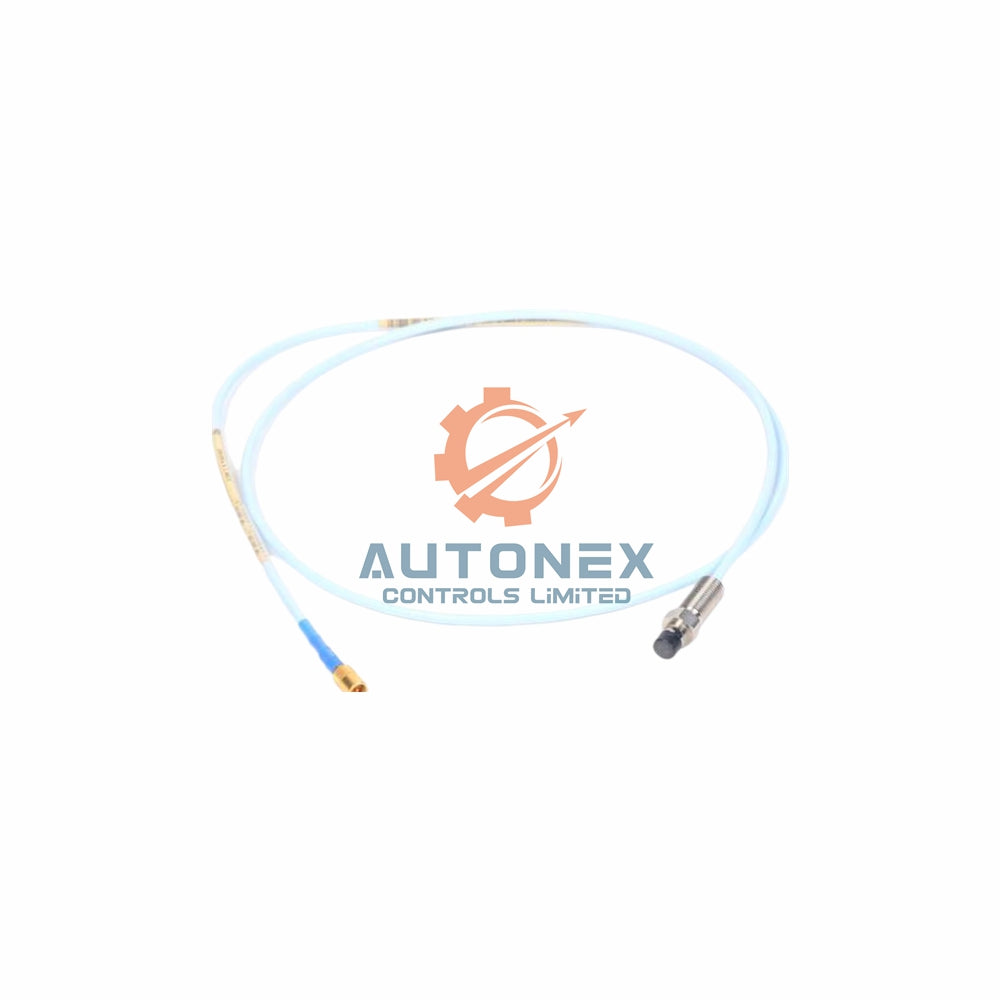

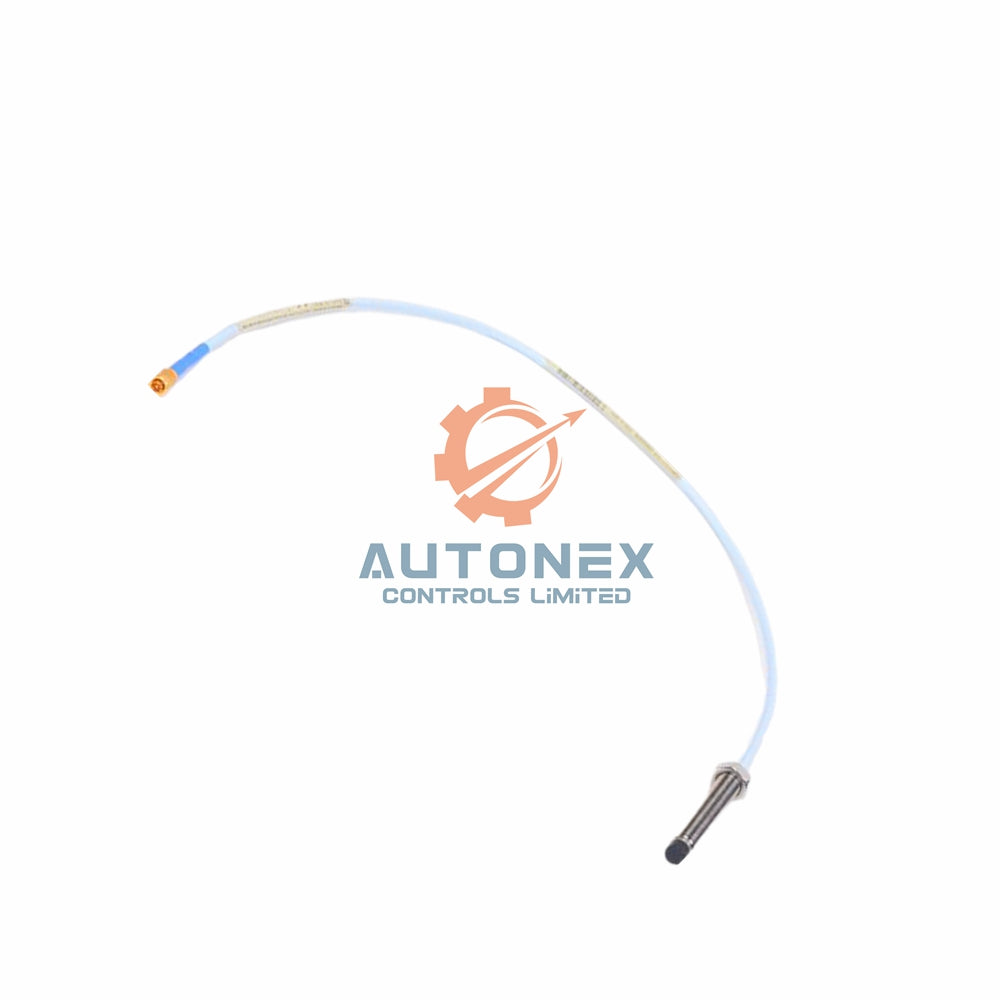

Bently Nevada 3300 XL 8mm Probe: Rugged Industrial Vibration Sensor

Key Features & Benefits

• Superior Ruggedness: The 8mm thick probe body and PPS plastic tip resist physical damage.
• Wide Temperature Range: Reliable operation from -62°F to +425°F (-52°C to +218°C).
• Leak Prevention Option: Add the FluidLoc cable to stop oil and fluid ingress.
• Secure Connection: Patented CableLoc design withstands 75 lbs of pull force.

Core Technical Specifications

• Brand & Model: Bently Nevada 330101-00-96-10-02-CN
• Linear Range: 0.25 mm to 2.3 mm (0.01 to 0.09 inches) from target.
• Output Sensitivity: 7.87 V/mm (200 mV/mil).
• System Accuracy: ±5% for standard 1-meter cable systems.
• Probe Resistance: 7.59 Ω ± 0.50 Ω for a 1.0m cable length.
• Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical.

Frequently Asked Questions (FAQ)

• Q: Is this the latest 3300 XL probe design?
  A: Yes, it includes the patented TipLoc and CableLoc features for maximum durability.
• Q: What is the default cable length for this model?
  A: Model 330101-00-96-10-02-CN comes with a 1.0-meter (3.3-foot) integrated cable.
• Q: Can I use this probe for both vibration and position measurement?
  A: Yes, the 3300 XL probe is designed for both radial vibration and axial position monitoring.
• Q: Do you offer a calibration certificate with the probe?
  A: The probe comes with standard factory calibration. A certified calibration report is available as an optional service.
• Q: What is your return policy?
  A: We offer a 30-day return policy for all unused products in original packaging.

For complete specifications and system integration guidelines, download the official datasheet:
3300 XL 8 mm Proximity Transducer System Datasheet (PDF)
