Bently Nevada 330904-00-10-05-11-00 - NSv Proximity Probe

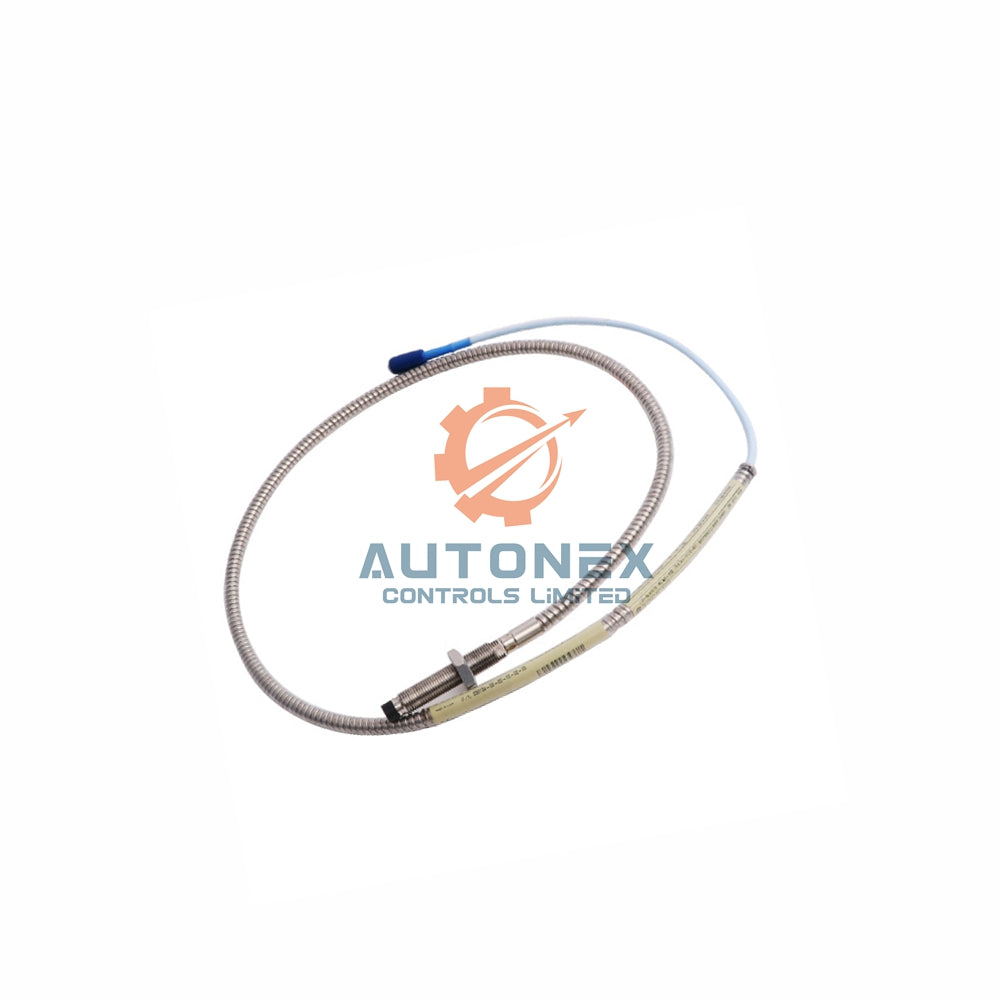

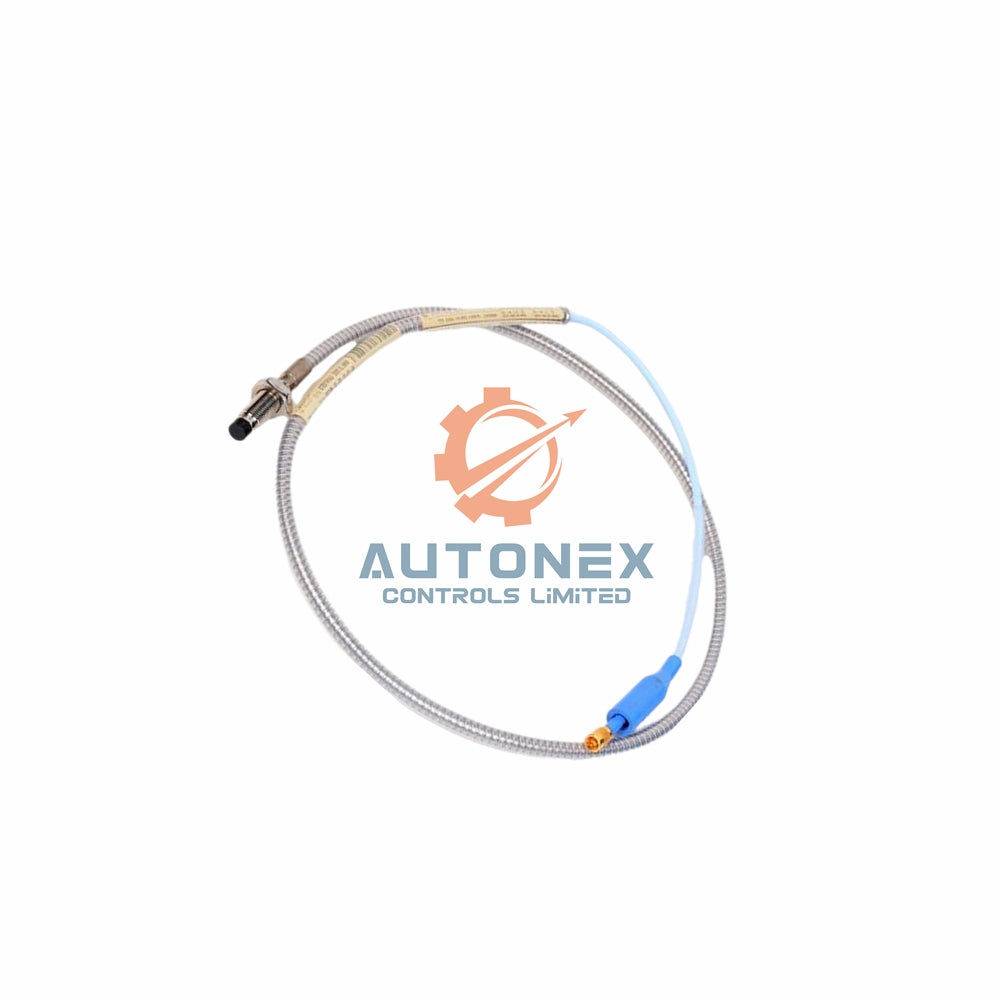

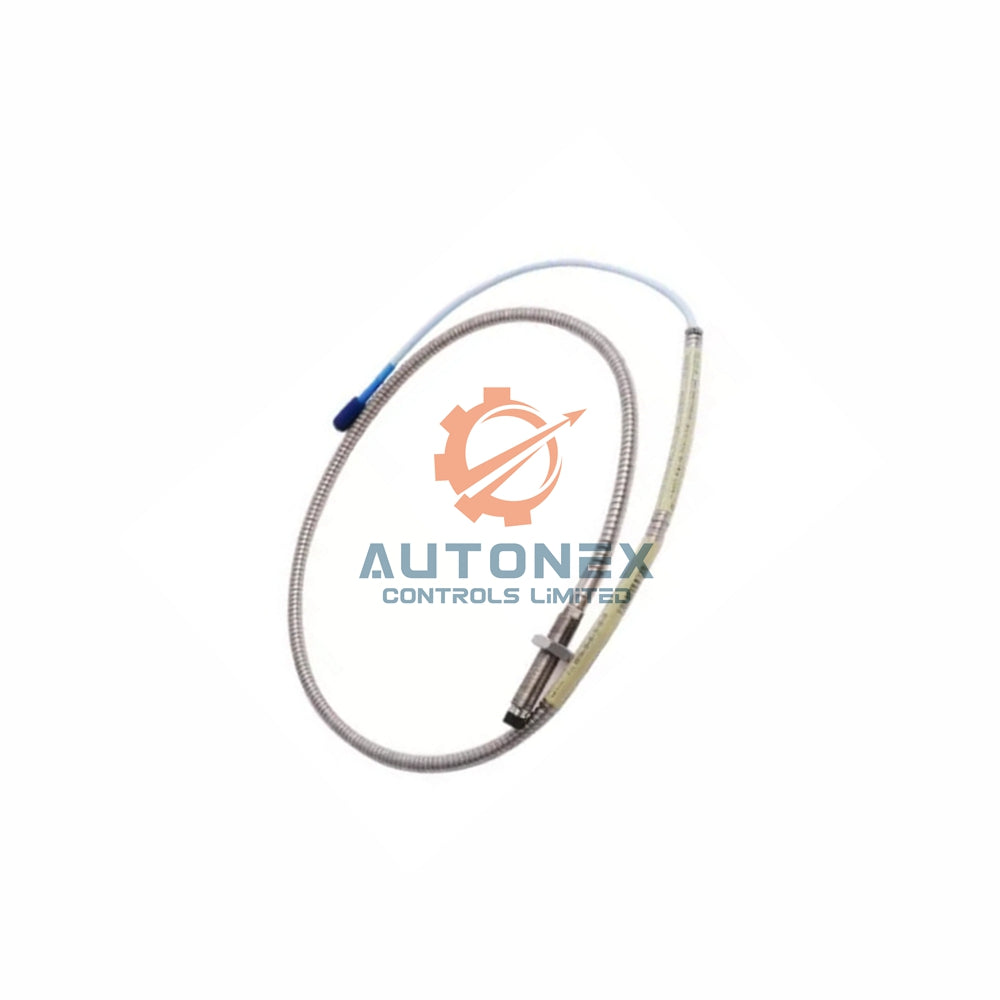

Bently Nevada 330904 NSv Armored Proximity Transducer

Complete Model Suffix Breakdown

• 330904 – 3300 NSv Proximity Probe with Armored M8x1 Thread
• 00 – 0 mm Unthreaded Length
• 10 – 100 mm Case Length
• 05 – 0.5 Meter Integrated Cable
• 11 – ClickLoc Connector with FluidLoc Cable Protector
• 00 – No Agency Approvals Required

Key Technical Specifications

• Brand & Model: Bently Nevada 330904-00-10-05-11-00
• Measurement Range: 0.25 to 1.75 millimeters
• Output Signal (Sensitivity): 7.87 Volts/mm ±20%
• Linearity: Maximum deviation of ±0.06 mm
• Frequency Response: DC to 10 kHz (up to 305 m wiring)
• Operating Temperature: –52 °C to +177 °C
• Probe Tip Material: Polyphenylene Sulfide (PPS)
• Probe Case Material: AISI 304 Stainless Steel
• Cable Specification: 75 Ohm, FEP Insulated, 0.5 m length
• Minimum Bend Radius: 25.4 mm

Installation & Environmental Robustness

• Install the armored probe using the standard M8x1 thread for secure mounting.
• The stainless steel case and PPS tip resist corrosion, oils, and chemicals.
• This transducer maintains signal integrity across its wide temperature range.
• The FluidLoc cable protector ensures reliability in wet or dirty conditions.
• Its high-frequency response accurately captures dynamic machinery motion.

Frequently Asked Questions (FAQ)

• Q: What is the specific model code for this probe configuration?
  A: The full model is Bently Nevada 330904-00-10-05-11-00, as detailed in the suffix breakdown above.
• Q: Do you have this specific transducer model in stock?
  A: Yes, we maintain stock of this 330904-00-10-05-11-00 model for prompt shipment.
• Q: What makes the NSv series suitable for high-temperature applications?
  A: Its design supports continuous operation in temperatures from -52°C to +177°C.
• Q: Can I use this probe with long cable runs?
  A: Yes, the system frequency response is rated for wiring up to 305 meters.
• Q: What is your return policy?
  A: We support a 30-day return period for unused items in original packaging.

For more detailed specifications and application guidelines, download the full datasheet: 3300 XL NSv Proximity Transducer System Datasheet - 147385.

For pricing, technical support, or to discuss your application needs, please contact us.
