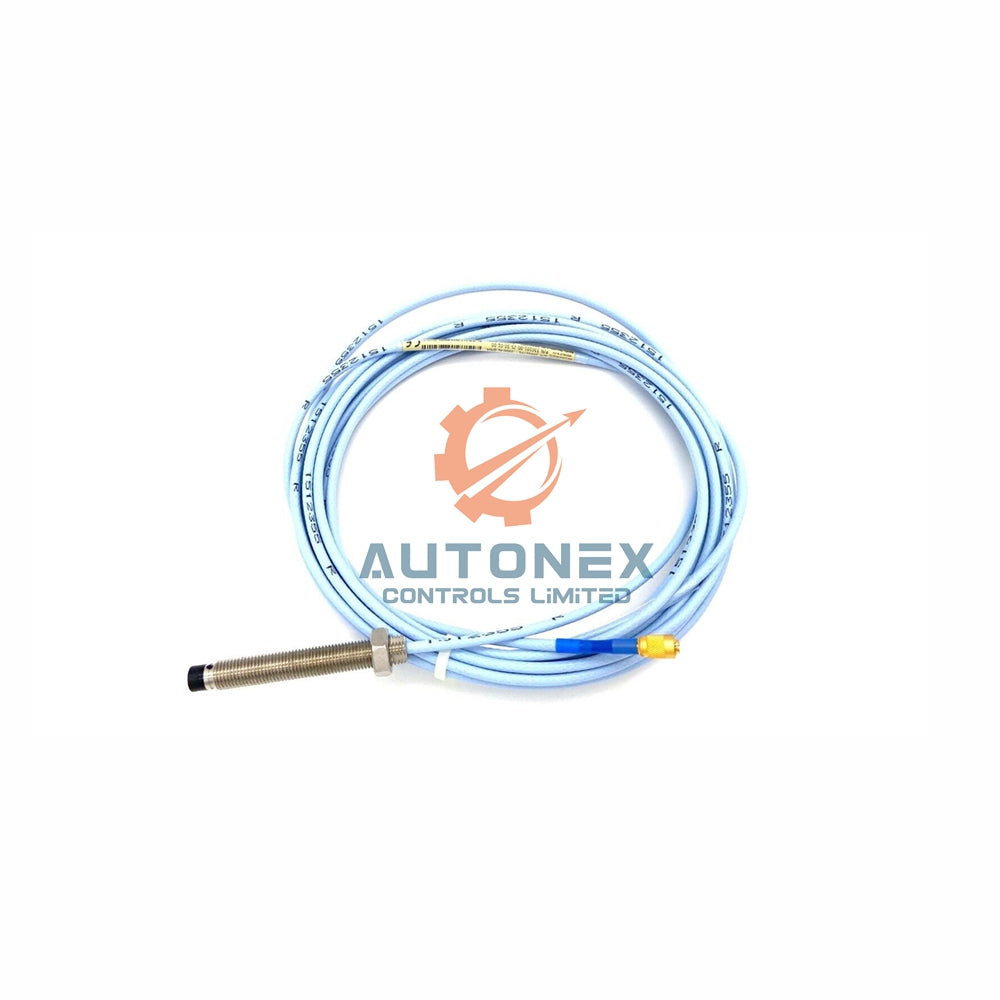

Bently Nevada 330903 M8 Proximity Probe 330903-00-03-05-02-00

Bently Nevada 330903-00-03-05-02-00 | 3300 NSv Proximity Probe

Model Configuration & Physical Details

• Full Part Number: 330903-00-03-05-02-00.
• Base Model: 330903 (3300 NSv Series Probe).
• Mounting Thread: Standard M8 x 1 metric thread.
• Case Dimensions: 0 mm unthreaded length with a short 30 mm overall case length.
• Integrated Cable: Includes a 0.5 meter (20 inch) factory-attached cable.
• Connection Type: Miniature coaxial ClickLoc connector on a standard cable.

Key Technical Specifications

• Manufacturer: Bently Nevada.
• Linear Measurement Range: 1.5 mm (60 mils), starting 0.25 mm from the target.
• Recommended Gap: Set the probe at 1.0 mm (40 mils) from the target for standard operation.
• Scale Factor / Sensitivity: 7.87 V/mm (200 mV/mil), with a tolerance of +12.5%/-20%.
• Output Signal Type: Analog voltage output proportional to the gap.

Environmental & Mechanical Ratings

• Minimum Target Size: Requires a minimum target of 8.9 mm; 13 mm or larger is recommended.
• Sealing: Includes a Viton O-ring for a basic seal (not pressure-tested as standard).
• Cable Specifications: 75 Ω coaxial cable with FEP insulation.
• Minimum Bend Radius: Maintain a 25.4 mm (1 inch) bend radius for the cable.

Part Number Suffix Information

• The suffix -00-03-05-02-00 defines this probe's exact build:
• -00: Indicates 0 mm of unthreaded probe length.
• -03: Specifies a 30 mm overall case length.
• -05: Denotes a 0.5 meter integrated cable length.
• -02: Refers to a standard cable with a miniature ClickLoc connector.
• -00: Means no special agency approvals are required for this version.

Frequently Asked Questions (FAQ)

• Q: What are your shipping terms and carriers?
  A: We process orders within 5 business days and ship worldwide via DHL, FedEx, or UPS.
• Q: Can I return the product if needed?
  A: We offer a 30-day return policy for items in new, unused condition with original packaging.
• Q: What is the mounting thread size?
  A: This probe has an M8 x 1 metric mounting thread for easy installation.

For complete system integration guidelines, detailed performance graphs, and electrical specifications, download the full technical manual.
Download the complete datasheet here: 3300 XL NSv Proximity Transducer System Datasheet - 147385
