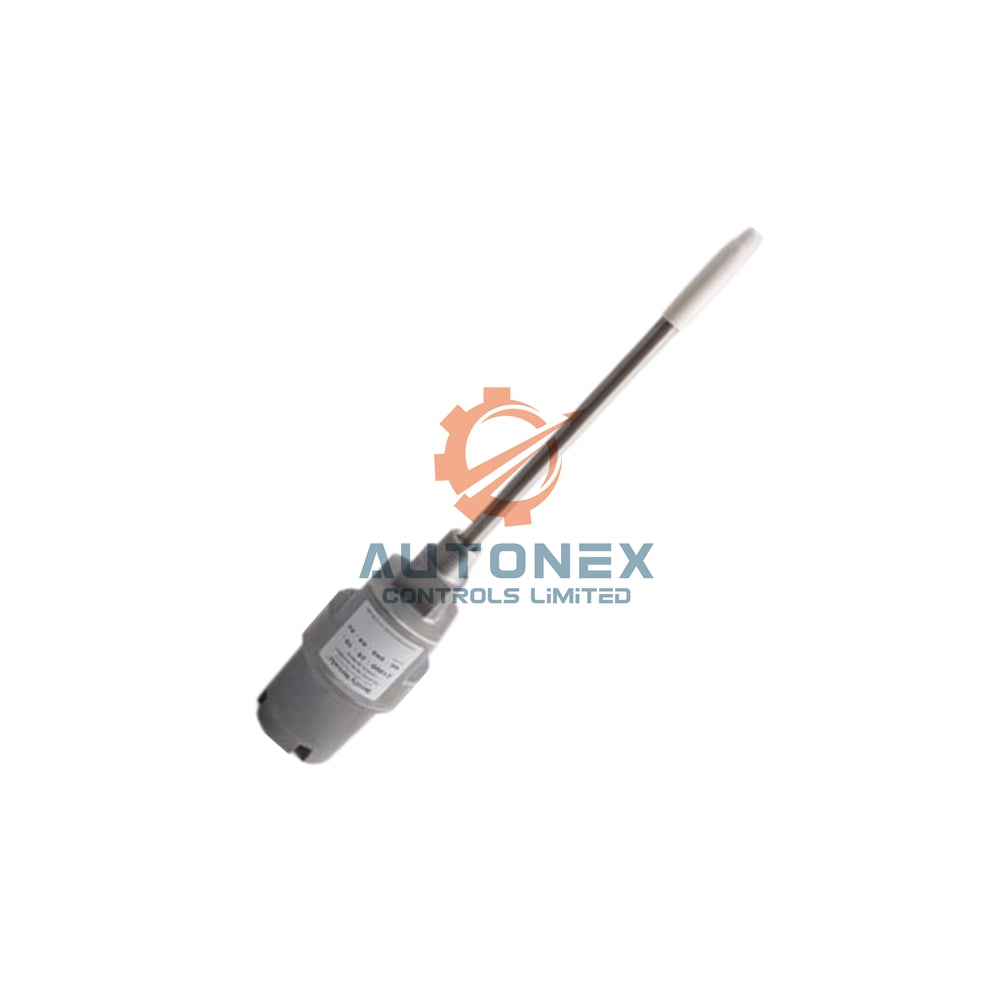

21000-34-10-15-018-03-02 Bently Nevada 21000 Series Housing Assembly

21000-34-10-15-018-03-02 – Proximity Probe Housing Assemblies by Bently Nevada

Technical Specifications – Bently Nevada 21000 Series

• Brand: Bently Nevada | Model: 21000-34-10-15-018-03-02
• Probe Option: 3300 XL 8 mm probe with connector protector – selectable hazardous area approvals.
• Probe Cable Length: 1.0 meter (39 inches) – code 10 provides integral cable.
• Standoff Adapter: 1.5 inches (15 option) for precise gap control.
• Probe Penetration: 1.8 inches (018 option) – ensures correct insertion depth into the machine.
• Fitting Option (03): Includes one 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and one cable seal grip with grommets for three cable sizes (1/8-3/16 in, 1/4-5/16 in, 5/16-3/8 in).
• Mounting Thread: 3/4-14 NPT (-02) – mandatory when standoff adapter is not -00.
• Material: Aluminum body with 304 stainless steel sleeve – excellent corrosion resistance.
• Weight: 1.1 kg (2.4 lb) typical without fittings – compact yet robust.
• Max Dimension (C+D) with visible probe: 17.0 inches (43.18 cm).
• Max Overall (C+D) Dimension: 32.9 inches (83.5 cm) for extended configurations.
• CSA Rating: Explosion proof for hazardous areas – Type 4 enclosure.
• API Compliance: Fully meets API 670 Standard for externally mounted proximity probe housings.

Frequently Asked Questions (FAQ)

• Q: Is this housing assembly brand new?
  A: Yes, it is brand new and original in factory packing – full 12-month warranty from Bently Nevada.
• Q: What is the complete model number?
  A: The full model is 21000-34-10-15-018-03-02 – a Bently Nevada proximity probe housing assembly.
• Q: Which probe does this housing accept?
  A: It includes a 3300 XL 8 mm probe with connector protector and a 1.0 meter cable.
• Q: What cable sizes work with the included seal grip?
  A: The kit includes grommets for 1/8-3/16 in, 1/4-5/16 in, and 5/16-3/8 in cables.
• Q: Is this housing explosion-proof?
  A: It carries CSA explosion-proof rating when ordered with CA version and E:00/E:01/E:02/E:04 options. The base housing meets Type 4 enclosure standards.
• Q: What is the standoff adapter length on this model?
  A: This version has a 1.5 inch standoff adapter (code 15).
• Q: How deep does the probe penetrate?
  A: The probe penetration is fixed at 1.8 inches (018 option).
• Q: Do you have stock for this specific suffix code?
  A: Yes, we have this exact model in stock – ships within 5 days via DHL/FedEx/UPS.
• Q: What is the return policy?
  A: We offer a 30-day return window – product must be unused and in original packing.
• Q: Can I use this housing in API 670 compliant systems?
  A: Absolutely. Both 21000 and 24701 housings fully comply with API 670 Standard.
