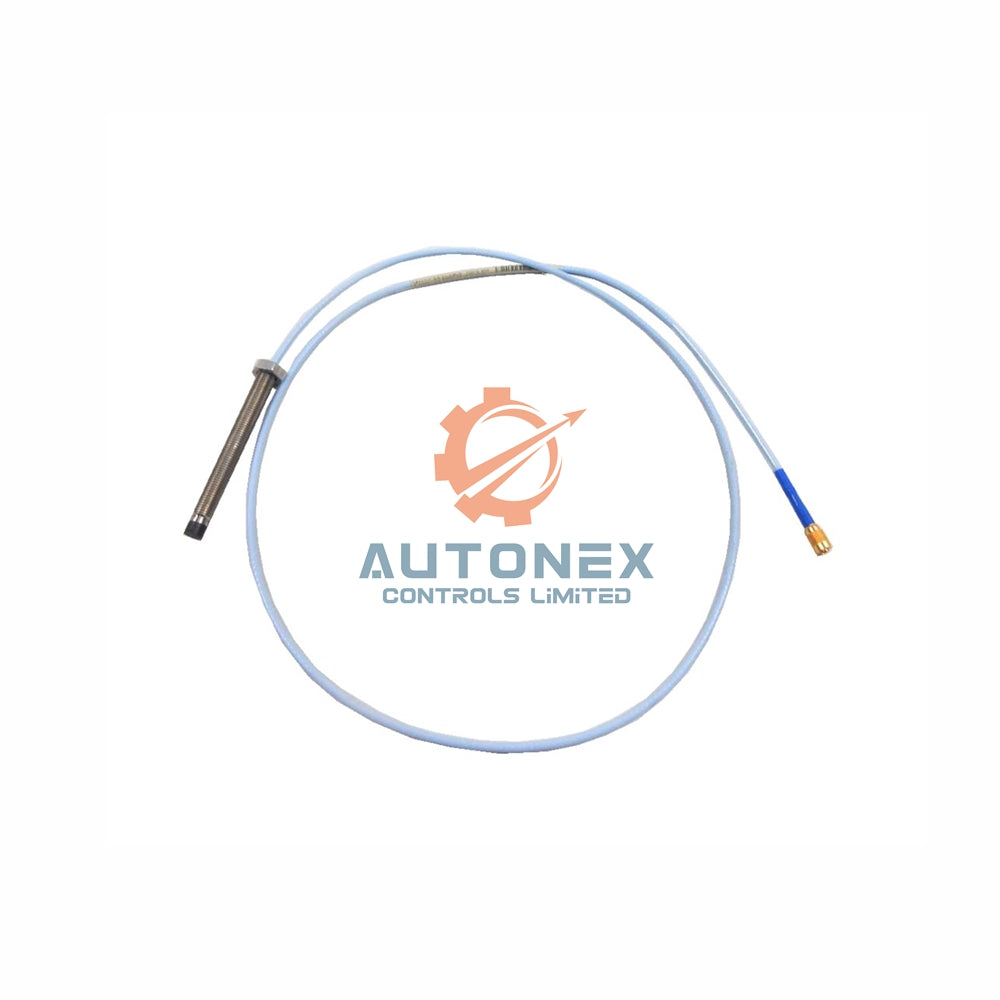

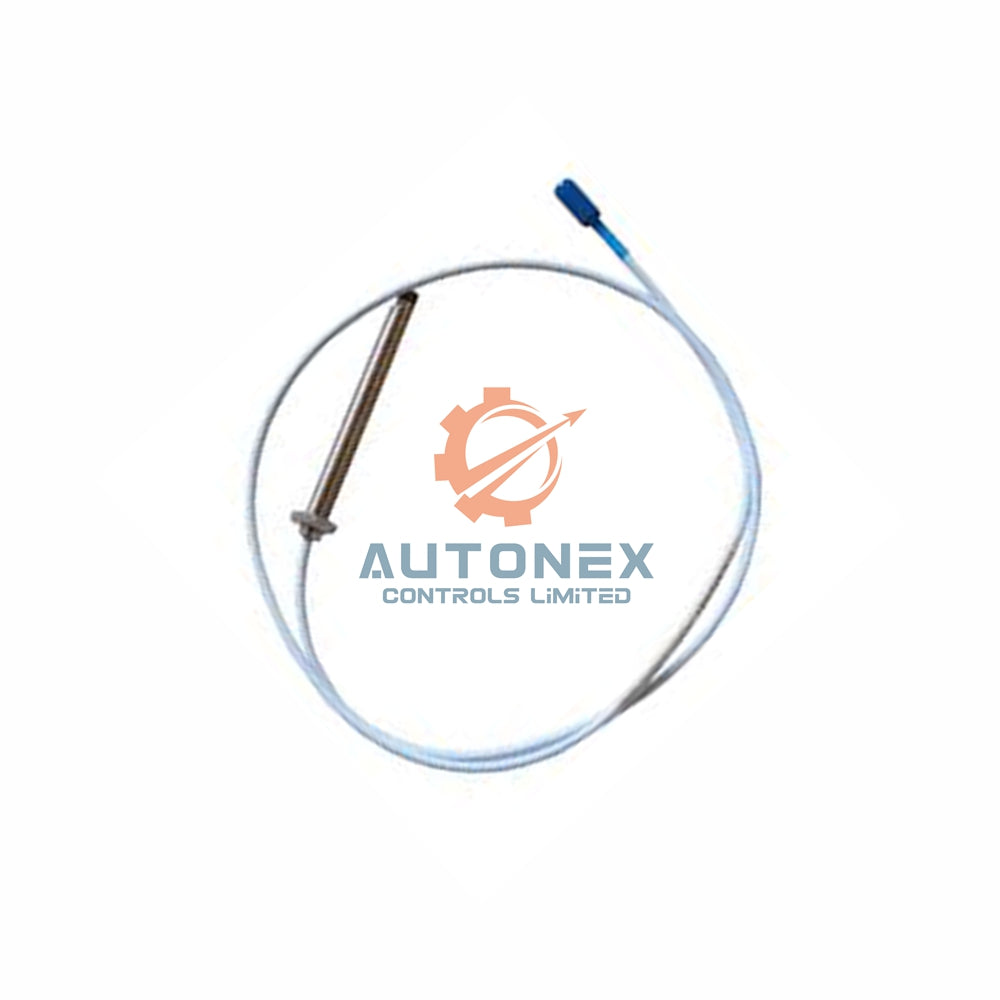

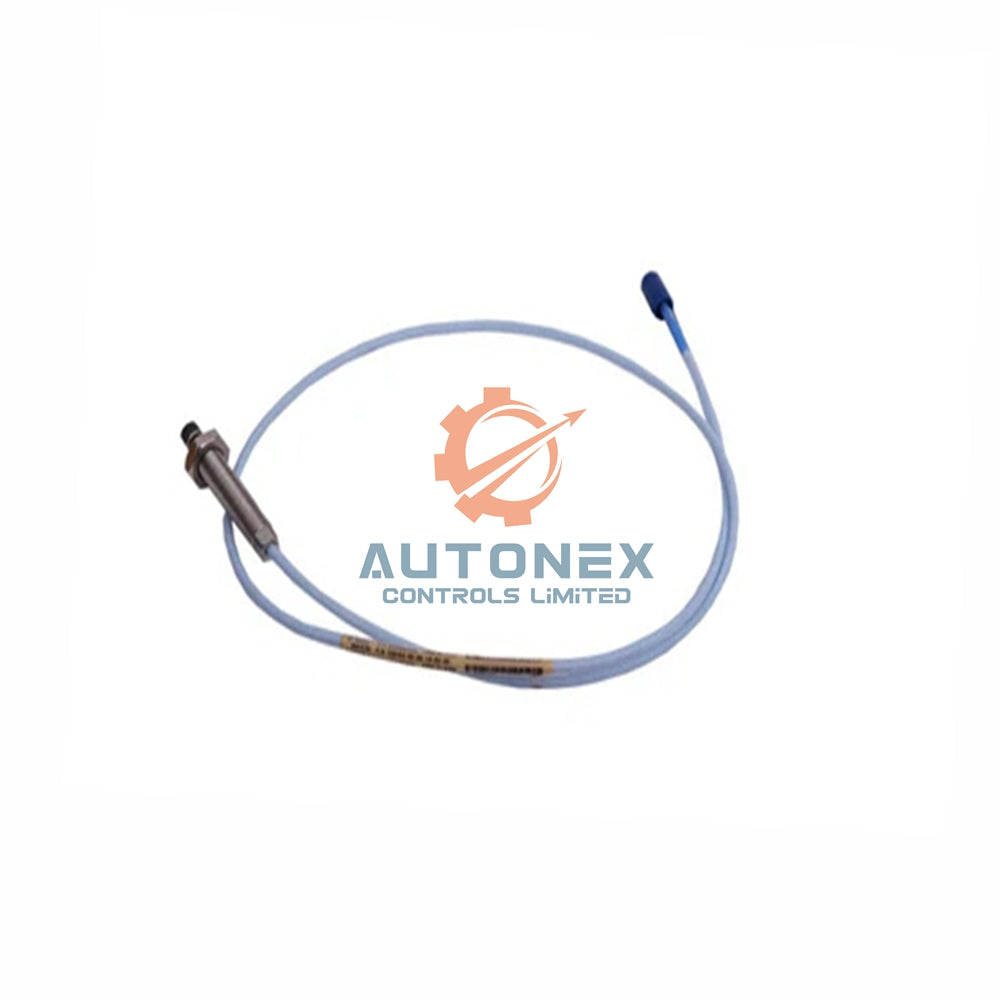

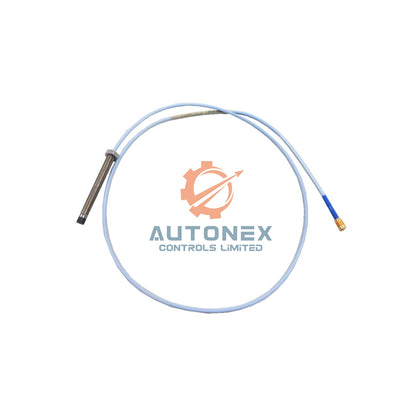

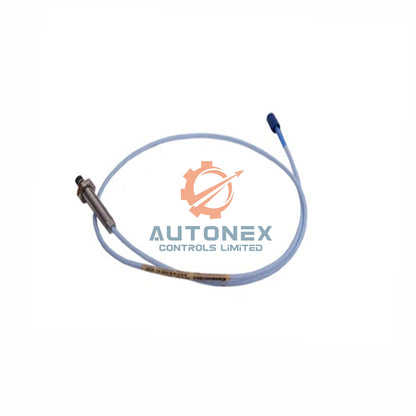

Bently Nevada 3300 XL 8mm Proximity Probe (Model 330103-00-05-15-02-CN)

Core Technical Specifications

• Brand & Manufacturer: Bently Nevada
• Model/Series: 3300 XL 8mm Proximity Probe
• Full Part Number: 330103-00-05-15-02-CN
• Measurement Range: Linear range of up to 2mm (80 mils).
• Output Signal: Standard voltage output from -1 to -17 Vdc.
• Electrical Accuracy: 7.73 Ω ±0.5 Ω coil resistance.
• Operating Temperature: -52°C to +218°C (-62°F to +424°F).

Model Suffix Configuration Details

• 00: Specifies 0mm of unthreaded section on the housing.
• 05: Indicates a 50mm long stainless steel case.
• 15: Denotes a longer 1.5 meter integrated cable.
• 02: Confirms the use of a ClickLoc connector.
• CN: Represents specific country approval and certification markings.

Installation & Wiring Guidelines

• Mount using the M10x1 thread with a maximum of 15mm engagement.
• For -9Vdc setting, the recommended target gap is 1.27mm (50 mils).
• Use proper shielded triad cable (16-24 AWG) for extensions.
• The maximum recommended wiring length from probe to monitor is 305 meters.
• Ensure all connections are secure to maintain signal integrity and accuracy.

System Compatibility & Integration

• This probe is fully compatible with Bently Nevada 3300 XL Proximitor sensor modules.
• It is designed for integration into systems requiring ATEX and IECEx certification.
• For intrinsic safety applications, use with approved safety barriers (e.g., per drawing 141092).
• Also compatible with galvanic isolators for ground loop prevention.

Environmental Certifications & Durability

• ATEX / IECEx: Certified Ex ia IIC T1-T5 Ga for hazardous areas.
• UL / CEC: Suitable for Class I Division 2, Groups A-D.
• Humidity Testing: Shows less than 3% ASF change after 56 days at 93% RH.
• The housing and Viton™ O-ring provide excellent environmental sealing.

Frequently Asked Questions (FAQ)

• Q: What is the main advantage of the 1.5m cable (-15)?
  A: The longer 1.5m cable offers more flexibility during installation in hard-to-reach locations.
• Q: Is this sensor suitable for Division 1 hazardous areas?
  A: The Ex ia certification makes it suitable for Zone 0/Division 1 hazardous areas when used with an approved intrinsically safe barrier.
• Q: Can I use a different connector with this probe?
  A: No, the integrated cable is permanently fitted with a ClickLoc connector (-02). You must use compatible extension cables.
• Q: What is your return policy?
  A: We offer a 30-day return policy for items in new, unused condition with original packaging.
• Q: Do you have this model in stock?
  A: Yes, the 330103-00-05-15-02-CN is typically available from our stock for quick shipment.

For complete system integration details, performance curves, and safety guidelines, please consult the official documentation. Download the full 3300 XL 8mm Proximity Transducer System Datasheet here (PDF).

Contact Information Inquiries: For technical and sales support, please email sales@nex-auto.com or contact us via WhatsApp (+86 153 9242 9628).

Partner: NexAuto Technology Limited
