Bently Nevada 200152-04-10 Cable | 4m Waterproof Extension

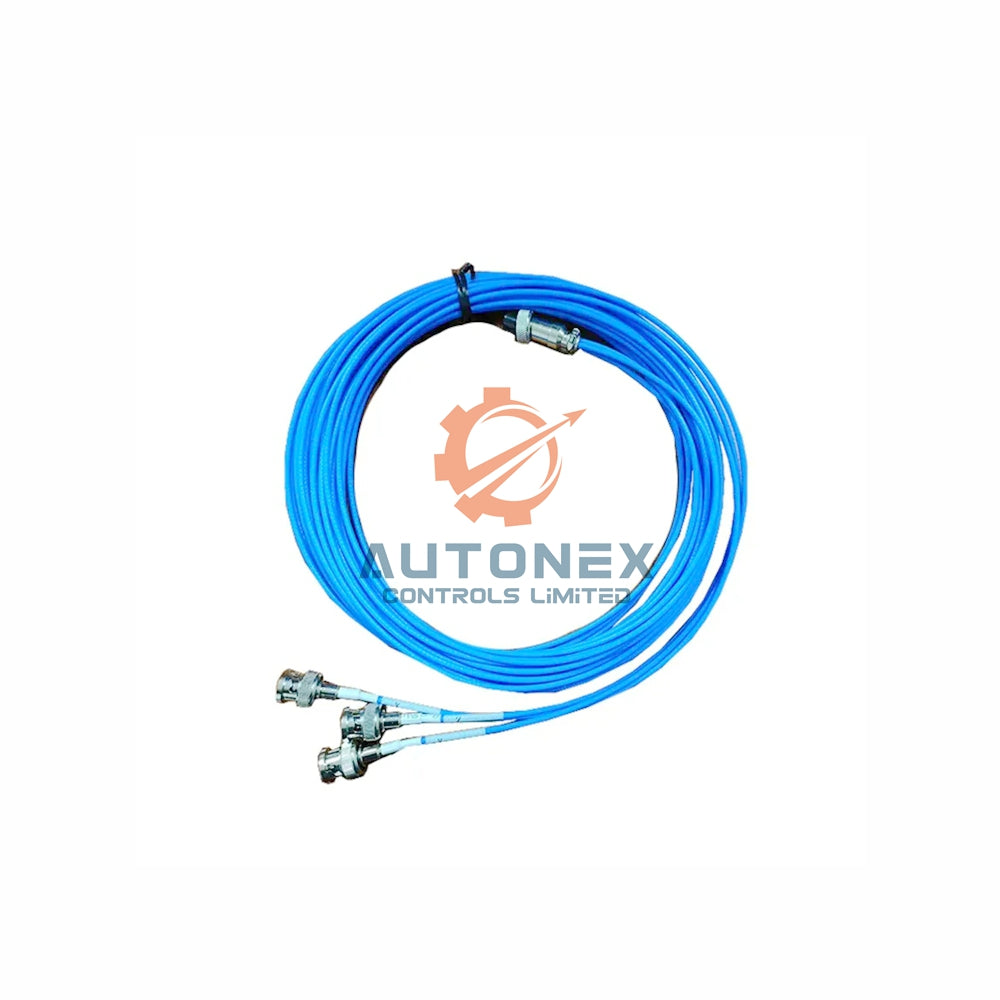

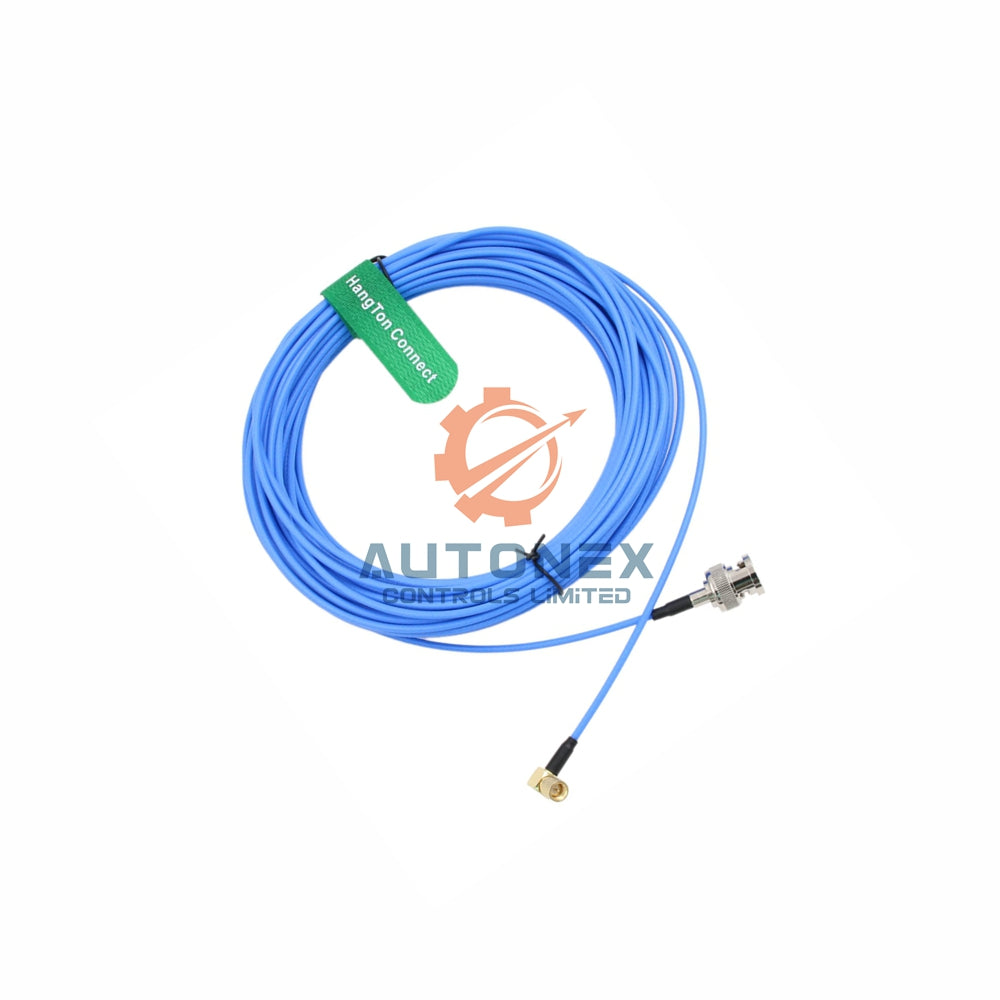

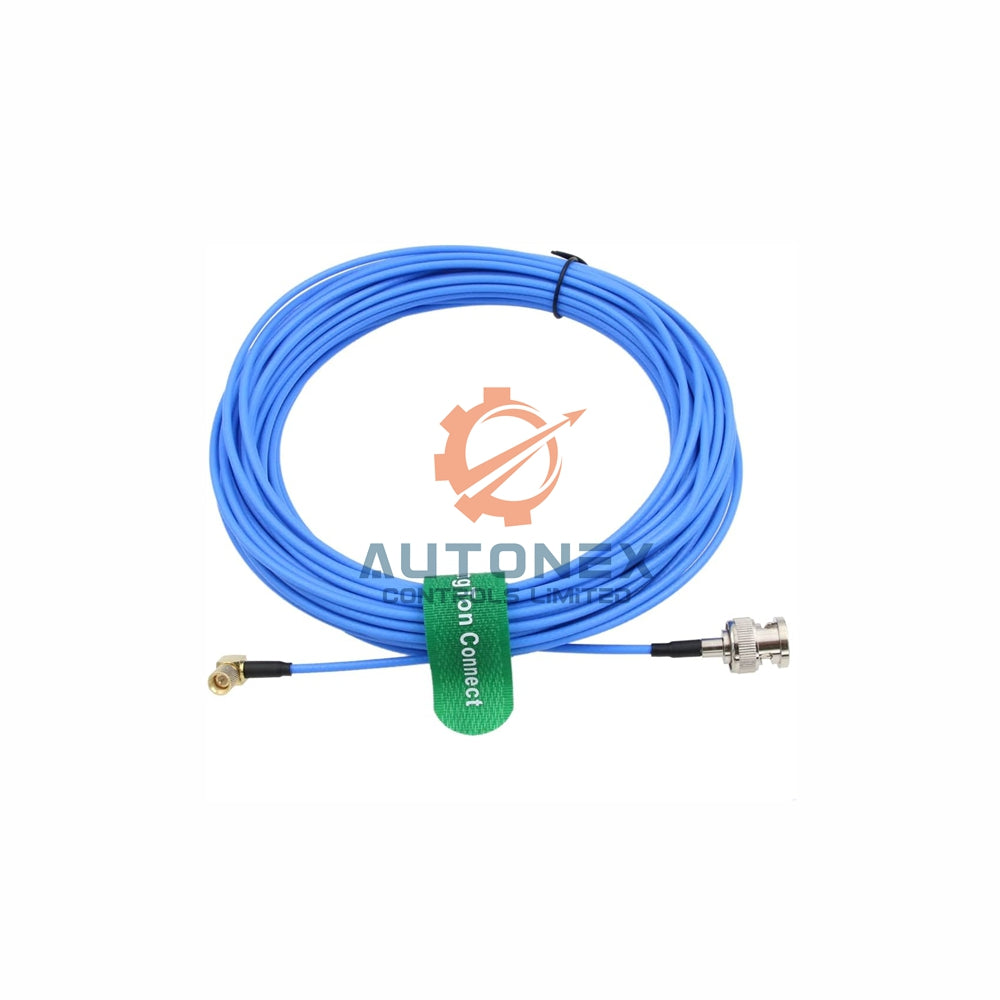

Bently Nevada 200152-04-10 4-Meter Sensor Extension Cable

Complete Ordering Configuration

• Brand: Bently Nevada
• Base Model: 200152
• Full Suffix: 200152-04-10
• Length Code (-04): 4.0 meters (13.1 feet)
• Nut Suffix (-10): Enhanced coupling nut on accelerometer end only
• Shelf Life: 1 year under recommended storage conditions
• Origin: Made in USA

Suffix Structure Breakdown

• 200152
  • -04
    • 4.0 meter cable length
    • Precision-cut and terminated
  • -10
    • Enhanced coupling nut specification
    • Accelerometer-end only configuration
    • Superior vibration resistance

Electrical Specifications

• Characteristic Impedance: 98 Ω ±5 Ω
• Capacitance: 92 pF/meter
• Attenuation: 0.02 dB/meter at 1 MHz
• Maximum Current: 2 amperes continuous
• Conductor Configuration: 4-wire shielded design

Mechanical & Physical Properties

• Minimum Bend Radius: 73.7 mm (2.9 inches)
• Outer Diameter: 6.2 mm
• Insulation Thickness: 0.8 mm
• Tensile Strength: 140 Newtons
• Weight: 50 grams per meter

Temperature Performance

• Standard Operating Range: -20°C to +100°C
• Extended Range: -55°C to +121°C
• Cure Requirement: 24-hour stabilization at extended temperatures
• Thermal Shock: Withstands rapid temperature transitions

Technical Documentation

• Download complete accelerometer family specifications: 200150, 200155 and 200157 Accelerometers Datasheet (PDF)
• This document contains full electrical and mechanical data for compatible sensors

Frequently Asked Questions

• Q: What advantage does the -10 enhanced coupling nut provide?
  The 200152-04-10 includes a precision-machined coupling nut with improved thread engagement and vibration-resistant locking features compared to standard versions.

• Q: Can I use this 4-meter cable in high-vibration environments?
  Yes. The 200152-04-10 enhanced coupling nut specifically addresses vibration loosening concerns in rotating machinery applications.

• Q: What does the 98 Ω impedance rating mean for my system?
  This controlled impedance matches Bently Nevada sensor outputs and monitor inputs, minimizing signal reflections and maintaining measurement accuracy.

• Q: Is the 24-hour cure requirement mandatory?
  Only when exposing the cable to the full -55°C to +121°C extended range. Standard -20°C to +100°C operation requires no special conditioning.

• Q: How does 140N tensile strength compare to standard cables?
  This represents approximately 31 pounds of pull force, significantly higher than commercial-grade sensor cables, ensuring reliability in industrial pulling applications.

• Q: Does the -10 suffix affect waterproofing capability?
  No. The enhanced coupling nut maintains the same IP-rated sealing as standard configurations while adding mechanical retention benefits.
