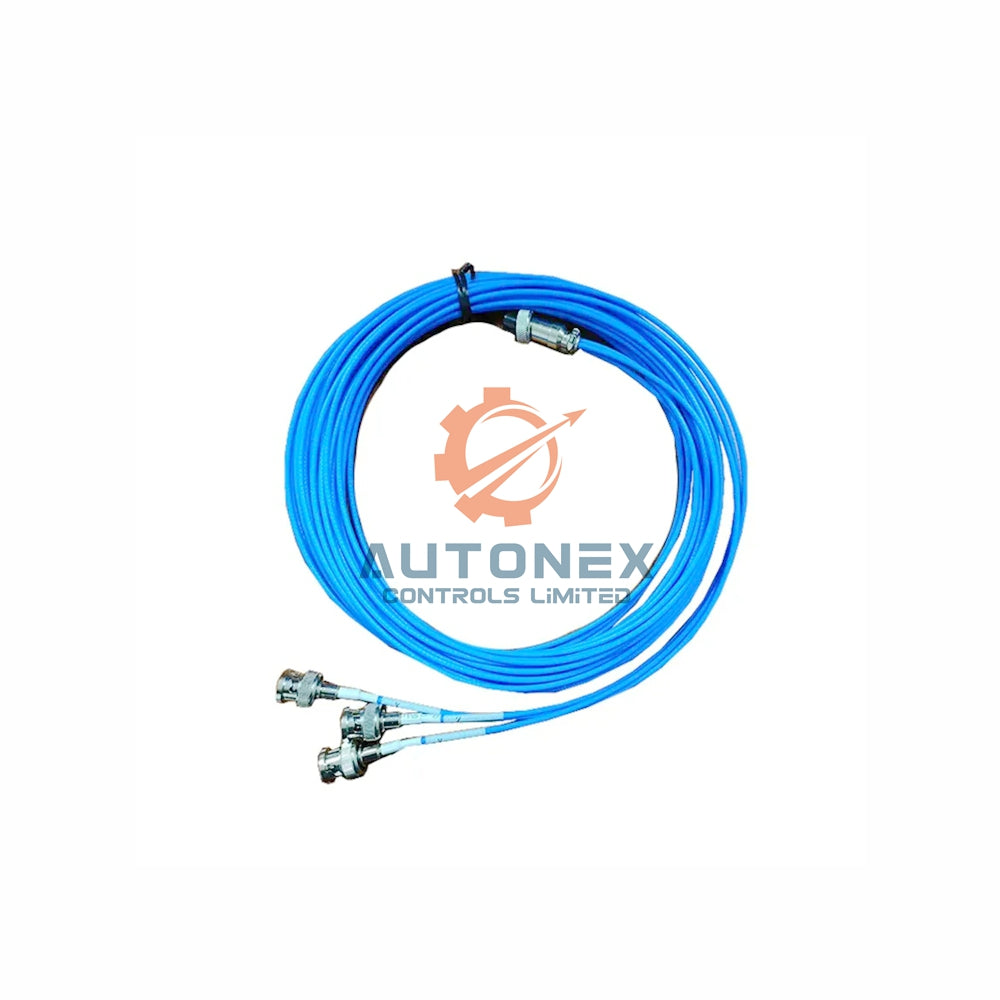

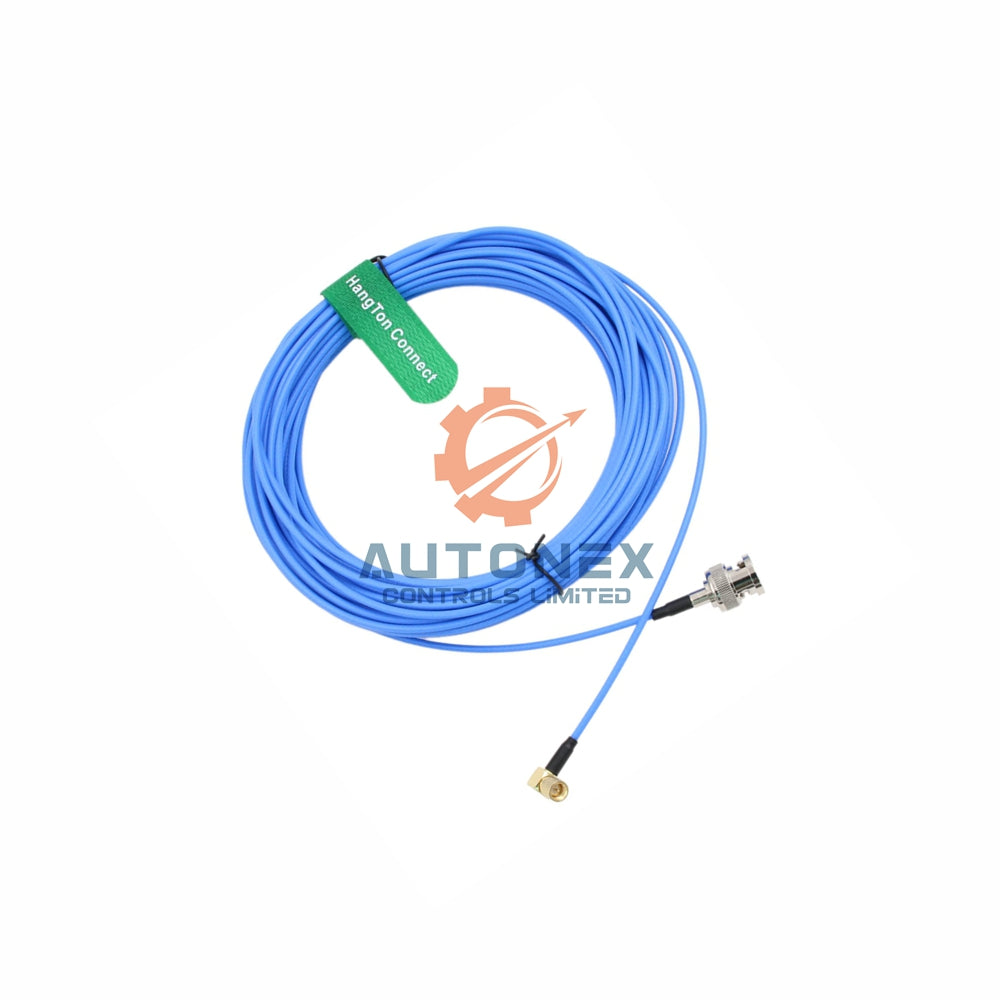

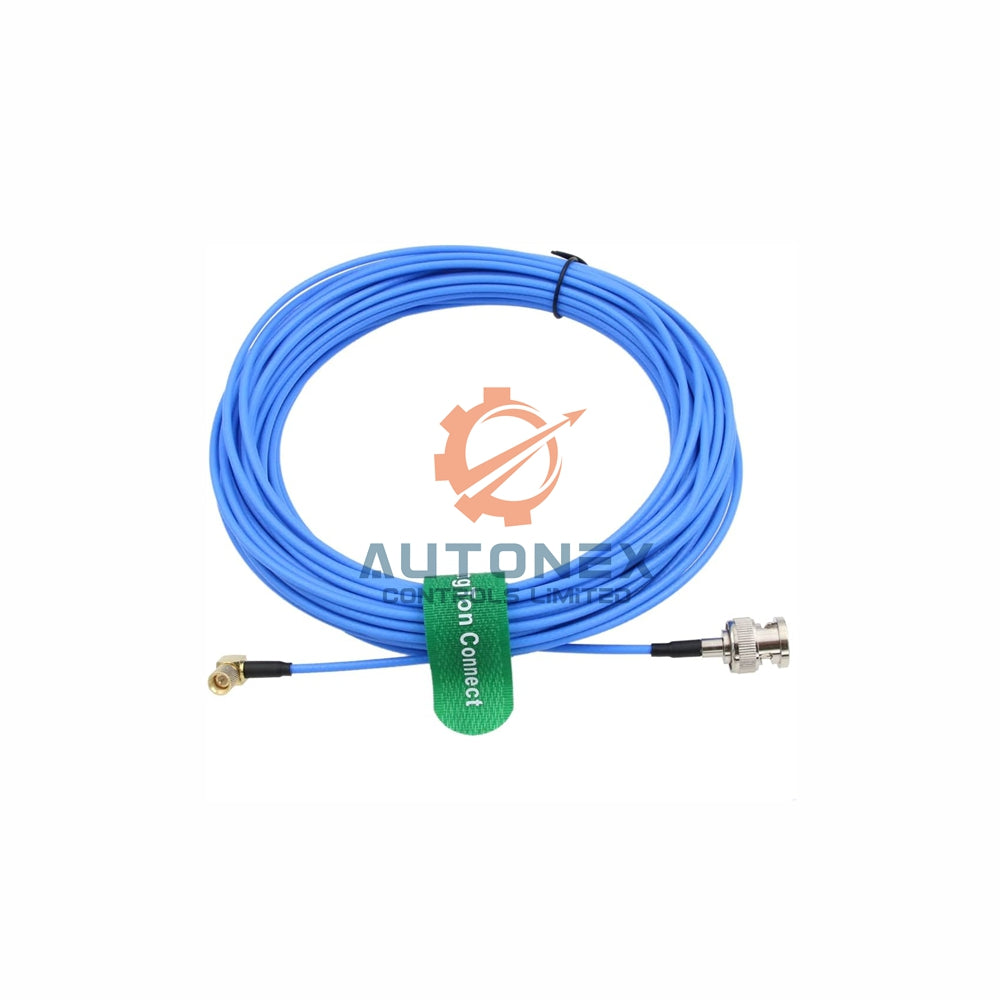

Bently Nevada 200152-04-00 Accelerator Standard Cable | 4m

Bently Nevada 200152-04-00 Precision Accelerometer

Technical Specifications

• Brand: Bently Nevada
• Full Suffix Configuration:
  • Base Model: 200152-04-00
  • Length Code -04: 4.0 meters (13.1 feet)
  • Nut Suffix -00: Standard coupling nut on accelerometer end
• Bend Radius: 73.7 mm (2.9 in)
• Operating Temperature: -20°C to +100°C
• Extended Temperature: -55°C to +121°C (after 24h cure)
• Dielectric Strength: 2000 V/mm
• Frequency Range: DC to 200 kHz
• Inductance: 0.7 μH/m
• Dielectric Constant: 3.2
• Shelf Life: One year

Construction and Durability

• Cable Build: 4 conductor, 22 AWG PVC jacket with ≥85% braided shield and drain wire.
• Flame Rating: UL94 V-0 certified for high temperature industrial environments.
• UV Resistance: 600 hours at 70°C withstands prolonged sunlight exposure.
• Anti‑Interference: Braided shield rejects EMI/RFI from motors and drives.

Performance Characteristics

• Measurement Range: Full scale dynamic response from DC to ultrasonic frequencies.
• Frequency Response: Flat broadband accuracy from 0 Hz to 200 kHz.
• Sensitivity & Linearity: Stable output with minimal deviation across operating range.
• Resolution: High fidelity signal capture for early fault detection.
• Environmental Tolerance: Rated from -55°C to +121°C with thermal cycling capability.

Datasheet Download

Review complete electrical specifications and mechanical drawings. Download the official Bently Nevada datasheet for 200152, 200155, and 200157 series here: 200150, 200155 and 200157 Accelerometers Datasheet (PDF).

Frequently Asked Questions

• What does the -04 length code mean for 200152-04-00?
  The -04 specifies 4.0 meters of attached cable. This length suits most machinery train installations without excess cable slack.
• What is the -00 nut suffix?
  The -00 indicates a standard coupling nut on the accelerometer end. This is the default mounting hardware for most Bently Nevada installations.
• Can this sensor detect high frequency vibrations?
  Yes. The DC to 200 kHz range captures both slow speed machinery and high frequency gearmesh signals.
• Is this cable suitable for outdoor use?
  Yes. The PVC jacket passes 600 hours UV resistance testing at 70°C. It also carries UL94 V-0 flame certification.
• What is the dielectric strength value?
  2000 V/mm provides excellent insulation protection against voltage transients in industrial panels.
• Do you ship to oil and gas facilities?
  Yes. We ship daily via FedEx, UPS, and DHL to refineries and offshore platforms worldwide.
