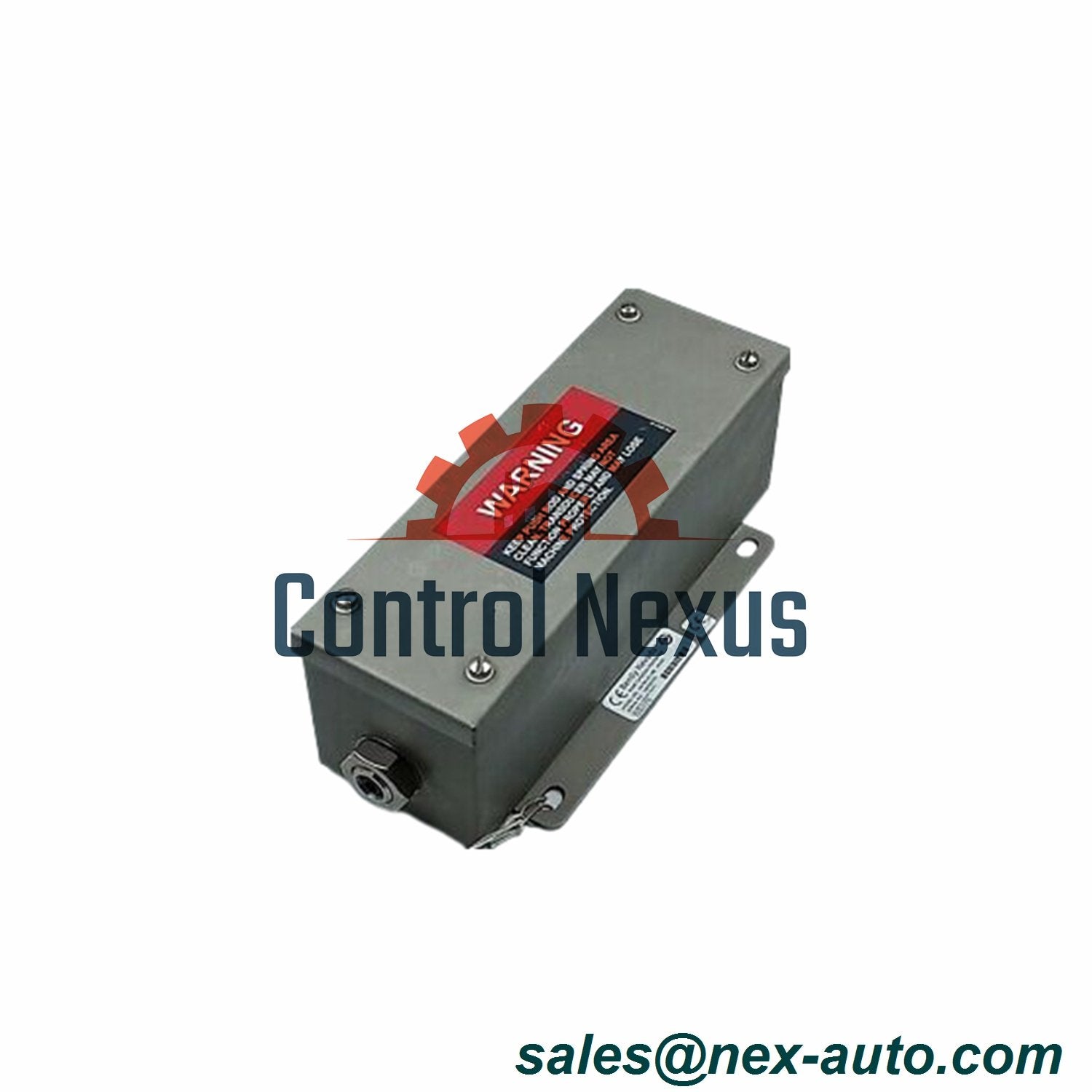

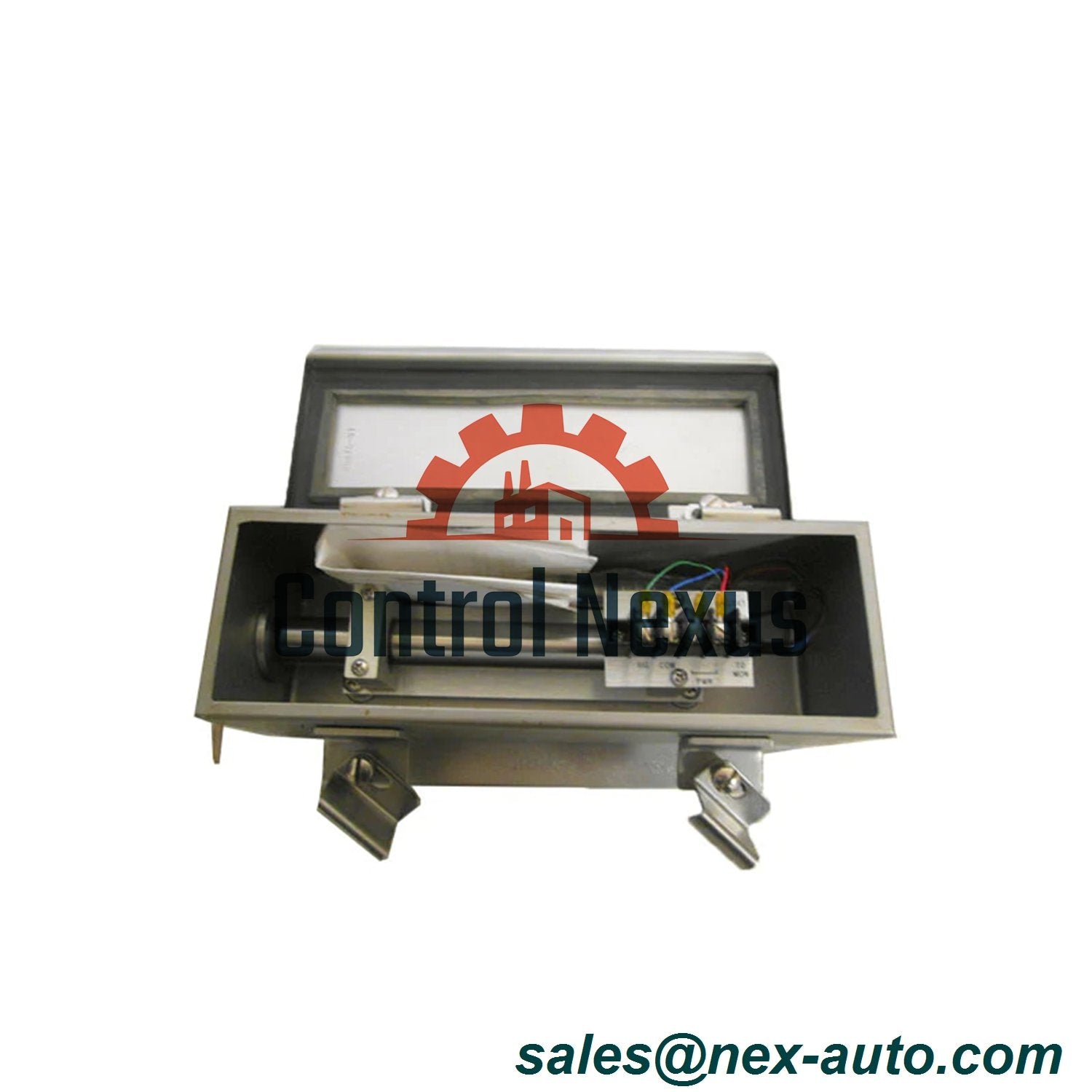

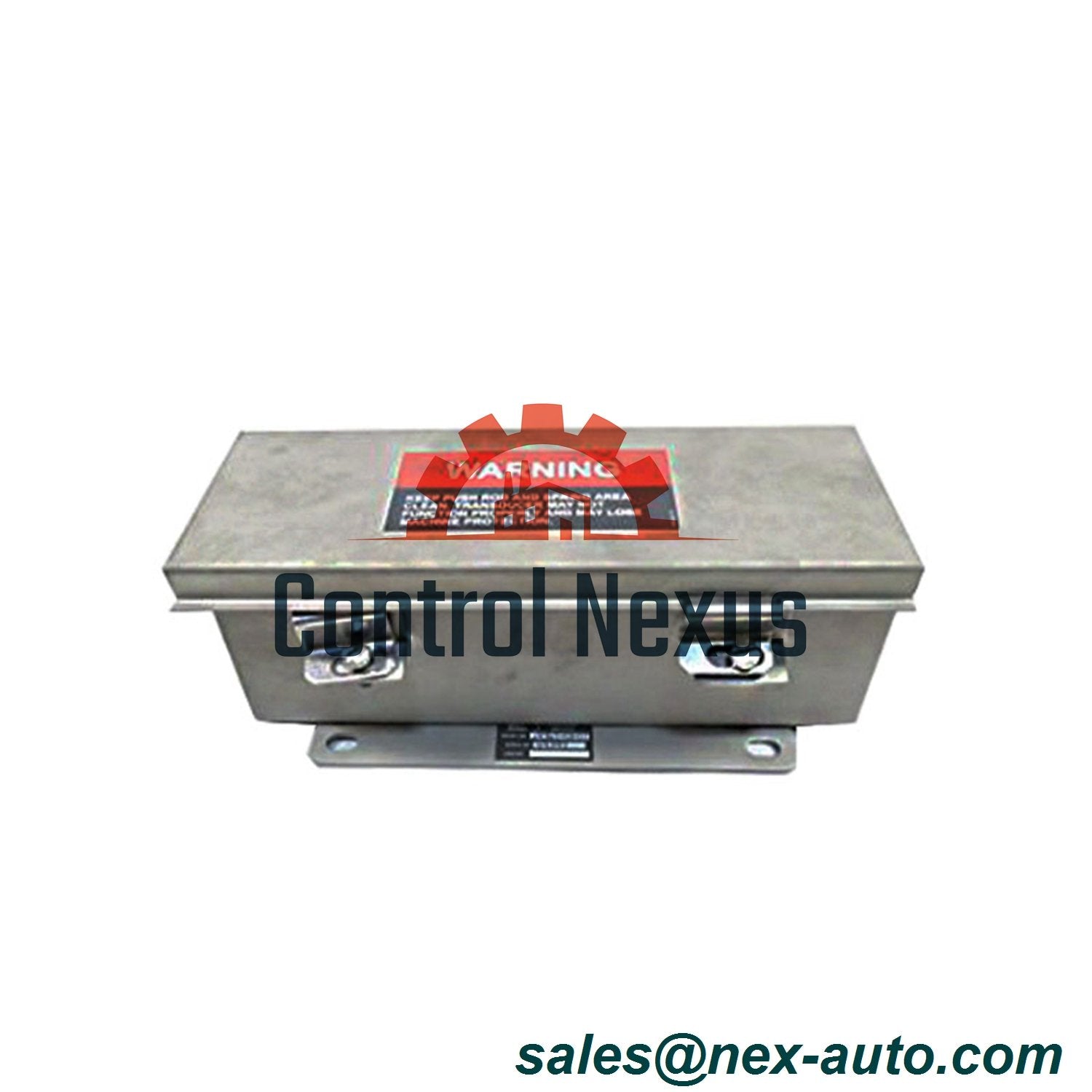

Bently Nevada 135613-02-01 - Expansion Transducer Assembly

In stock (15 units), ready to be shipped

Bently Nevada 135613-02-01 High Temperature Case Expansion Transducer

Core Specifications

  • Model: 135613-02-01
  • Voltage Output: 0.10 V/mm ±0.5% (2.5 V/in)
  • Frequency Bandwidth: 200 Hz at -3 dB
  • Operating Range: -25°C to +85°C (-13°F to +185°F)
  • Measurement Error: <0.25% full-scale non-linearity

Environmental Resilience

  • Shock Survival: 100g peak (MIL-STD-810)
  • Ingress Protection: IP65 dust and water jet resistant
  • Storage Limits: -55°C to +125°C (-67°F to +257°F)
  • Cable Length: 1.5 meters with FEP insulation rated to 260°C

Physical Design

  • Dimensions: 8.89 cm (H) × 11.7 cm (W) × 24.1 cm (D)
  • Weight: 2.3 kg (5.07 lbs)
  • Mounting: M12×1 thread, ±15° orientation tolerance
  • Housing Material: 316 stainless steel

Custom Configuration & Support

Custom setups available via sales@nex-auto.com

Download PDF file here: 24765 and 135613 Case Expansion Transducer Systems Datasheet - 141598
