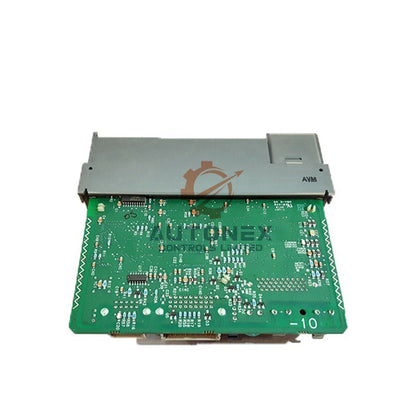

Allen-Bradley 1747-L532 SLC 5/03 Processor Module

Allen-Bradley 1747-L532 SLC 5/03 Programmable Logic Controller

• Brand & Model: This is an Allen-Bradley brand controller, with the specific model number 1747-L532 from the SLC 5/03 series.
• Memory & Processing: It features 16 KB (16,000 words) of user memory with battery backup. The processor offers a fast 0.225 ms I/O scan time and a 1 ms/K program scan rate.
• I/O System Capacity: The controller supports a large I/O system with 4096 Input and 4096 Output points. It can also handle up to 480 analog I/O points for complex monitoring and control tasks.
• Communication Ports: Built-in RS-232 and DH485 ports enable easy network setup and device messaging. These allow for peer-to-peer and SCADA applications right out of the box.
• Hardware Configuration: You can use up to 3 local I/O chassis with this processor. The system supports a maximum of 30 module slots for excellent expansion flexibility.
• Environmental Specifications: Designed for industrial use, it operates in a 0 to 60°C temperature range. The module can withstand 30G of operating shock in demanding factory environments.
• Power Requirements: The 1747-L532 draws 500 mA at 5V DC from the backplane. This ensures stable and reliable operation within your SLC 500 chassis.
• Backup & Protection: The unit uses a standard 1747-BA battery for memory backup. You can also save programs to a 1747-M13 Flash memory module for extra security against data loss.

Frequently Asked Questions (FAQ)

• Q: What is the memory size of the 1747-L532?
  A: It has a total of 16 KB of battery-backed RAM user memory.
• Q: What communication ports are on this SLC 5/03 processor?
  A: It has one RS-232 port and one DH485 communication port built-in.
• Q: How many I/O points can this controller handle?
  A: It supports up to 4096 discrete inputs and 4096 discrete outputs in a system.
• Q: What is the operating temperature range?
  A: The module operates correctly in ambient temperatures from 0 to 60 degrees Celsius.
• Q: Do you offer a return policy?
  A: Yes, we support a 30-day return policy for your confidence and satisfaction.
