900G04-0101 Honeywell Universal Digital Input Module

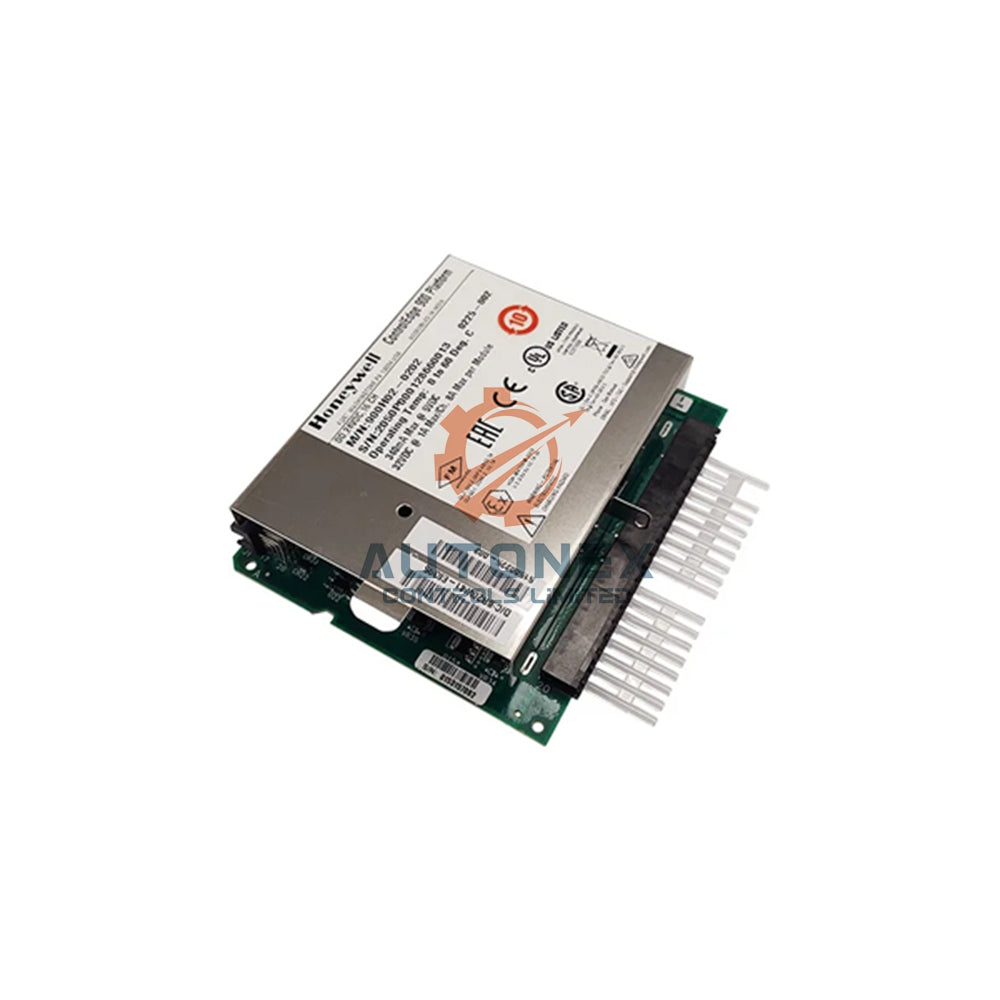

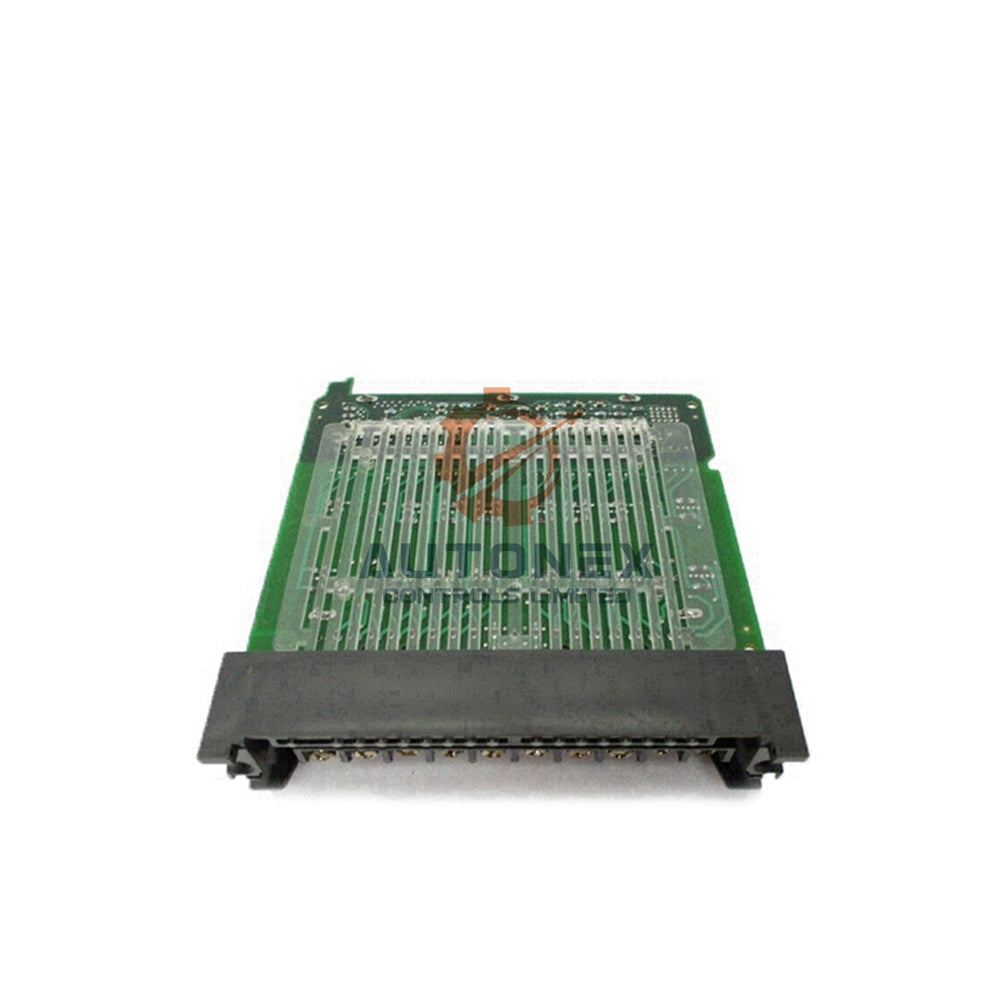

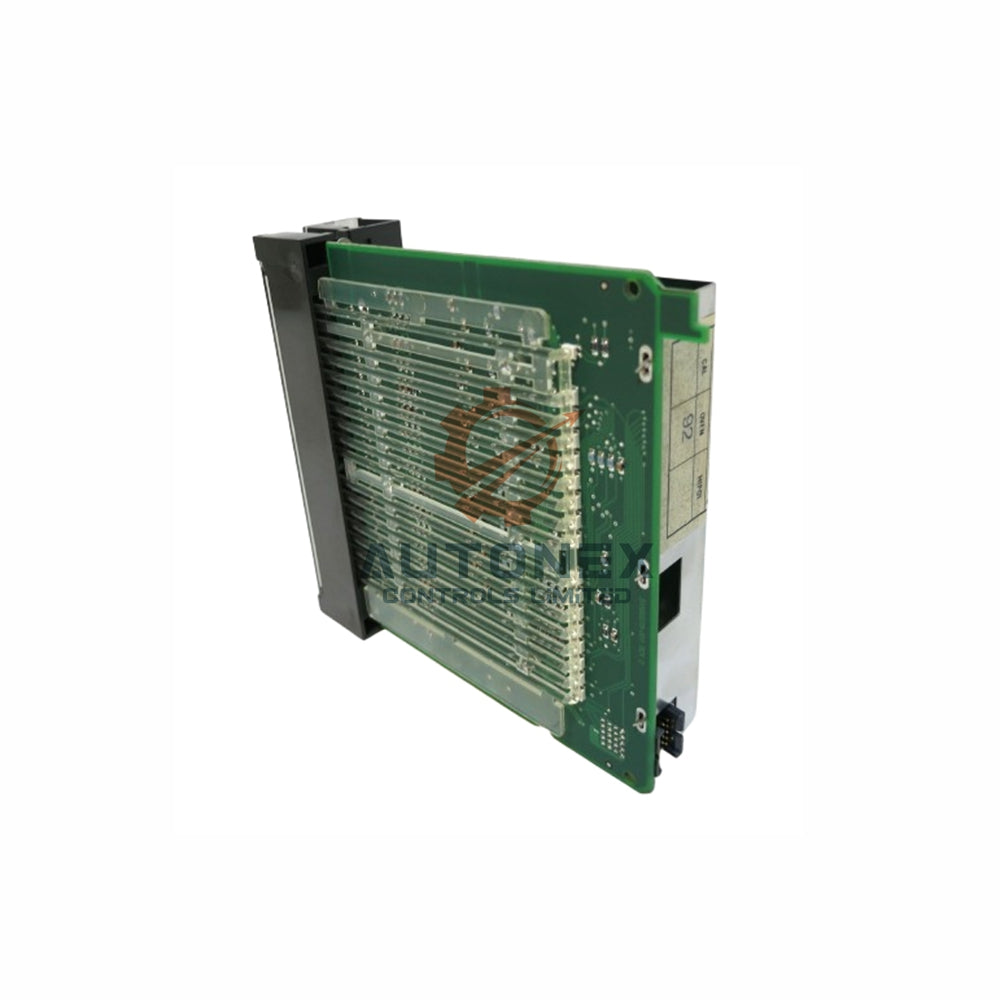

Honeywell 900G04-0101 Universal AC/DC Digital Input Module

The 900G04-0101 is a versatile 16-channel Digital Input module for the Honeywell HC900 controller. It accepts a wide range of AC or DC field voltages, providing maximum flexibility for industrial signal interfacing.

Core Technical Specifications

• Brand: Honeywell
• Model Number: 900G04-0101
• Product Type: Digital Input (DI) Module, Universal AC/DC
• Inputs per Module: 16 Channels
• Isolation: Individual Channel-to-Channel & Channel-to-Chassis
• Terminal Block: Euro Style 36-Terminal Block Required
• Channel Status Indicator: Green LED per Channel (ON when energized)
• Module Status LED: Green Blinking (Active Scan), Red (Fault)
• Logic Inversion: Supported in Controller Software
• Power Supply: Externally Powered by Field Voltage
• Operating Temperature: 0°C to +60°C (Standard HC900 Range)

AC Input Specifications

• Input Voltage Range: 80 VAC to 264 VAC
• Peak Voltage Rating: 264 VAC
• AC Frequency Range: 47 Hz to 63 Hz
• ON Voltage Level: 75 VAC Minimum
• OFF Voltage Level: 20 VAC Maximum
• Input Impedance: 48 kΩ Nominal
• Input Current (@120V AC, 60Hz): 1 mA Nominal
• Input Current (@240V AC, 50Hz): 2 mA Nominal
• Minimum ON Current: 0.3 mA
• Maximum OFF Current: 0.2 mA
• OFF to ON Response Time: 6 ms + 1.5 Line Cycles Max.
• ON to OFF Response Time: 6 ms + 2 Line Cycles Max.

DC Input Specifications

• Input Voltage Range: 80 VDC to 125 VDC
• Peak Voltage Rating: 150 VDC
• ON Voltage Level: 75 VDC Minimum
• OFF Voltage Level: 30 VDC Maximum
• Input Impedance: 48 kΩ Nominal
• Input Current (@125V DC): 2 mA Nominal
• Minimum ON Current: 0.3 mA
• Maximum OFF Current: 0.2 mA
• OFF to ON Response Time: 6 ms + 2 Line Cycles Max.
• ON to OFF Response Time: 6 ms + 2 Line Cycles Max.

Module Features & Design

• True universal input accepts both AC (80-264V) and DC (80-125V) signals on the same terminals.
• Each of the 16 channels is individually isolated from each other and from chassis ground (350V AC max).
• High input impedance (48kΩ) minimizes loading on the sensed circuit.
• Wide voltage ranges accommodate global power standards and various industrial control voltages.
• Individual per-channel LEDs provide immediate visual confirmation of the input state.
• Requires an external Euro style 36-terminal block for field wiring connections.
• Ideal for mixed signal environments or applications where sensor voltage type may change.

Installation & Wiring Guidelines

• Install in a compatible Honeywell HC900 rack. The module is externally powered by the field voltage.
• Use the specified Euro style 36-terminal block (not included) for all field connections.
• Each input requires two terminals: connect the field voltage across them (polarity sensitive for DC).
• Ensure the applied voltage (AC or DC) is within the specified ranges for reliable operation.
• For AC signals, frequency must be between 47-63 Hz.
• Follow all local electrical codes for the voltage level being used. Use appropriate wire gauges.
• Individual channel isolation allows mixing of different voltage sources on the same module.
